For mitre saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 3
Choose a pack size 1 Pcs
Eco for Aluminium Circular Saw Blade is the preferred choice for reliable cuts in aluminium
Available product options: 4
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 412 | 254 | 30 | 25.4 | 3/2.2 | 1 Pcs | Find a local dealer | ||
| 2 608 644 413 | 254 | 30 | 25.4 | 3/2.2 | 1 Pcs | Find a local dealer | ||
| 2 608 644 414 | 305 | 30 | 25.4 | 3/2.2 | 1 Pcs | Find a local dealer | ||
| 2 608 644 423 | 305 | 30 | 25.4 | 3/2.2 | 1 Pcs | Find a local dealer |
out of products

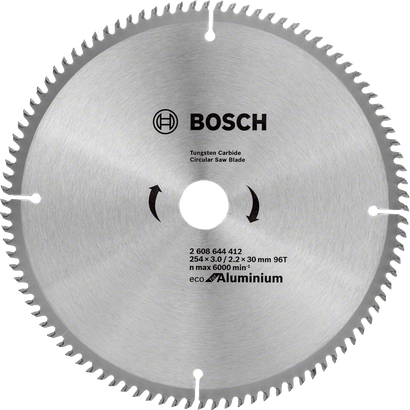

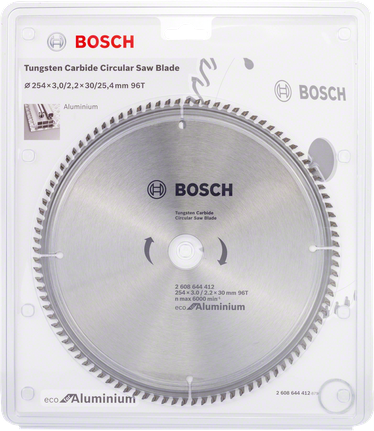

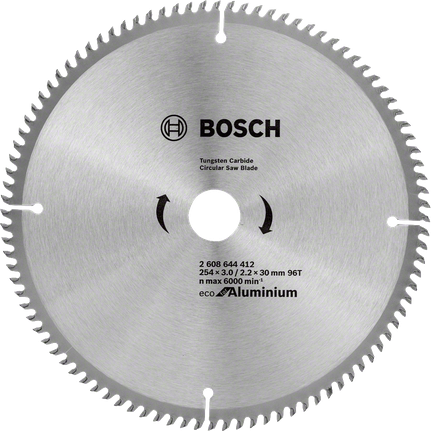

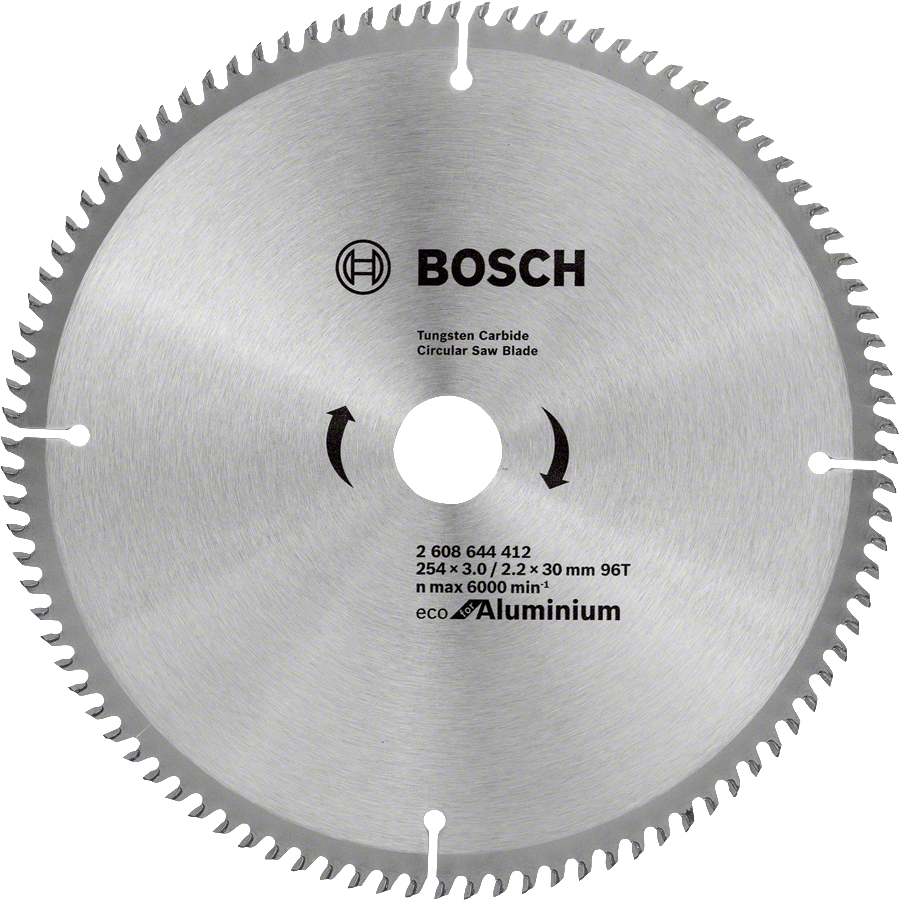

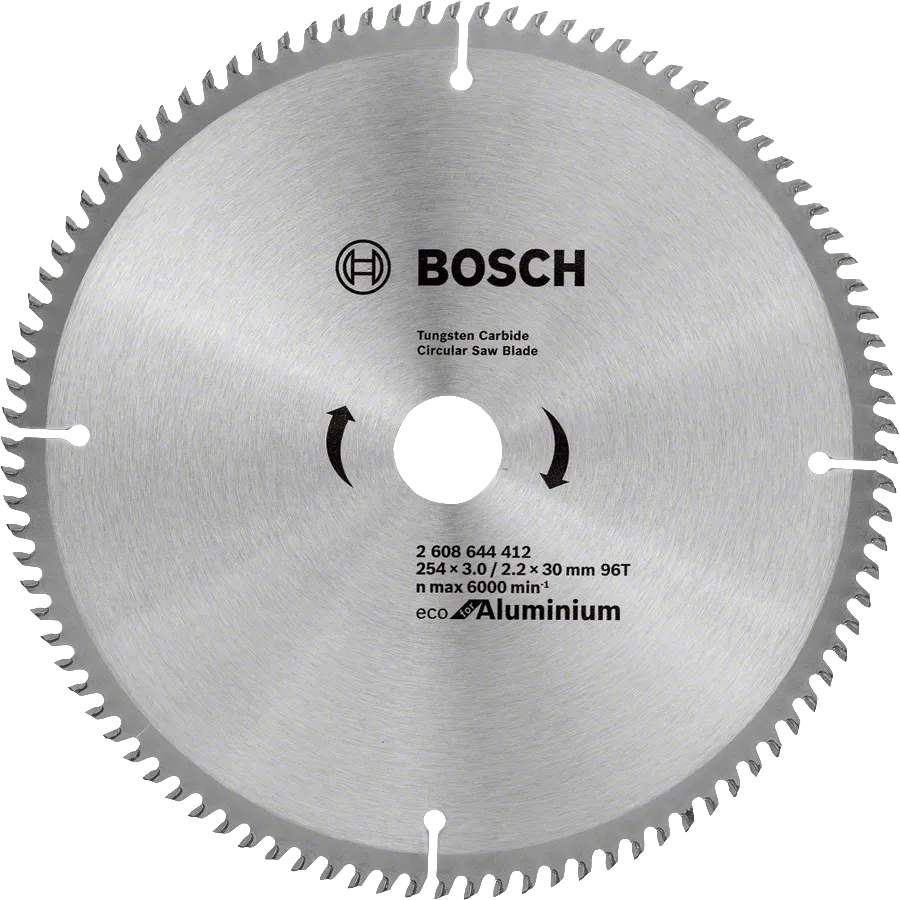

| Part number 2608644412 | |
|---|---|

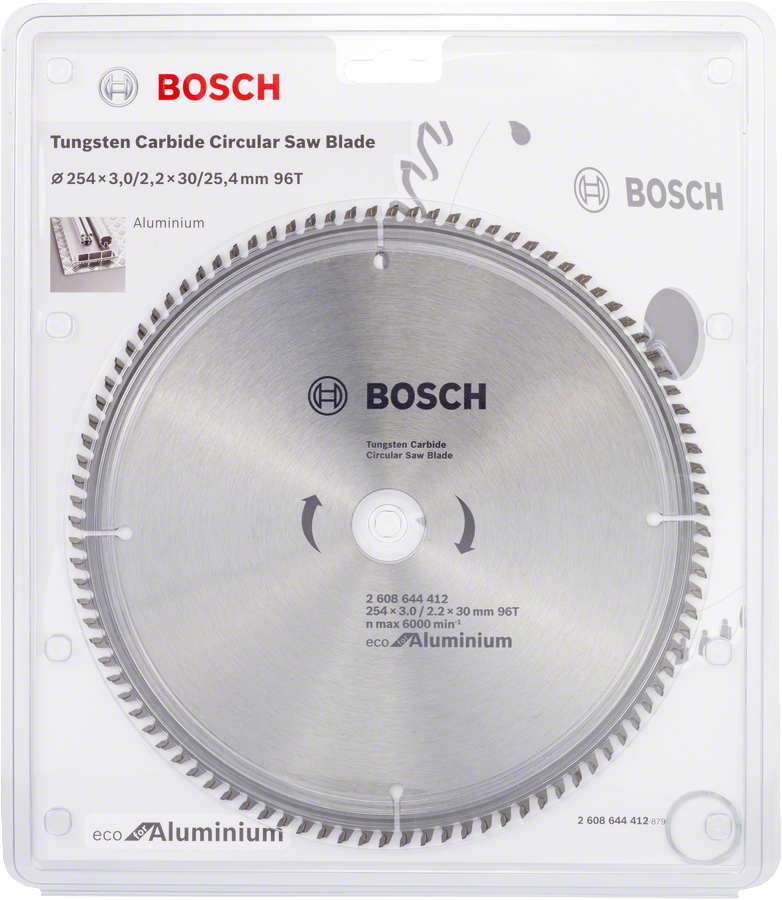

| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25.4 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 96 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 7 |
| Relief angle ° β | 13 |

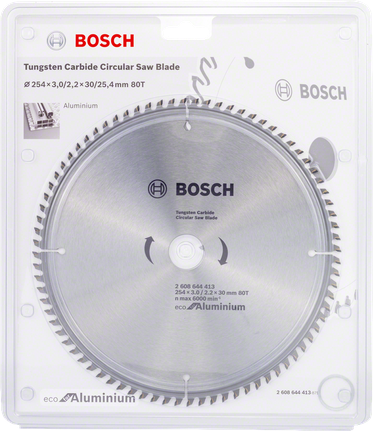

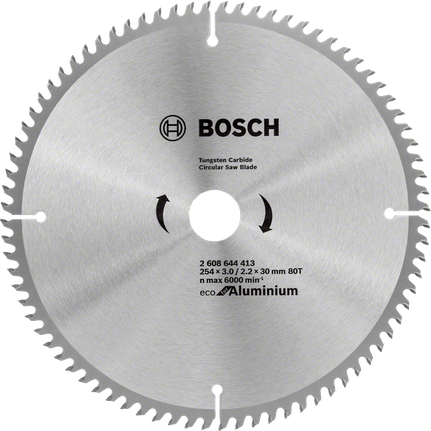

| Part number 2608644413 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 254 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25.4 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 7 |
| Relief angle ° β | 13 |

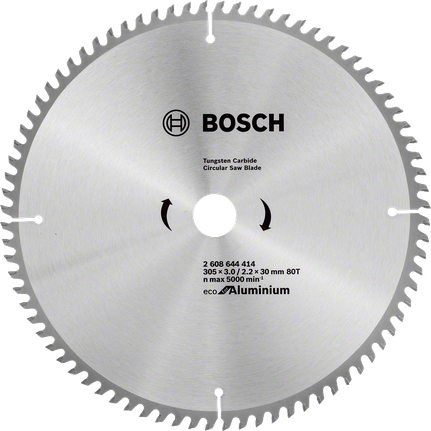

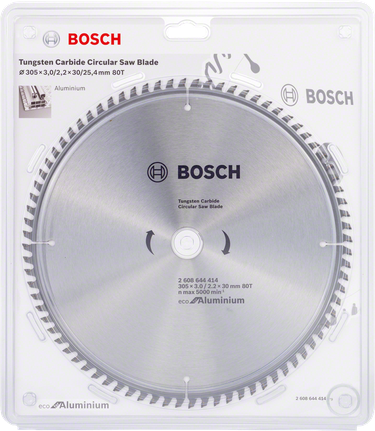

| Part number 2608644414 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25.4 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 7 |
| Relief angle ° β | 13 |

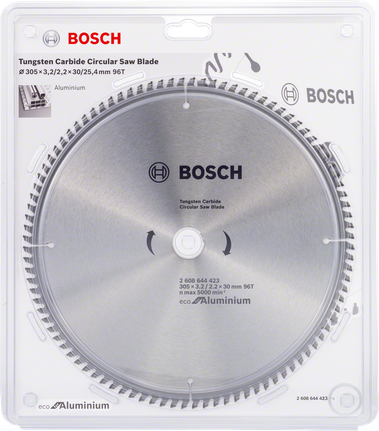

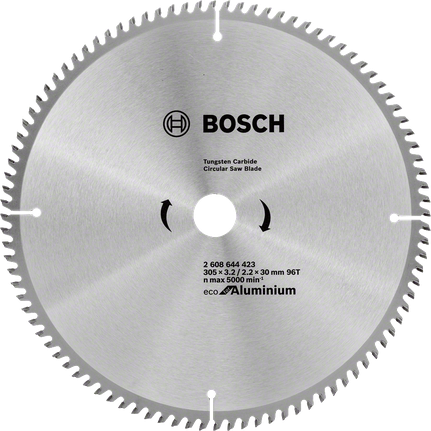

| Part number 2608644423 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 305 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25.4 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 96 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 5000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 7 |
| Relief angle ° β | 13 |
