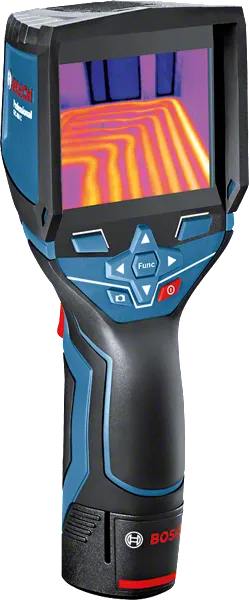

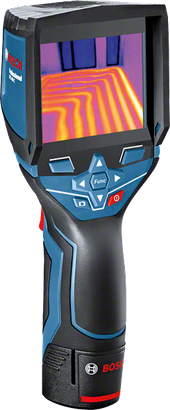

GTC 400 C Professional

Thermo Camera

GTC 400 C
GTC 400 C

Immediate visualisation of temperature differences with smart documentation

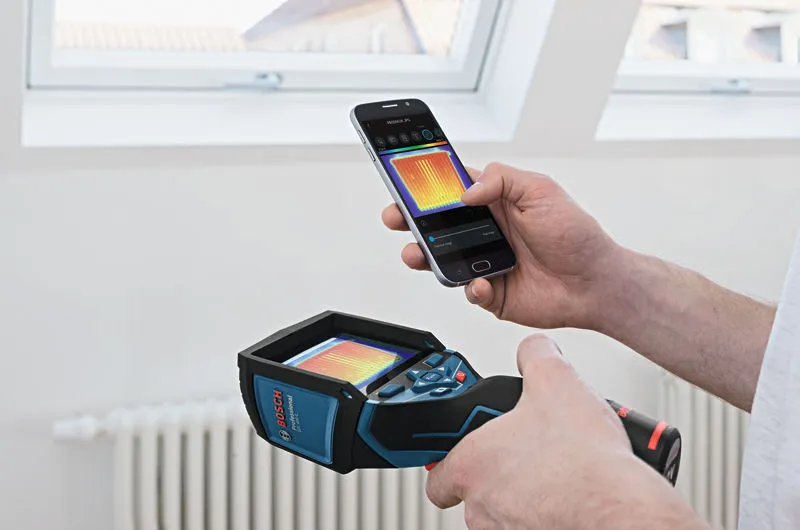

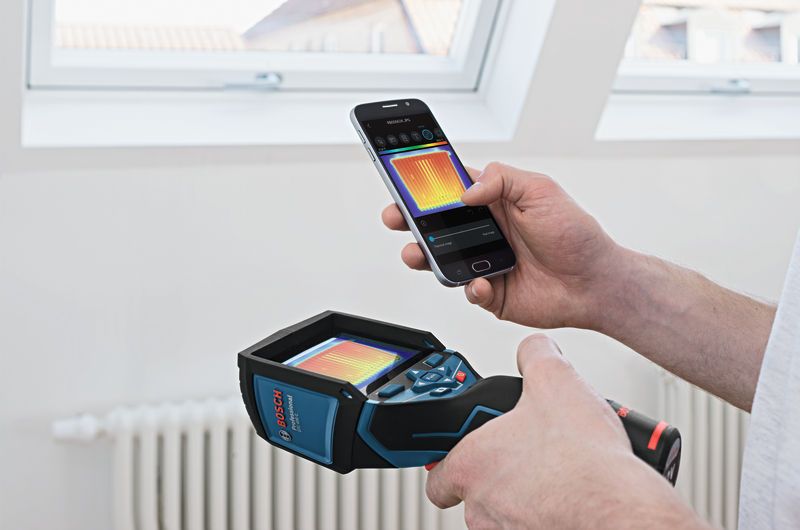

  • Fast exchange of data and easy documentation of thermal images with the Bosch ThermalOn app
  • Picture-in-picture technology overlays thermal and real images for easy-to-see localisation of the measurement
  • Flexible battery system can be powered by a 12 V LI-ION battery or with standard alkaline batteries

Functions & key features

IR Sensor 160 x 120 pixel
Dual power source
IP53 dust protected and protected against water spray

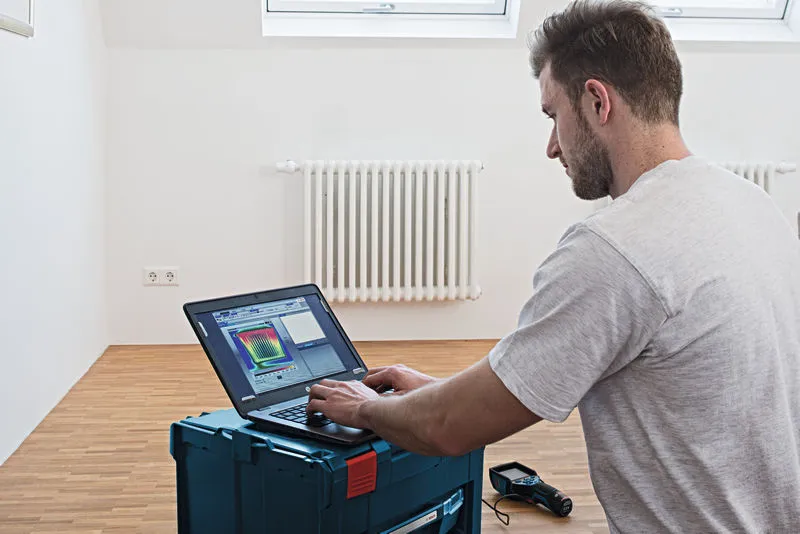

GTC transfer software
Visual camera

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap
Show variant
783.00 JOD
Recommended retail price excluding VAT
Find a local dealer

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap 0 601 083 171
783.00 JOD
Recommended retail price excluding VAT

GTC 400 C Professional

Your Selection

GTC 400 C
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, Hand strap

Order number: 0 601 083 171

783.00 JOD
Recommended retail price excluding VAT
Find a local dealer

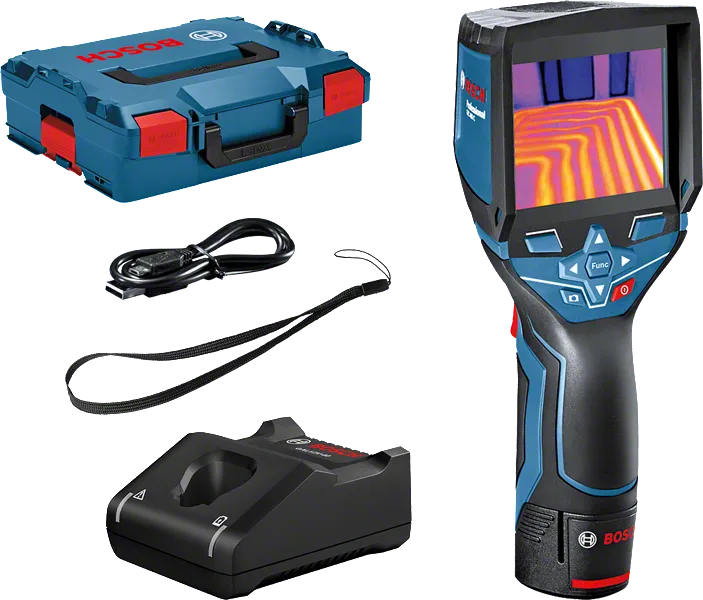

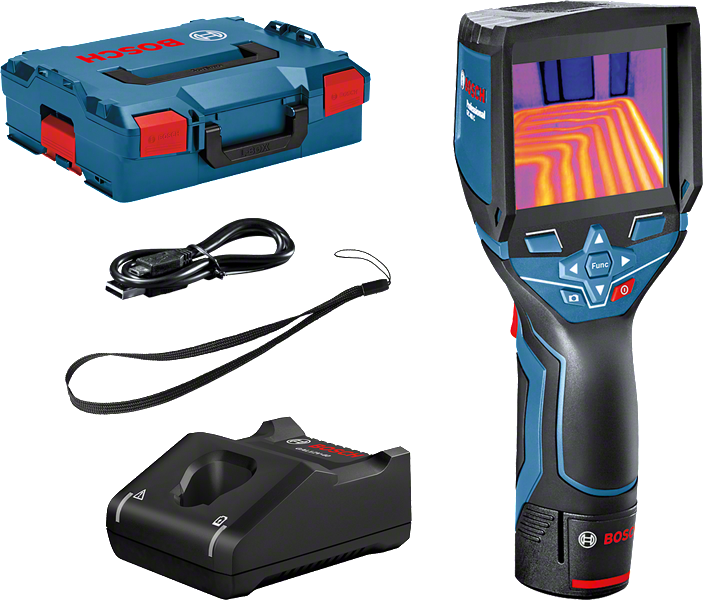

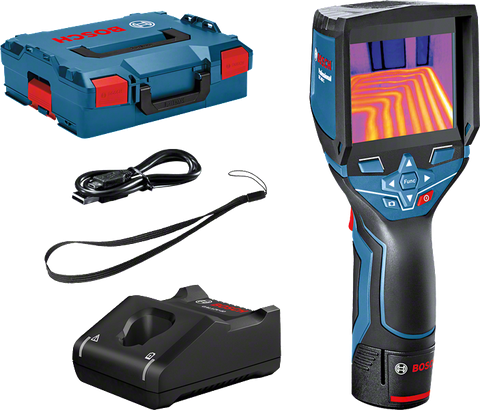

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Micro USB cable
    Order number: 2 609 120 670
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R4
  • Hand strap
  • L-BOXX inlay for tool
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X

Technical data

Additional data

Data transfer MicroUSB, Wi-Fi
Measurement range -10 °C to +400 °C
Measuring accuracy of IR ± 3.0 °Cᵇ
Thermal sensitivity (NETD) <50 mK
Battery voltage 12.0 V
Resolution 0.1 °C
Size of IR sensor 160x120 px
Number of measuring points 19,200
Field of view (FOV) 53x43 °
Power supply and runtime 4 x 1.5 V LR6 (AA) 1 x GBA 12V 1 x GBA 10.8V
Frame buffer (number of images) 500
Memory type Internal memory
File format of image .jpg
Dust and splash protection IP 53
Weight 0.54 kg
Size of display 3,5"
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Focus distance, minimum 0.3 m
Measuring application Thermal image

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

ᵇ At >10°C, <100°C, for other surface temperatures, see User Manual

GTC 400 C Professional: Further information

Product Highlights

The thermal camera GTC 400 C Professional measures and visualises temperature differences in seconds and easily records the results. The Bosch ThermalOn app documents and forwards measured values fast. Intelligent picture-in-picture technology overlays detailed real and heat-sensing images (19,200 px), resulting in a high-quality image and clear localisation of temperature differences. With its dual power system, a 12 V LI-ION battery or standard alkaline batteries are suitable power supplies.

Equipment & Application

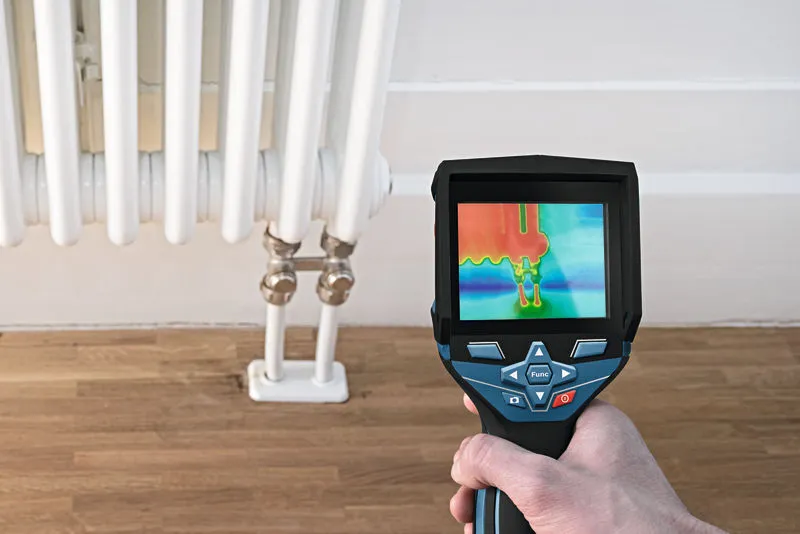

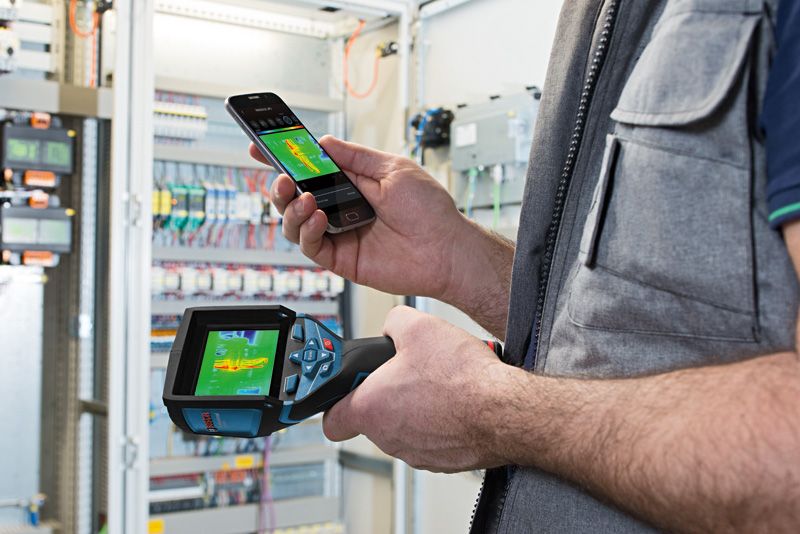

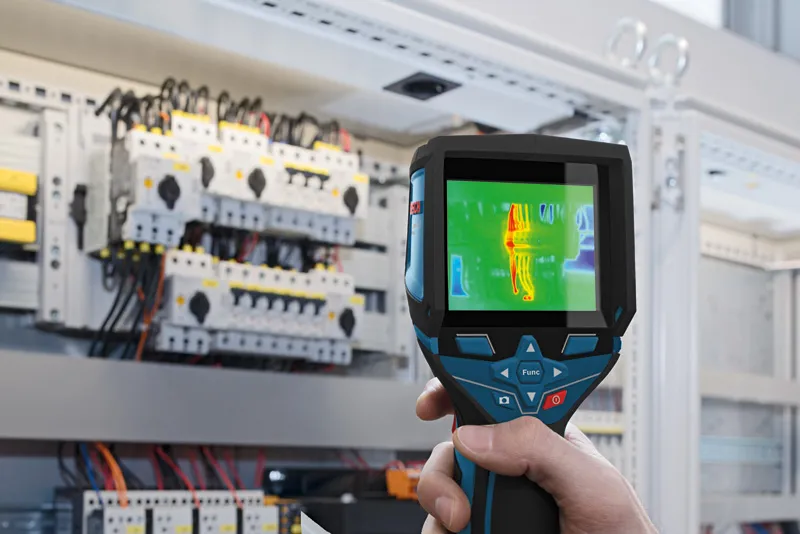

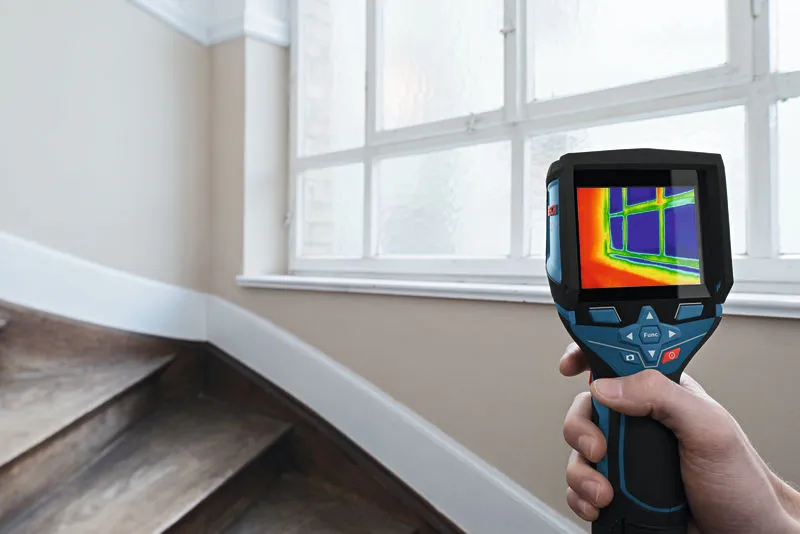

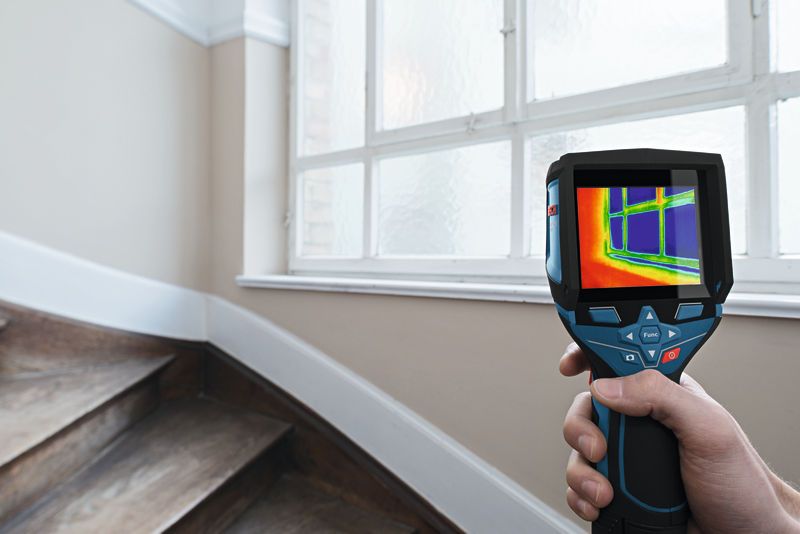

It is ideal for inspecting insulation, heating systems, heat flow, and for finding overheated parts.

Additional Information

The smart GTC 400 C Professional is perfect for supporting a variety of specialists in every project phase: From customer consultations by exhibiting clear images of the situation to preparatory tasks such as inspecting where lines are installed, through project documentation and even follow-up work. The measuring tool must not be used for human medical purposes.
