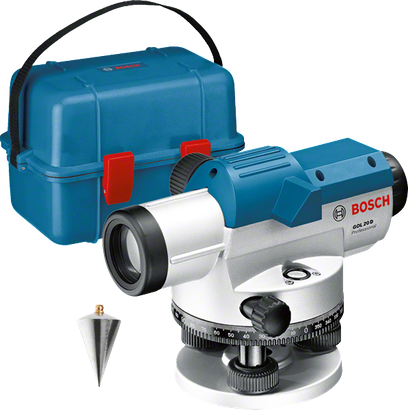

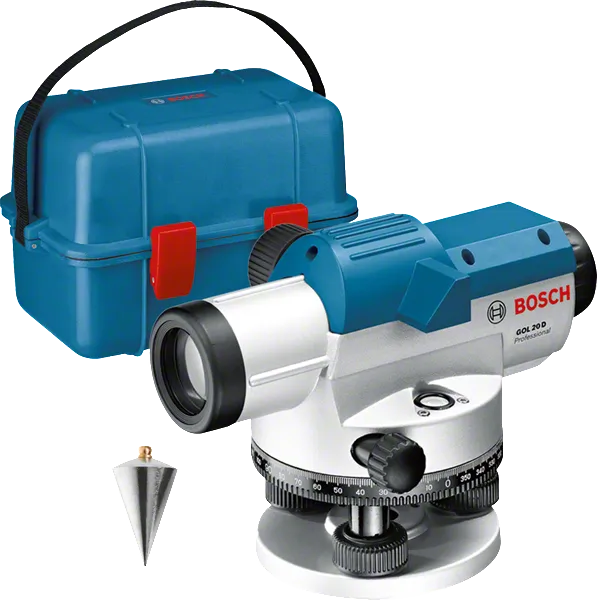

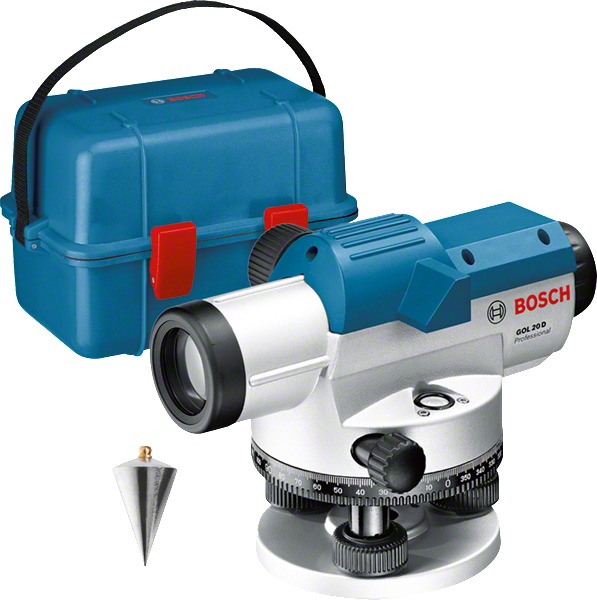

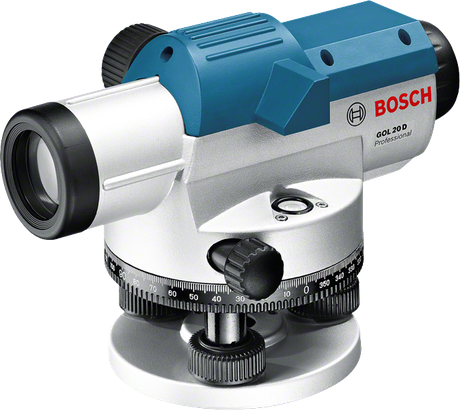

GOL 20 D Professional
Optical Level
Robust and reliable – ideal for outdoor use
- Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
- Fast aperture for excellent staff reading
- Compensator lock for safe transport
Functions & key features
in carrying case with accessory set
0 601 068 400
GOL 20 D Professional
Your Selection
in carrying case with accessory set
Order number: 0 601 068 400
Find a local dealerIncluded in this variant
-
Plumb bob
-
Carrying caseOrder number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Technical data
Additional data
Dust and splash protection
IP 54
Unit of measure
360 degrees
Magnification
20 x
Accuracy
± 3.0 mm at 30m
Working range
60 m
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Weight, approx.
1.5 kg
Working range, value
60 m
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
