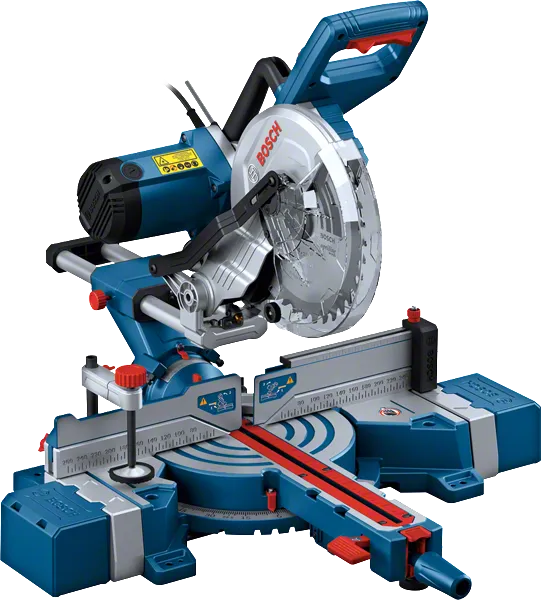

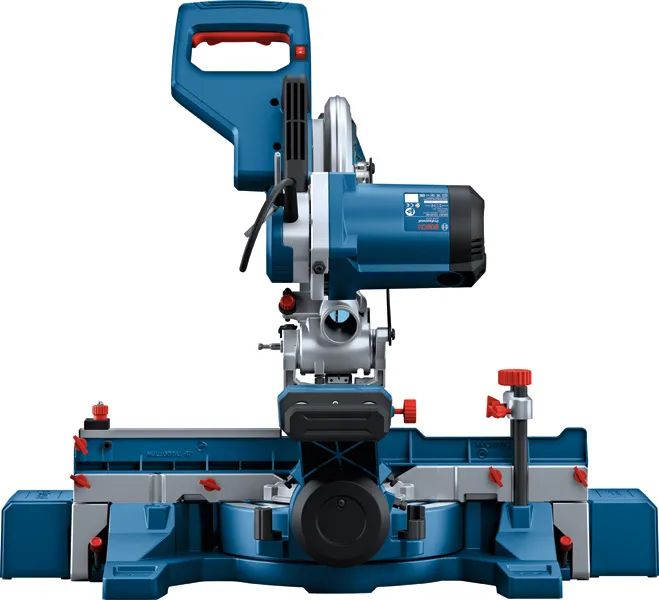

GCM 254 D Professional

Mitre Saw

Long-lasting accuracy in every cut

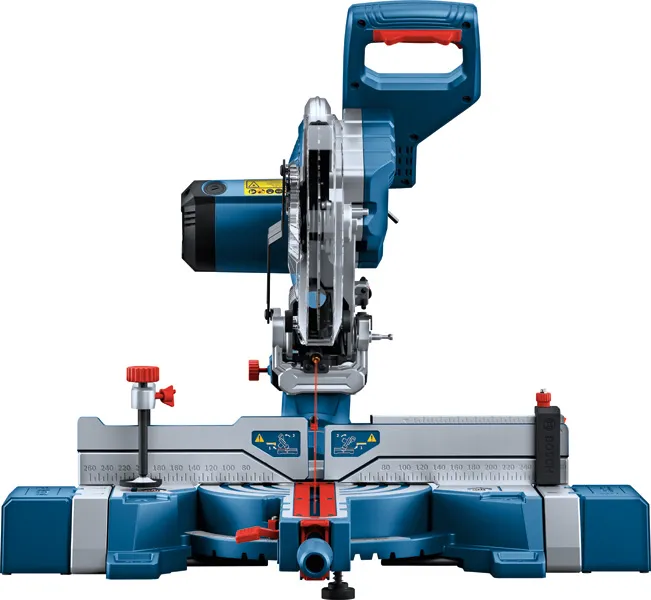

  • Consistently accurate cuts with the help of a highly visible laser line

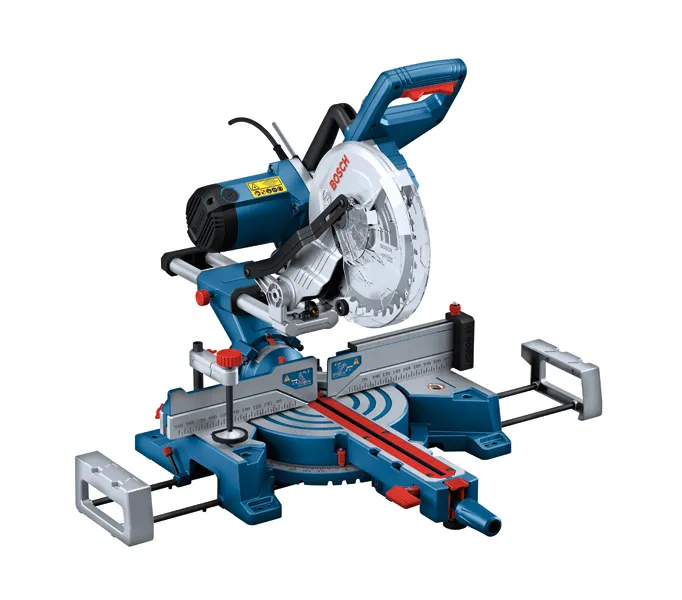

  • Better support for various material cutting provided by detachable box extension
  • Easier multiple repeating cuts thanks to length gauge
  • Larger cuts with superior precision with 310 mm sliding capacity

Functions & key features

Dust extraction directly into the integral dust bag on the tool and/or using an all-purpose dust extractor
Rated power input 1800 W

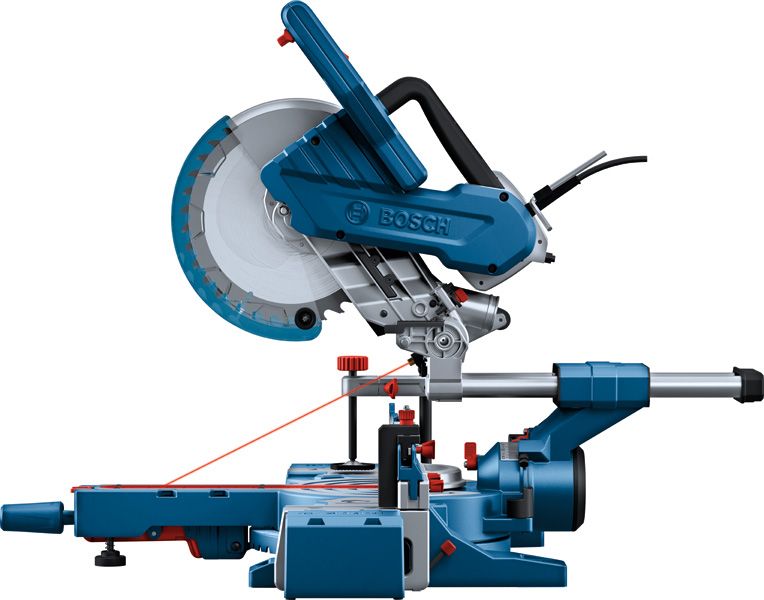

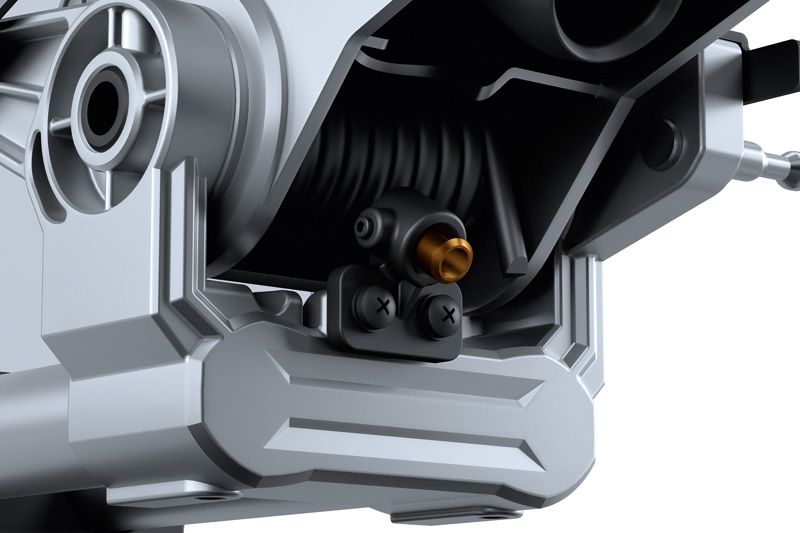

Easy set up thanks to laser projection of cutting line
Change variant Find a local dealer

GCM 254 D Professional 0 601 B53 000

Select a variant

Your Selection

GCM 254 D

Order number: 0 601 B53 000

Find a local dealer

Included in all variants

  • Supporting box
    Order number: 1 619 PB9 050
  • Dust bag
    Order number: 1 619 PB6 246

Additional in this variant

  • 1 x circular saw blade, Optiline Wood, 254 x 2.8/1.8 x 30 mm, 40
    Order number: 2 608 640 443

Your Selection

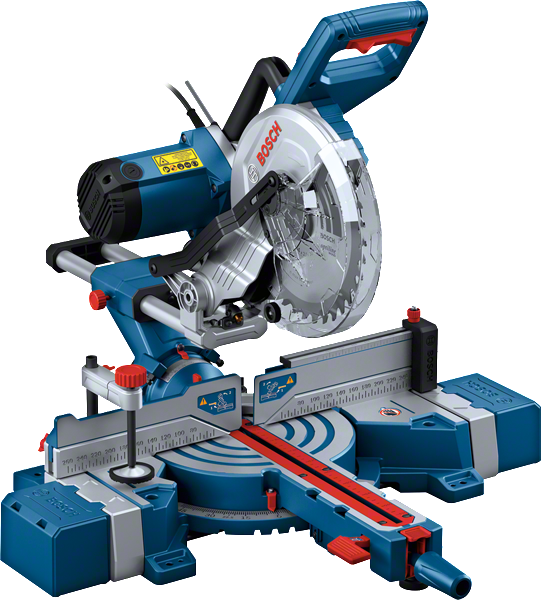

GCM 254 D

Order number: 0 601 B53 0L0

Find a local dealer

Included in all variants

  • Supporting box
    Order number: 1 619 PB9 050
  • Dust bag
    Order number: 1 619 PB6 246

Additional in this variant

  • 1 x circular saw blade, Expert for Wood, 254 x 2.5/1.8 x 25.4 mm, 40
    Order number: 2 608 643 001

Technical data

Additional data

Saw blade diameter 254 mm
Mitre setting 47 ° L / 52 ° R
Bevel setting 45 ° L / 45 ° R
Saw blade bore diameter 30 mm
Rated input power 1,800 W
Cutting capacity, 0° 90 x 310 mm
Cutting capacity, 45° mitre 90 x 210 mm
Cutting capacity, 45° bevel 45 x 310 mm

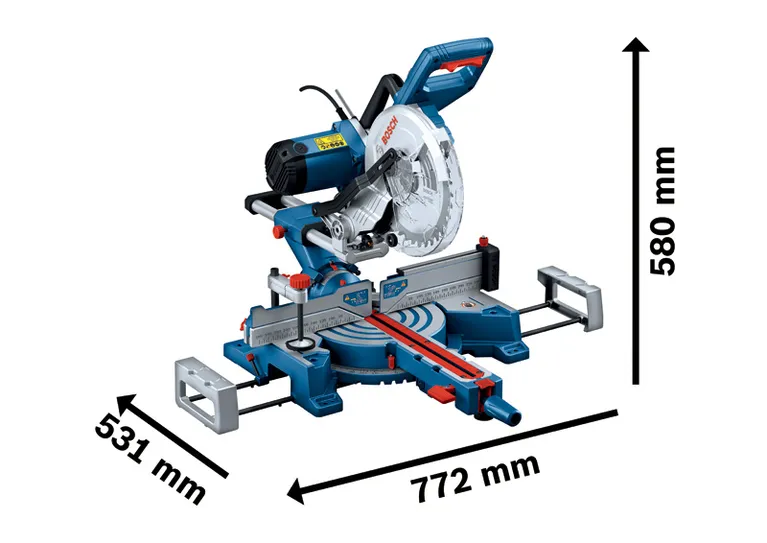

Tool dimensions (width x length x height) 574 x779 x645 mm
No-load speed 4,800 rpm
Weight 17.9 kg

The A-rated noise level of the power tool is typically as follows: Sound pressure level 98 dB(A); Sound power level 109 dB(A). Uncertainty K= 3 dB.

GCM 254 D

* You can find more information about the deviations in the following link: Technical features of products

GCM 254 D Professional: Further information

Product Highlights

The GCM 254 D Professional corded miter saw is tough, best-in-class, and designed for easy operation, accurate repetitive cutting, and a long life. For superior precision, a highly visible laser indicates the cutting line and easily allows consistent cuts. Cutting long and large materials with higher stability and accuracy is supported by the detachable box extension. Convenient easy cutting of the same lengths is provided by the length gauge. Lager cuts with superior precision are supported by the 310 mm sliding capacity.

Equipment & Application

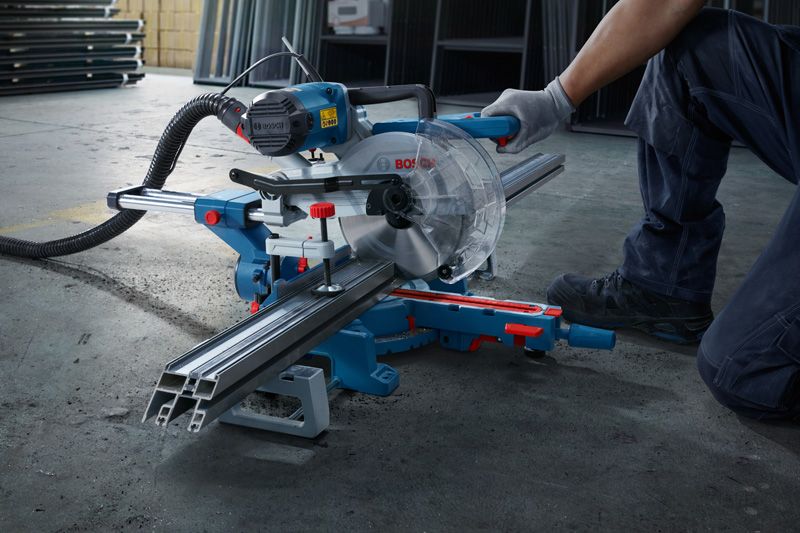

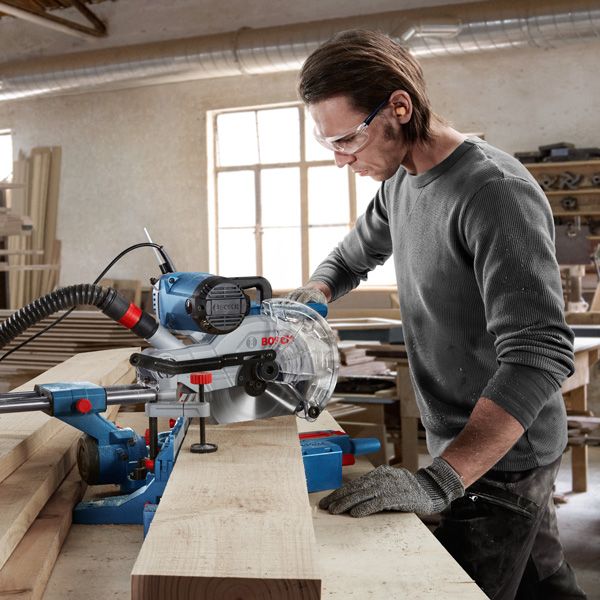

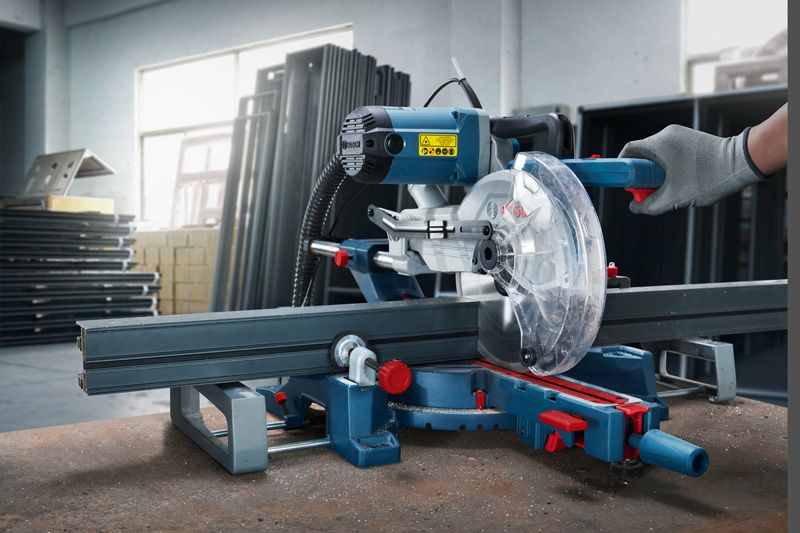

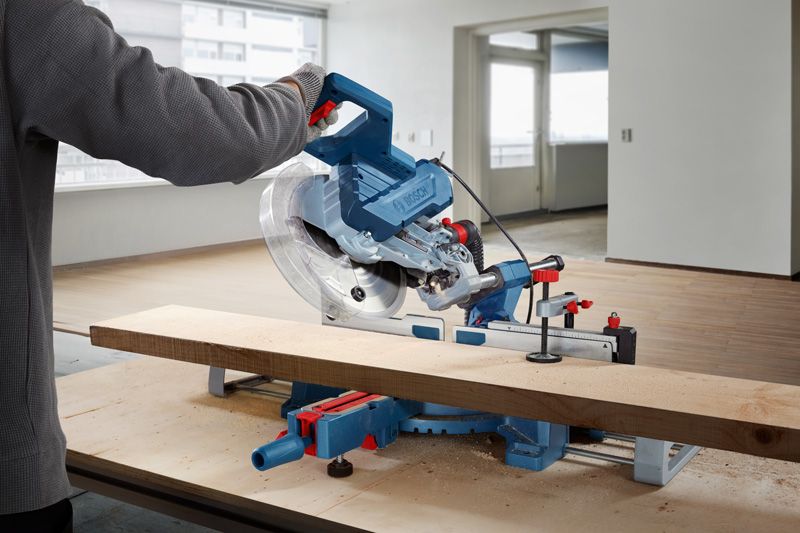

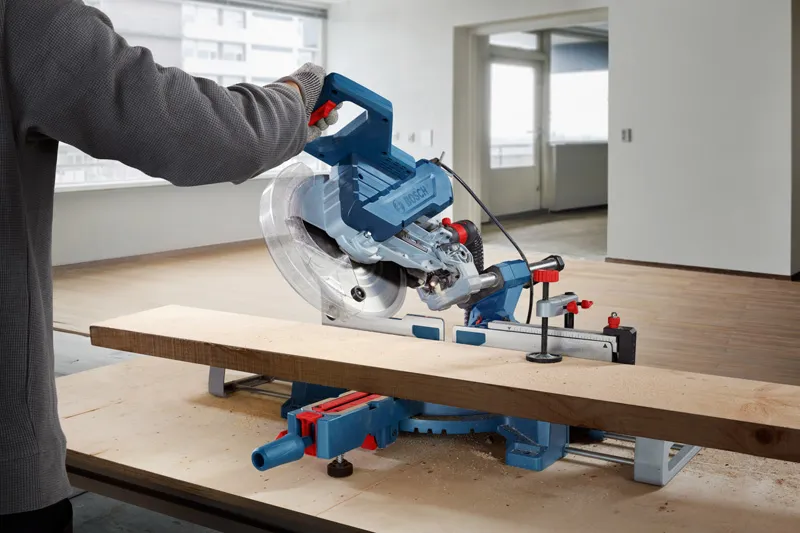

The GCM 254 D miter saw is built for long life with repetitive, accurate cutting of wood and aluminium, and is ideal for carpenters, glaziers, roofers, and other professional trades.
