Laser measures
![GLM 120 C]( "GLM 120 C")
![GLM 120 C]( "GLM 120 C")
![GLM 120 C]( "GLM 120 C")
GLM 120 C Professional
Laser Measure
The smart solution for measuring and documenting surroundings, even outdoors
- Digital viewfinder with zoom function allows for precision over large distances, outdoors and in complex surroundings
- High-contrast IPS colour display provides optimal readability
- Remote controlling for rapid measurements and MeasureOn App for simple results documentation
Functions & key features
with carrying accessory
0 601 072 F00
GLM 120 C Professional
Your Selection
with carrying accessory
Order number: 0 601 072 F00

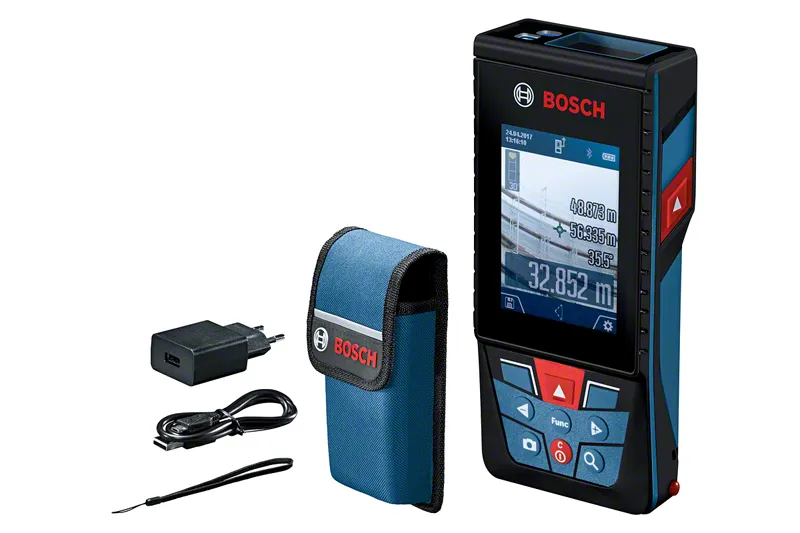

Find a local dealerIncluded in this variant
-
Manufacturer’s certificate
-
Protective Bag
-
Micro USB charger
-
Micro USB cable
-
Carrying Strap
Technical data
Additional data |
|
|---|---|
| Data transfer | Bluetooth™ 4.2 Low Energy |
| Laser colour | Red |
| Measurement time, typical | < 0.5 s |
| Units of measurement | m/cm/mm/ft/inch/ft-inch |
| Laser diode | 650 nm, < 1 mW |
| Measurement range | 0.08 – 120.00 m |
| Laser class | 2 |
| Measurement accuracy, typical | ± 1.5 mmᵈ |
| Measurement range of incline measurement | 0 – 360° (4 x 90°) |
| Measuring accuracy (typical) | ± 0.2°ᶜ |
| Measurement time, max. | 4 s |
| Power supply | 1 x 3.6 V Li-Ion battery (3120 mAh) |
| Automatic deactivation | 5 min |
| Weight, approx. | 0.21 kg |
| Memory capacity (values) | 50 |
| Dust and splash protection | IP 54 |
| Tripod thread | 1/4" |
| Digital viewfinder | integrated |
| Measuring range, up to | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᶜ At >0°C, <100°C, for other surface temperatures, see
ᵈ Plus deviations depending on application and distance, see
GLM 120 C Professional: Further information
Product Highlights

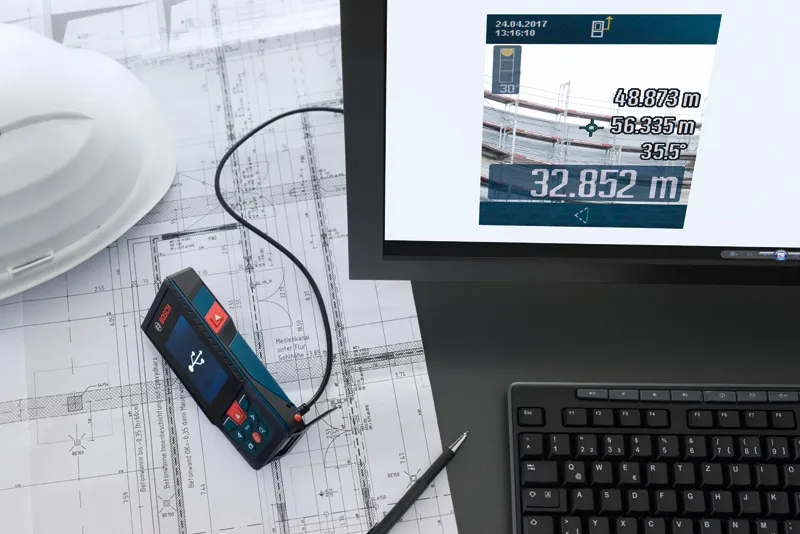

The laser measure GLM 120 C Professional is ideal for documenting surroundings and precisely measuring, even when working outdoors. The digital viewfinder allows for visual targeting in outdoor applications for distances up to 120 meters. Optimal clarity and durability are provided by the 2.8” colour display with a protective screen. Fast collection and documentation of values are made possible by the micro USB cable connection and the MeasureOn App.
Equipment & Application
This laser measure is the ultimate choice for measuring long distances, in complex surroundings and in situations of poor visibility.
Additional Information
The GLM 120 C Professional also has a user-friendly HMI interface with a click wheel for easy access to all the features and a useful help option with detailed images so that all of the functions are easily understandable.
