GIM 60 Professional
Digital Inclinometer
Precise digital inclinometer
- Measures precise tilts in degrees, percent or millimetres/metres
- Direction arrows and audible signals at 0° and 90° for easy alignment
- Measured values automatically turn on the display when working overhead
Functions & key features
Your Selection
- with 4 x battery (AA), Protective Bag
216.00 USD
Recommended retail price excluding VAT
with 4 x battery (AA), Protective Bag
0 601 076 700
GIM 60 Professional
Your Selection
with 4 x battery (AA), Protective Bag
Order number: 0 601 076 700
216.00 USD
Recommended retail price excluding VAT
Included in this variant
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
Technical data
Additional data |
|
|---|---|

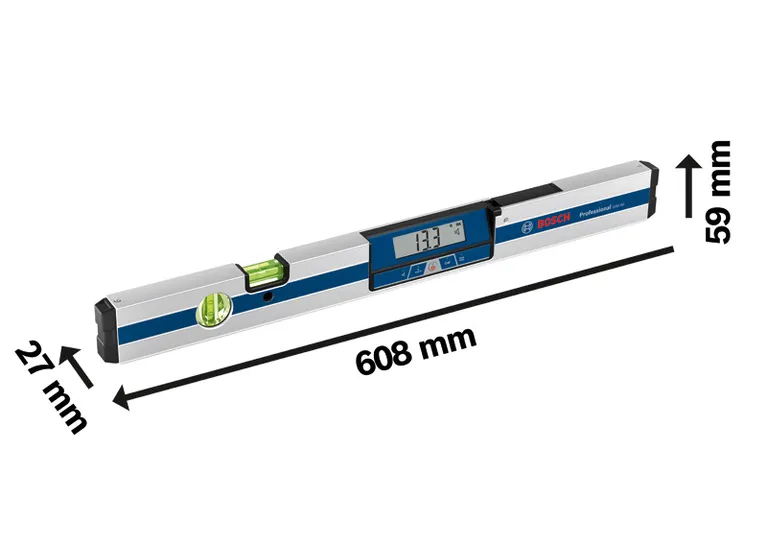

| Length | 60 cm |
| Measurement range | 0 – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.2° |
| Measurement accuracy, vials | ± 0.057° = ± 1 mm/m |
| Power supply, inclination measurement | 1 x 9 V 6LR61 |
| Weight, approx. | 0.77 kg |
| Units of measurement | °, %, mm/m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
