Metalworking

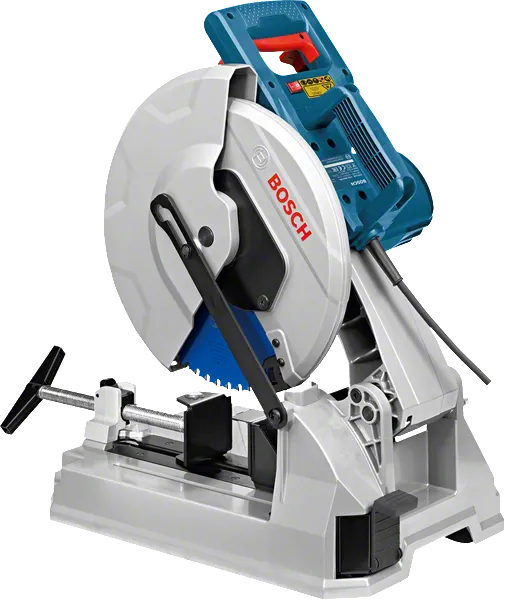

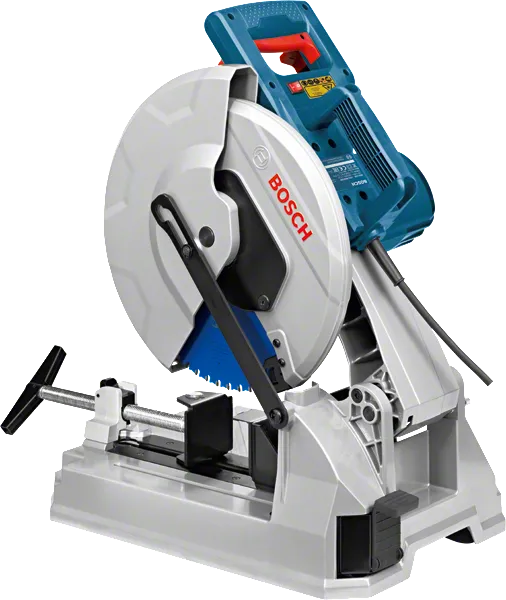

GCD 12 JL Professional

Metal Cut-off Saw

Precise results, less rework and up to 100% spark-free

Precise results and little rework thanks to minimum discolouration and low levels of burr formation with “Expert for Steel” saw blades
Integrated laser allows precise cutting guidance
Up to 100% spark-free for a safe working environment

Functions & key features

Your Selection

with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)

Change variant

687.00 USD

Recommended retail price excluding VAT

Check availability on location

Find a local dealer

Your Selected Variant

with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060) 0 601 B28 000

687.00 USD

Recommended retail price excluding VAT

Find a local dealer

Select a variant

Your Selection

with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060)

Order number: 0 601 B28 000

687.00 USD

Recommended retail price excluding VAT

Find a local dealer

Included in all variants

1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60

Order number: 2 608 643 060

Your selection

Your Selection

with 1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60 (2 608 643 060), Accessory

Order number: 0 601 B28 060

687.00 USD

Recommended retail price excluding VAT

Find a local dealer

Included in all variants

1 x circular saw blade, Expert for steel, 305 x 25.4 x 2.6 mm, 60

Order number: 2 608 643 060

Additional in this variant

Voltage 110 V

Select Variant

Technical data

Additional data
No-load speed	1,500 rpm
Voltage	240 V
Cutting capacity at rectangle 0º	158 x 80 mm
Cutting capacity at square 0º	100 x 100 mm
Cutting capacity at L-profile 0º	110 x 110 mm
Weight	20 kg
Rated input power	2,000 W
Cutting capacity at rectangle 45º mitre	85 x 85 mm
Cutting capacity at square 45º mitre	85 x 85 mm
Cutting capacity at L-profile 45º mitre	85 x 85 mm
Tool dimensions (width x length x height)	327 x 517 x 383 mm

Total vibration values (Cutting metal)
Vibration emission value ah	3.5 m/s²
Uncertainty K	1.5 m/s²

Noise/vibration information
Sound pressure level	100 dB(A)
Sound power level	113 dB(A)
Uncertainty K	3 dB

Cutting metal
Vibration emission value ah	3.5 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products
