For rotary drills/drivers, For impact drill/drivers
Chuck capacity mm
Mount, range
Drill chuck, type
Choose a pack size
Compatible with
Chuck capacity mm 2 options
Mount, range 2 options
Drill chuck, type Keyed chuck
Choose a pack size 1 Pcs
Compatible with 3 options

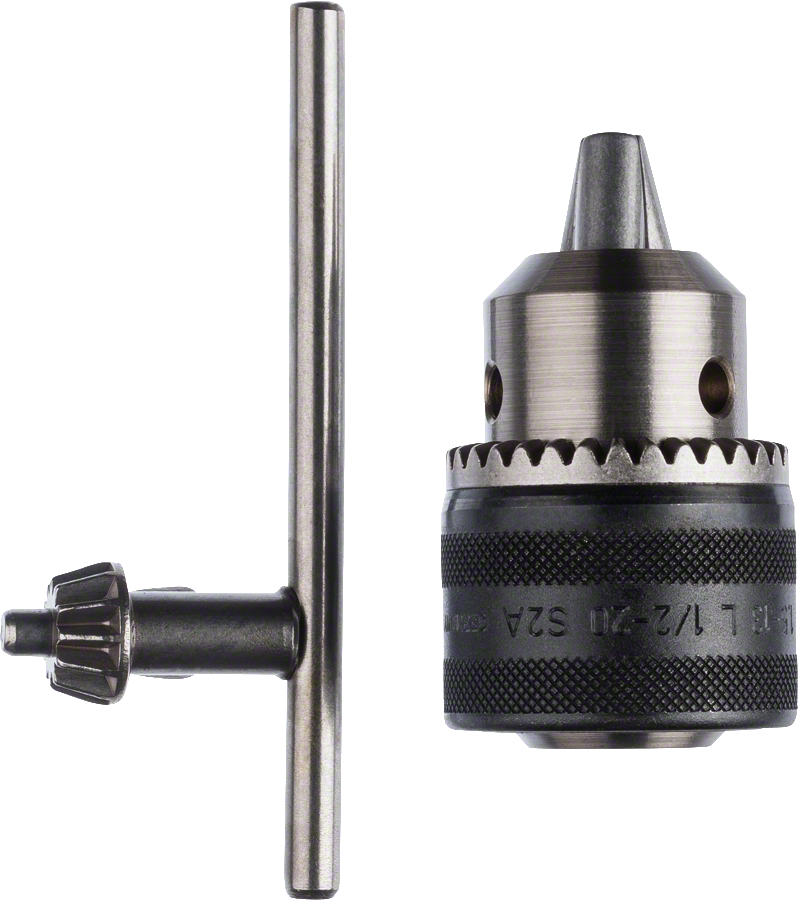

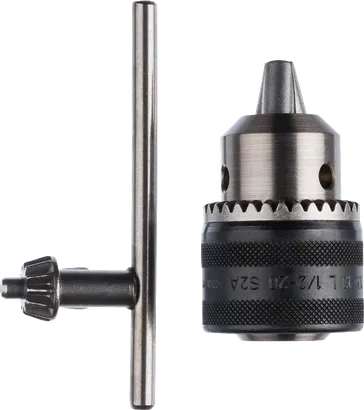

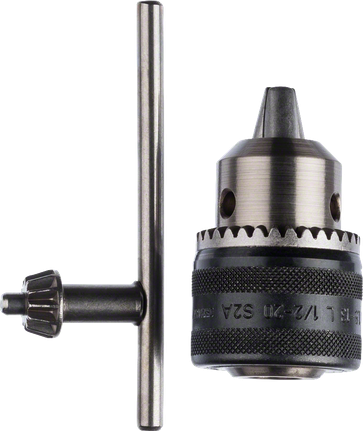

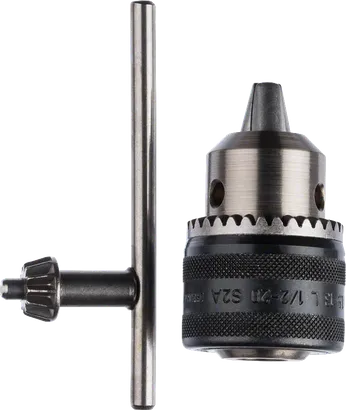

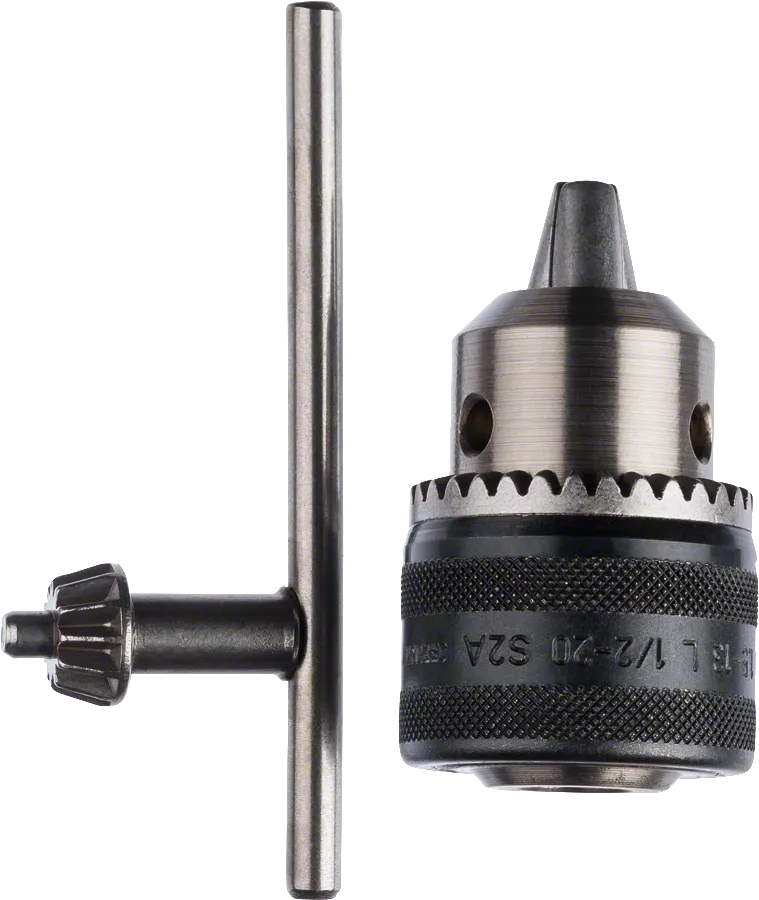

Keyed Drill Chuck is a simple and reliable solution for fixing drill bits for any type of job
Available product options: 3
|
Part number
|
Replacement key
|
Only for spindle lock
|
R/L rotation
|
Locking mechanism
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 1 608 571 048 | D | - | - | - | 1 Pcs | 12.10 USD | Find a local dealer | |
| 1 608 571 056 | A | - | + | - | 1 Pcs | 36.00 USD | Find a local dealer | |
| 1 608 571 062 | D | - | + | - | 1 Pcs | 13.40 USD | Find a local dealer |
out of products

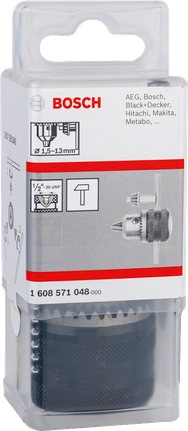

| Part number 1608571048 | |
|---|---|

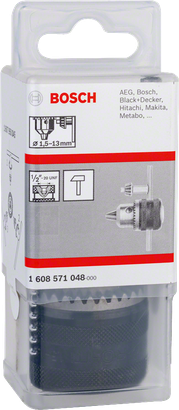

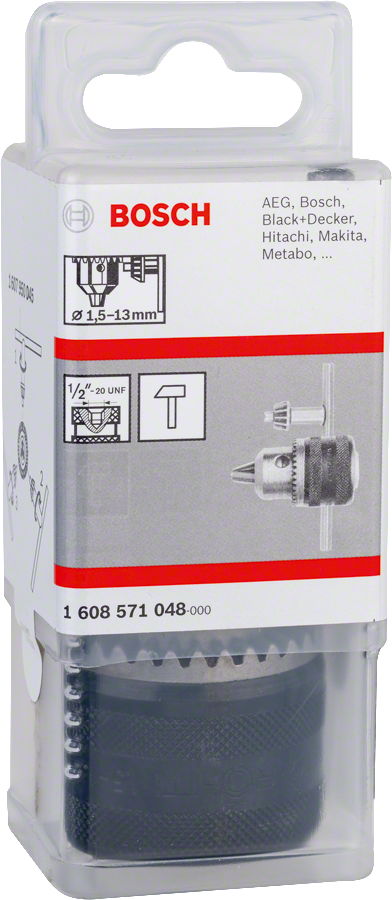

| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Replacement key | D |
| Only for spindle lock | - |
| R/L rotation | - |
| Locking mechanism | - |
| Bench-mounted drill | + |
| Impact-proof | + |
| TC clamping jaws | - |
| Chuck capacity mm | 1.5–13.0 |
| Mount, range | 1/2" – 20 |
| Illustration, No. | 1 |
| Drill chuck, type | Keyed chuck |

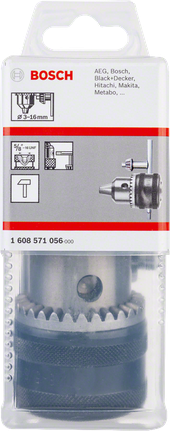

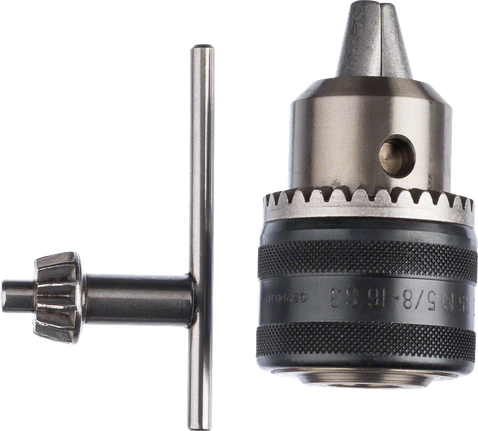

| Part number 1608571056 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Replacement key | A |
| Only for spindle lock | - |
| R/L rotation | + |
| Locking mechanism | - |
| Bench-mounted drill | + |
| Impact-proof | + |
| TC clamping jaws | - |
| Chuck capacity mm | 3.0–16.0 |
| Mount, range | 5/8" – 16 |
| Illustration, No. | 1 |
| Drill chuck, type | Keyed chuck |

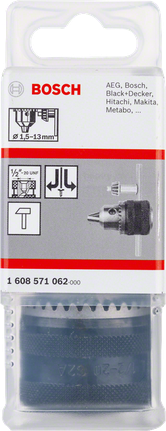

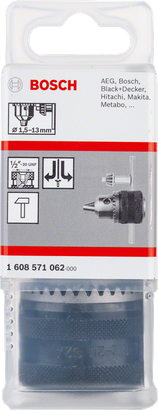

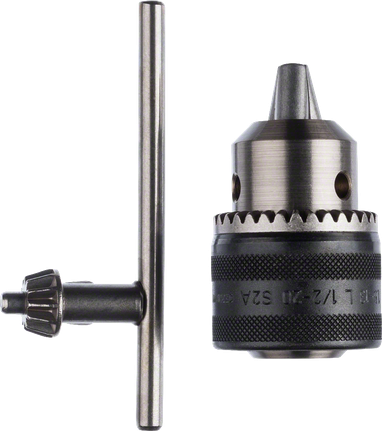

| Part number 1608571062 | |
|---|---|
| Packaging type | Plastic packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Replacement key | D |
| Only for spindle lock | - |
| R/L rotation | + |
| Locking mechanism | - |
| Bench-mounted drill | + |
| Impact-proof | + |
| TC clamping jaws | - |
| Chuck capacity mm | 1.5–13.0 |
| Mount, range | 1/2" – 20 |
| Illustration, No. | 1 |
| Drill chuck, type | Keyed chuck |
