For hand-held circular saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 3 options
Number of teeth 3 options
Width of cut (b1) mm 2 options
Choose a pack size 1 Pcs
Eco for Aluminium Circular Saw Blade is the preferred choice for reliable cuts in aluminium
Available product options: 4
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Bore with reduction ring mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|
| 2 608 644 392 | 230 | 30 | - | 3/2.2 | 1 Pcs | 20.70 USD | Find a local dealer | |
| 2 608 644 411 | 184 | 20 | 16 | 2.2/1.6 | 1 Pcs | 18.30 USD | Find a local dealer | |
| 2 608 644 421 | 235 | 30 | 25 | 3/2.2 | 1 Pcs | 18.40 USD | Find a local dealer | |
| 2 608 644 422 | 235 | 30 | 25 | 3/2.2 | 1 Pcs | 21.40 USD | Find a local dealer |
out of products

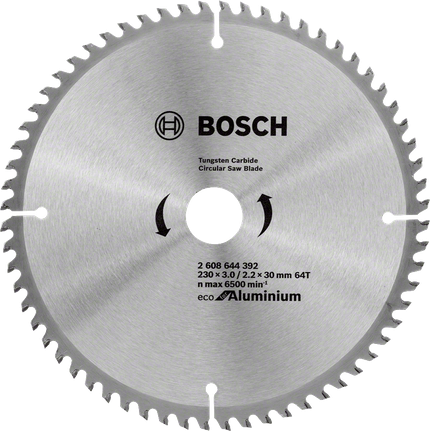

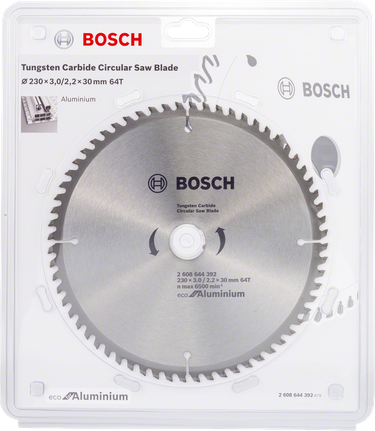

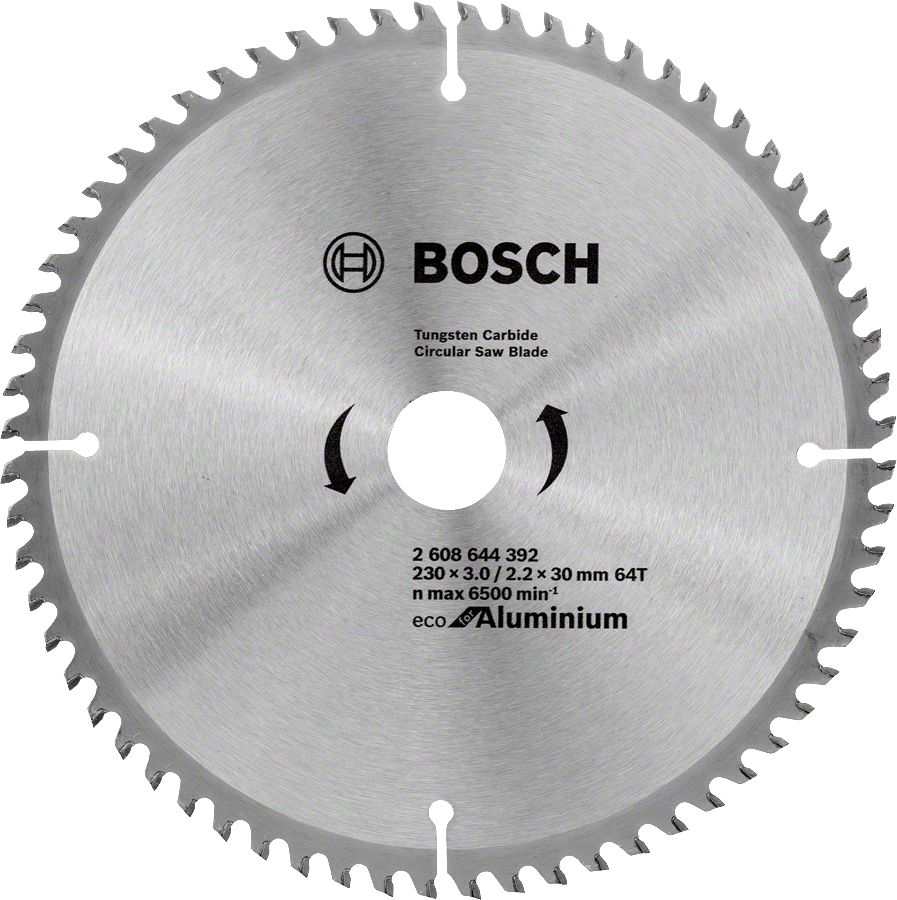

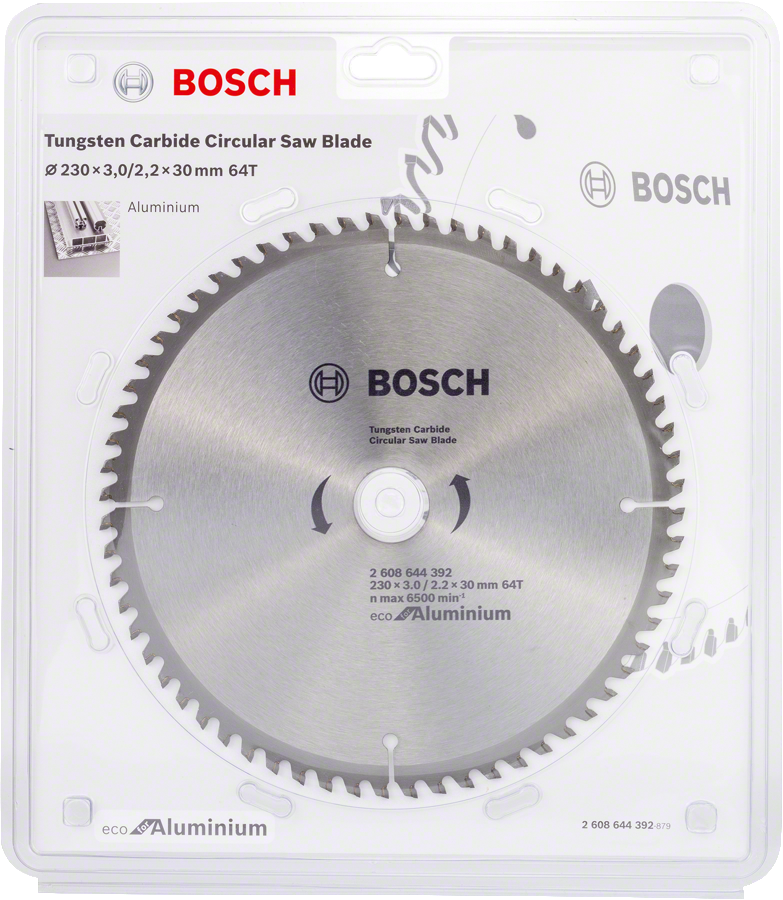

| Part number 2608644392 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 230 |
| Bore size mm | 30 |
| Bore with reduction ring mm | - |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 64 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

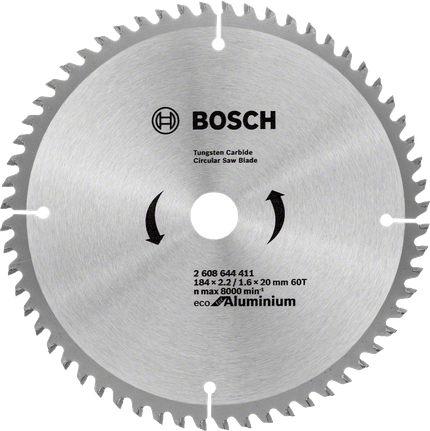

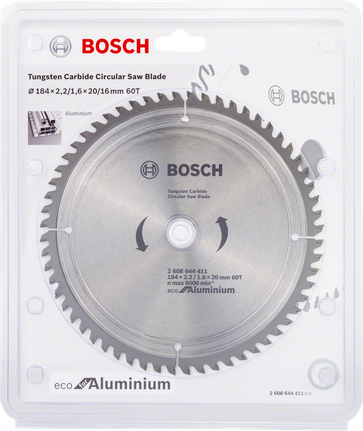

| Part number 2608644411 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 184 |
| Bore size mm | 20 |
| Bore with reduction ring mm | 16 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 2.2/1.6 |
| Number of teeth | 60 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 8000 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

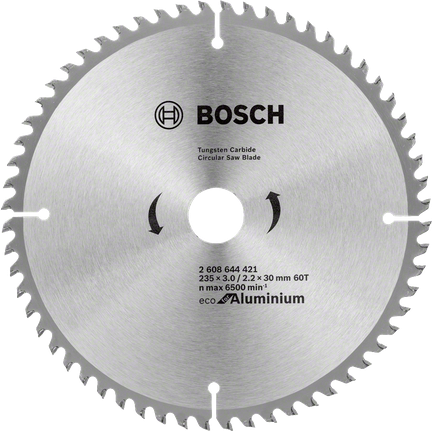

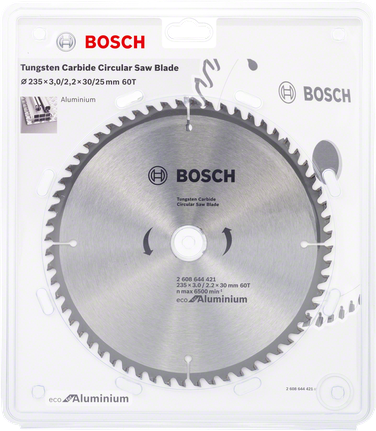

| Part number 2608644421 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 60 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |

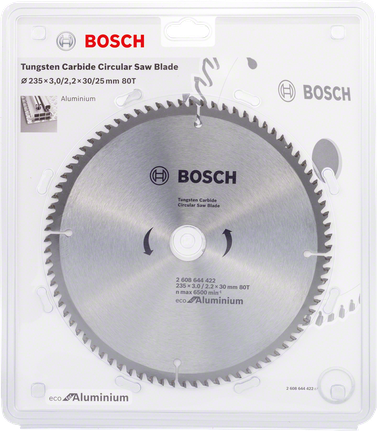

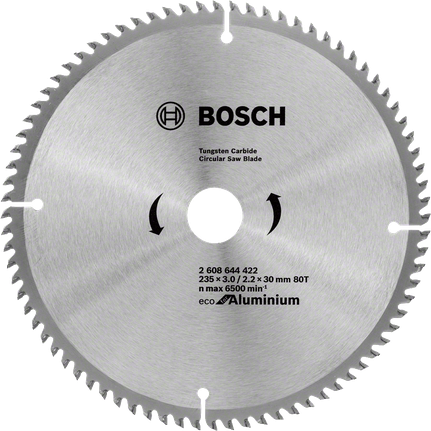

| Part number 2608644422 | |
|---|---|
| Packaging type | Combined cardboard / plastic packaging, blister, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 235 |
| Bore size mm | 30 |
| Bore with reduction ring mm | 25 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3/2.2 |
| Number of teeth | 80 |
| Tooth shape | TCG |
| Max. rotation speed (RPM) | 6500 |
| Cutting result | Fine Cut |
| Hook angle ° α | 5 |
| Relief angle ° β | 13 |
