GCM 216 Professional
Mitre Saw
Precise, same length, repetitive cuts, with easily transportable 8” mitre saw
- Portable mitre saw with ergonomic carry handle, for quick transportation from one job site to another
- Practical length gauge enables repeated cutting of duplicate pieces
- Precise laser for exact sawing alignment
- Easy cleaning with detachable table insert – two screw removal
- Firm table extension and robust tall fence provide greater width and more stable work area
Functions & key features
Currently not available online
Find a local dealer
GCM 216 Professional
Your Selection
Order number: 0 601 B33 001
Included in this variant
-
1 x circular saw blade, Optiline Wood, 216 x 2.0/1.4 x 30 mm, 48Order number: 2 608 640 432
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 216 mm |
| Mitre setting | 47 ° L / 47 ° R |
| Bevel setting | 45 ° L / 0 ° R |
| Saw blade bore diameter | 30 mm |
| Rated input power | 1,300 W |
| Cutting capacity, 0° | 60 x 123 mm |
| Cutting capacity, 45° mitre | 60 x 80 mm |
| Cutting capacity, 45° bevel | 43 x 123 mm |

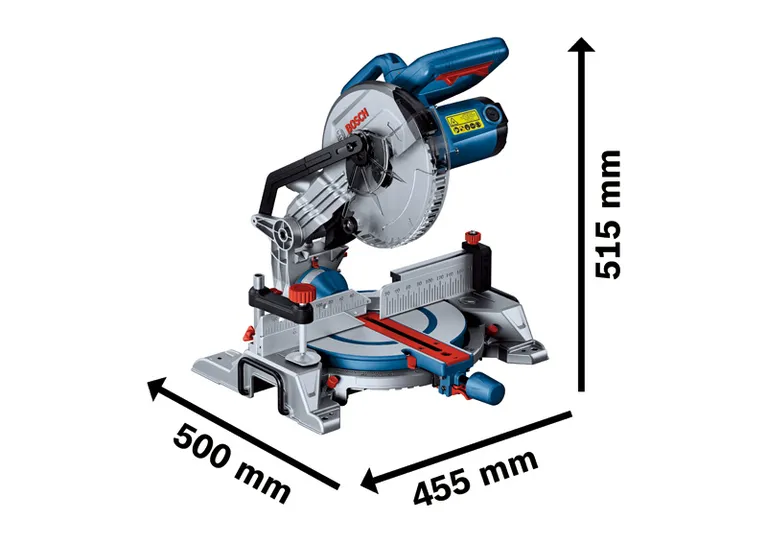

| Tool dimensions (width x length x height) | 500 x455 x325 mm |
| No-load speed | 4,800 rpm |
| Weight | 10.1 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 96 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GCM 216 Professional: Further information
Product Highlights

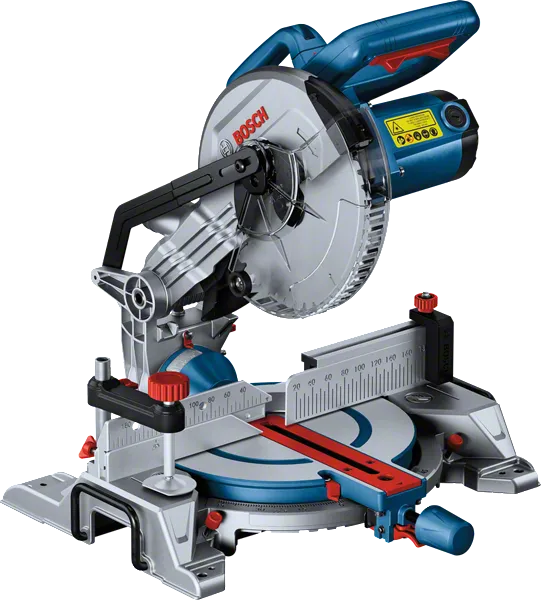

The GCM 216 Professional, is an 8” corded mitre saw that is as light and compact as it is hard-working and accurate. It’s the ultimate high-performance solution for repetitive and exact cutting of same size pieces, thanks to a unique length gauge feature attached to the saw fence. The practical embedded laser function, has a bright red beam that guides each cut, enabling accurate positioning and high precision. Weighing just 10 kg, this light but powerful saw, has an ergonomic carry handle for quick transportation from one job to another.
Equipment & Application
Versatile and durable, the GCM 216 Professional is the efficient partner for straight, mitred and bevelled cuts on wood, aluminium and other non-ferrous metal.
