For table saws
Outer diameter mm
Number of teeth
Width of cut (b1) mm
Choose a pack size
Outer diameter mm 2 options
Number of teeth 2 options
Width of cut (b1) mm 3.2
Choose a pack size 1 Pcs

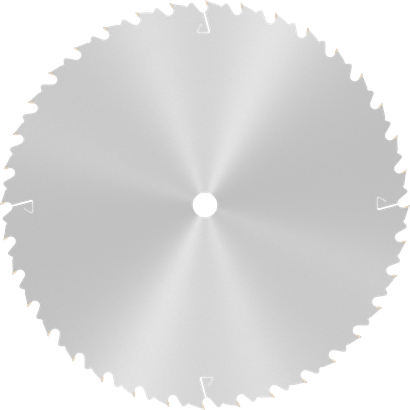

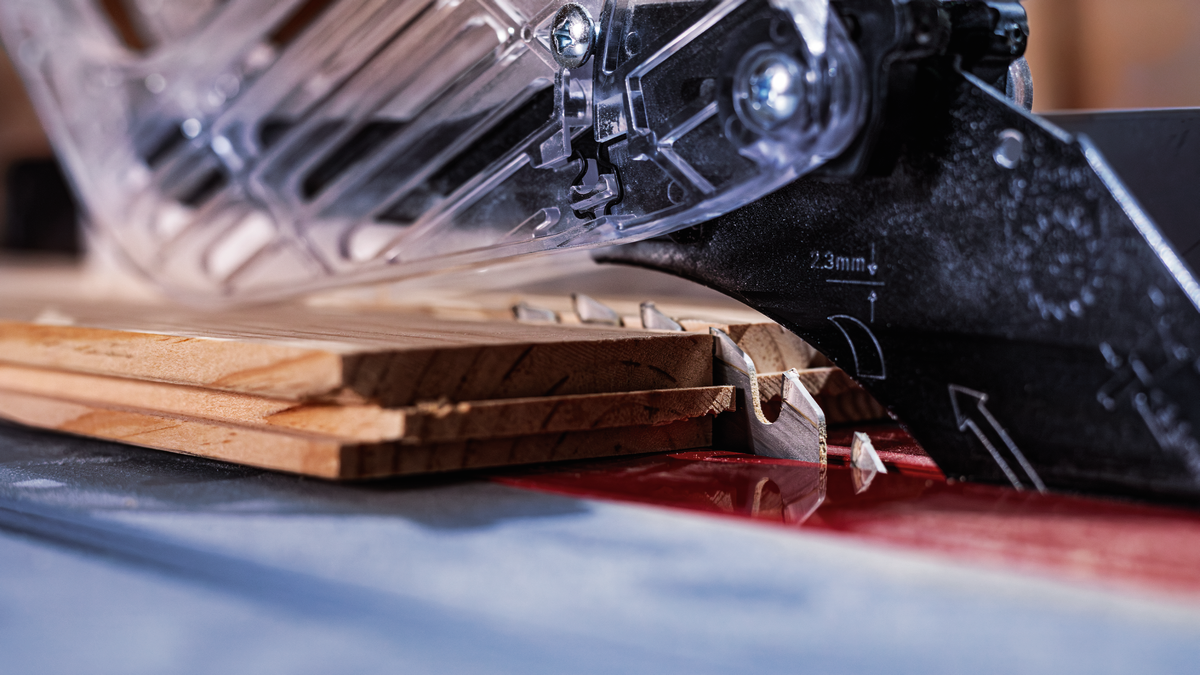

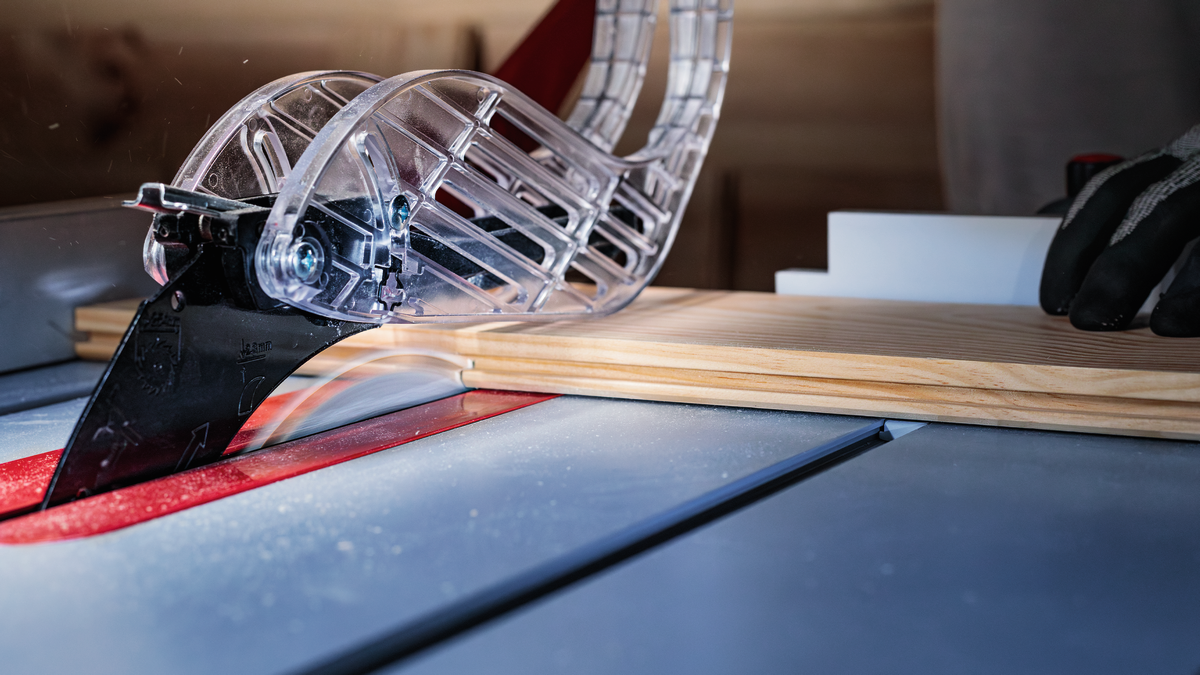

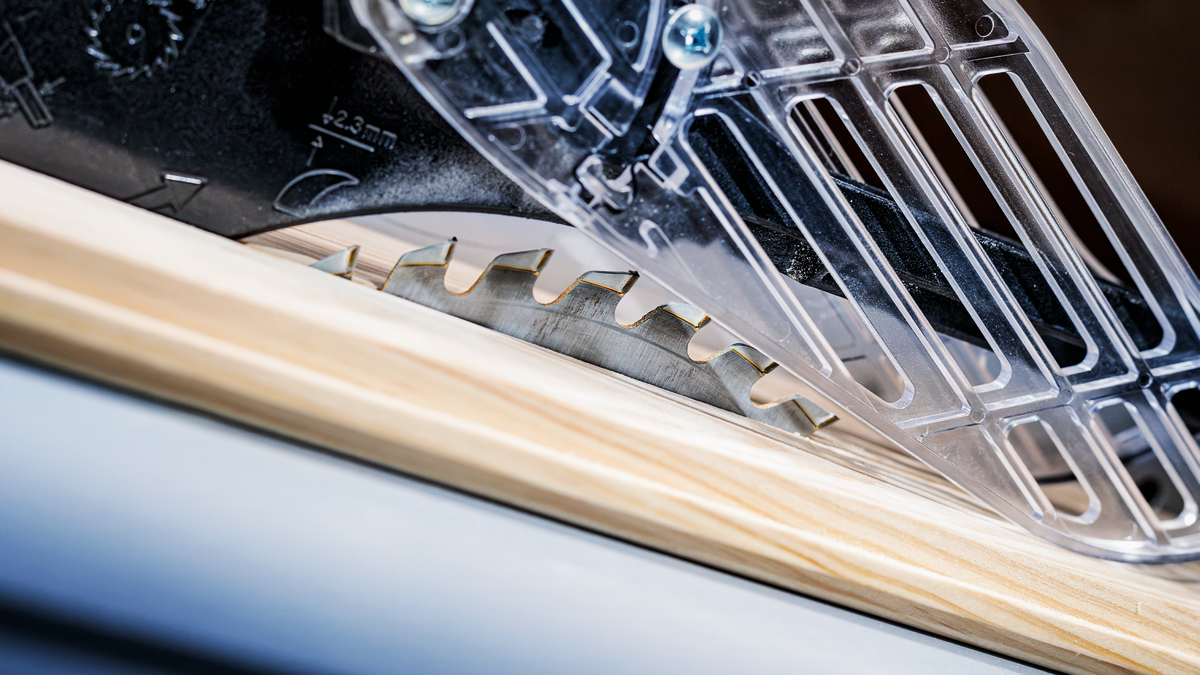

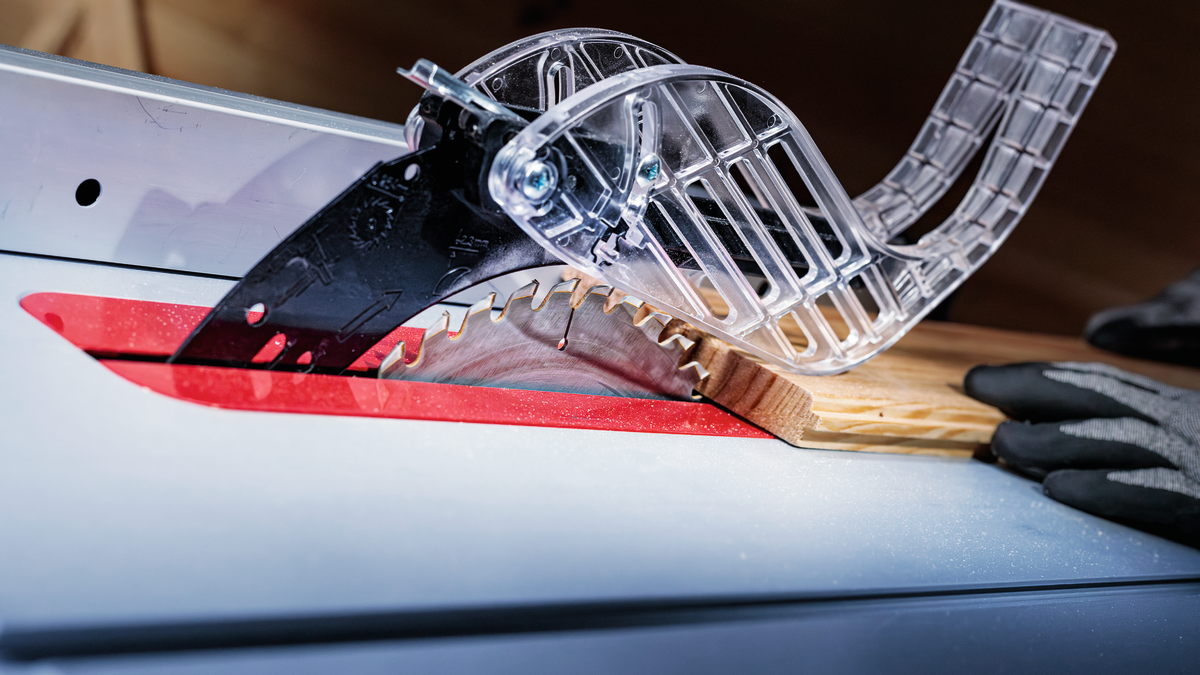

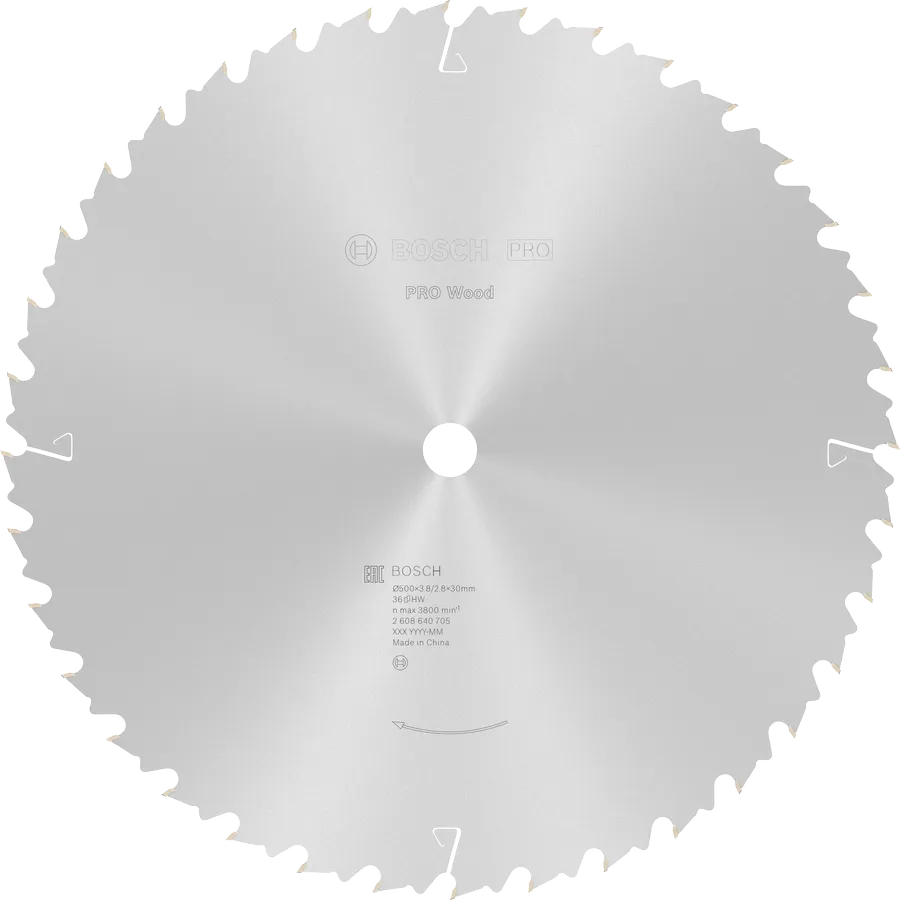

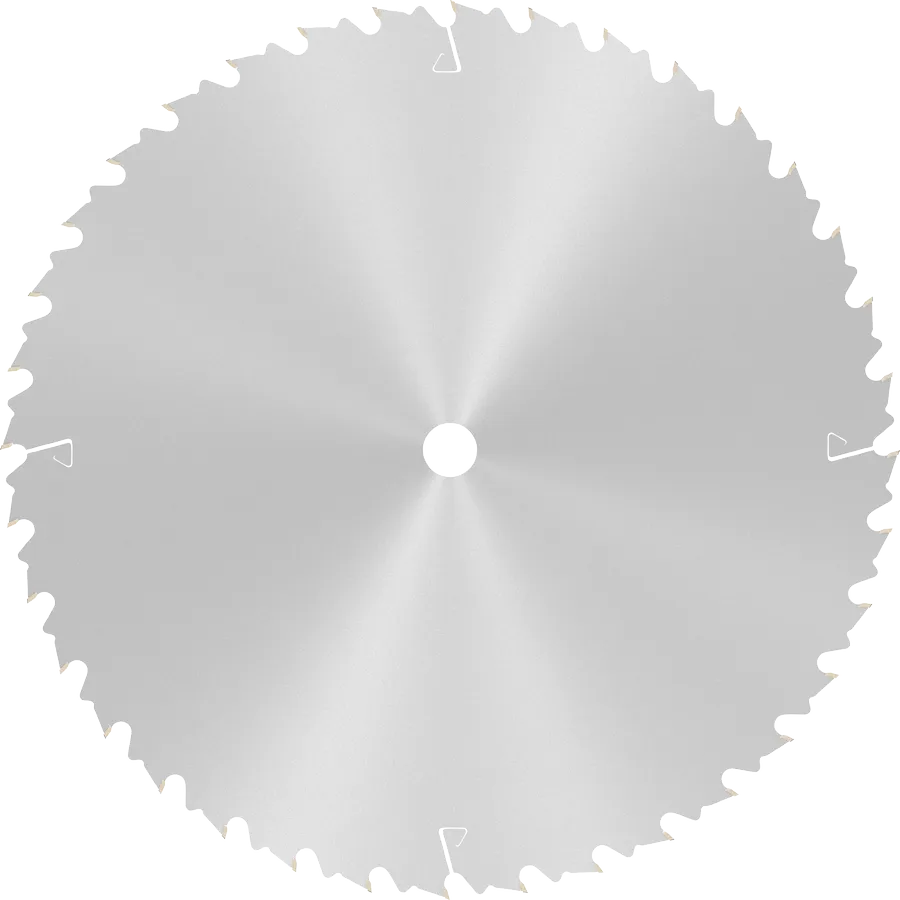

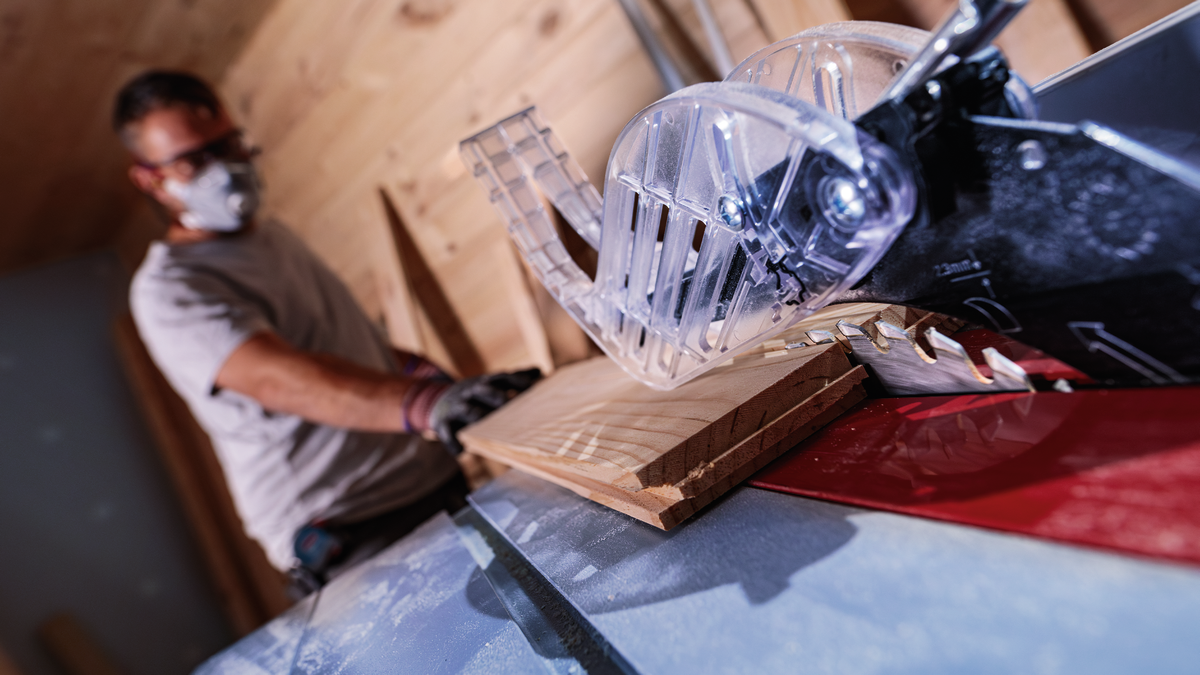

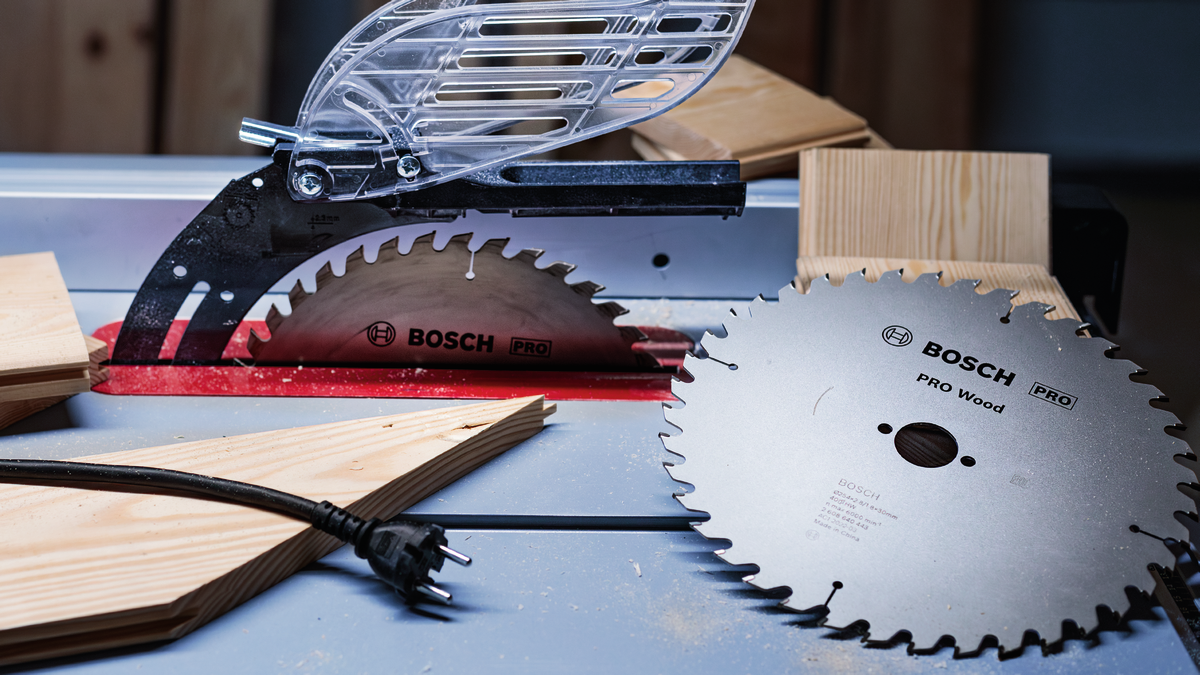

The PRO Wood Circular Saw Blade is a durable accessory you can use to cut all types of solid wood and wood-based panel materials with your table saw. Its stable, hardened steel base and robust teeth ensure you get clean and accurate cuts longer – time and again.
Available product options: 2
|
Part number
|
Outer diameter mm
|
Bore size mm
|
Width of cut (b1) mm / Base bl. thickness (b2) mm
|
Number of teeth
|
Pack quantity
|
Price
|
|
|---|---|---|---|---|---|---|---|---|

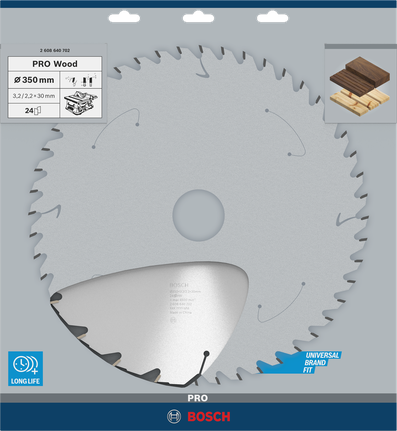

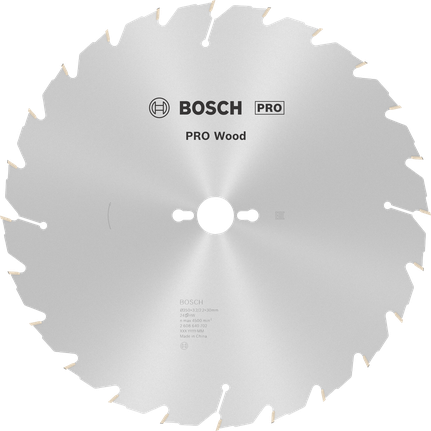

| 2 608 640 702 | 350 | 30 | 3.2/2.2 | 24 | 1 Pcs | Find a local dealer | ||

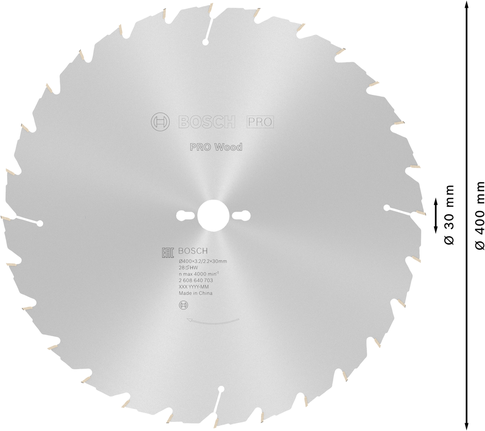

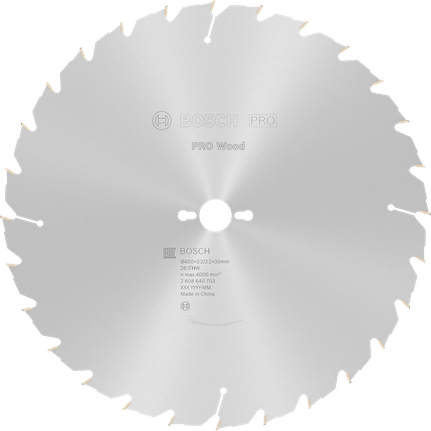

| 2 608 640 703 | 400 | 30 | 3.2/2.2 | 28 | 1 Pcs | Find a local dealer |
out of products
| Part number 2608640702 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 350 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 24 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4500 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 10/60 |
| Hook angle ° α | 18 |
| Relief angle ° β | 12 |
| Part number 2608640703 | |
|---|---|
| Packaging type | Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole |
| Pack quantity | 1 Pcs |
| Details | |
|---|---|
| Outer diameter mm | 400 |
| Bore size mm | 30 |
| Width of cut (b1) mm / Base bl. thickness (b2) mm | 3.2/2.2 |
| Number of teeth | 28 |
| Tooth shape | ATB |
| Max. rotation speed (RPM) | 4000 |
| Cutting result | Very coarse cut |
| Pin hole/Pitch circle diameter | 10/60 |
| Hook angle ° α | 17 |
| Relief angle ° β | 13 |
