Expert for Laminated Panel Table Circular Saw Blades

Perfect Reliable Cuts in Laminate Panels

Anti-vibration slots for particularly smooth cutting, considerably less noise and significantly reduced vibration
Saw blade has HLTCG teeth for robustness in abrasive materials

Available product options: 2

	Part number	Outer diameter mm	Bore size mm	Width of cut (b1) mm / Base bl. thickness (b2) mm	Number of teeth	Pack quantity	Price
	2 608 642 516	250	30	3.2/2.2	80	1 Pcs		Find a local dealer
	2 608 642 517	300	30	3.2/2.2	96	1 Pcs		Find a local dealer

out of products

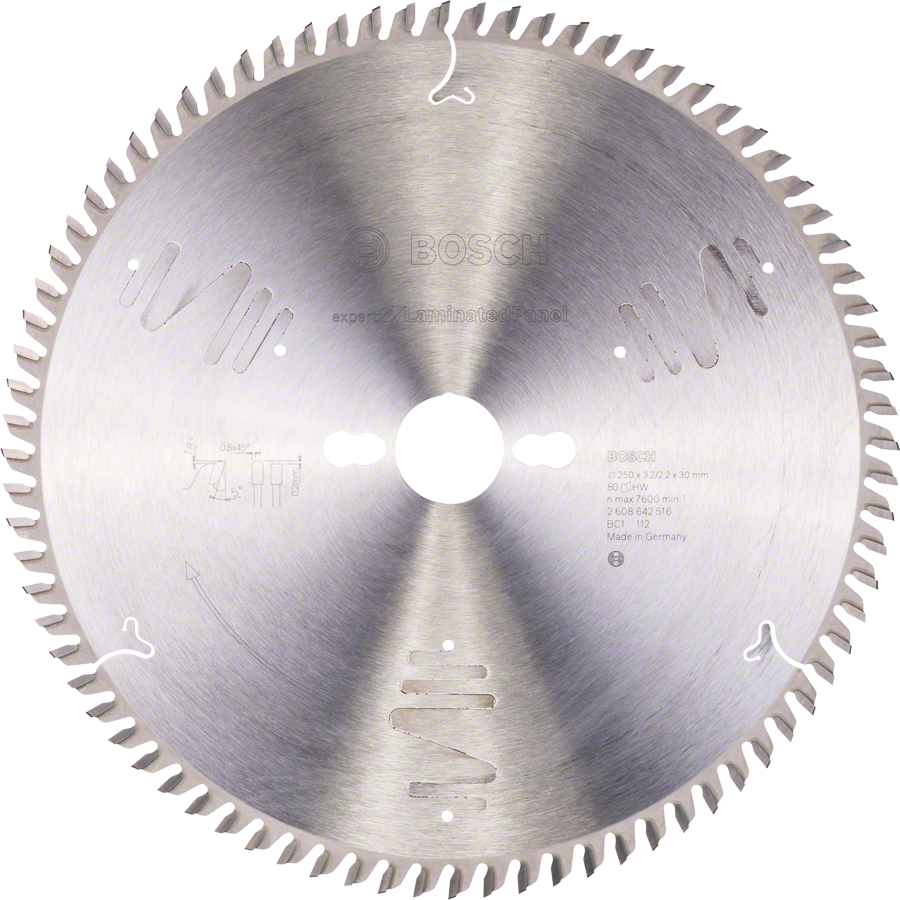

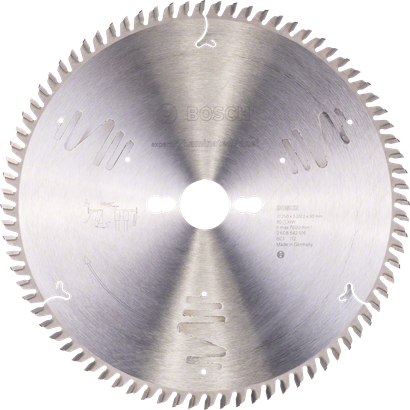

Part number 2608642516
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	250
Bore size mm	30
Width of cut (b1) mm / Base bl. thickness (b2) mm	3.2/2.2
Number of teeth	80
Tooth shape	HLTCG
Max. rotation speed (RPM)	7600
Cutting result	Fine Cut
Pin hole/Pitch circle diameter	2/7/42; 2/9/46.4; 2/10/60
Hook angle ° α	5
Relief angle ° β	18

Recommended retail price including VAT.

Find a local dealer

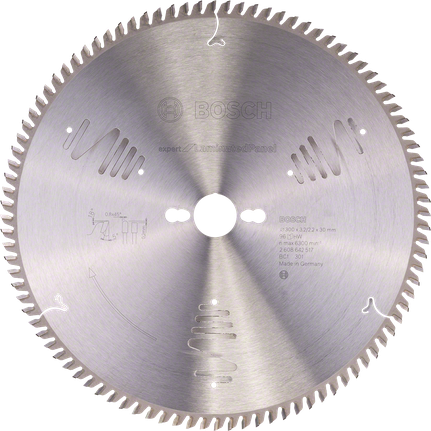

Part number 2608642517
Packaging type	Paper / Cardboard / Corrugated board - Packaging, tube, with Euro hole
Pack quantity	1 Pcs

Details
Outer diameter mm	300
Bore size mm	30
Width of cut (b1) mm / Base bl. thickness (b2) mm	3.2/2.2
Number of teeth	96
Tooth shape	HLTCG
Max. rotation speed (RPM)	6300
Cutting result	Fine Cut
Pin hole/Pitch circle diameter	2/7/42; 2/9/46.4; 2/10/60
Hook angle ° α	5
Relief angle ° β	18

Recommended retail price including VAT.

Find a local dealer
