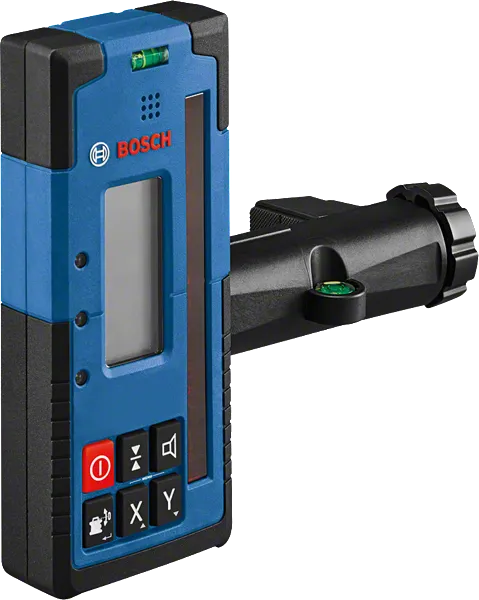

LR 60 Professional
Laser Receiver
Laser detection made quick and easy – enjoy high-quality results with LR 60 Professional
- Long 125-mm reception window and dual-sided backlit display for quick and easy laser detection
- Heavy-duty design via robust, soft grip body, durable rubber keypad, and P67 protection rating against dust and water
- Communication with GRL 600 CHV Professional for user calibration, dual Centre line mode, and GRL battery status
Functions & key features
LR 60 Professional
Your Selection
Order number: 0 601 069 P00

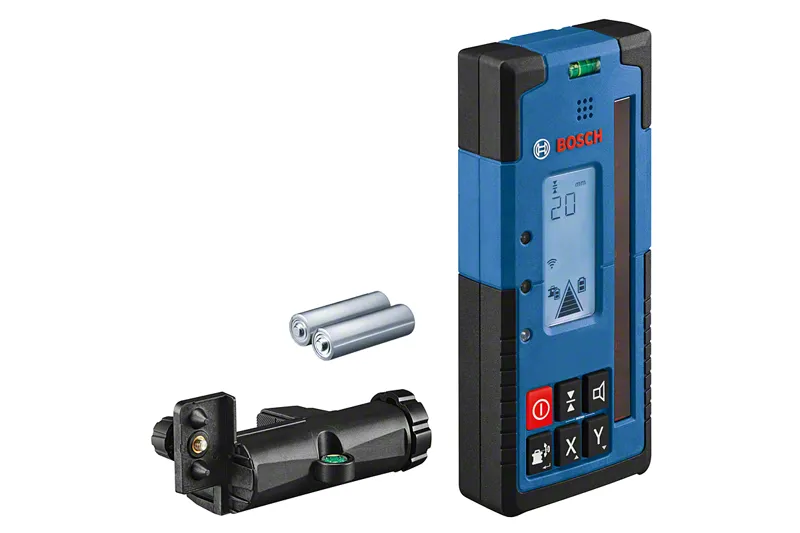

Find a local dealerIncluded in this variant
-
Receiver bracket RB 60 Professional
-
2 x 1.5 V LR6 battery (AA)
Technical data
Additional data |
|
|---|---|
| Range of | 0 – 300 m |
| Power supply | 2 x 1.5 V LR6 (AA) |
| Dust and splash protection | IP 67 |
| Weight, approx.* | 0.38 kg |
| Measuring accuracy (fine/rough) | ±0.5 mm, ±1mm, ±2mm, ±5mm, ±10mm |
| Type of receiver | Rotation lasers |
* You can find more information about the deviations in the following link:
LR 60 Professional: Further information
Product Highlights
Fast and easy laser detection – the robust, high-quality rotation laser receiver LR 60 Professional is the perfect mate when working with the GRL 600 CHV Professional. Its long 125-mm reception window and dual-sided backlit LCD display with a mm offset feature make it simple to detect lasers quickly and easily for efficient working progress. It is always ready for even the toughest jobsites thanks to its robust soft grip body, durable rubber keypad, and IP67 protection rating against dust and water. Communication with GRL 600 CHV enables additional functions including user calibration (uCAL) and Centre line mode for less errors and more reliable results.
Equipment & Application

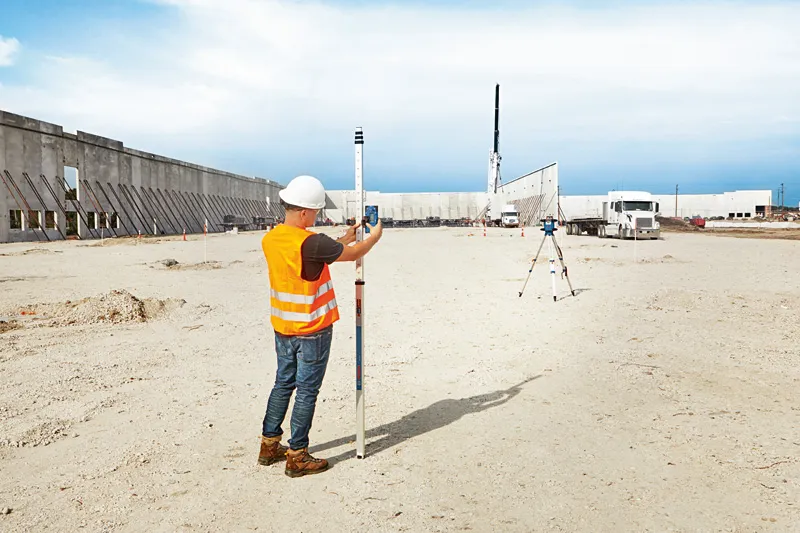

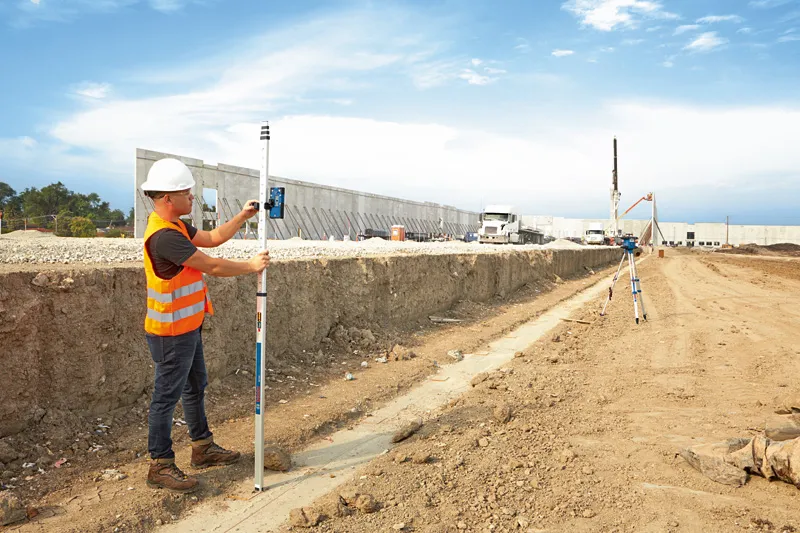

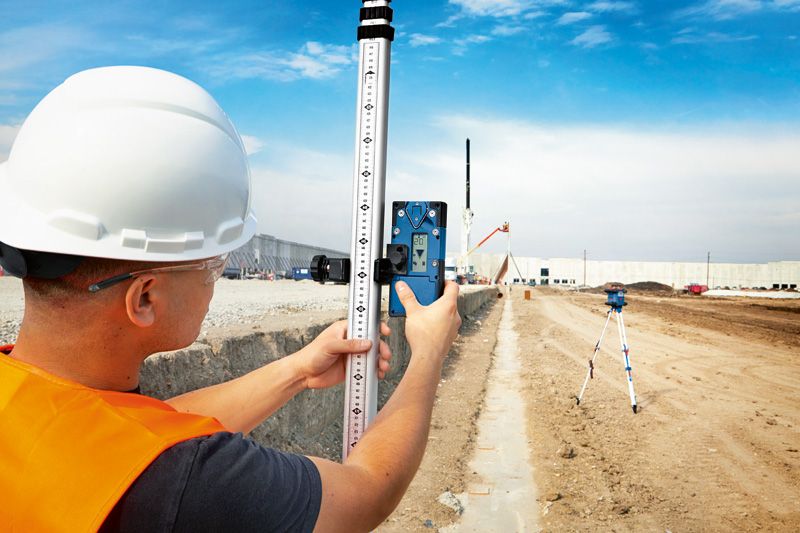

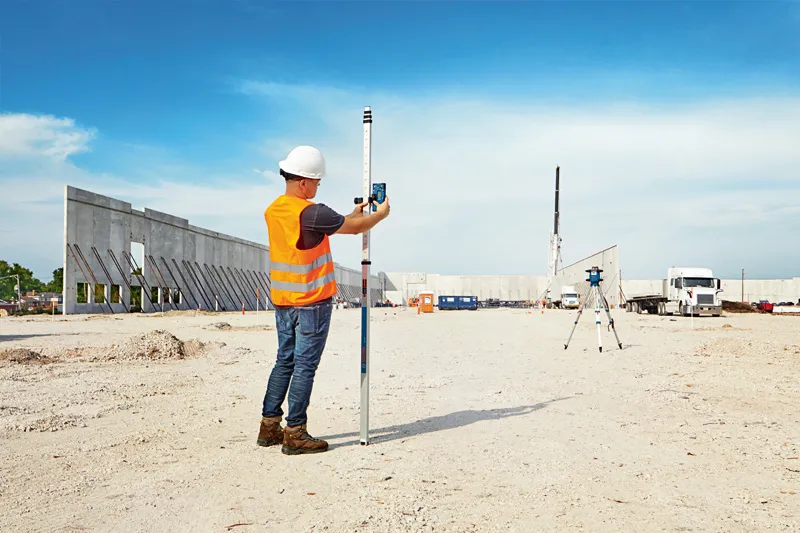

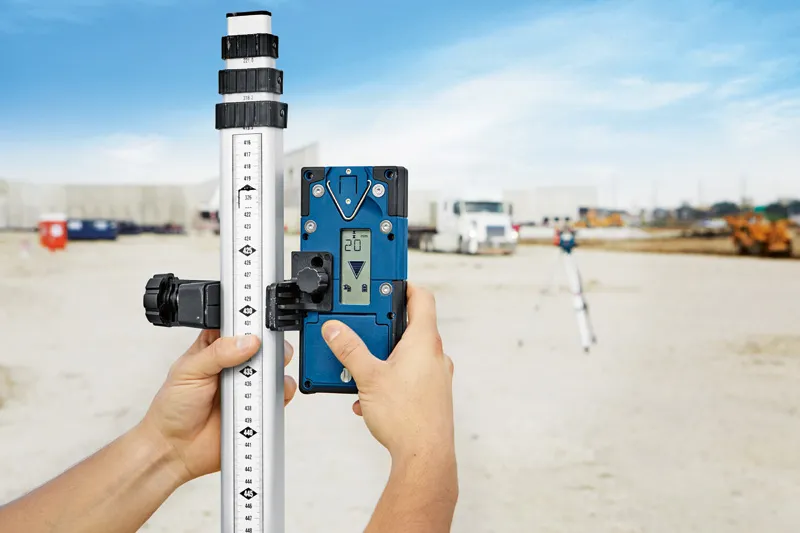

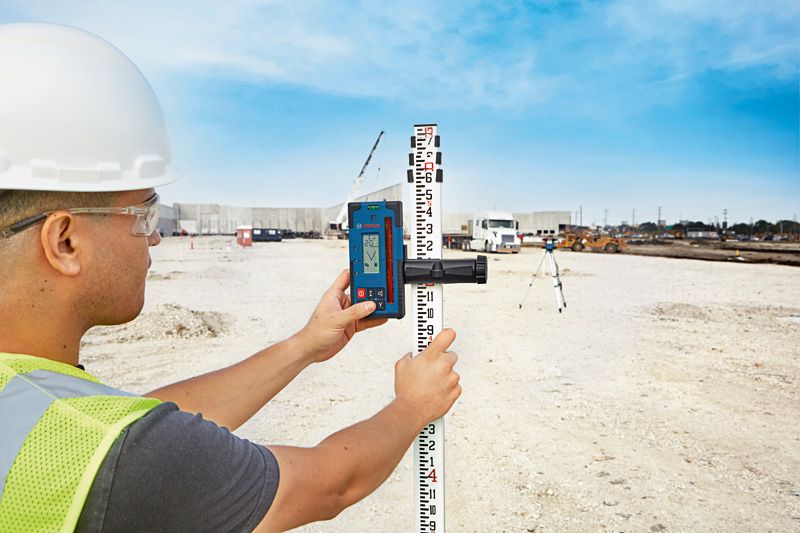

Use this receiver with the GRL 600 CHV when determining cut-and-fill for excavation work, concrete forms, landscaping, and facade work.
Additional Information
The laser receiver LR 60 also features different sensitivity and volume settings, making it adaptable to fit each work environment. It has a large working range of up to 300 m. The receiver's LEDs with adjustable brightness settings help detect the laser beam while its vial ensures accurate results.
