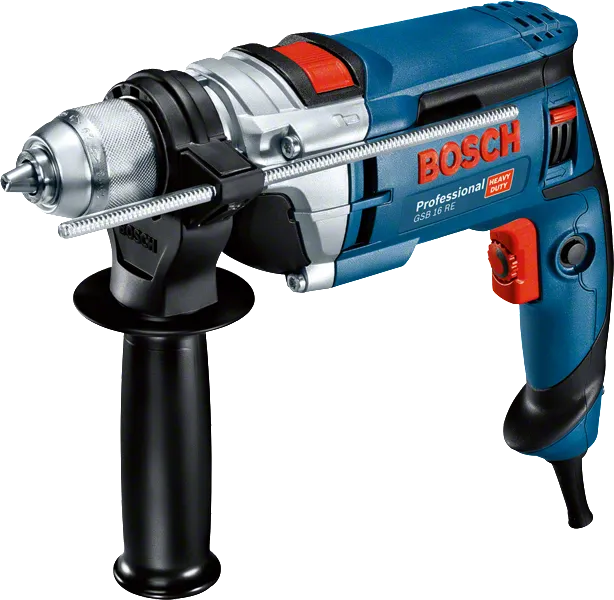

GSB 16 RE Professional

Name: GSB 16 RE
Brand: Bosch power tools

Impact Drill

The fastest tool in its class

750 W for the fastest work progress
Compact design for perfect handling
Sturdy metal gear housing for long lifetime

Functions & key features

Your Selection

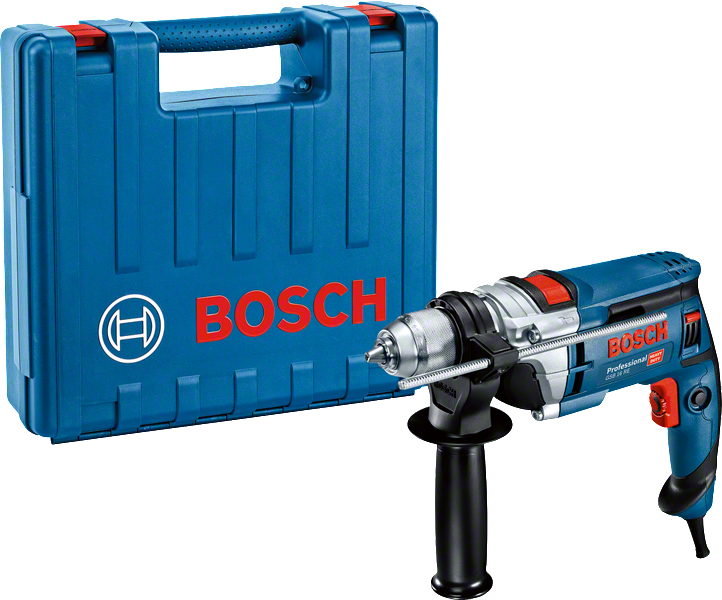

in carrying case with auxiliary handle

Show variant

Check availability on location

Find a local dealer

Your Selected Variant

in carrying case with auxiliary handle 0 601 14E 500

Find a local dealer

GSB 16 RE Professional

Your Selection

in carrying case with auxiliary handle

Order number: 0 601 14E 500

Find a local dealer

Included in this variant

Auxiliary handle

Order number: 2 605 025 190
Carrying case

Order number: 2 605 438 524
Keyless chuck 13 mm

Order number: 2 608 572 149
Depth stop 210 mm

Order number: 1 613 001 010

Your selection

Technical data

Additional data
Rated input power	750 W
Drill chuck, version	Keyless chuck
Voltage, electrical	230 V
Spindle collar diameter	43 mm
Bit holder	1/2"-20 UNF
No-load speed, 1st gear*	0 – 2,800 rpm
Power output*	380 W
Weight*	2.2 kg
Impact rate at no-load speed*	0 – 47,600 bpm
Drill spindle connecting thread	1/2"-20 UNF
Chuck capacity, min./max.	1.5 – 13 mm
Rated torque	2.3 Nm

Drilling range
Drilling diameter in wood	30 mm
Drilling diameter in steel	13 mm
Drilling diameter in masonry	18 mm

Total vibration values (Drilling in metal)
Vibration emission value ah	5.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Impact drilling in concrete)
Vibration emission value ah	15 m/s²
Uncertainty K	2.4 m/s²

Total vibration values (Screwdriving)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Total vibration values (Thread-cutting)
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Drilling in metal
Vibration emission value ah	5.5 m/s²
Uncertainty K	1.5 m/s²

Impact drilling in concrete
Vibration emission value ah	15 m/s²
Uncertainty K	2.4 m/s²

Screwdriving
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

Thread-cutting
Vibration emission value ah	2.5 m/s²
Uncertainty K	1.5 m/s²

* You can find more information about the deviations in the following link: Technical features of products
