Rotation lasers
1/5

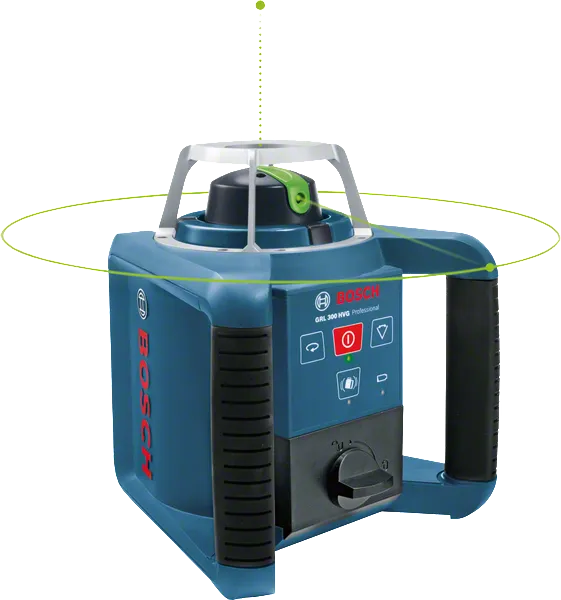

GRL 300 HVG + LR 1 G in L-BOXX Professional
Rotation Laser

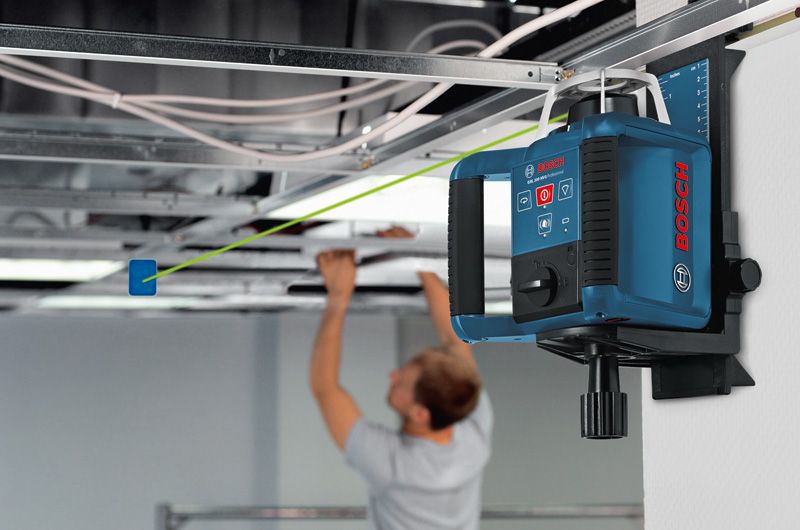

Outstanding visibility for indoor applications
- Green laser line: up to four times better visibility than a red line
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks or vibrations
Functions & key features
Your Selection
- in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, receiver
in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, receiver
0 601 061 704
GRL 300 HVG + LR 1 G in L-BOXX Professional
Your Selection
in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, receiver
Order number: 0 601 061 704

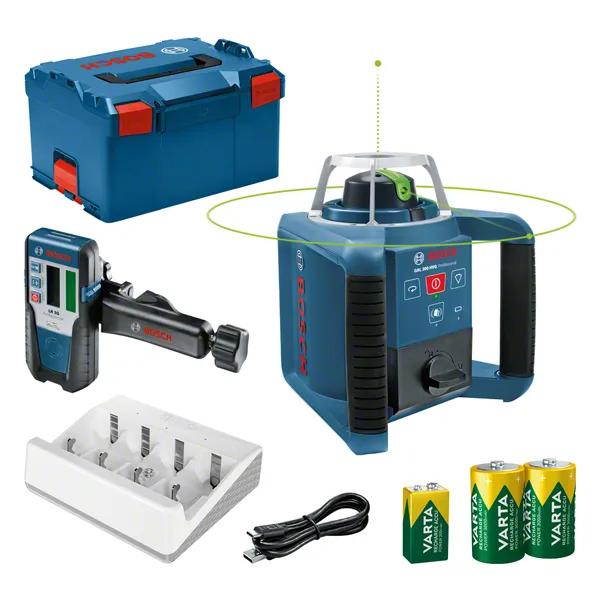

Find a local dealerIncluded in this variant
-
BracketOrder number: 1 608 M00 70F
-
L-BOXX 238Order number: 1 600 A01 2G2
-
1 x 9V 7HR9V VARTA rechargeable battery
-
2 x 1.2V HR20 (D) VARTA rechargeable batteries
-
Laser receiver LR 1G ProfessionalOrder number: 0 601 069 700
-
1 x VARTA charger
Technical data
Additional data
Tripod thread
5/8"
Laser diode
532 nm, < 5 mW
Operating temperature
0 – 40 °C
Storage temperature
-20 – 70 °C
Laser class
3R
Working range*
100 m
Working range with receiver*
300 m (Diameter)
Working range without receiver*
100 m (Diameter)
Accuracy*
± 3.0 mm at 30 m* (*plus use-dependent deviation)
Self-levelling range
± 5° (8%)
Levelling time
15 s
Dust and splash protection
IP 54
Rotation speed
150, 300, 600 rpm
Power supply
2 x 1.5 V LR20 (D)
Weight, approx.**
1.8 kg
Colour of laser line
green
Compatible laser receivers
LR 1G
Working range, value
100 m
Working range with receiver, value
300 m
Slope function
no
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
