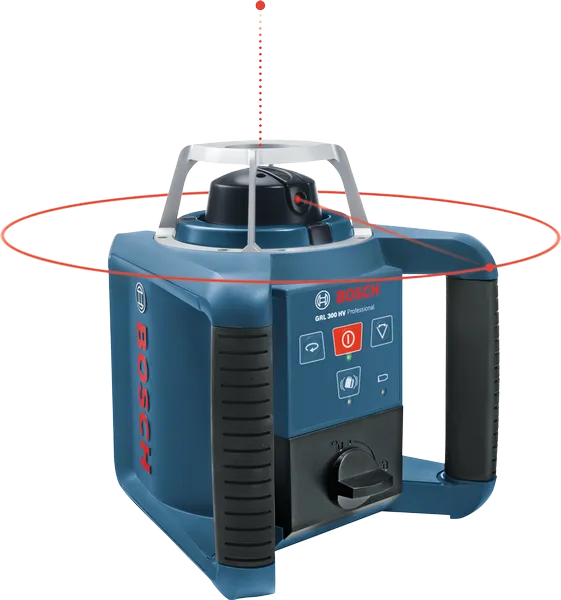

GRL 300 HV + LR 1 in L-BOXX Professional
Rotation Laser
Easy handling with horizontal and vertical self-levelling
- Easy to operate thanks to one button per function, and self-explanatory display
- Easy to set up in both the horizontal and vertical modes due to automatic self-levelling of 8% (± 5°)
- The shock warning function, which can be switched on and off, prevents levelling errors in the event of shocks and vibrations
Functions & key features
Your Selection

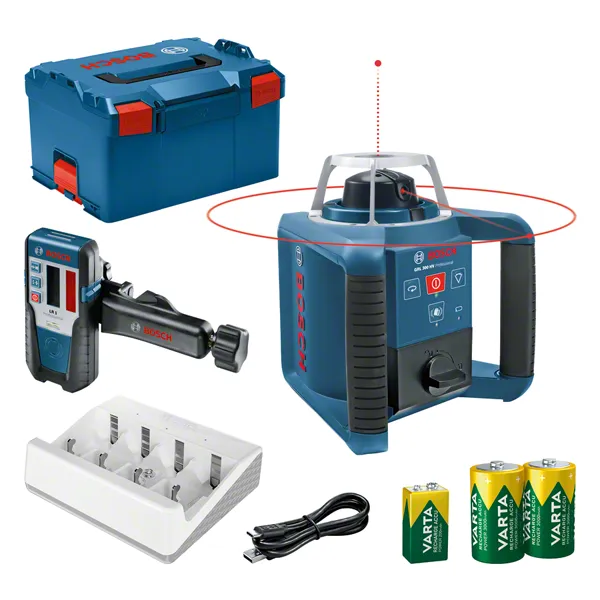

- in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, Laser Receiver LR 1 Professional (0 601 015 400)
in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, Laser Receiver LR 1 Professional (0 601 015 400)
0 601 061 505
Select a variant
Your Selection
in L-BOXX 238 with 2 x 1.2V HR20 (D) 9 Ah battery, Laser Receiver LR 1 Professional (0 601 015 400)
Order number: 0 601 061 505
Find a local dealerIncluded in all variants
-
Laser Receiver LR 1 ProfessionalOrder number: 0 601 015 400
Additional in this variant
-
L-BOXX 238Order number: 1 600 A01 2G2
-
2 x 1.2V HR20 (D) VARTA rechargeable batteries
-
1 x 9V 7HR9V VARTA rechargeable battery
-
1 x VARTA charger
Your Selection
in carrying case with 1 x 9 V block battery, receiver
Order number: 0 601 061 501
Find a local dealerIncluded in all variants
-
Laser Receiver LR 1 ProfessionalOrder number: 0 601 015 400
Additional in this variant
-
Battery compartment (spare part number 1 608 M00 05D)
-
Universal mount WM 4 ProfessionalOrder number: 0 601 092 400
-
1 x 1.5 V LR6 battery (AA)
-
Remote control RC1 ProfessionalOrder number: 0 601 069 900
-
2 x 1.5 V LR20 battery (D)
-
Holder also available separately as an accessory (spare part number 1 608 M00 70F)
-
Laser viewing glasses, red, BL-GLASS (spare part number 1 608 M00 05B)
-
Carrying case
-
Laser target (red) (spare part number 1 608 M00 05C)
-
1 x 9 V block battery (6LR61)
Technical data
Additional data |
|
|---|---|
| Slope function | no |
| Tripod thread | 5/8" |
| Colour of laser line | red |
| Working range with receiver* | up to 300 m (Diameter) |
| Accuracy* | ± 3.0 mm at 30 m* (*plus use-dependent deviation) |
| Dust and splash protection | IP 54 |
| Laser diode | 635 nm, < 5 mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 3R |
| Working range without receiver* | up to 60 m (Diameter) |
| Self-levelling range | ± 5° (8%) |
| Levelling time | 15 s |
| Rotation speed | 150, 300, 600 rpm |
| Power supply | 2 x 1.5 V LR20 (D) |
| Weight, approx.** | 1.8 kg |
| Working range with receiver, value | 300 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
