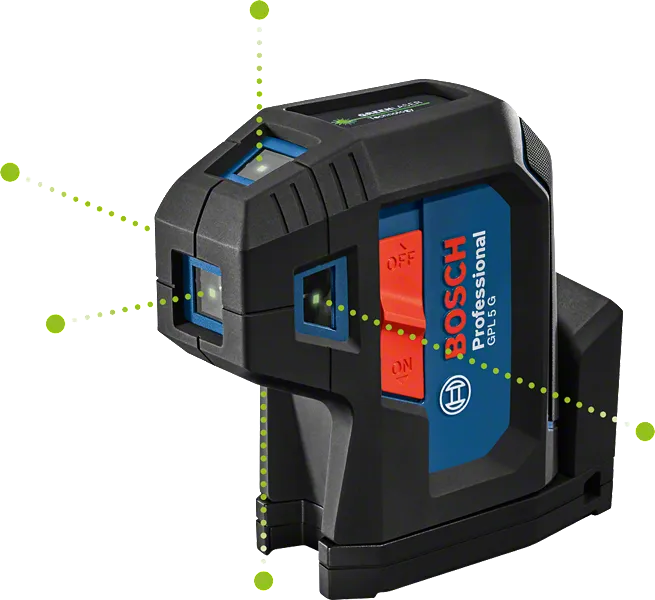

GPL 5 G Professional
Point Laser

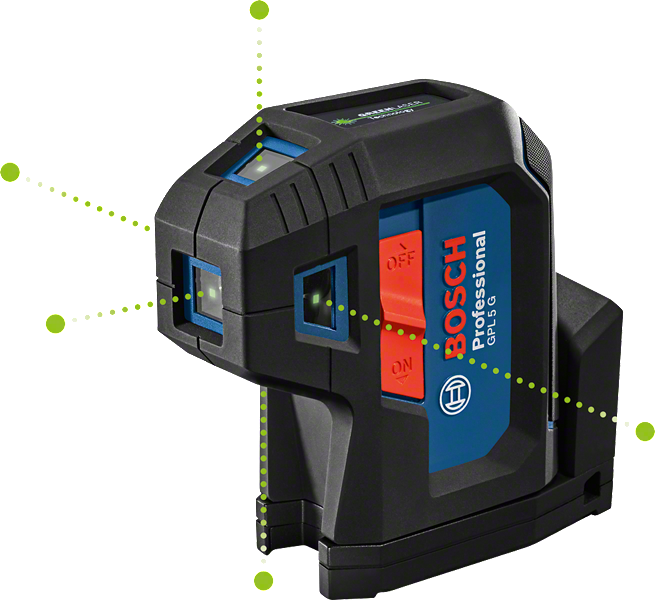

The tough and compact 5-point laser with highly visible green laser points
- Green laser points provide up to four times better visibility than red points
- Durable design resists tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
- Fast and secure mounting thanks to integrated rotation mount with strong magnets
Functions & key features
GPL 5 G Professional
Your Selection
Order number: 0 601 066 P00

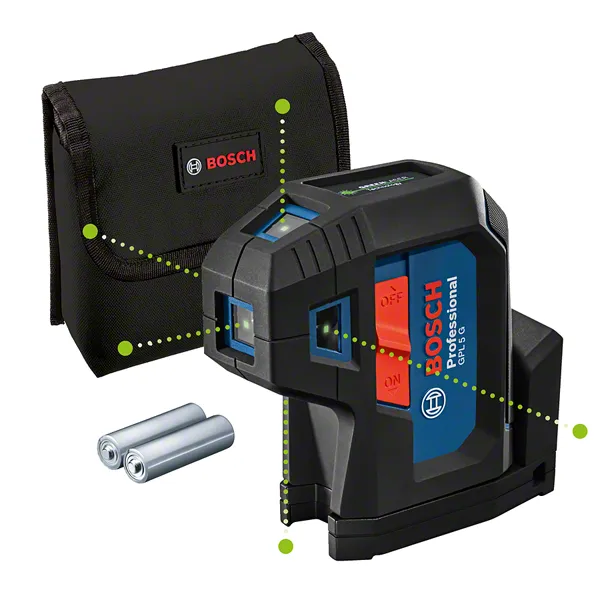

Find a local dealerIncluded in this variant
-
Pouch
-
2 x 1.5 V LR6 battery (AA)
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4" |
| Projection | 5 points |
| Working range* | up to 30 m |
| Accuracy* | ± 0.35 mm/m* (except bottom laser point) ; ± 0.7 mm/m* (bottom laser point) (*plus use-dependent deviation) |
| Dust and splash protection | IP 65 |
| Laser diode | < 1 mW, 500 – 540 nm |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 2 x 1.5 V LR6 (AA) |
| Operating time (max.) | 8 h |
| Weight, approx.** | 0.35 kg |
| Working range, value | 30 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GPL 5 G Professional: Further information
Product Highlights

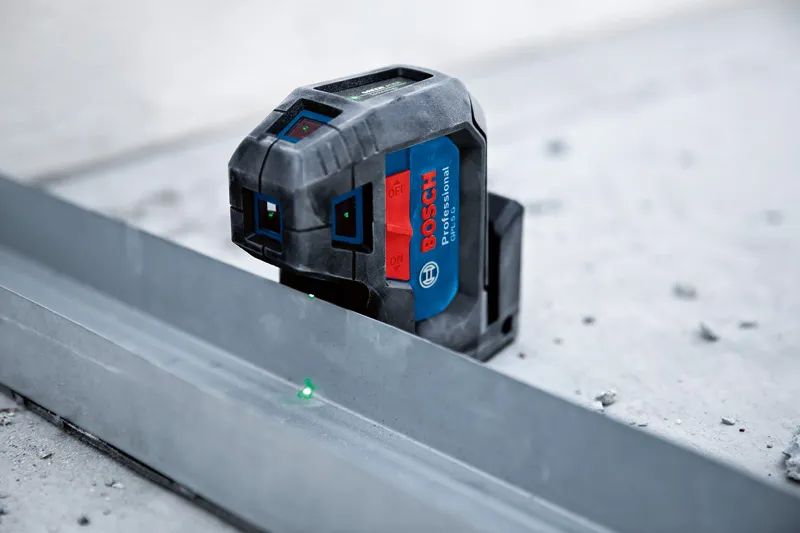

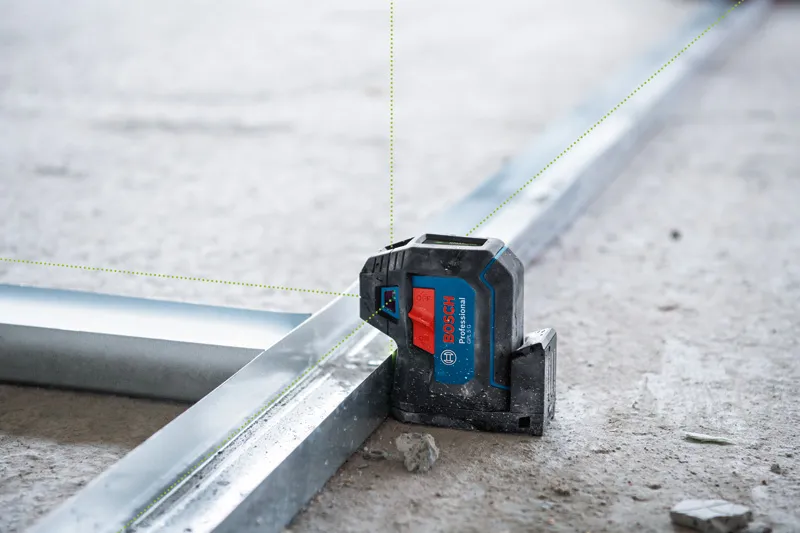

The 5-point laser GPL 5 G Professional stands out with its durable and compact design, making it the ideal choice for laying out 90-degree walls. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 5 G Professional resists tough jobsite conditions. This 5-point laser is transport-ready in no time, thanks to an integrated rotation mount that features strong magnets for fast and secure tool mounting.
Equipment & Application

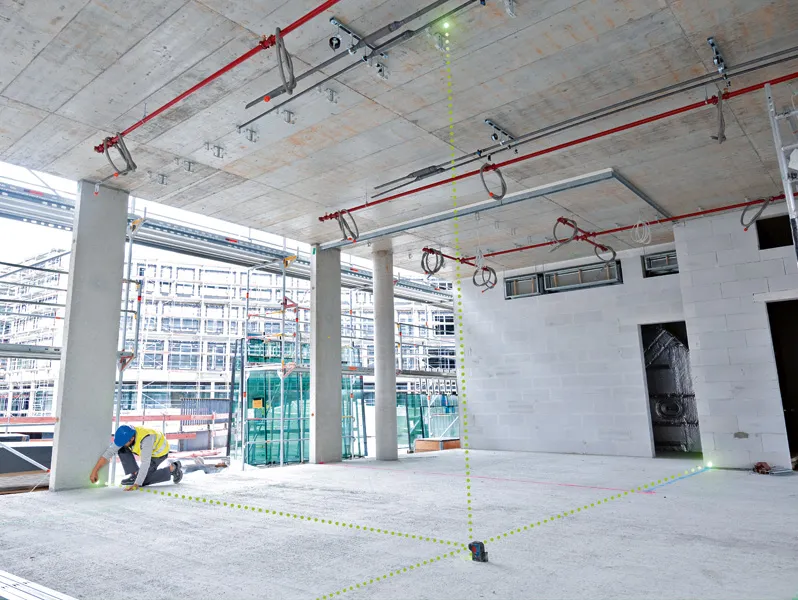

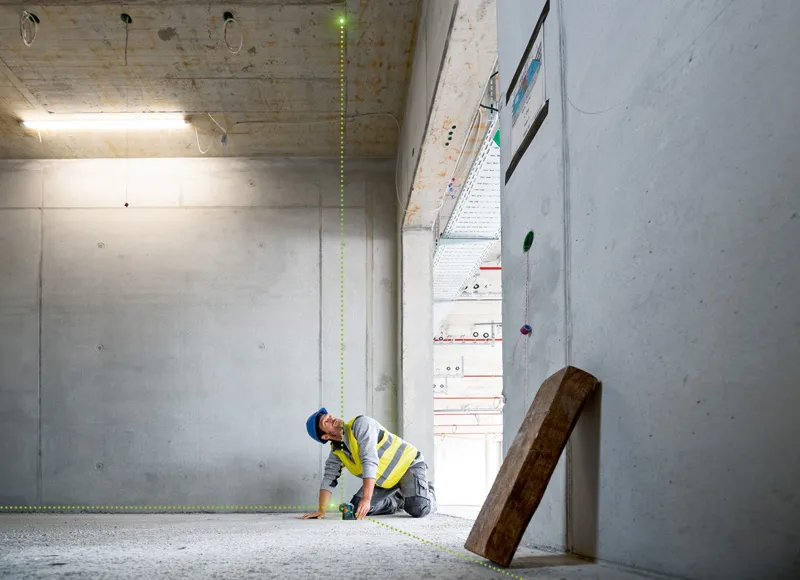

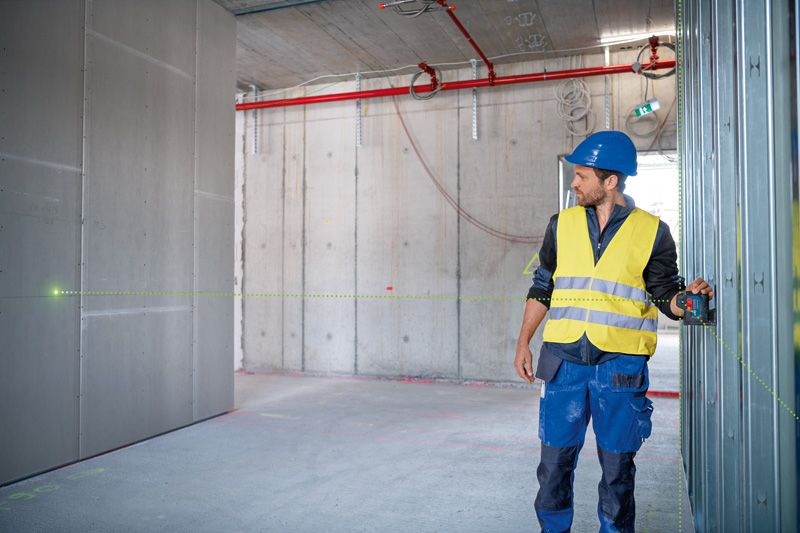

The GPL 5 G Professional is ideal for room partitioning with 90-degree angles and for transferring points from floor to ceiling. It is very suitable for jobs like plumbing and building frames for drywalls.
Additional Information
This 5-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.
