Optical levels
![GOL 26 D]( "GOL 26 D")
![GOL 26 D]( "GOL 26 D")
![GOL 26 D]( "GOL 26 D")
![GOL 26 D]( "GOL 26 D")

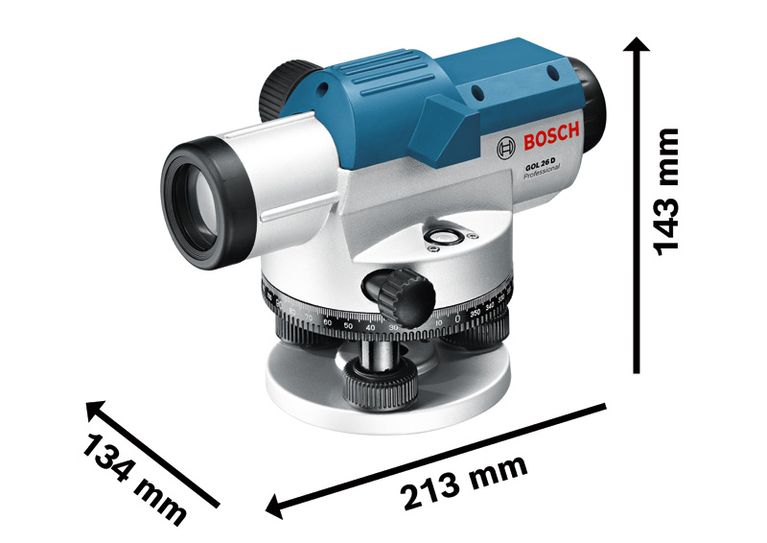

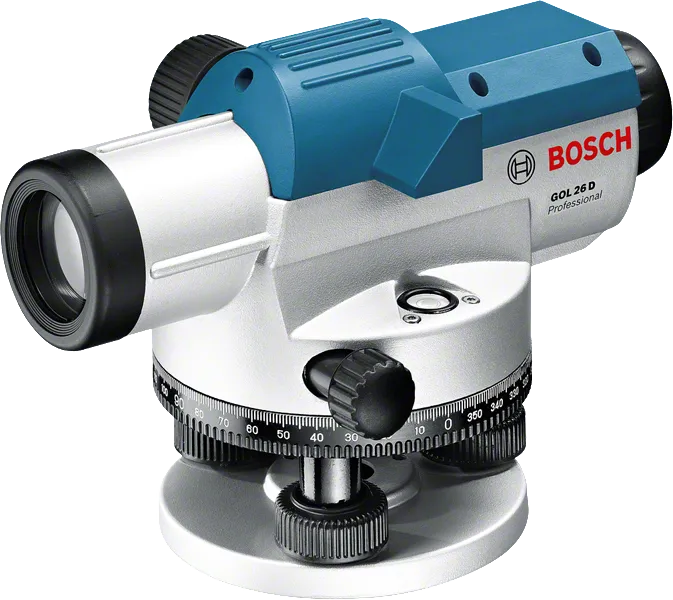

GOL 26 D Professional
Optical Level
Extremely robust – ideal for outdoor use
- Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
- Robust design with built-in target collimator and integrated circular vial
- Compensator lock for safe transport
Functions & key features

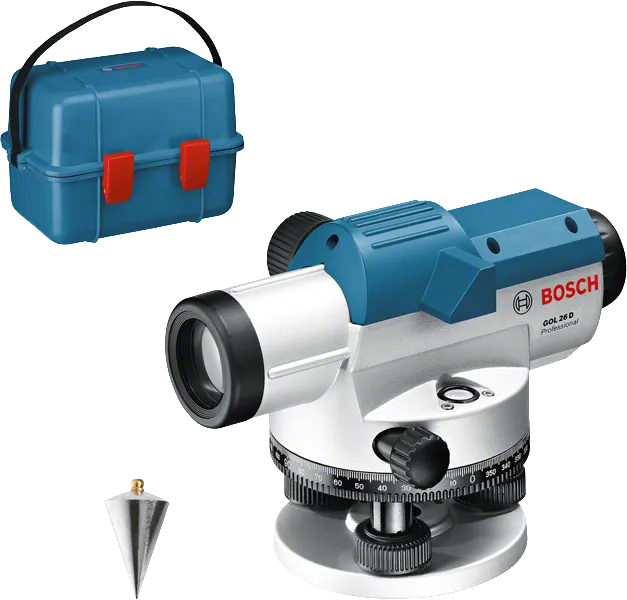

in carrying case with accessory set
0 601 068 000
Select a variant
Your Selection
in carrying case with accessory set
Order number: 0 601 068 000
Find a local dealerIncluded in all variants
-
Plumb bob
-
Carrying caseOrder number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Your Selection
in carrying case with accessory set
Order number: 0 601 068 002
Find a local dealerIncluded in all variants
-
Plumb bob
-
Carrying caseOrder number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin

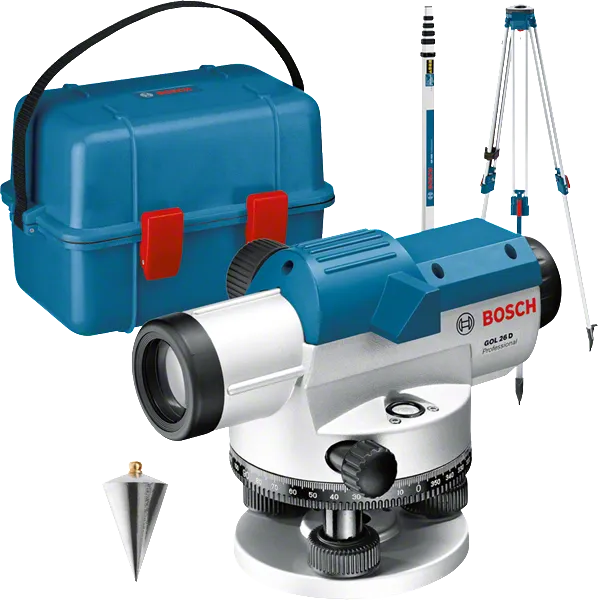

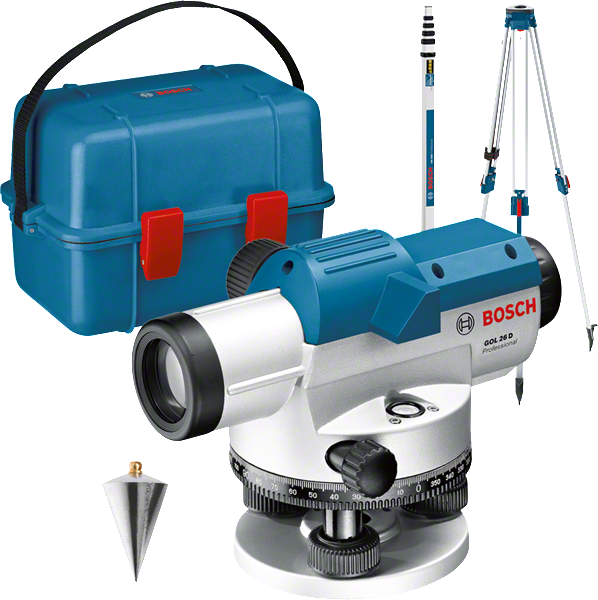

Additional in this variant
-
Building tripod BT 160 ProfessionalOrder number: 0 601 091 200
-
Measuring rod GR 500 ProfessionalOrder number: 0 601 094 300
Technical data
Additional data |
|
|---|---|
| Tripod thread | 5/8" |
| Unit of measure | 360 degrees |
| Magnification | 26 x |
| Accuracy* | ± 1.6 mm at 30 m |
| Dust and splash protection | IP 54 |
| Working range* | 100 m |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Weight, approx.** | 1.5 kg |
| Working range, value | 100 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
