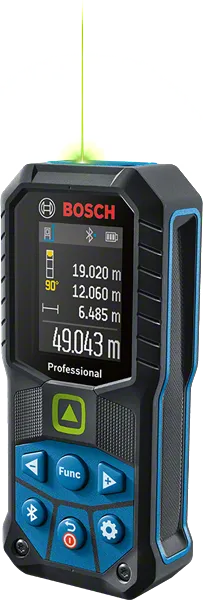

GLM 50-27 CG Professional
Laser Measure
Robust & reliable laser measure with green laser for excellent visibility

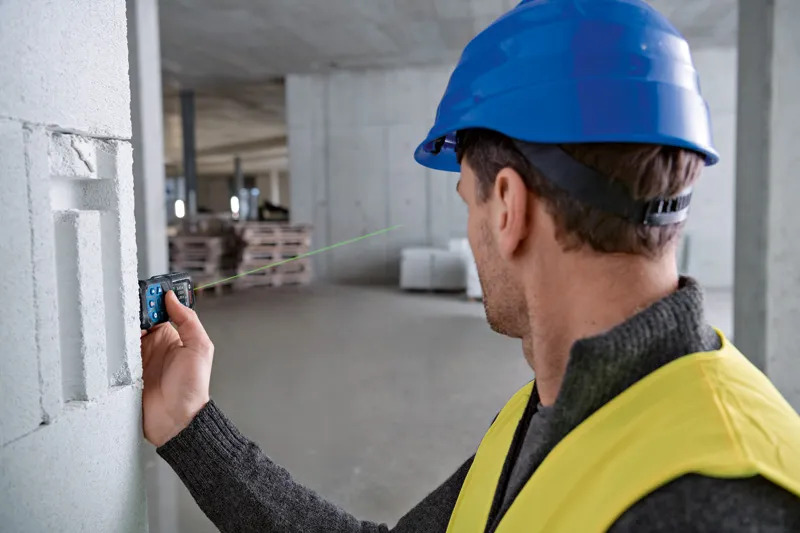

- Green laser technology ensures excellent visibility for long-distance measurements in bright indoor conditions

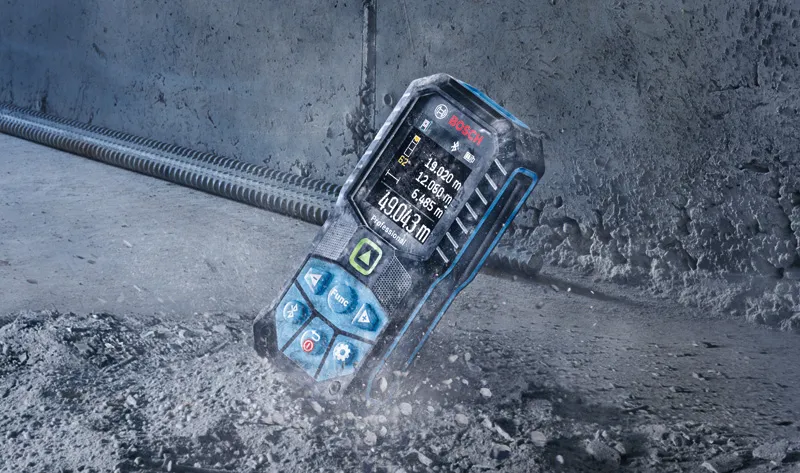

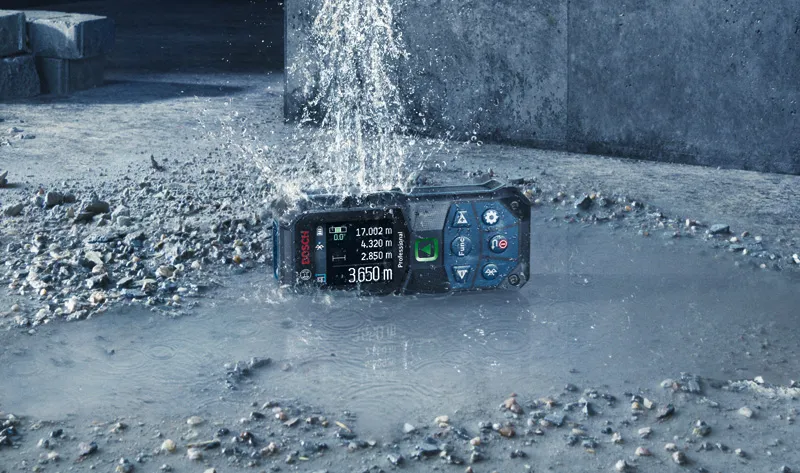

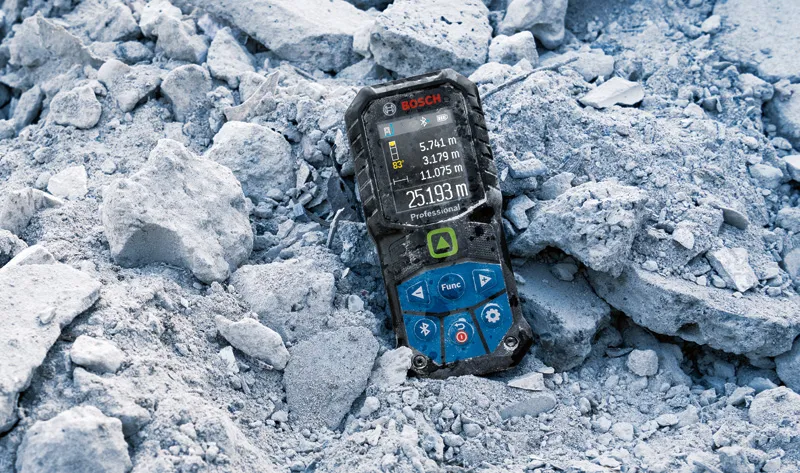

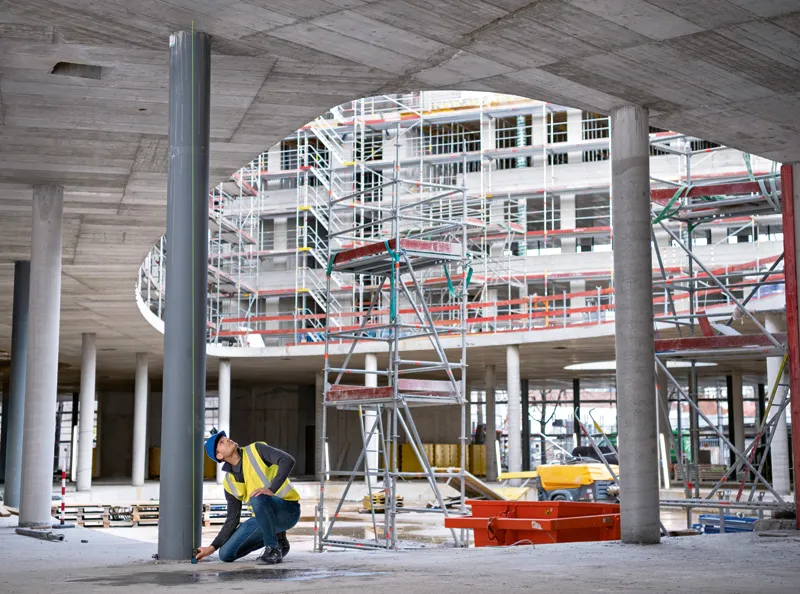

- Ideal for rough construction work due to 1.5-metre drop resistance, IP65 protection, and shock-absorbing rubber casing

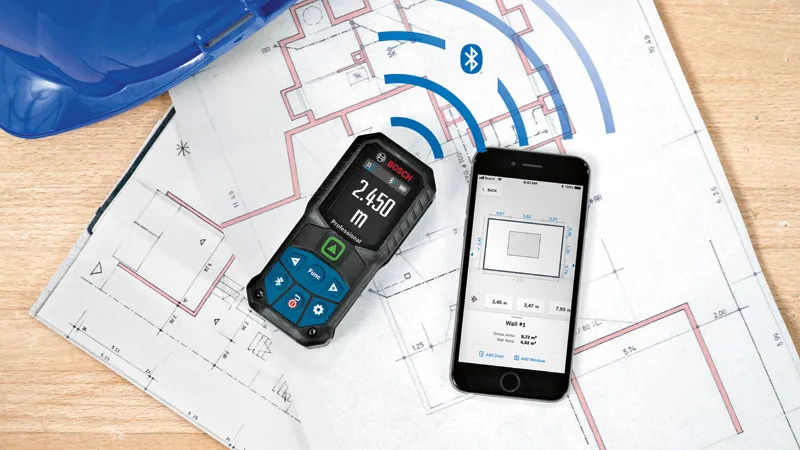

- Quick documentation and fast data transfer thanks to Bluetooth® connectivity and Bosch MeasureOn App
Functions & key features
Select a variant
Your Selection
Order number: 0 601 072 U00

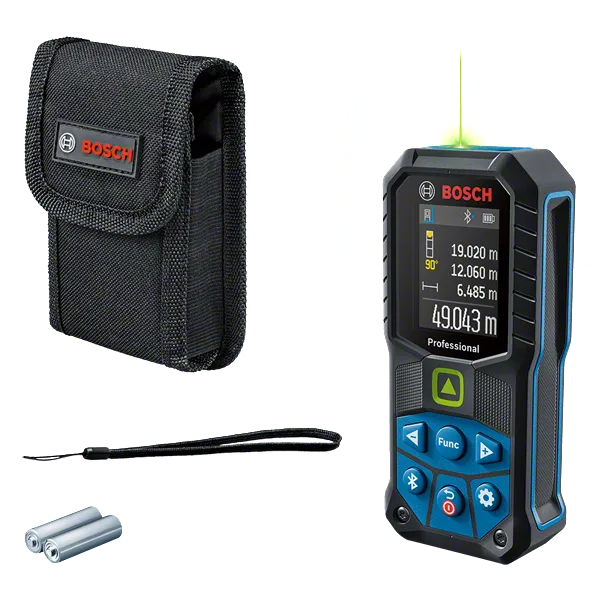

Find a local dealerIncluded in all variants
-
Protective Bag
-
Carrying Strap
Additional in this variant
-
2 x 1.5 V LR6 battery (AA)
Your Selection

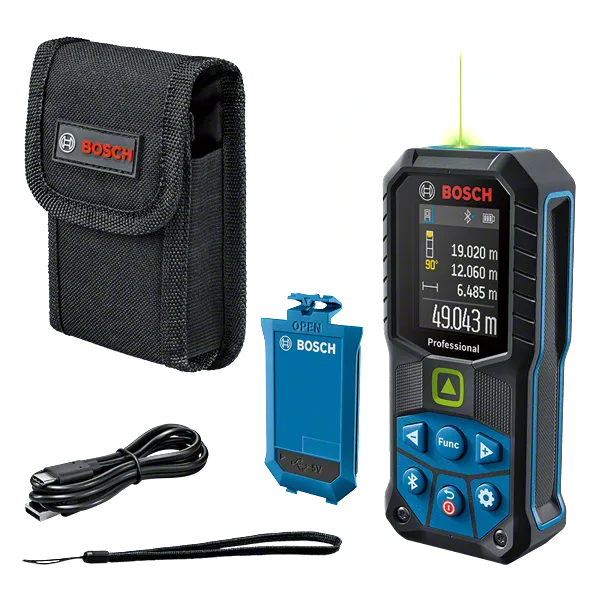

Order number: 0 601 072 U01
Find a local dealerIncluded in all variants
-
Protective Bag
-
Carrying Strap
Additional in this variant
-
BA 3.7V 1.0Ah A and USB-C® CableOrder number: 1 608 M00 C43
Technical data
Additional data |
|
|---|---|
| Data transfer | Bluetooth™ 4.2 Low Energy |
| Laser colour | Green |
| Measurement time, typical | < 0.5 s |
| Units of measurement | m/cm/mm/ft/inch/ft-inch |
| Laser diode | 515 nm, < 1 mW |
| Measurement range* | 0.05 – 50.00 m |
| Laser class | 2 |
| Measurement accuracy, typical* | ± 1.5 mmᵈ |

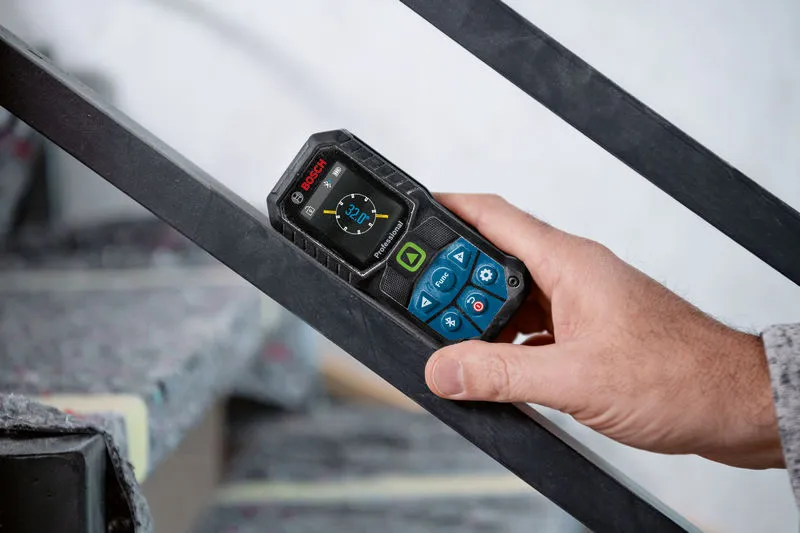

| Measurement range of incline measurement | 0 – 360° (4 x 90°) |
| Measuring accuracy (typical)* | ± 0.2°ᶜ |
| Measurement time, max. | 4 s |
| Power supply | 2 x 1.5 V LR6 (AA) |
| Automatic deactivation | 5 min |
| Weight, approx.** | 0.2 kg |
| Memory capacity (values) | 30 |
| Dust and splash protection | IP 65 |
| Tripod thread | 1/4" |
| Measuring range, up to | 50 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᶜ At >0°C, <100°C, for other surface temperatures, see
ᵈ Plus deviations depending on application and distance, see
GLM 50-27 CG Professional: Further information
Product Highlights
The laser measure GLM 50-27 CG Professional offers a superior visibility of the laser spot, highly durable design, and fast documentation. While its green laser spot appears more visible compared to red laser, it is especially qualified for long-distance measurements in bright indoor conditions. Thanks to the combination of an IP65 protection-certified design and a shock-absorbing rubber casing, it withstands 1.5-metre drops even on hard concrete and rough jobsites. Bluetooth® connectivity and the Bosch MeasureOn App ensure quick documentation and transfer of measuring results in just a flash.
Equipment & Application

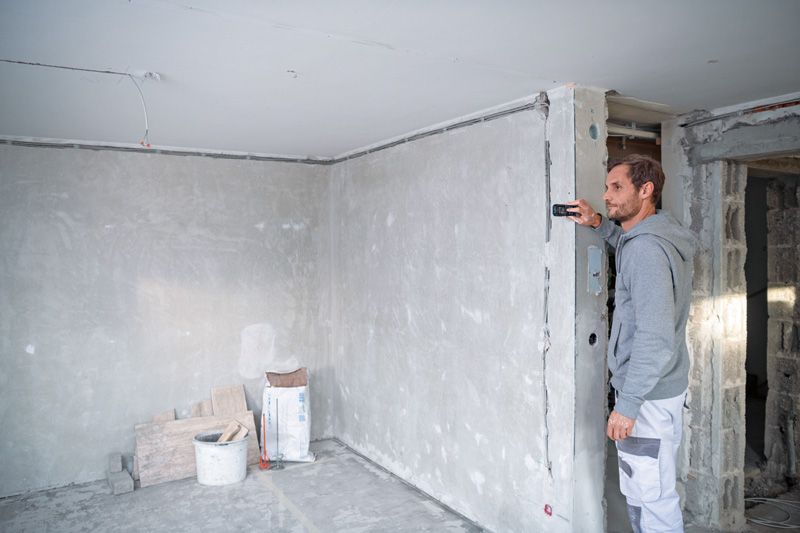

This laser measure is optimal for documentation, calculating material needs, room and wall areas, and placing plus fitting elements, making it ideally suited for architects, electricians, and many other professions.
Additional Information
It features both sound and vibration feedback to verify success of measurements and improved battery runtime (compared to the predecessor GLM 50 C Professional).
