GLL 3-80 G Professional
Line Laser
3 x 360° bold green lines for optimal visibility
- Bright green lines provide up to four times better visibility than red lines
- Perfect for simultaneous horizontal and vertical levelling applications thanks to three lines, for highly efficient work
- Intuitive user interface makes it easy to operate
Functions & key features
Your Selection

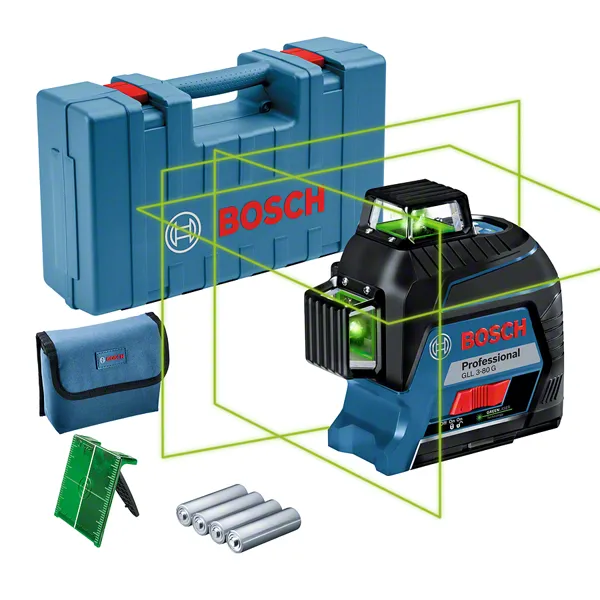

- in carrying case with 4 x battery (AA), laser target plate
GLL 3-80 G Professional
Your Selection
Order number: 0 601 063 Y00
Find a local dealerIncluded in this variant
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
-
Carrying case
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4",5/8" |
| Colour of laser line | green |
| Projection | 3 x 360° line |
| Working range* | up to 30 m |
| Working range with receiver* | up to 120 m |
| Accuracy* | ± 0.3 mm/mᵃ |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Weight, approx.** | 0.82 kg |
| Working range, value | 30 m |
| Working range with receiver, value | 120 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
GLL 3-80 G Professional: Further information
Product Highlights

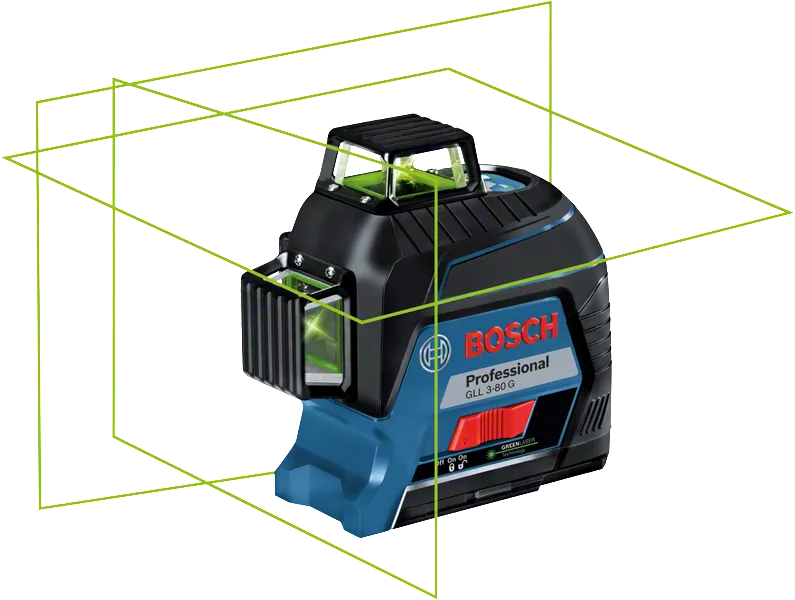

The line laser GLL 3-80 G Professional projects b1old 3 x 360° lines for high visibility. Its bright green lines provide up to four times better visibility than red lines. The tool can be used to set up entire rooms and is perfect for simultaneous horizontal and vertical levelling applications thanks to its three lines, for highly efficient work. An intuitive user interface makes it easy to operate.
Equipment & Application

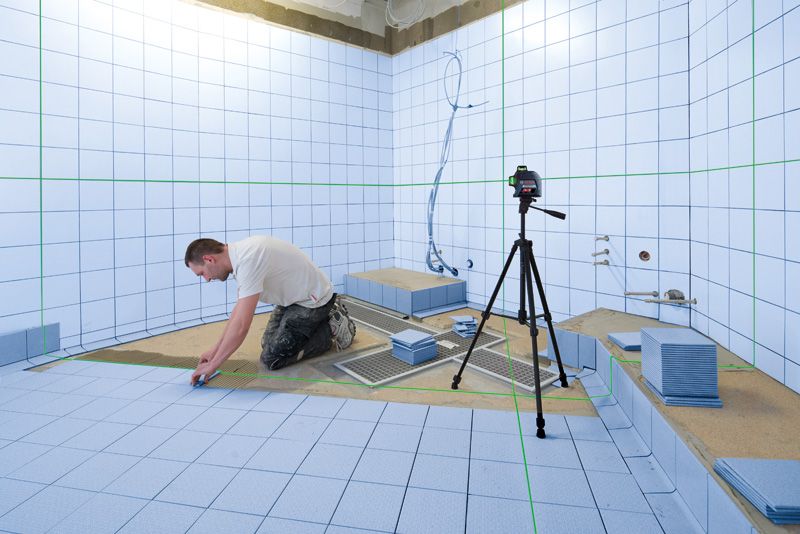

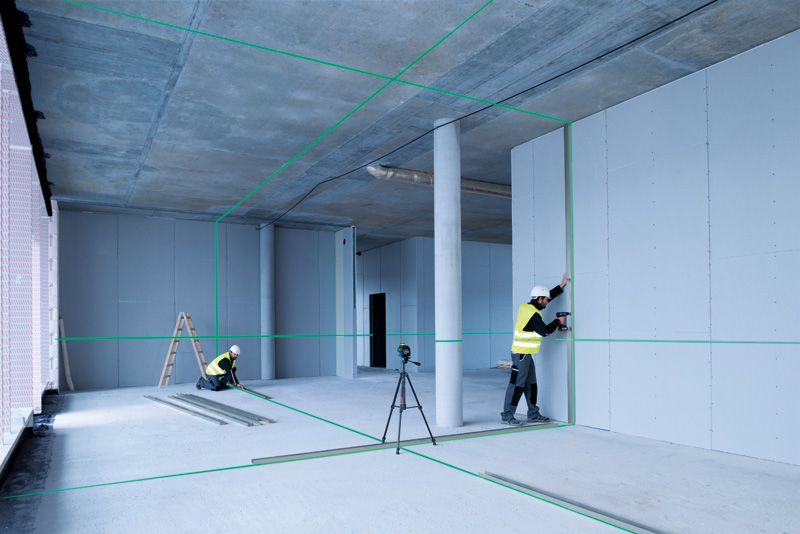

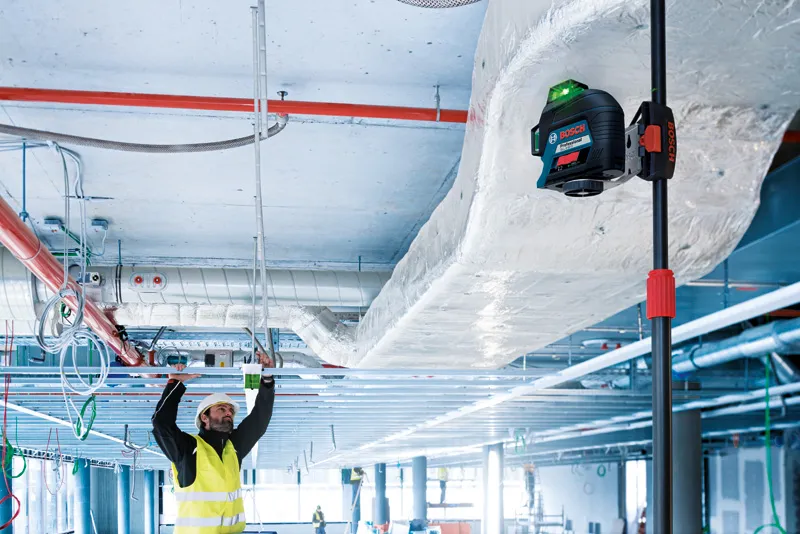

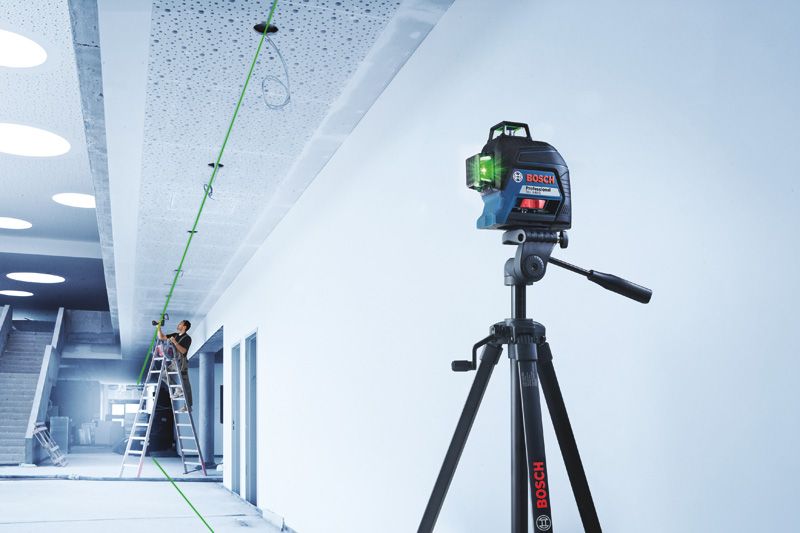

This tool is designed for various applications including suspending drop ceilings, building floors, installing windows, mounting shelves, laying drainage pipes, building frameworks for drywalls, general construction, and laying tiles.
Additional Information
The GLL 3-80 G Professional can self-level up to ± 4° in less than 4 seconds, has a precision of ± 0.3 mm/m*/**, and a range of up to 120 m with the optional laser receiver LR 7. It is compact, easy to handle, and robust.
