Line lasers

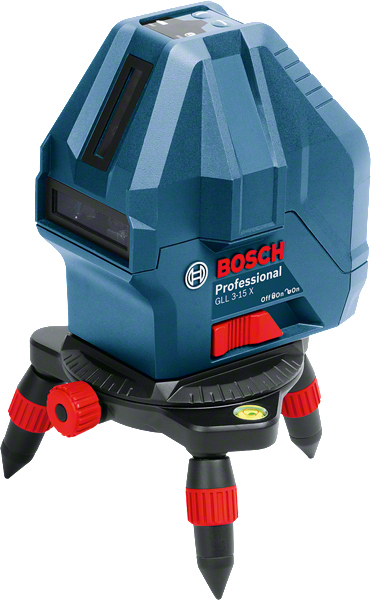

GLL 3-15 X Professional

Line Laser

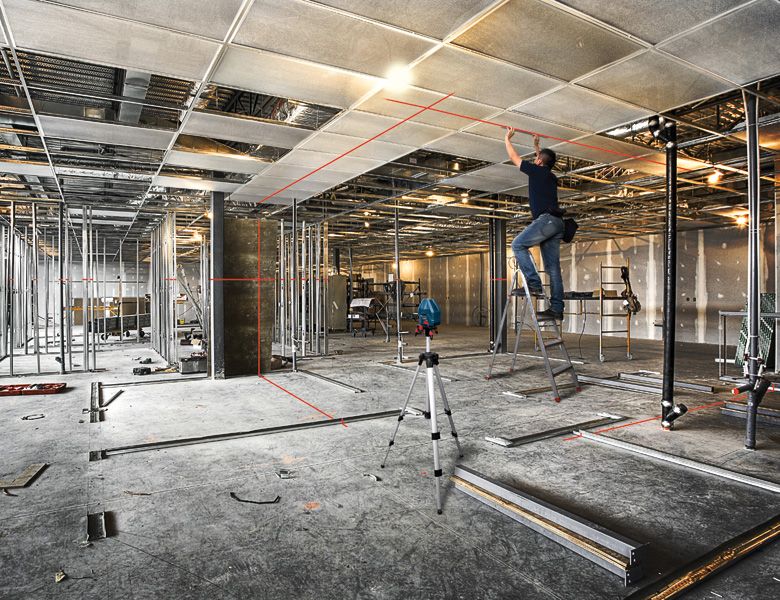

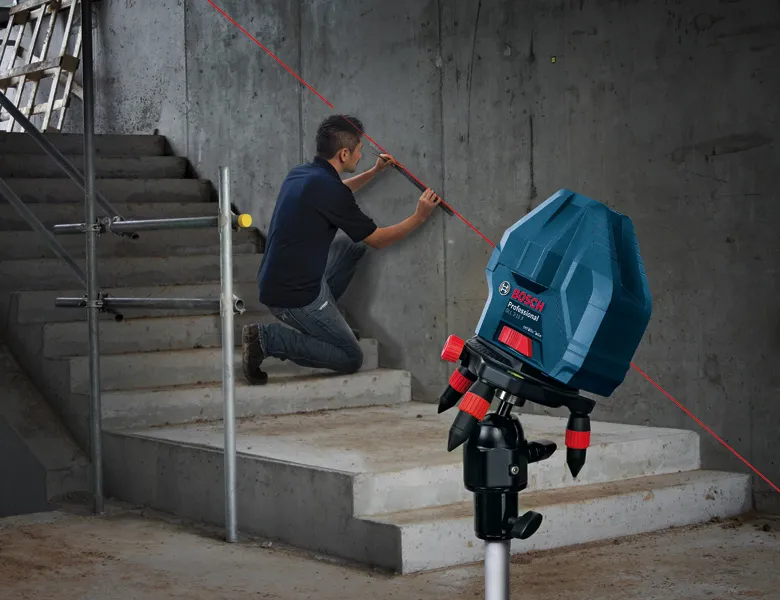

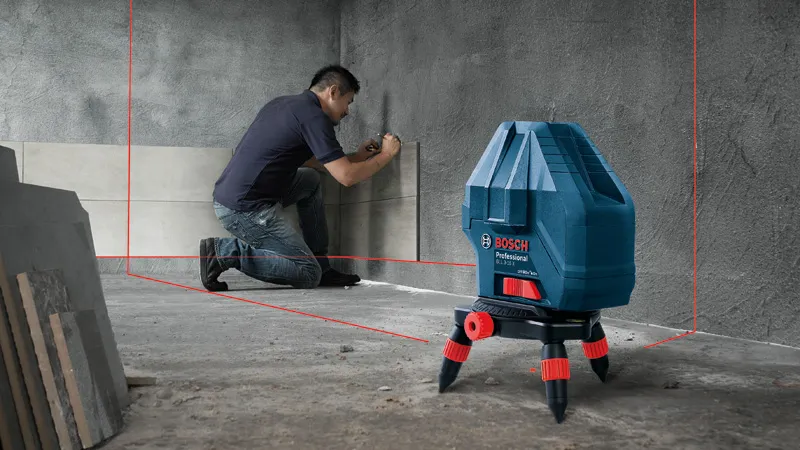

For easy decorative interior fitting applications

  • Maximum precision thanks to the Bosch Pendulum Precision System
  • Projection of a vertical and a horizontal line
  • Detachable, 360° rotating platform with bubble vial and fine adjustment

Your Selection

  • with 4 x battery (AA), protective acc.
Show variant Find a local dealer

with 4 x battery (AA), protective acc. 0 601 063 M00

GLL 3-15 X Professional

Your Selection

GLL 3-15 X
with 4 x battery (AA), protective acc.

Order number: 0 601 063 M00

Find a local dealer

Included in this variant

  • Protective Bag
  • 4 x 1.5 V LR6 battery (AA)
  • Tripod adapter

Technical data

Additional data

Tripod thread 5/8"
Colour of laser line red
Projection 3 lines + 1 plumb point
Working range* 15 m
Accuracy* Horizontal laser line: ± 0.2 mm/m* ; Vertical laser lines: ± 0.3 mm/m* (*plus use-dependent deviation)
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 45 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range of laser points, max.* 5 m (bottom)
Self-levelling range ± 3°
Levelling time 4 s
Power supply 4 x 1.5 V LR6 (AA)
Operating time (max.) 24 h
Weight, approx.** 0.72 kg
Color of plumb points red
Plumb point accuracy*** ± 0.7 mm/m* (*plus use-dependent deviation)
Working range, value 15 m

GLL 3-15 X

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products
