GLL 20-22 G Professional
Line Laser
Easier alignment with our robust line laser
- IP65 rating and rubber-enforced housing for dust and water resistance
- U-shaped laser window for a wider fan-angle of the horizontal line

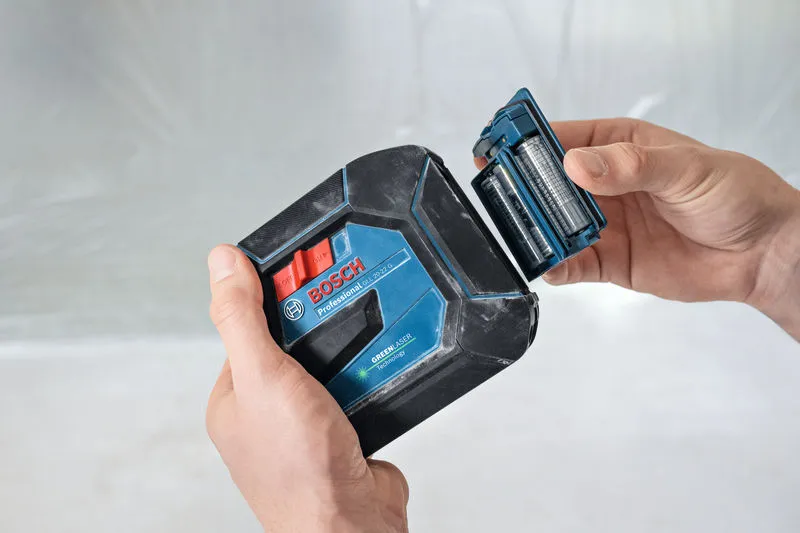

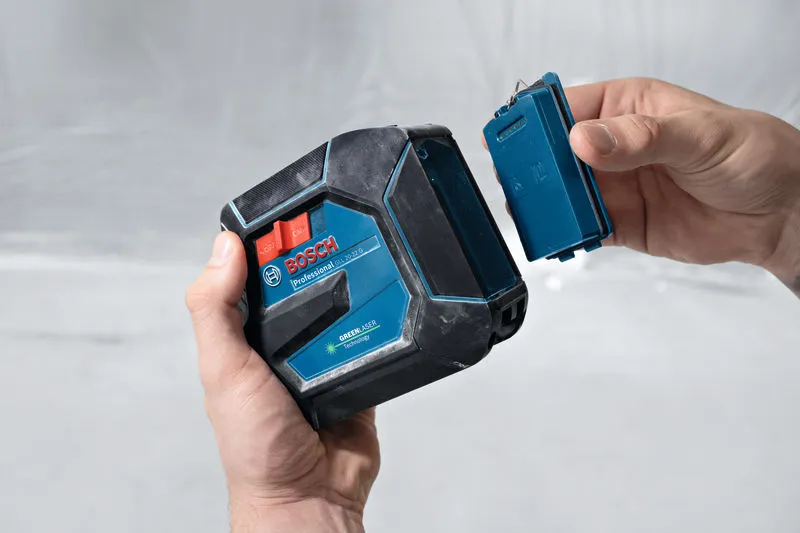

- Dual power source lets you switch between BA 3.7V 3.0Ah XL Li-Ion battery and AA alkaline batteries to help eliminate downtime
Functions & key features
Select a variant
Your Selection
Order number: 0 601 065 601

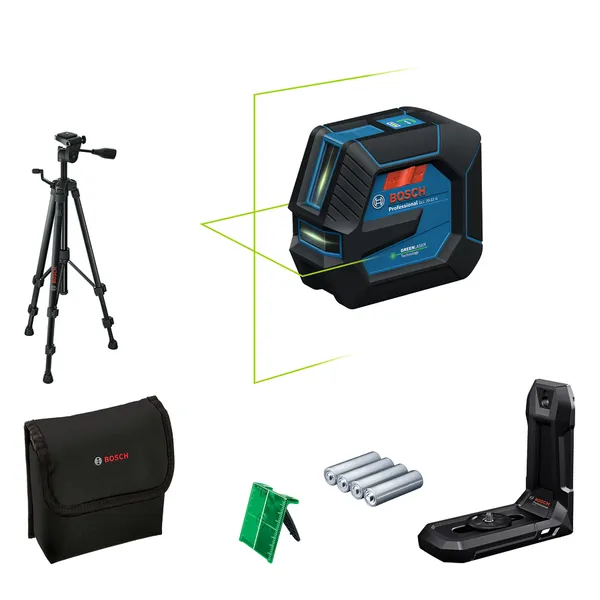

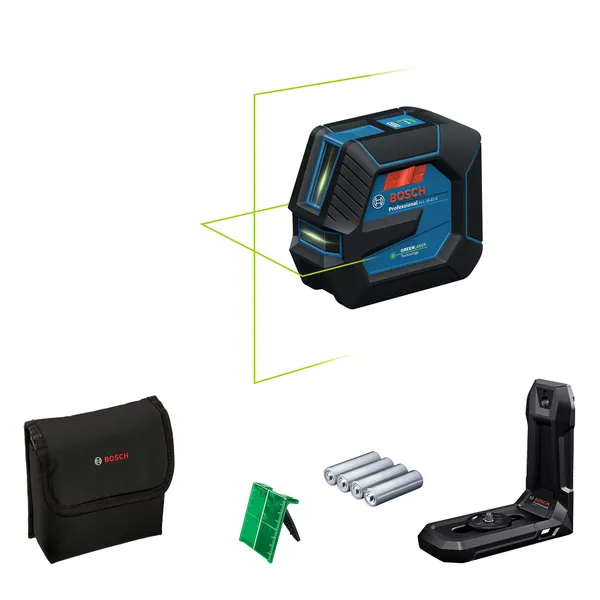

Find a local dealerIncluded in all variants
-
Alkaline battery adapter
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Universal Mount LB 10 Professional
-
Laser target plate
Additional in this variant
-
Building tripod BT 150 ProfessionalOrder number: 0 601 096 B00
Your Selection
Order number: 0 601 065 600
Find a local dealerIncluded in all variants
-
Alkaline battery adapter
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Universal Mount LB 10 Professional
-
Laser target plate
Technical data
Additional data |
|
|---|---|
| Colour of laser line | green |
| Battery voltage | 3.7 V |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | up to 20 m |
| Accuracy* | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 65 |
| Power supply | 3.7 V Li-Ion battery (3000 mAh), 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 8 h (Li-Ion) and 6 h (4 x AA) in cross line mode |
| Tripod thread | 1/4" |
| Weight, approx.** | 0.56 kg |
| Projection | 2 lines |
| Working range, value | 20 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GLL 20-22 G Professional: Further information
Product Highlights

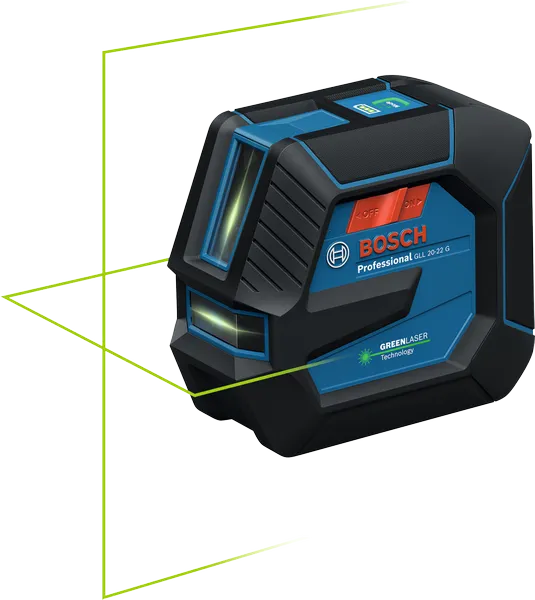

The GLL 20-22 G Professional is a robust and intuitive line laser made for a wide variety of applications. With an IP65 rating and rubber-enforced housing, it is made to withstand dust and water, so you can work with confidence in even the toughest conditions. The U-shaped laser window provides a broader fan angle for the horizontal line. And with a dual power source, you can switch between the BA 3.7V 3.0Ah XL Li-Ion battery and AA alkaline batteries - helping to eliminate downtime and increase productivity.
Equipment & Application

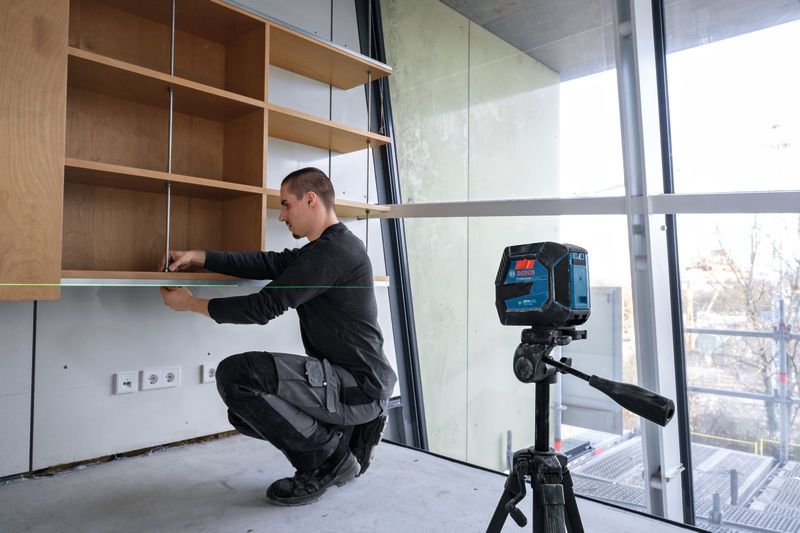

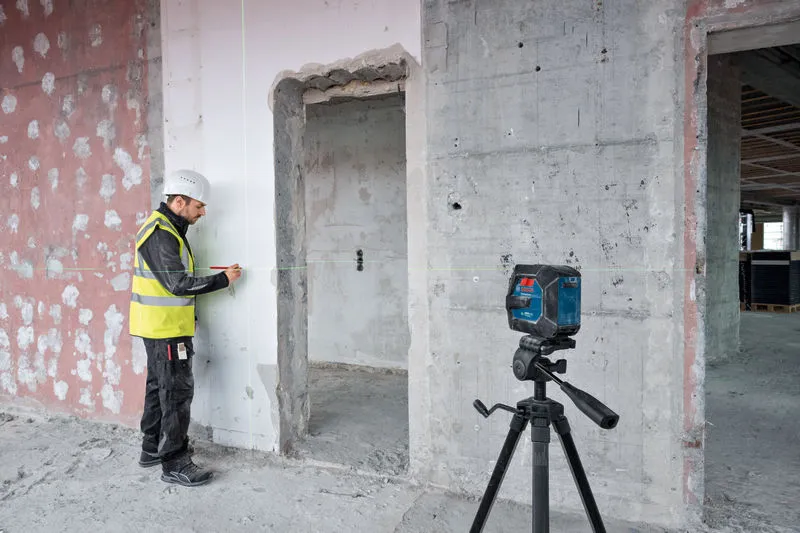

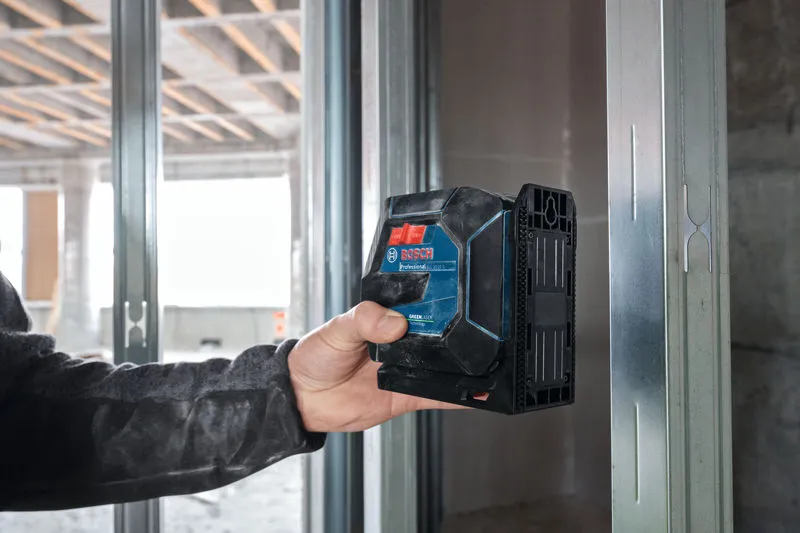

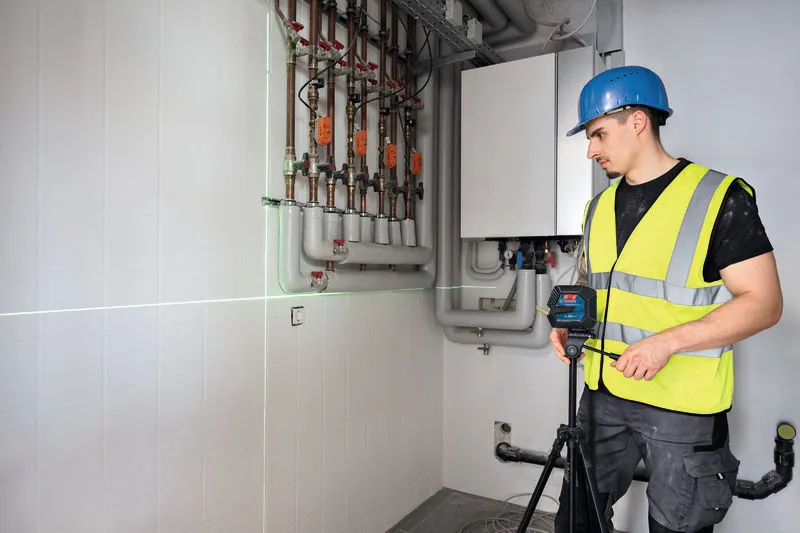

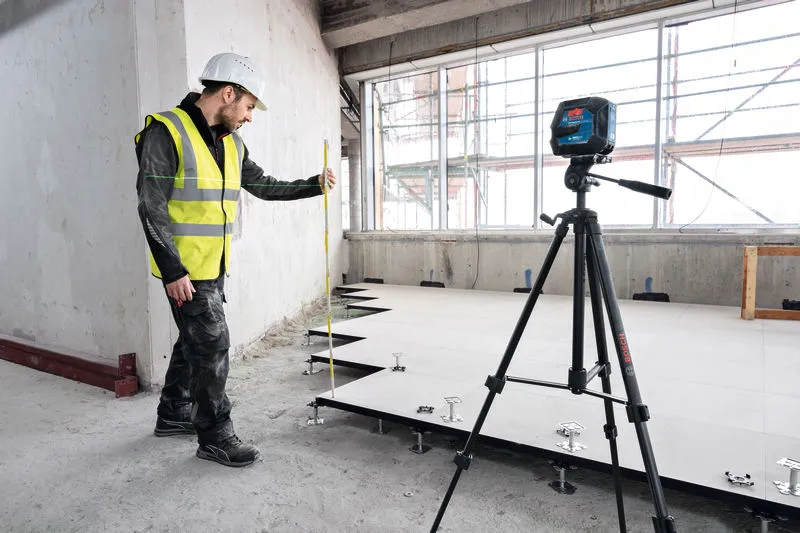

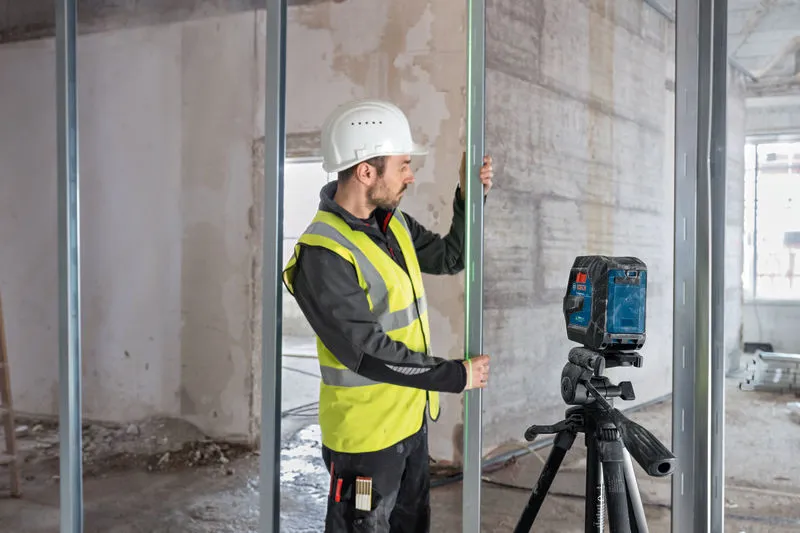

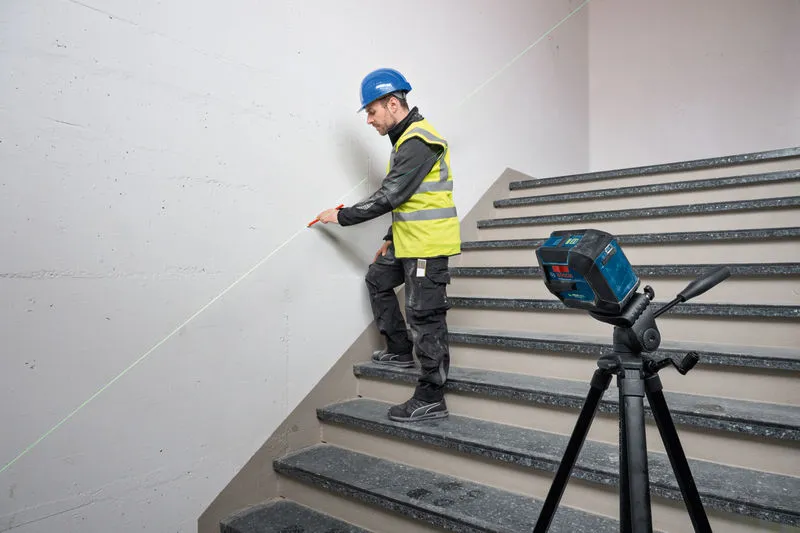

The BA 3.7V 3.0Ah XL can recharge while in use and ensures that your work flows seamlessly, without power interruptions. The GLL 20-22 G is ideal for staircase construction, aligning walls, sockets and partitions, and tile and flooring installations.
Additional Information
The tool features a large battery indicator for easy readout. The bright green laser lines provide up to four times better visibility than red lines to make your levelling easier – no matter where the job takes you.
