Line lasers

GLL 2-15 G Professional

Line Laser

GLL 2-15 G
GLL 2-15 G

Durability and ease of use. Green laser lines

  • Durable design, featuring a rubberised housing with recessed glasses and dust and splash water protection IP 64 to withstand tough environments
  • ON/OFF switch and one-button keypad make for ease of use
  • Green laser for enhanced horizontal and vertical line visibility

Functions & key features

Easy to use
Pendulum transport lock when the tool is turned off
IP64 dust and splash water protection
Holder LB 10 with very strong magnets
Power supply 4 x AA battery

Your Selection

  • with 4 x battery (AA), tripod
Change variant Find a local dealer

with 4 x battery (AA), tripod 0 601 063 W01

Select a variant

Your Selection

GLL 2-15 G

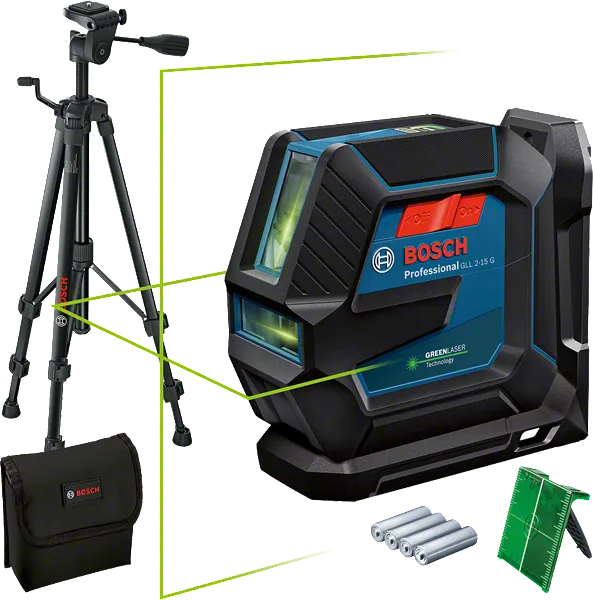

with 4 x battery (AA), tripod

Order number: 0 601 063 W01

Find a local dealer

Included in all variants

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate

Additional in this variant

  • Universal Mount LB 10 Professional
  • Building tripod BT 150 Professional
    Order number: 0 601 096 B00

Your Selection

GLL 2-15 G

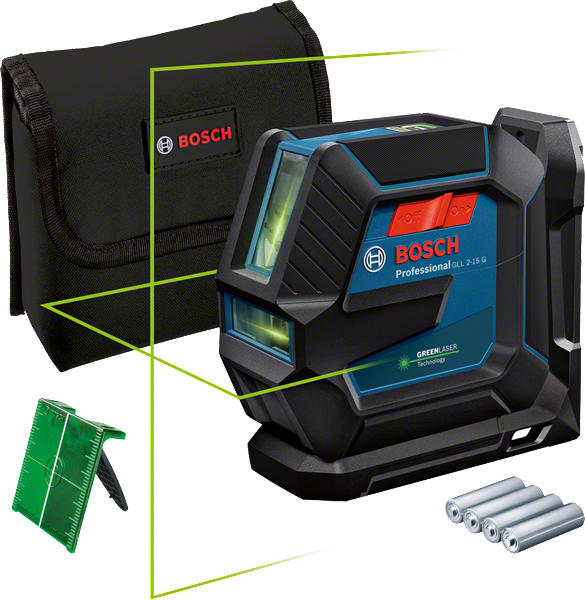

with 4 x battery (AA), universal mount LB 10

Order number: 0 601 063 W00

Find a local dealer

Included in all variants

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate

Additional in this variant

  • Universal Mount LB 10 Professional

Your Selection

GLL 2-15 G

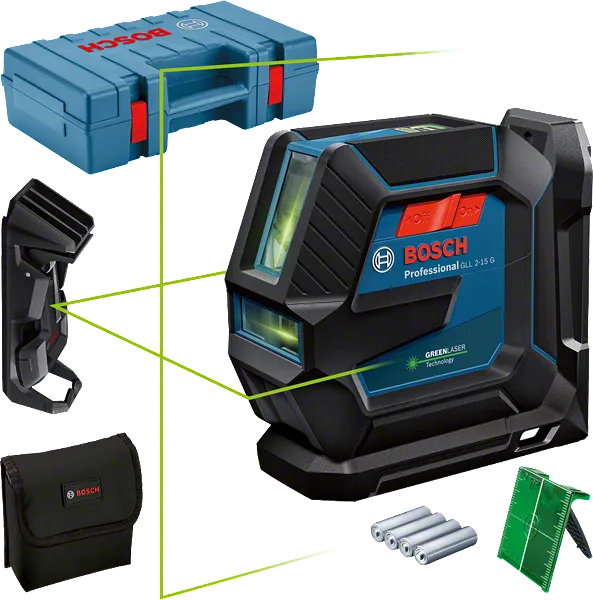

in carrying case with 4 x battery (AA), universal mount LB 10 & Ceiling clip

Order number: 0 601 063 W02

Find a local dealer

Included in all variants

  • 4 x 1.5 V LR6 battery (AA)
  • Pouch
  • Laser target plate

Additional in this variant

  • Universal Mount LB 10 & Ceiling Clip DK 10 Professional
    Order number: 0 601 092 C00
  • Carrying case

Technical data

Additional data

Tripod thread 1/4"
Colour of laser line green
Projection 2 lines
Working range* up to 15 m
Accuracy* ± 0.3 mm/m* (*plus use-dependent deviation)
Dust and splash protection IP 64
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Self-levelling range ± 4°
Levelling time 4 s
Power supply 4 x 1.5 V LR6 (AA)
Weight, approx.** 0.57 kg
Working range, value 15 m

GLL 2-15 G

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

GLL 2-15 G Professional: Further information

Product Highlights

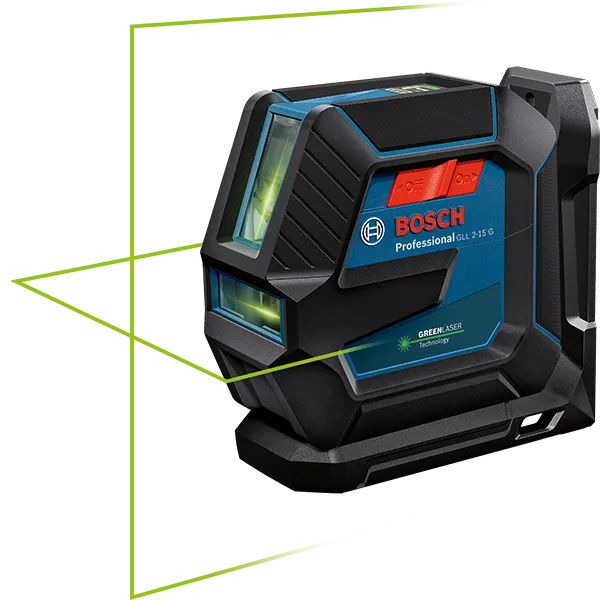

The jobsite-ready line laser GLL 2-15 G Professional is the simple way to achieve accurate results. Stay focussed on the task thanks to durable design, featuring a rubberised housing for better protecting the recessed glasses and having dust and splash water protection IP 64. The ON/OFF switch and one-button keypad make for ease of use. Vertical and horizontal green laser lines increase visibility in brighter environments.

Equipment & Application

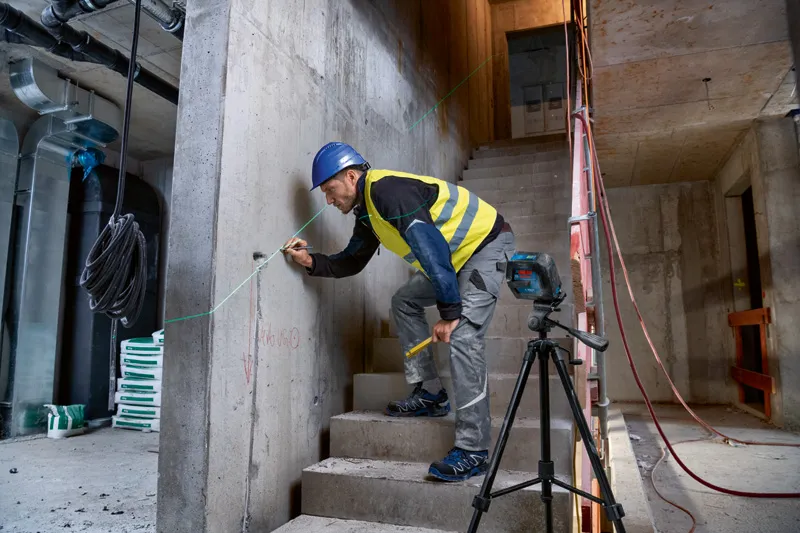

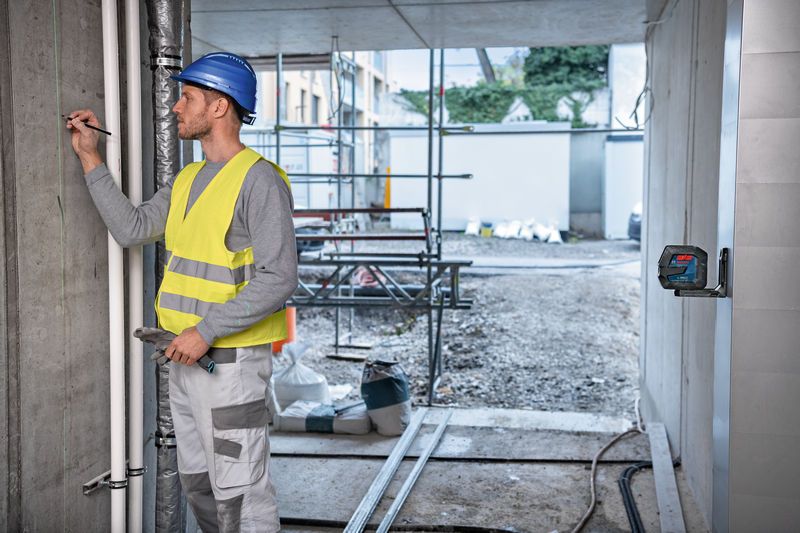

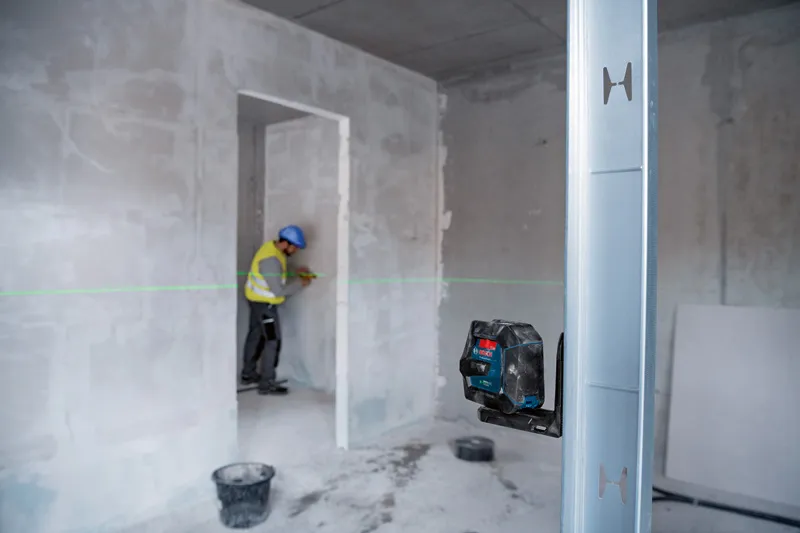

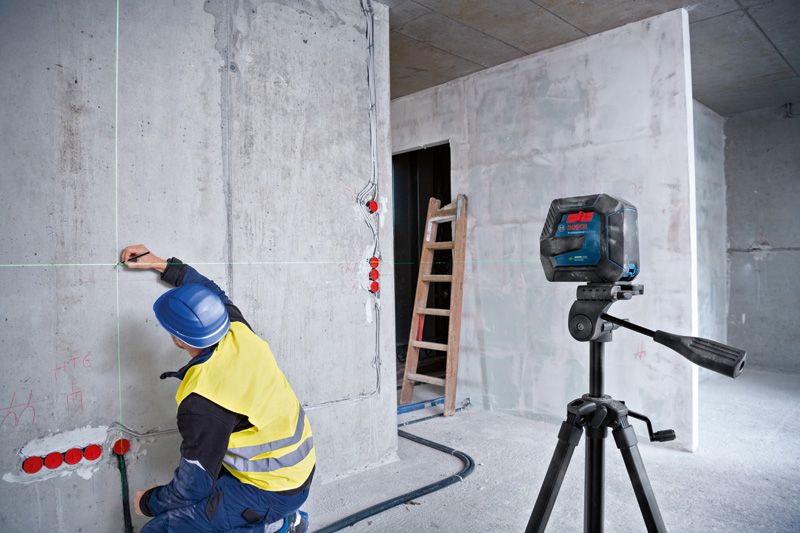

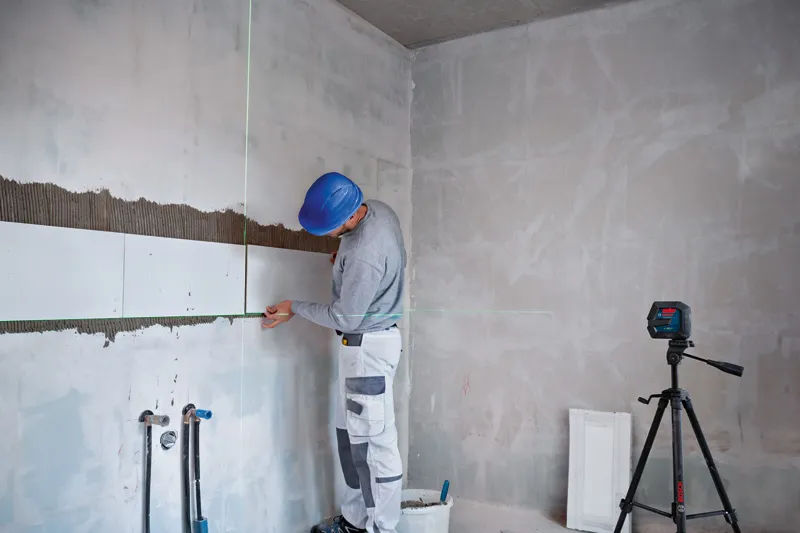

Enjoy the convenience of fast and secure mounting thanks to LB 10 Professional accessory with very strong magnets. The LB 10 Professional is compatible with the optional DK 10 Professional ceiling clip for ceiling applications or fine height adjustments. This line laser is the perfect choice for applications with short working ranges, such as installing suspended drop ceilings, hanging shelves, laying drainage pipes, and aligning lights.

Additional Information

The GLL 2-15 G Professional provides a working range of up to 15 m and a self-levelling range of up to +/- 4° in less than 4 seconds.
