Line lasers

GLL 2-10 Professional

Line Laser

Compact and intuitive line laser for short-distance applications

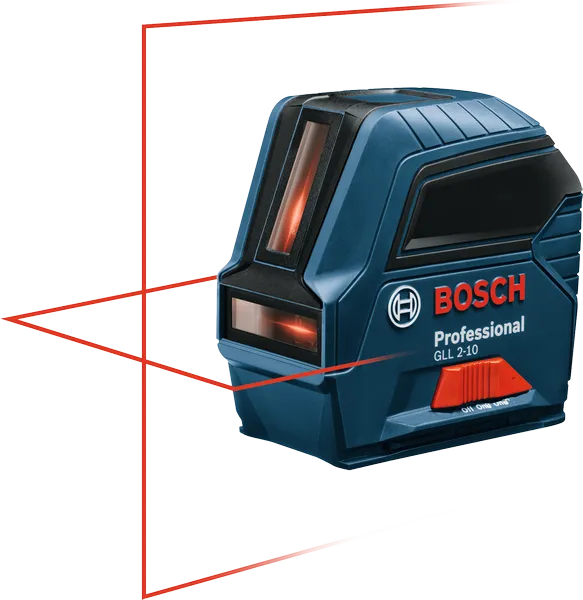

  • Horizontal and vertical laser lines ideal for short-range applications
  • Compact design and intuitive operation for easy handling
  • Robust laser level partly due to IP54 dust and splash water protection

Functions & key features

Working range up to 10 m
Line accuracy of ± 0.3 mm/m* (*plus use-dependent deviation)
Laser class 2
Tripod mount for 5/8" and 1/4" tripod thread
IP54 dust and splash water protection

Your Selection

  • with 3 x battery (AA), Protective Bag
Show variant Find a local dealer

with 3 x battery (AA), Protective Bag 0 601 063 L00

GLL 2-10 Professional

Your Selection

GLL 2-10
with 3 x battery (AA), Protective Bag

Order number: 0 601 063 L00

Find a local dealer

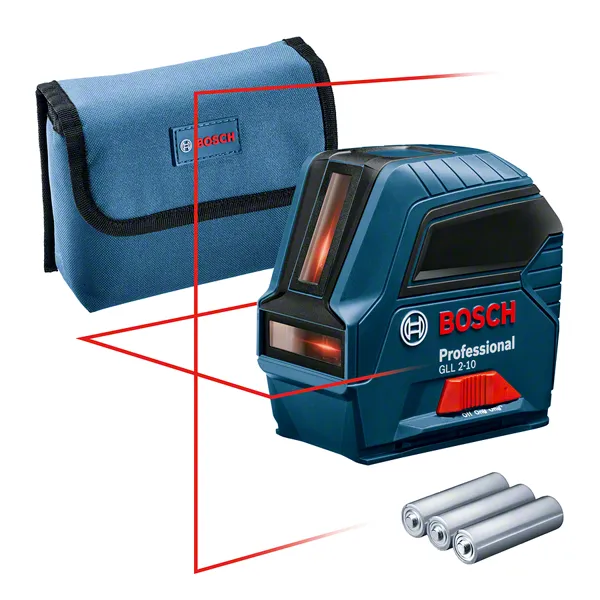

Included in this variant

  • Protective Bag
  • 3 x 1.5 V LR6 battery (AA)

Technical data

Additional data

Tripod thread 1/4", 5/8"
Colour of laser line red
Projection 2 lines
Working range* 10 m
Accuracy* ± 0.3 mm/m* (*plus use-dependent deviation)
Dust and splash protection IP 54
Laser diode 630 – 650 nm, < 1mW
Operating temperature -10 – 50 °C
Storage temperature -20 – 70 °C
Laser class 2
Working range of laser crosses* 10 m
Self-levelling range ± 4°
Levelling time 4 s
Power supply 3 x 1.5 V LR6 (AA)
Operating time (max.) 9 h in cross line mode, 17 h in line mode
Weight, approx.** 0.49 kg
Working range, value 10 m

GLL 2-10

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

GLL 2-10 Professional: Further information

Product Highlights

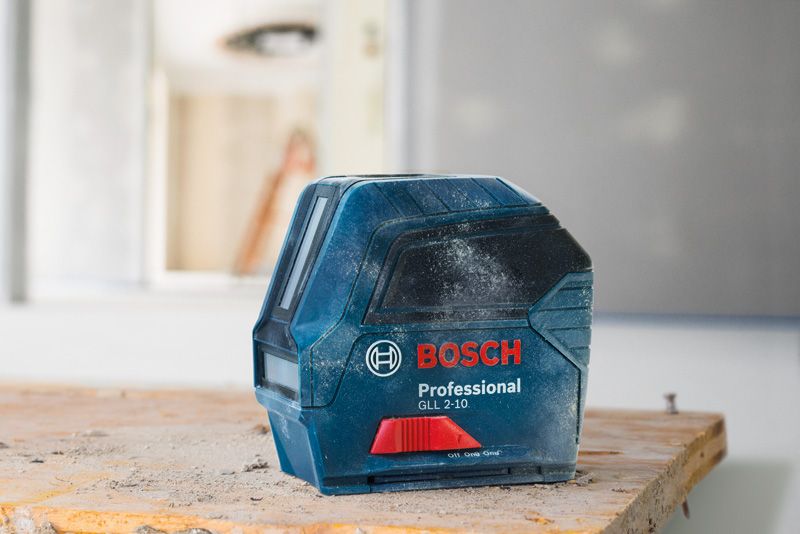

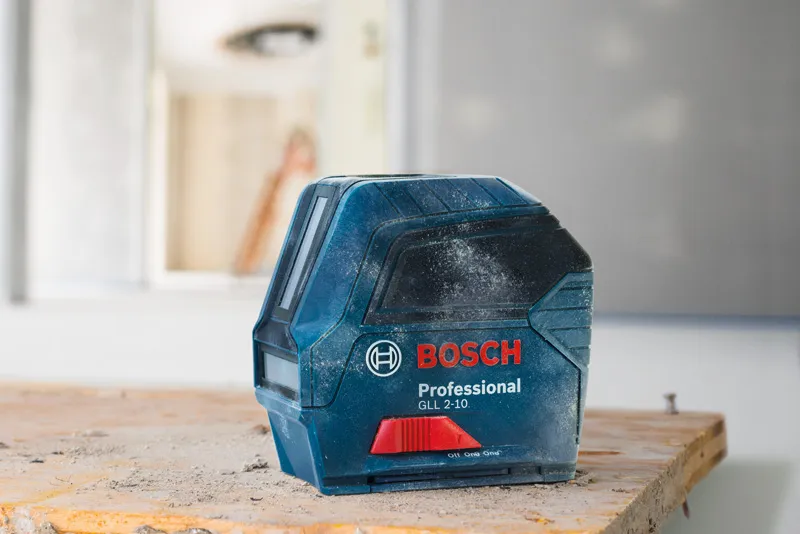

The compact GLL 2-10 Professional makes interior levelling applications simple. With one horizontal and one vertical laser line, it is ideal for short-range work. Thanks to only one switch and two clear buttons, this compact line laser offers intuitive operation and great handling when doing levelling work. The GLL 2-10 Professional is robust with IP54 dust and splash water protection.

Equipment & Application

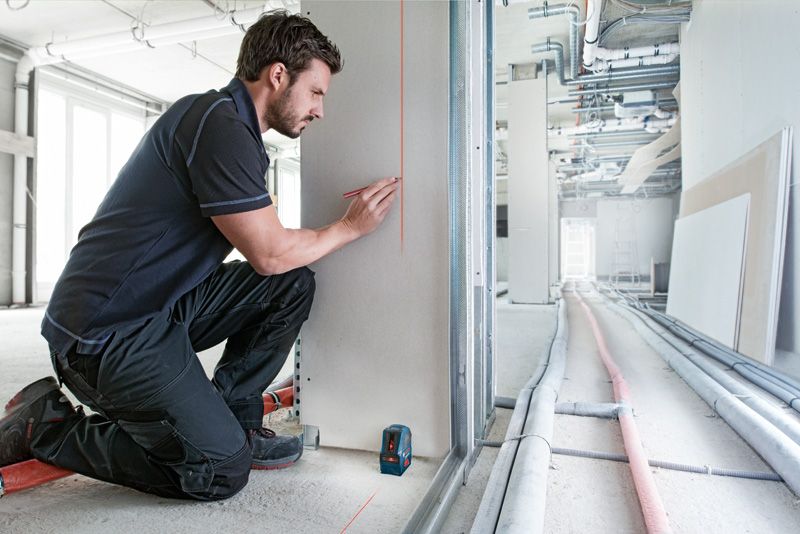

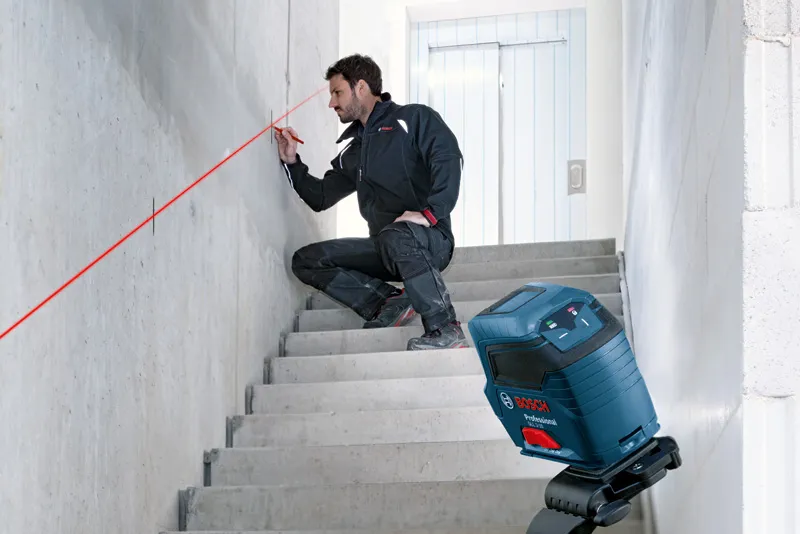

It is suitable for various interior applications such as suspending drop-ceilings, mounting shelves, doors, and sockets; installing drainage pipes, and laying floor tiles.

Additional Information

The GLL 2-10 Professional has a working range of up to 10 m and can self-level up to +/- 4° in less than 4 seconds. When the tool is switched off, the pendulum is locked for safe transport. Ideal for use with the optional rotating mount RM 1 Professional that can be swiftly attached via a simple slide mechanism.
