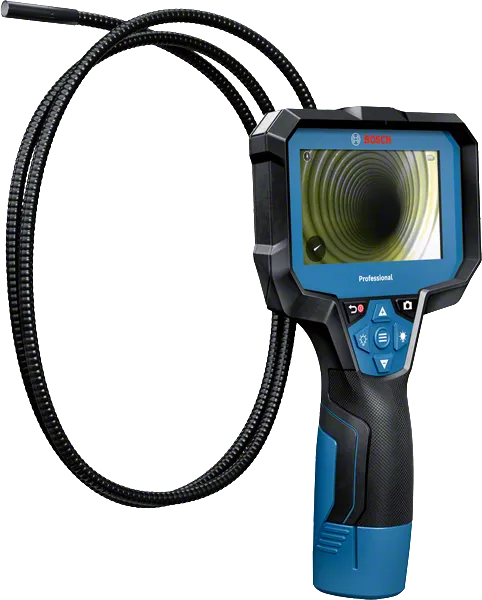

GIC 12V-4-23 C Professional

Inspection Camera

GIC 12V-4-23 C
GIC 12V-4-23 C

High-resolution camera for quick and easy inspection and documentation

  • High resolution of 800 x 480 pixels ensures clear picture quality on big 4.3” screen
  • The convenient Up Indication always points up for optimal user orientation
  • Ideal on tough jobsites thanks to IP ratings for dust and water protection

Functions & key features

Display size 4.3"
 Up Indication function always points upwards
Diameter of camera head 8.3 mm
Length of camera cable 150 cm

Your Selection

  • with 4 x battery (AA), hook magnet
Show variant Find a local dealer

with 4 x battery (AA), hook magnet 0 601 241 500

GIC 12V-4-23 C Professional

Your Selection

GIC 12V-4-23 C
with 4 x battery (AA), hook magnet

Order number: 0 601 241 500

Find a local dealer

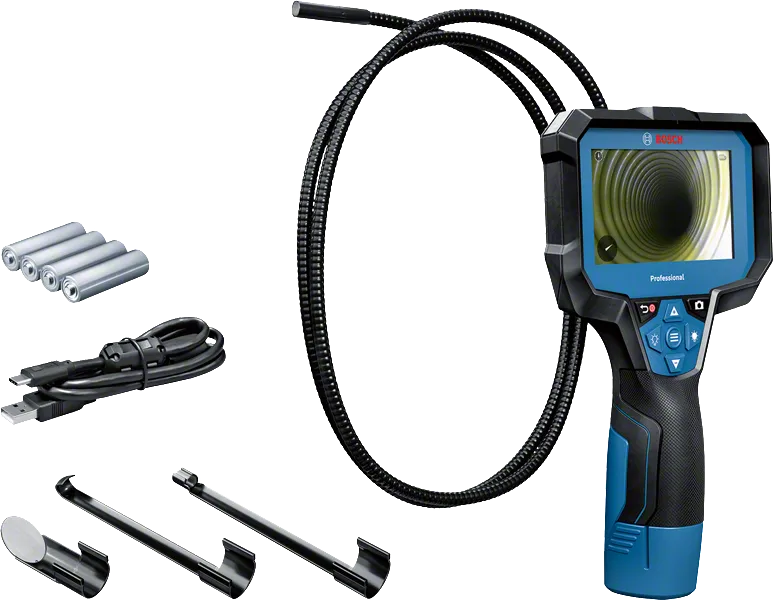

Included in this variant

  • AA1 alkaline battery adapter
    Order number: 1 608 M00 C1B
  • USB-C™ Cable
  • Camera cable for GIC, 8.3 mm diameter, 1.5 m length
    Order number: 1 600 A02 R6M
  • Hook, magnet, mirror
  • 4 x 1.5 V LR6 battery (AA)

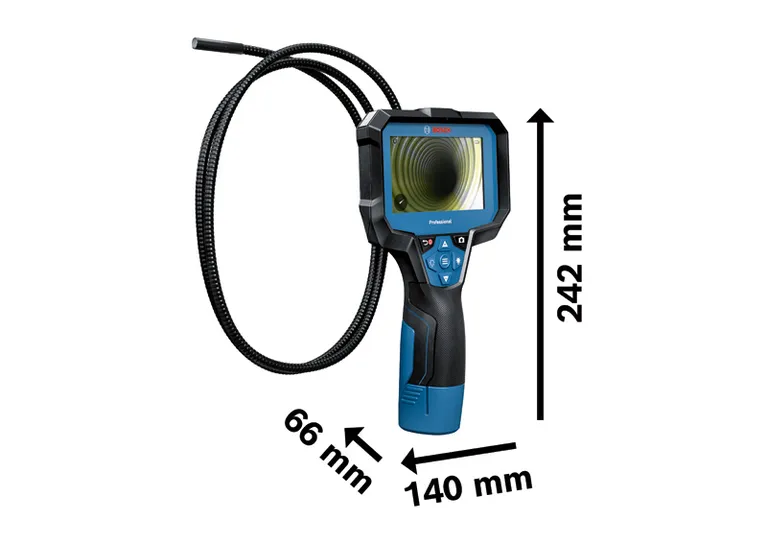

Technical data

Additional data

Display size 4.3 "
Display resolution 800 x 480 px
Diameter of camera head 8.3 mm
Length of camera cable 150 cm
Field of view (FOV) 75 °
Focus distance 30 - 80 mm
Documentation via Photo
Photo resolution 1280 x 720
Data Transfer USB-C®
Dust and splash protection, camera cable IP 67
Dust and splash protection, tool* IP 54
Max. 30 min immersion for camera cable in diesel, petrol, engine oil, AdBlue®, ethyl alcohol, salt water (26,5% salt content)
Weight** 0.7 kg

GIC 12V-4-23 C

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

GIC 12V-4-23 C Professional: Further information

Product Highlights

The GIC 12V-4-23 C Professional inspection camera is the ideal tool for HVAC/plumbers, car mechanics, or electricians. It has a large 4.3” monitor that displays clear, high-definition images of 800 x 480 pixels, enabling quick and intuitive analysis of pipes, ducts, or other hard-to-reach areas. Image orientation is easily determined thanks to the handy Up Indication feature that always points upwards. This ergonomic camera is robustly designed for use on tough jobsites and hard-to-reach spaces. It comes with an IP67 rating for the camera head, protecting it from dust and short periods of immersion in water, and IP54 dust and splash water protection for the tool.

Equipment & Application

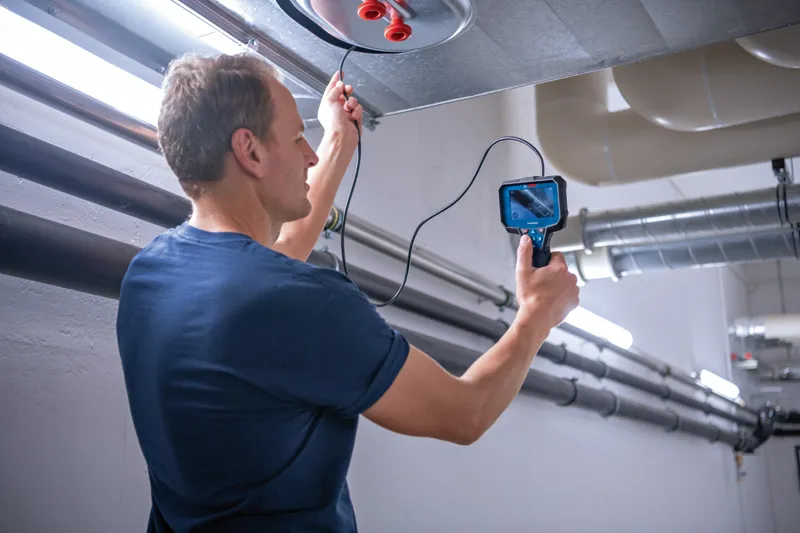

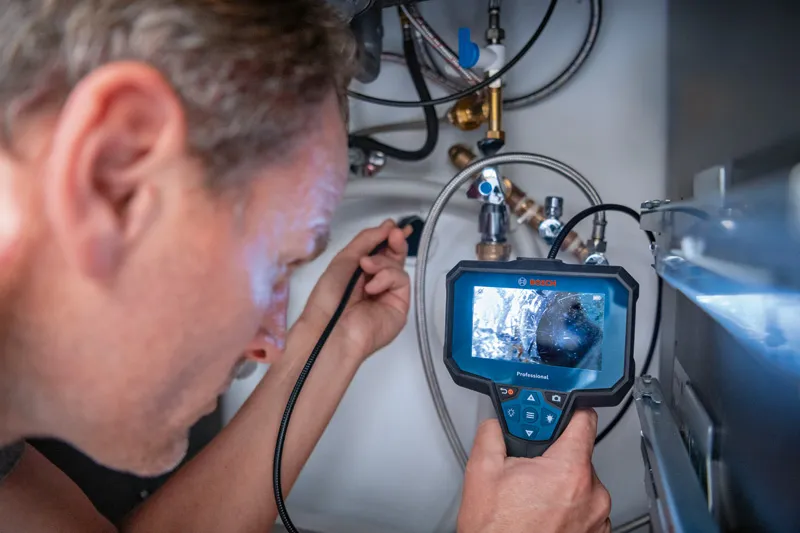

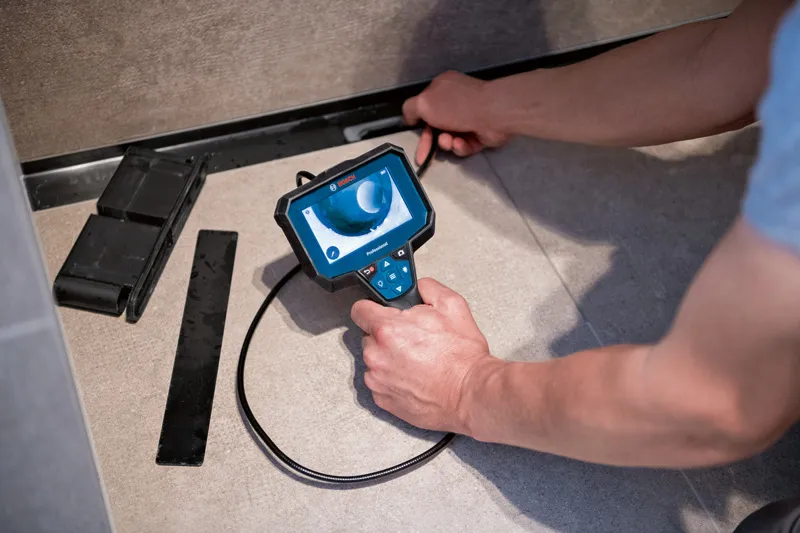

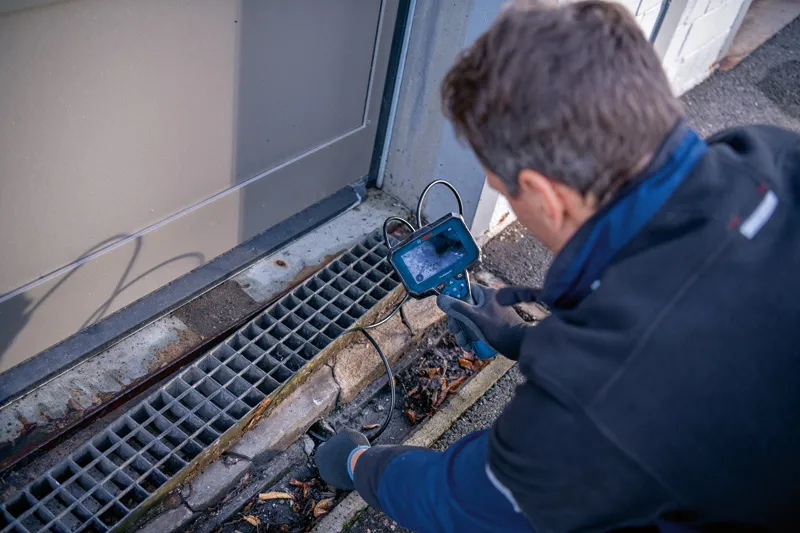

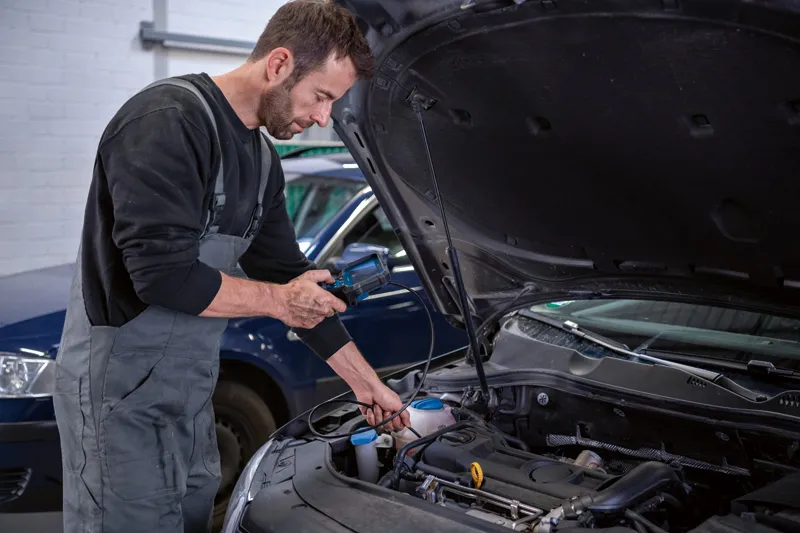

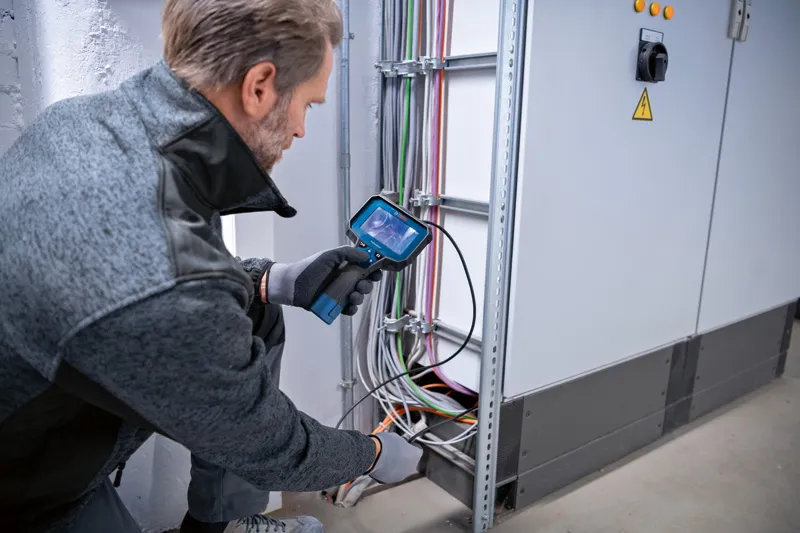

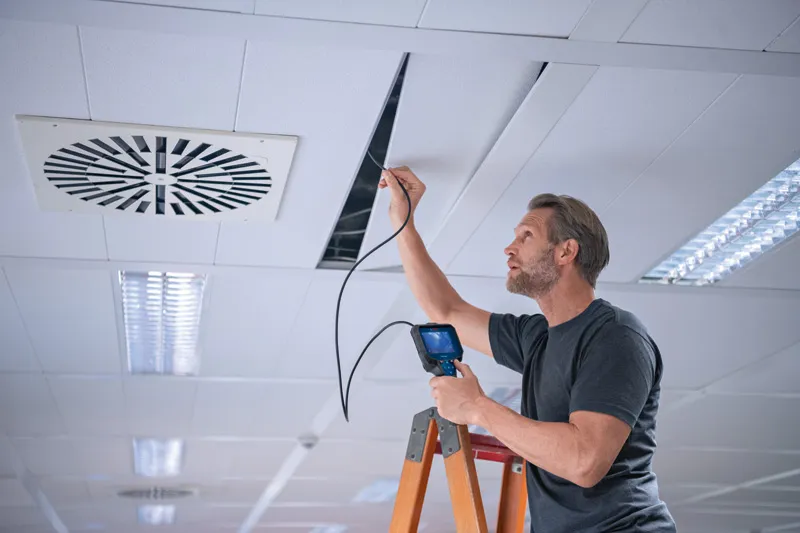

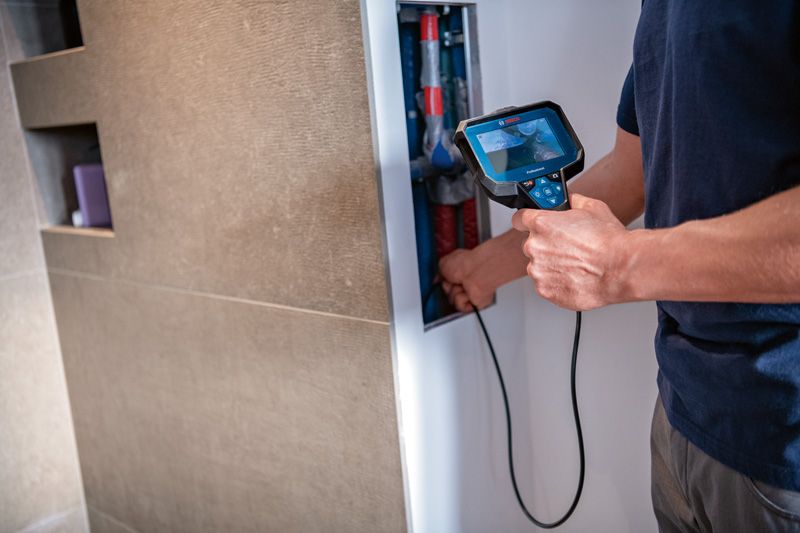

This inspection camera is ideal for multiple tradespeople applications such as inspecting the interior of distribution boxes, pipes, and wall cavities as well as for hydraulic systems and applications in the automotive sector.

Additional Information

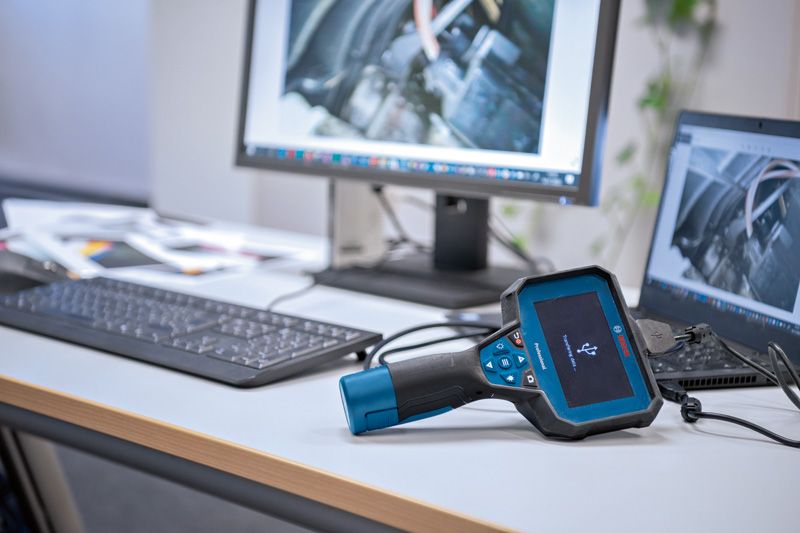

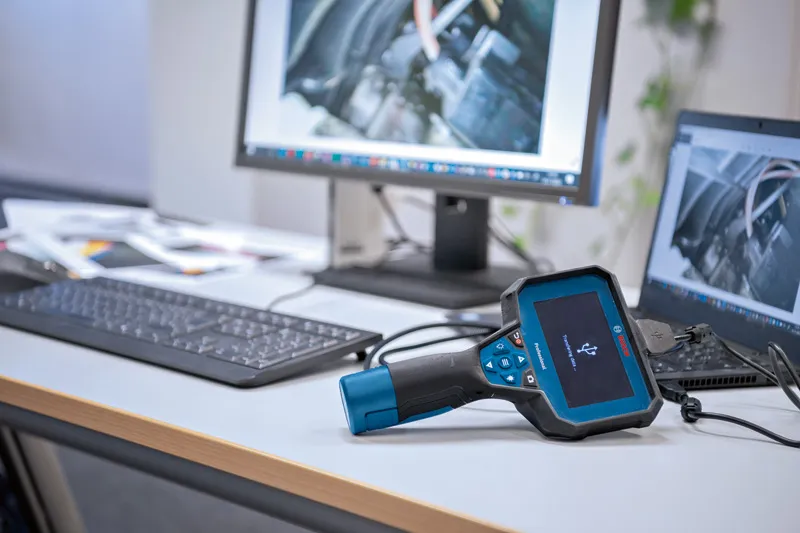

Photos taken with the GIC 12V-4-23 C Professional are easily transferred via USB-C® cable.
