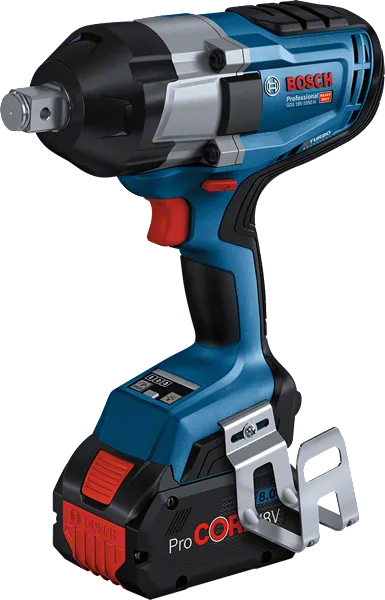

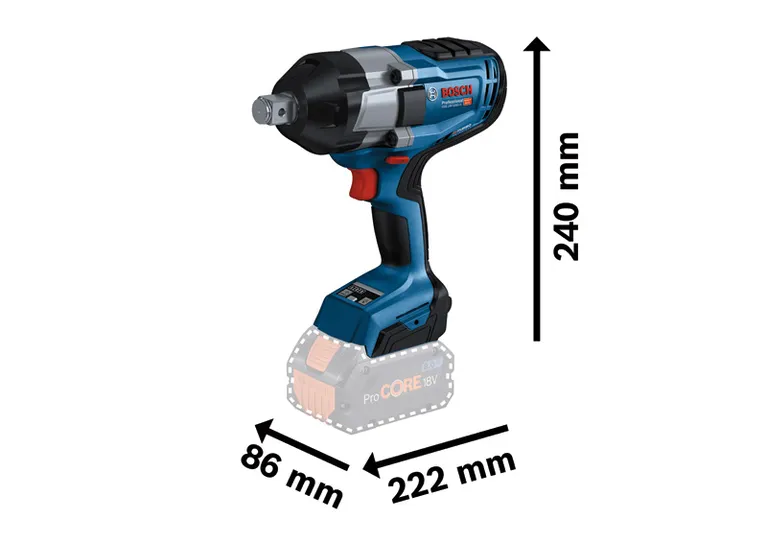

GDS 18V-1050 H Professional
Cordless Impact Wrench
Full power at its best: 3/4" high torque impact wrench with BITURBO Brushless technology
- Impressive power with cordless freedom thanks to ProCORE 18V batteries and brushless motor
- High performance motor with a tightening torque of 1,050 Nm and a breakaway torque of up to 1,700 Nm
- Ideal versatility and controlled power due to 3-speed/torque settings
Functions & key features
Your Selection
- in L-BOXX 136 with 2 x 8.0 Ah ProCORE18V Li-ion battery, quick charger
Select a variant
Your Selection
Order number: 0 601 9J8 502
Find a local dealerIncluded in all variants
-
L-BOXX 136Order number: 1 600 A01 2G0
Additional in this variant
-
Quick charger GAL 1880 CVOrder number: 1 600 A00 B8G
-
2 x battery ProCORE18V 8.0AhOrder number: 1 600 A01 6GK
-
1/1 L-BOXX inlay for tool and chargerOrder number: 1 600 A02 58Y
-
Ladder clip (1600 A02 3G7)
Your Selection
Order number: 0 601 9J8 522
Find a local dealerIncluded in all variants
-
L-BOXX 136Order number: 1 600 A01 2G0
Additional in this variant
-
2 x battery GBA 18V 5.0AhOrder number: 1 600 A00 1Z6
-
Quick charger GAL 18V-40 ProfessionalOrder number: 1 600 A01 9RJ
Technical data
Additional data |
|
|---|---|
| Battery voltage | 18.0 V |
| Torque, max.* | 1,050 Nm |
| No-load speed (3rd level)* | 0-1,750 rpm |
| No-load speed* | 0-800 rpm |
| Weight incl. battery* | 3.9 kg |
| Tool holder | 3/4'' Square |
| Breakaway torque, max. | 1,700 Nm |
| Torque adjustment range, min./max., 1st level | 0/350 Nm |
| Torque adjustment range, min./max., 2nd level | 0/750 Nm |
| Torque adjustment range, min./max., 3rd level | 0/1050 Nm |
| No-load speed (1st level)* | 0-800 rpm |
| No-load speed (2nd level)* | 0-1,200 rpm |
| Torque settings | 3 |
| Weight excl. battery* | 2.9 kg |
| Impact rate | 0-2,600 bpm |
| Impact rate (1st level)* | 0-1,600 bpm |
| Impact rate (2nd level)* | 0-2,400 bpm |
| Impact rate (3rd level)* | 0-2,600 bpm |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GDS 18V-1050 H Professional: Further information
Product Highlights
The GDS 18V-1050 H Professional is the outstanding 3/4" impact wrench with brushless motor for the most diverse fields of application. Its BITURBO Brushless technology combines corded power with cordless freedom fully maximised for ProCORE 18V batteries. Whenever heavy-duty performance is needed, the new impact mechanism provides a tightening Torque of 1,050 Nm and breakaway torque of 1,700 m for particularly challenging working environments. The high versatility in power controlling is ensured by the 3-speed/torque settings that allow adjustments to the respective work requirements.
Equipment & Application

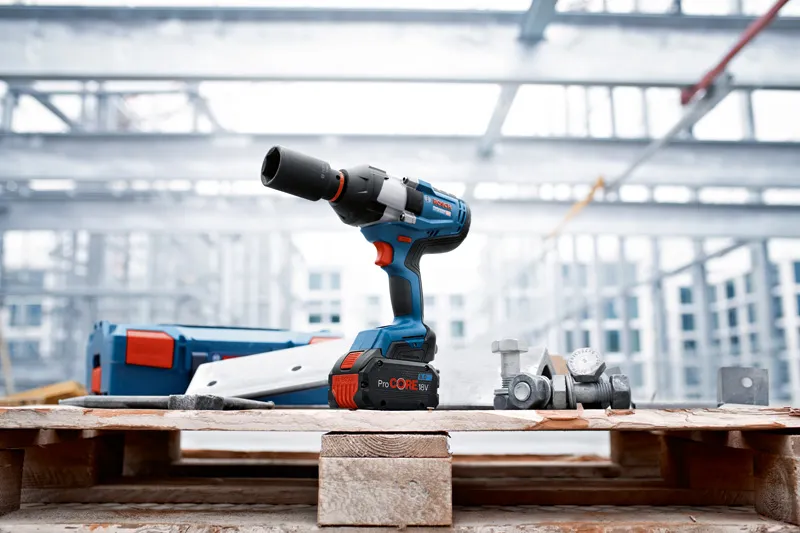

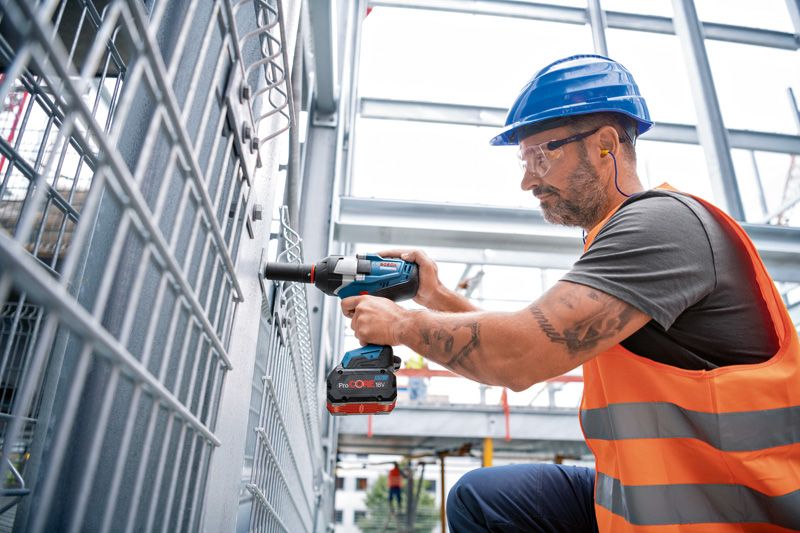

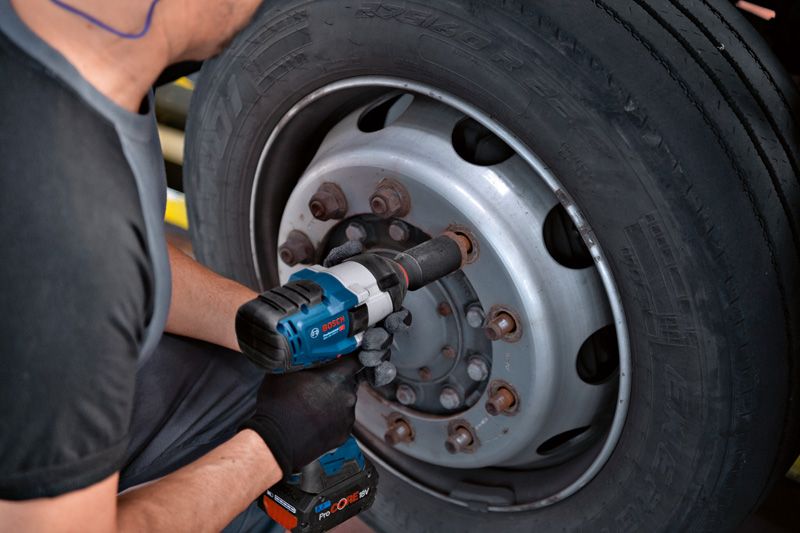

The main areas of GDS 18V-1050 H Professional are meal applications (M10-M24) like structural steel construction, metal assembly, pipe fitting, truck maintenance, and wood construction. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V system).
