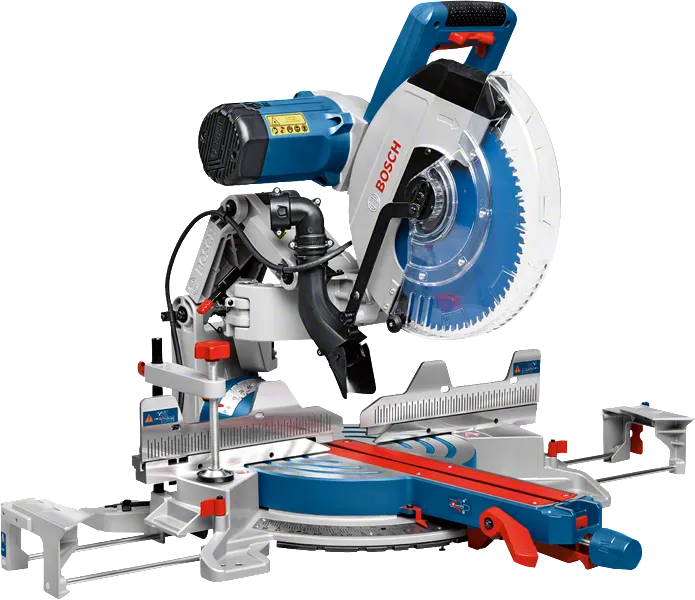

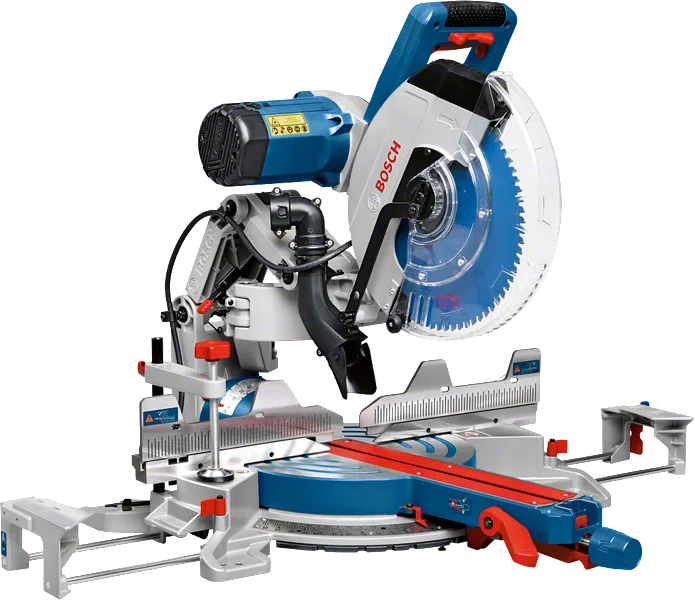

GCM 12 GDL Professional
Mitre Saw
Unmatched cutting smoothness and durable precision
- Extreme cutting smoothness because of innovative and maintenance-free gliding system
- Integrated dual line laser supports accurate cuts
- High vertical and horizontal cutting capacity
Functions & key features
with collet
0 601 B23 600
GCM 12 GDL Professional
Your Selection
with collet
Order number: 0 601 B23 600
Find a local dealerIncluded in this variant
-
Stop plateOrder number: 1 609 B02 365
-

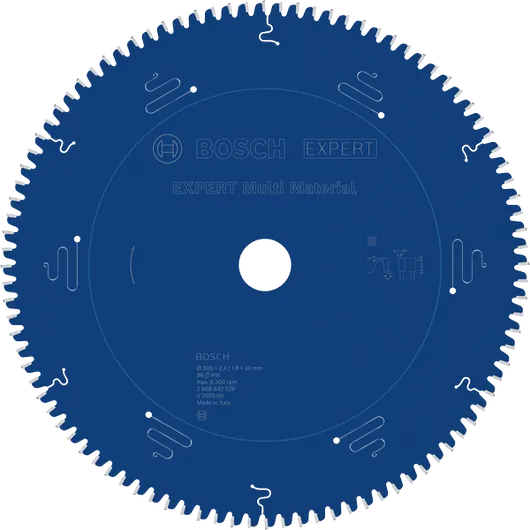

1 x circular saw blade, Expert for Wood, 305 x 30 x 2.4 mm, 72Order number: 2 608 642 531
-
ClampOrder number: 1 609 B06 203
-
Collet (spare part number 1 609 B02 585)
-
Hex key (spare part number 1 609 B00 256)
-
ScrewOrder number: 1 609 B00 263
-
Insert plate (spare part number 1 609 B02 375)
Technical data
Additional data |
|
|---|---|
| Saw blade diameter | 305 mm |
| Mitre setting | 52 ° L / 60 ° R |
| Bevel setting | 47 ° L / 47 ° R |
| Saw blade bore diameter | 30 mm |
| Rated input power | 2,000 W |
| Cutting capacity, 0° | 104 x 341 mm |
| Cutting capacity, 45° mitre | 104 x 240 mm |
| Cutting capacity, 45° bevel | 51 x 341 mm |

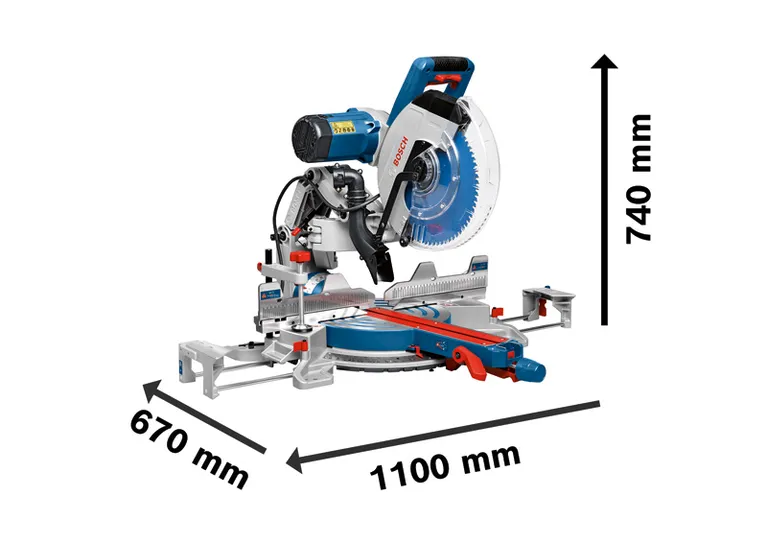

| Tool dimensions (width x length x height) | 670 x1100 x740 mm |
| No-load speed* | 4,000 rpm |
| Weight* | 29.4 kg |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 93 dB(A); Sound power level 106 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
