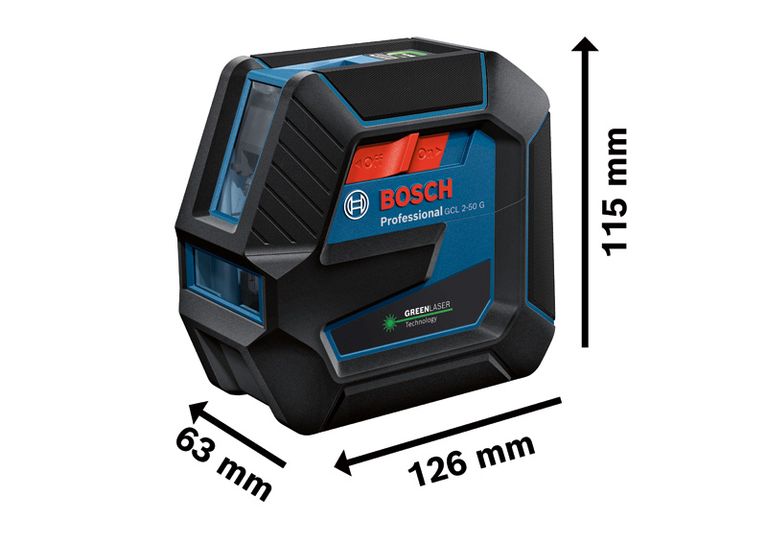

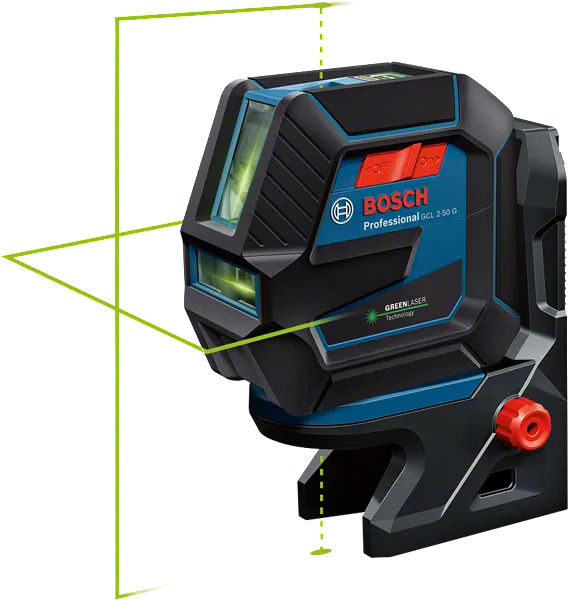

GCL 2-50 G Professional
Combi Laser
Durability and ease of use. Green laser lines and green plumb points
- Durable design, featuring a rubberised housing with recessed glasses and dust and splash water protection IP 64 to withstand tough environments
- ON/OFF switch and one-button keypad make for ease of use
- Green laser lines and green plumb points provide enhanced visibility
Functions & key features
Your Selection

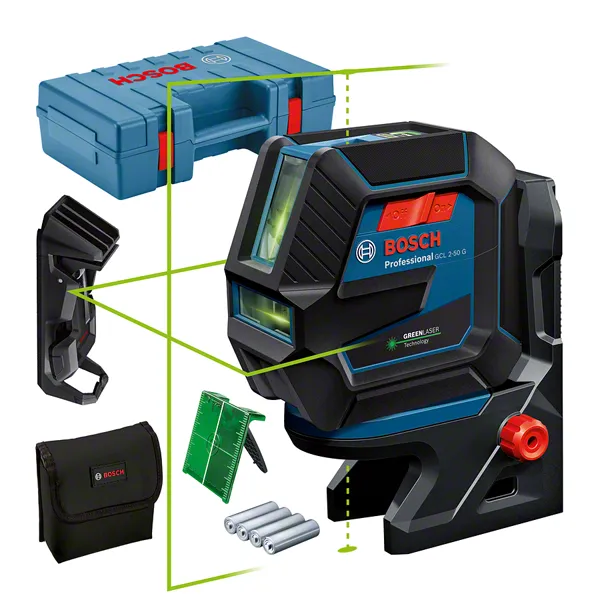

- in carrying case with 4 x battery (AA), rotating mount RM 10
Select a variant
Your Selection
Order number: 0 601 066 M02
Find a local dealerIncluded in all variants
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
-
Rotating Mount RM 10 ProfessionalOrder number: 0 601 092 A00
Additional in this variant
-
Ceiling Clip DK 10 Professional
-
Carrying case
Your Selection
Order number: 0 601 066 M00
Find a local dealerIncluded in all variants
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
-
Rotating Mount RM 10 ProfessionalOrder number: 0 601 092 A00
Your Selection
Order number: 0 601 066 M01
Find a local dealerIncluded in all variants
-
4 x 1.5 V LR6 battery (AA)
-
Pouch
-
Laser target plate
-
Rotating Mount RM 10 ProfessionalOrder number: 0 601 092 A00
Additional in this variant
-
Building tripod BT 150 ProfessionalOrder number: 0 601 096 B00
Technical data
Additional data |
|
|---|---|
| Colour of laser line | green |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | up to 15 m |
| Working range with receiver* | up to 50 m |
| Accuracy* | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Working range of laser points, max.* | 10 m |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 64 |
| Power supply | 4 x 1.5 V LR6 (AA) |
| Tripod thread | 1/4" |
| Weight, approx.** | 0.58 kg |
| Color of plumb points | green |

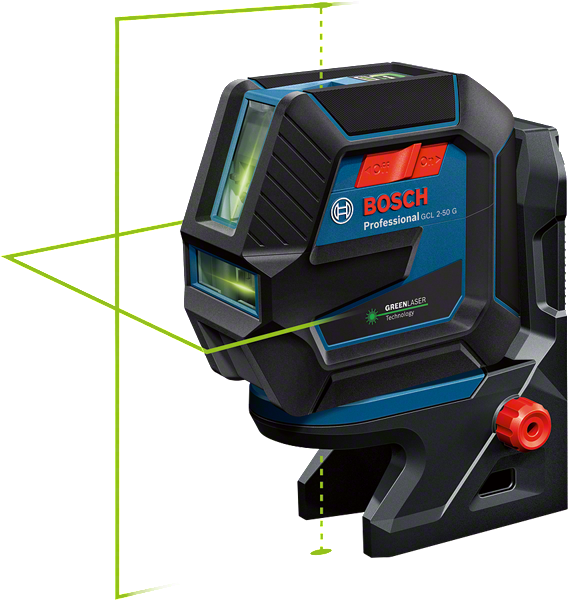

| Projection | 2 lines / 2 points |
| Plumb point accuracy*** | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Compatible laser receivers | LR 7 |
| Working range, value | 15 m |
| Working range with receiver, value | 50 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GCL 2-50 G Professional: Further information
Product Highlights

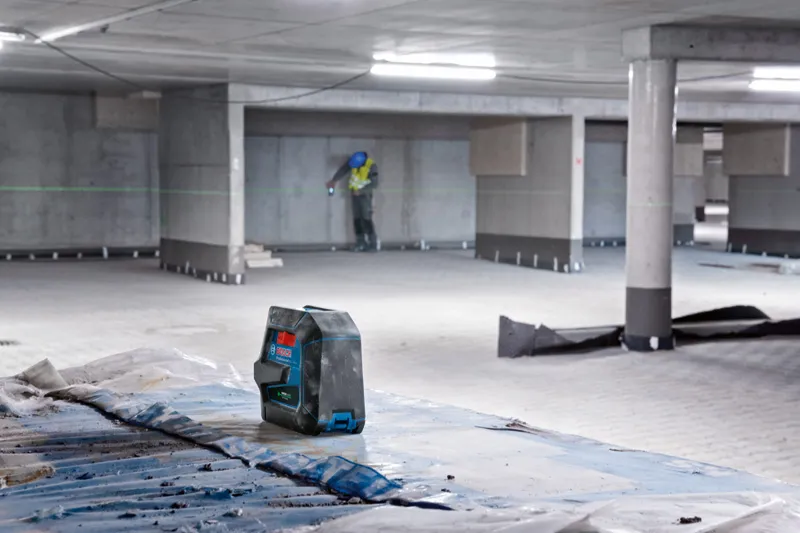

The jobsite-ready combi laser GCL 2-50 G Professional makes alignment and transfer simple. Stay focussed on the task thanks to durable design, featuring a rubberised housing for better protection of the recessed glasses and dust and splash water protection IP 64. The ON/OFF switch and one-button keypad make for ease of use. For starting right away, the GCL’s laser receiver mode is always activated. Highly visible green laser lines and green plumb points give enhanced visibility in brighter environments.
Equipment & Application

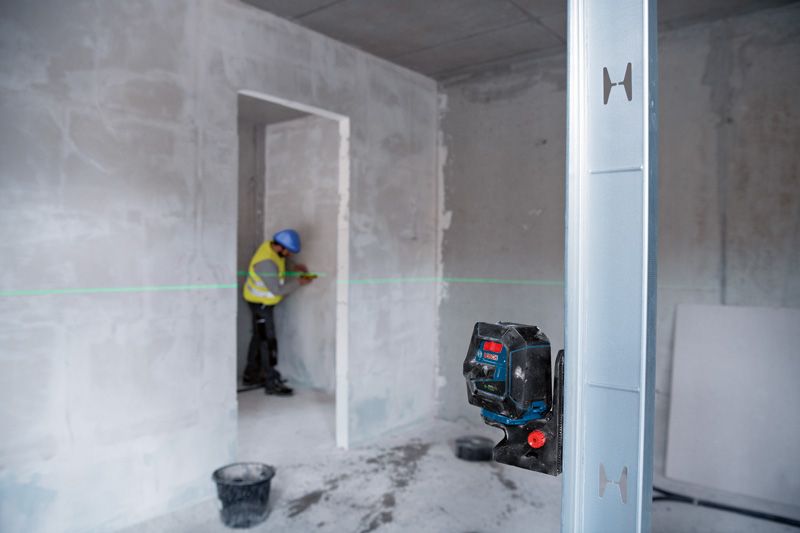

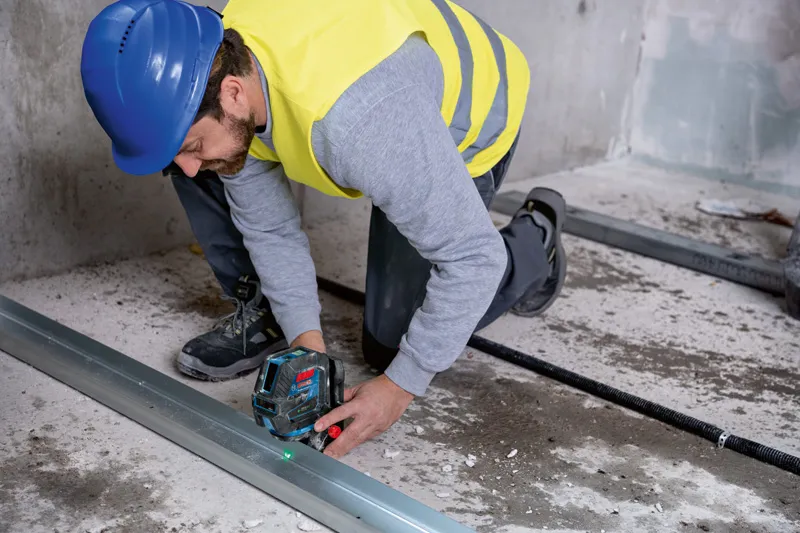

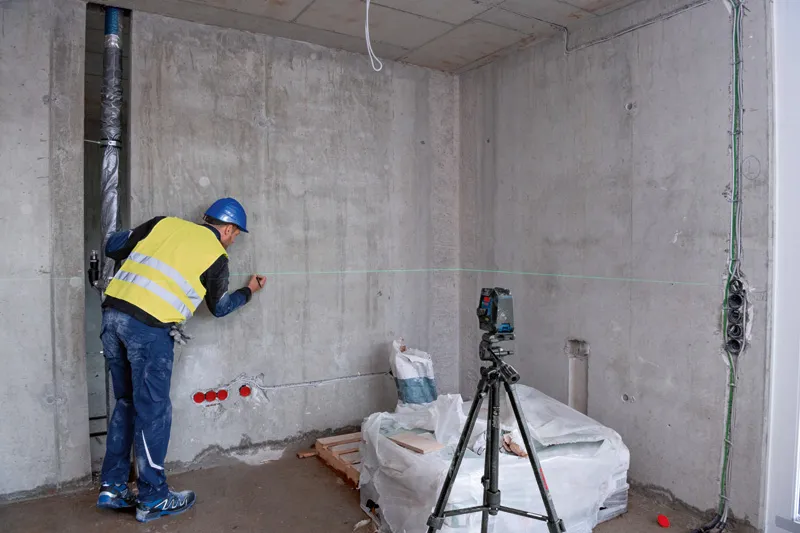

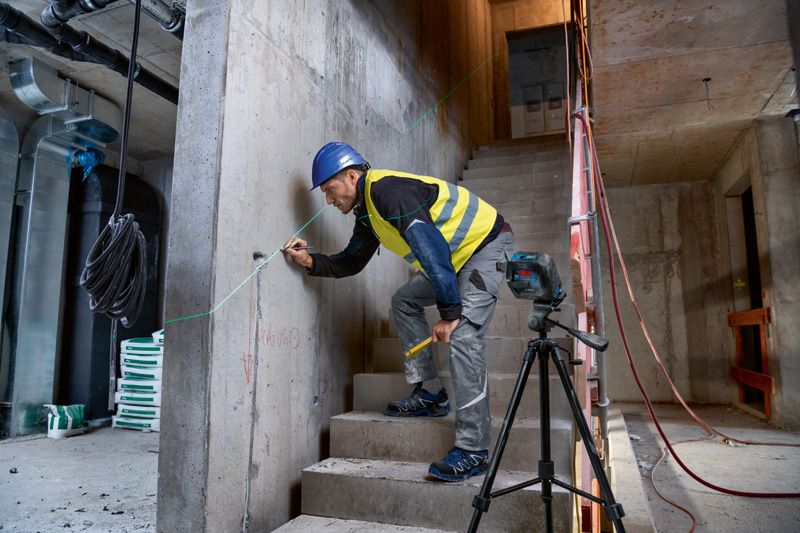

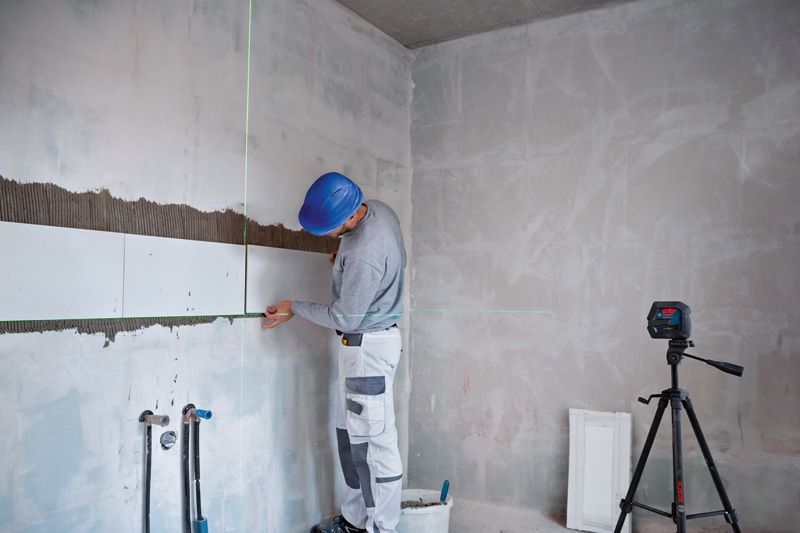

Fast and secure mounting thanks to the RM 10 Professional rotating mount with very strong magnets. The RM 10 Professional enables the precise positioning of laser lines around plumb points. The robust GCL 2-50 G Professional is ideal for many applications such as building framework for drywall, mounting sockets and doors, and point transfer for light mounting.
Additional Information

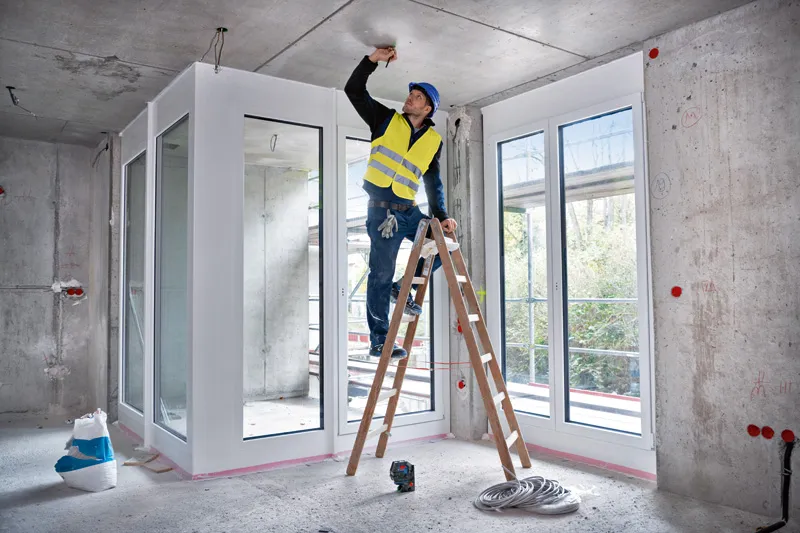

The GCL 2-50 G Professional provides working range lines up to 15 m (dots: up to 10 m), expandable up to 50 m with the optional receiver LR 7 Professional. The RM 10 Professional is compatible with the optional DK 10 Professional ceiling clip for ceiling applications or fine height adjustments.
