Combi lasers

GCL 2-50 CG Professional

Combi Laser

GCL 2-50 CG
GCL 2-50 CG

Supreme visibility connected with smart functions

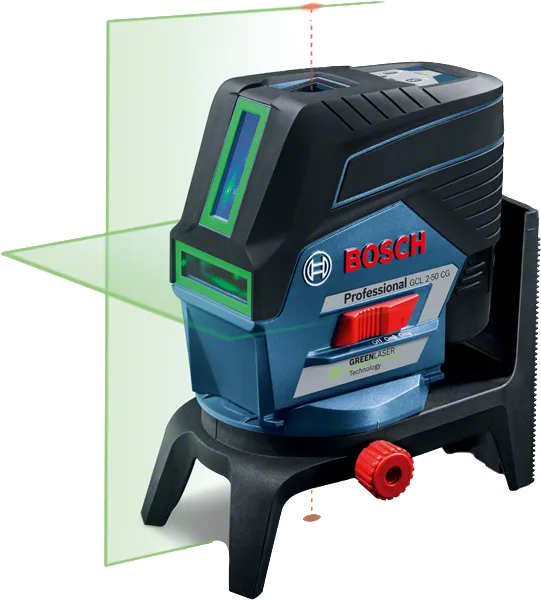

  • Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility
  • Bluetooth®-connection paired with Levelling Remote App offers remote-control adjustment of the tool via a smartphone
  • Dual Power Source allows for the use of 12 V Li-ion battery or standard alkaline batteries

Functions & key features

Dual power source
Working with receiver for higher working range
Easy line positioning around the plumb dot
Slide mechanism
Working range up to 50 m

Your Selection

  • in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp
Show variant Find a local dealer

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp 0 601 066 H00

GCL 2-50 CG Professional

Your Selection

GCL 2-50 CG
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, clamp

Order number: 0 601 066 H00

Find a local dealer

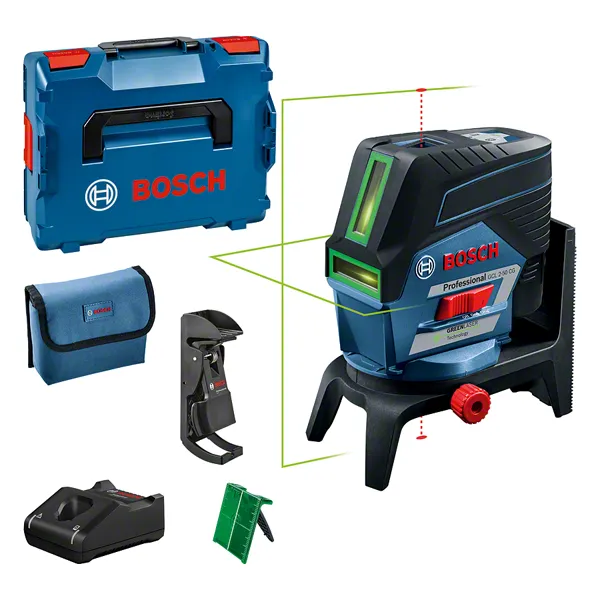

Included in this variant

  • L-BOXX 136
    Order number: 1 600 A01 2G0
  • Quick charger GAL 12V-40 Professional
    Order number: 1 600 A01 9R3
  • Protective Bag
  • Ceiling clamp
  • 1 x battery GBA 12V 2.0Ah
    Order number: 1 600 Z00 02X
  • Rotating mount RM 2 Professional
    Order number: 0 601 092 700
  • Laser target plate

Technical data

Additional data

Tripod thread
1/4"
Battery voltage
12.0 V
Laser diode
500 – 540 nm, < 10 mW, 630 – 650 nm, < 1mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Laser class
2
Working range*
20 m
Working range with receiver*
50 m
Accuracy*
± 0.3 mm/m* (*plus use-dependent deviation)
Working range of laser points, max.*
10 m (top), 10 m (bottom)
Self-levelling range
± 4°
Dust and splash protection
IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter)
Operating time (max.)
10 h (Li-Ion) and 4 h (4 x AA) in cross-line and point operation, 13 h (Li-Ion) and 6 h (4 x AA) in cross-line operation, 15 h (Li-Ion) and 12 h (4 x AA) in line operation, 60 h (Li-Ion) and 32 h (4 x AA) in point operation
Weight, approx.**
0.6 kg
Colour of laser line
green
Color of plumb points
red
Projection
2 lines / 2 points
Plumb point accuracy***
± 0.7 mm/m* (*plus use-dependent deviation)
Compatible laser receivers
LR 7
Working range, value
20 m
Working range with receiver, value
50 m
GCL 2-50 CG

* Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

** You can find more information about the deviations in the following link: Technical features of products

*** Plus use-dependent deviation. You can find more information about the deviations in the following link: Technical features of products

GCL 2-50 CG Professional: Further information

Product Highlights

The combi laser GCL 2-50 CG Professional offers supreme visibility with a range of smart functions. Bright green horizontal and vertical laser lines and two centred plumb points offer optimal visibility, while its Bluetooth®-connection offers remote-control adjustment via a smartphone app. For increased flexibility, Dual Power Source allows 12 V Li-ion battery or standard alkaline batteries.

Equipment & Application

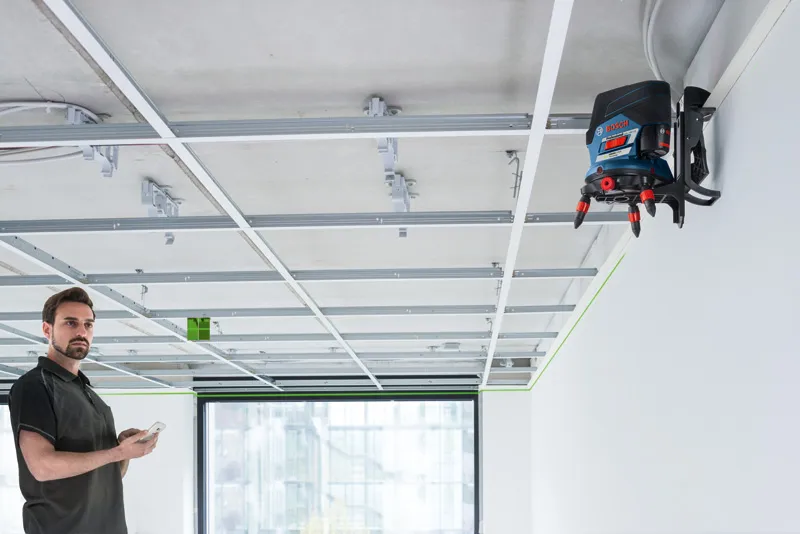

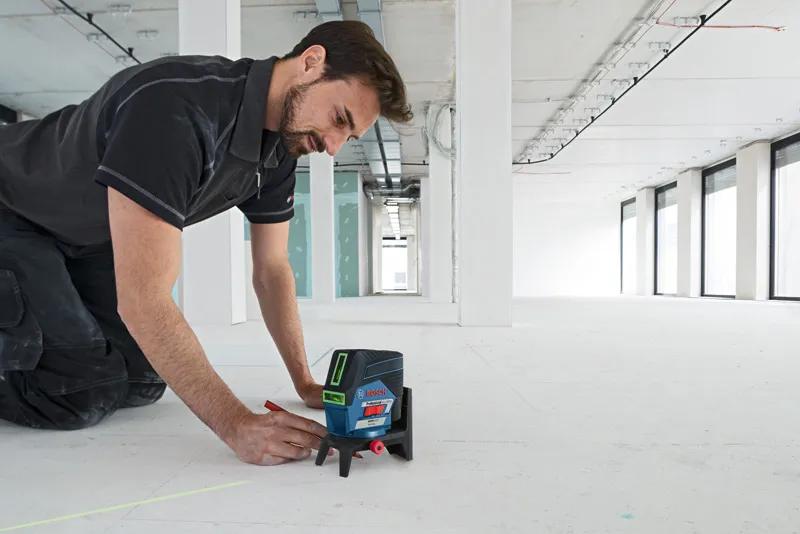

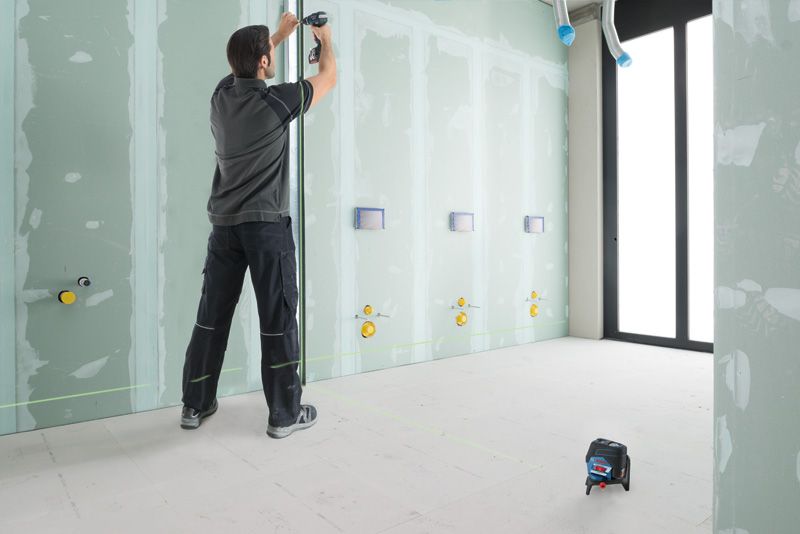

This combi laser is designed for horizontal and vertical alignments with a long overshoot of nearly 360° and is suitable for projects such as dry wall installation and interior finishing tasks.

Additional Information

The GCL 2-50 CG Professional delivers high visibility of up to 20 m without a receiver and 50 m with a receiver. For precise positioning around the plumb points, the RM 3 Professional offers motorised control, and RM 2 Professional allows for manual adjustments.
