GCL 2-15 G Professional
Combi Laser
Green laser lines for up to four times better visibility

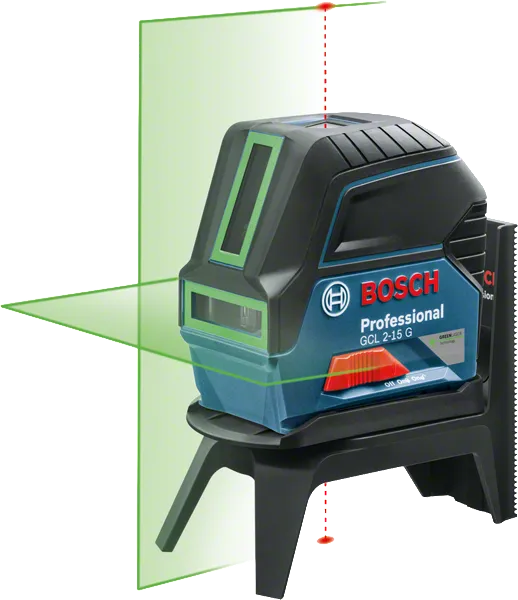

- Green horizontal and vertical laser lines for up to four times better visibility than red lines
- Precise transfer applications thanks to red plumb points
- Rotating mount RM 1 Professional allows laser lines to be easily aligned around the plumb points
Functions & key features
Your Selection

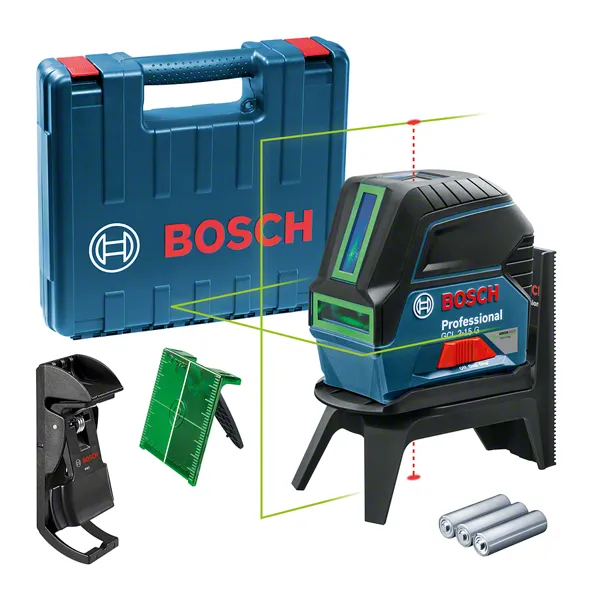

- in carrying case with 3 x battery (AA), rotating mount
GCL 2-15 G Professional
Your Selection
Order number: 0 601 066 J00
Find a local dealerIncluded in this variant
-
Rotating mount RM 1 ProfessionalOrder number: 0 601 092 600
-
3 x 1.5 V LR6 battery (AA)
-
Ceiling clamp
-
Carrying case
-
Laser target plate
Technical data
Additional data |
|
|---|---|
| Tripod thread | 1/4", 5/8" |
| Colour of laser line | green |
| Projection | 2 lines / 2 points |
| Working range* | up to 15 m |
| Accuracy* | ± 0.3 mm/m* (*plus use-dependent deviation) |
| Dust and splash protection | IP 54 |
| Laser diode | Line: 500 – 540 nm, < 10 mW, Point: 630 – 650, < 1 mW |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range of laser points, max.* | 10 m (top), 10 m (bottom) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Power supply | 3 x 1.5 V LR6 (AA) |
| Operating time (max.) | 6 h in cross line and point mode, 8 h in cross line mode, 10 h in line and point mode, 12 h in line mode, 22 h in point mode |
| Weight, approx.** | 0.49 kg |
| Plumb point accuracy*** | ± 0.7 mm/m* (*plus use-dependent deviation) |
| Working range, value | 15 m |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
*** Plus use-dependent deviation. You can find more information about the deviations in the following link:
GCL 2-15 G Professional: Further information
Product Highlights
Up to four times better visibility with green laser lines and perfectly versatile – this is Bosch´s combi laser GCL 2-15 G Professional. The two laser lines allow for precise vertical and horizontal alignment, while red plumb points simplify transfer applications. Easily align laser lines around the plumb points with the versatile rotating mount RM 1 Professional.
Equipment & Application

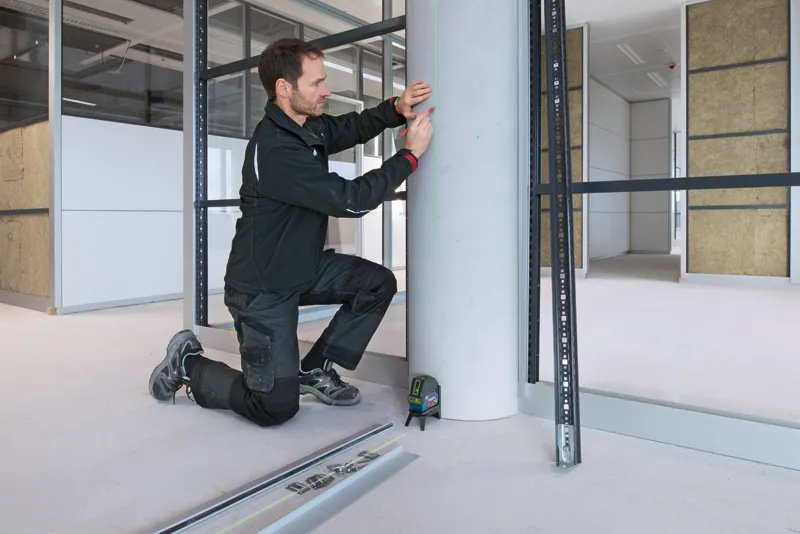

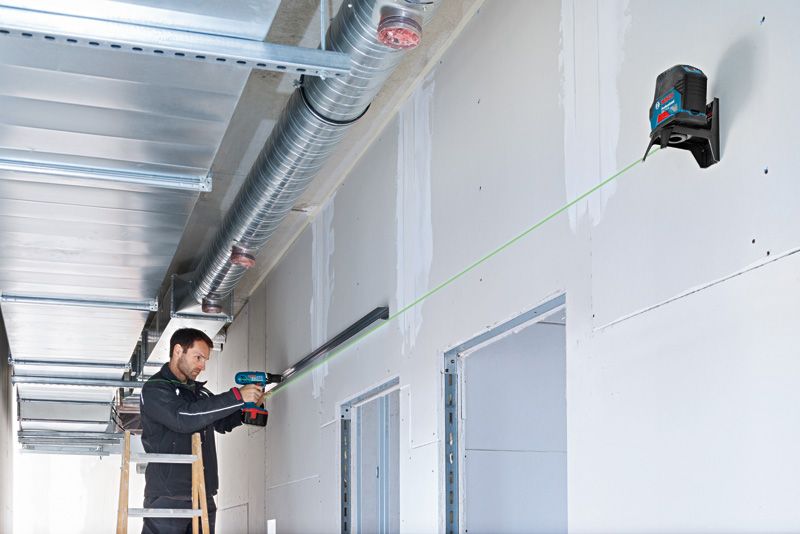

The GCL 2-15 G Professional is suitable for various jobs such as suspending drop-ceilings, installing drainage pipes and laying floors. It also offers point transfers for light mountings.
Additional Information
The GCL 2-15 G Professional has a line laser working range of up to 15 m and self-levels in less than 4 seconds. This combi laser is ideal for use with the RM 1 Professional, which can be swiftly attached via a simple slide mechanism. It is robust with IP54 dust and splash water protection. When the tool is switched off, the pendulum automatically locks for safe transportation and convenient storage.
