Receivers
LR 6
LR 6
LR 6
LR 6
LR 6
LR 6
1/5

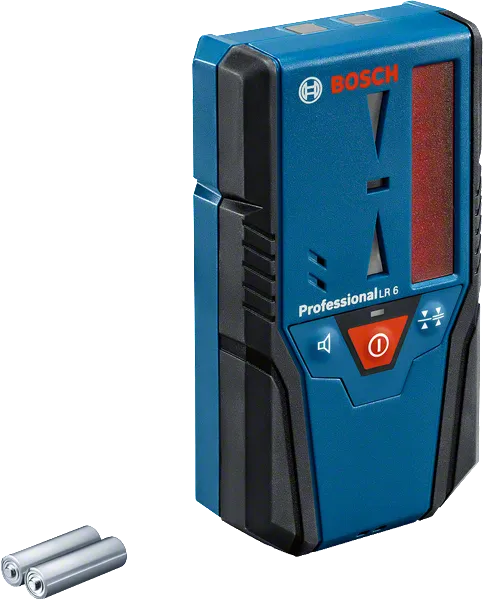

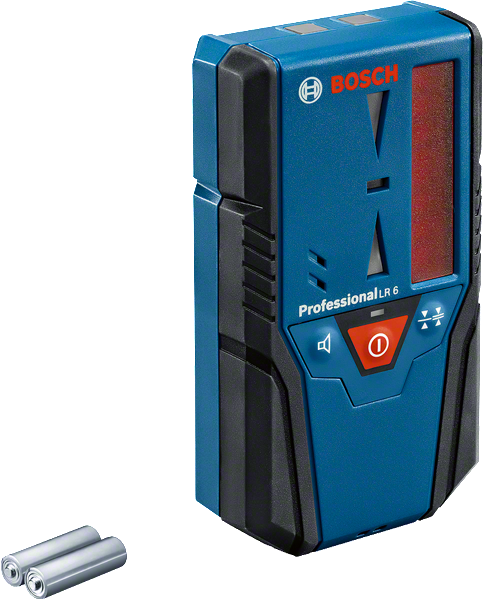

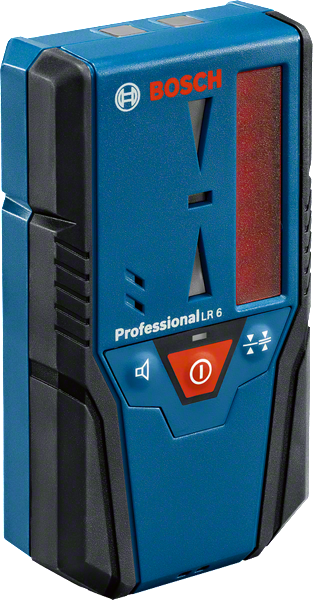

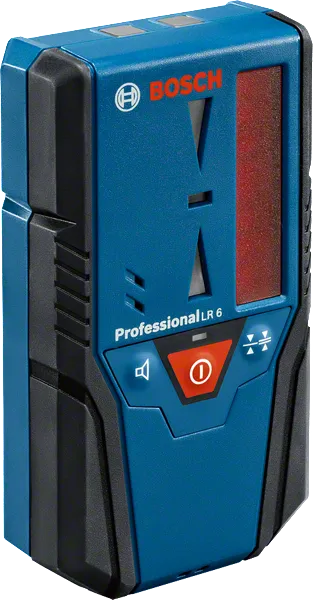

LR 6 Professional

Laser Receiver

Easy-to-operate laser receiver with a compact design

  • Handy receiver for ranges of up to 50 m
  • Alignment of the laser beam plane, visual and audible signals, for working in various lighting conditions

Functions & key features

Red beam detection
Reception area 50 mm

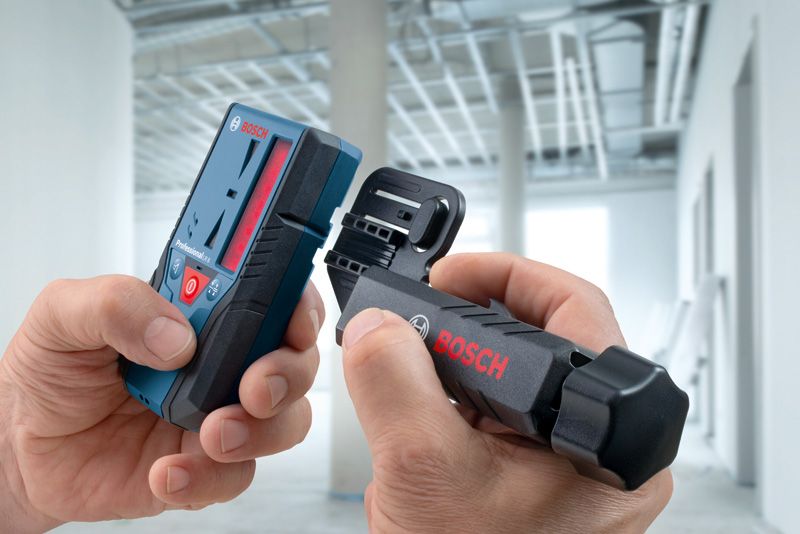

Easy attachment due to magnets on the top of the receiver
IP54 dust and splash water protection

Your Selection

  • with 2 x battery (AAA)
Show variant
65.00 £
Including VAT

in stock

Estimated delivery time 2-5 working days

Visa payment optionMasterCard payment optionPayPal payment optionApple Pay payment optionKlarna payment option
with 2 x battery (AAA) 0 601 069 H00
65.00 £
Including VAT

LR 6 Professional

Your Selection

LR 6
with 2 x battery (AAA)

Part Number: 0 601 069 H00

65.00 £
Including VAT

in stock

Included in this variant

  • 2 x 1.5 V LR03 battery (AAA)
Your selection

Technical data

The most important data

Range of
5 – X m (Maximum working range for operation with laser receiver according to the operating instructions for the Bosch line laser or Bosch point and line laser that is used)
Power supply
2 x 1.5 V LR03 (AAA)
Dust and splash protection
IP 54
Weight, approx.*
0.12 kg
Measuring accuracy (fine/rough)
± 1 mm/± 3 mm

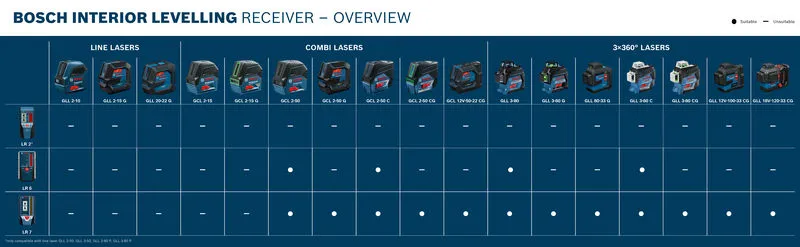

Suitable for
GCL 2-50, GCL 2-50 C, GLL 3-80, GLL 3-80 C
Type of receiver
Combi- and line lasers
LR 6

* You can find more information about the deviations in the following link: Technical features of products

Fits to LR 6 Professional

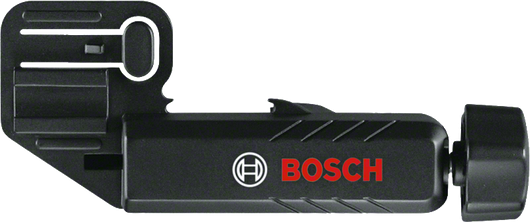

Bracket for LR 6, LR 7

Bracket for LR 6, LR 7

Bracket

Variants:1

Downloads

User Manual

Instruction manual | LR 6 (PDF 3.9 MB)
Product data sheet Product data sheet | LR 6 (PDF 1.5 MB)
