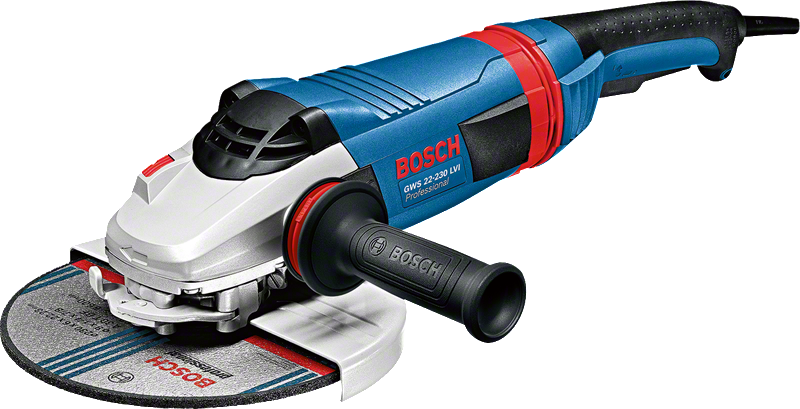

GWS 22-230 LVI Professional
Angle Grinder
Efficient grinding with high user protection in the 2,200 W category
- High-powered results for general work due to 2,200 W motor
- User protection increased due to KickBack Control and restart protection
- Vibration Control main handle combined with an auxiliary handle achieves up to 50% less vibration
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 891 C70
not available
Find a local dealerIncluded in all variants
-
Vibration Control auxiliary handlePart Number: 2 602 025 181
-
Backing flangePart Number: 1 605 703 099
-
Locking nutPart Number: 1 603 340 040
-
Two-hole spannerPart Number: 1 607 950 048
-
Quick adjustment protective guardPart Number: 2 605 510 281
Additional in this variant
-
Voltage 240 V
Your Selection
Part Number: 0 601 891 C60
not available
Find a local dealerIncluded in all variants
-
Vibration Control auxiliary handlePart Number: 2 602 025 181
-
Backing flangePart Number: 1 605 703 099
-
Locking nutPart Number: 1 603 340 040
-
Two-hole spannerPart Number: 1 607 950 048
-
Quick adjustment protective guardPart Number: 2 605 510 281
Additional in this variant
-
Voltage 110 V
Technical data
The most important data |
|
|---|---|
| Rated input power | 2,200 W |
| No-load speed* | 6,600 rpm |
| Grinding spindle thread | M14 |
| Main handle | Barrel |
| Disc diameter | 230 mm |
| Weight* | 5.4 kg |
| Switch | PROtection Switch |
| Packaging dimensions (width x length x height) | 200 x 590 x 128 mm |
| Voltage, electrical | 230 V |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 103 dB(A); Sound power level 92 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GWS 22-230 LVI Professional: Further information
Product Highlights

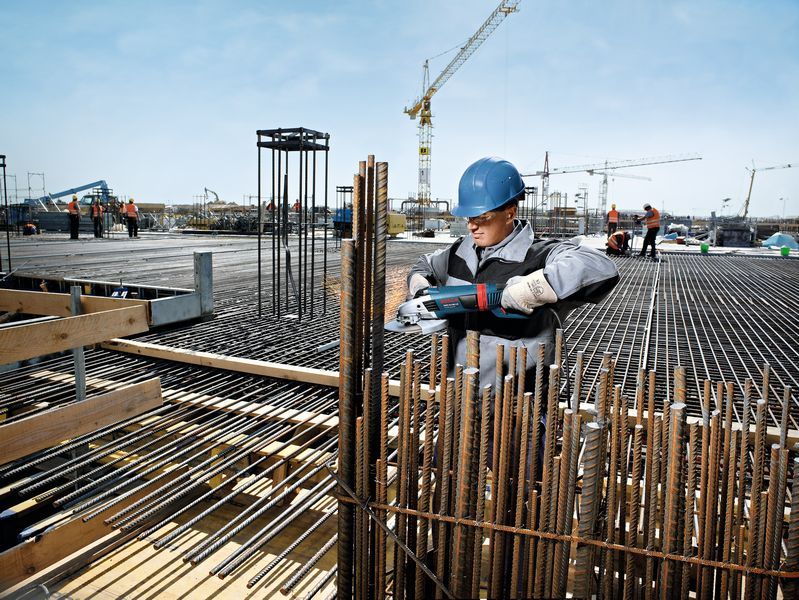

The GWS 22-230 LVI Professional corded large angle grinder is efficient for grinding applications and delivers high user protection in the 2,200 W category. High-powered results for general work are ensured by its 2,200 W motor. User protection is increased to an especially high level due to the grinder´s KickBack Control and restart protection features. It is also equipped with a Vibration Control main handle and a Vibration Control auxiliary handle that generate up to 50% less vibration. This tool is intended for cutting and grinding metal, tiles, and bricks. It is compatible with dust attachment GDE 230 FC-T Professional and Bosch Click & Clean dust extraction system.
Equipment & Application
The GWS 22-230 LVI Professional also features a protection guard.
