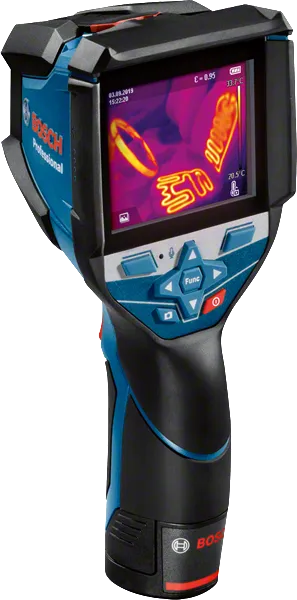

GTC 600 C Professional
Thermo Camera
Detailed visualisation of temperature differences with smart documentation
- High thermal resolution and wide measuring range for maximum applications
- Voice note and Bosch ThermalOn app enable easy documentation of thermal images
- Intuitive user interface and seamlessly integrated features deliver successful results in minimum clicks
Functions & key features
Your Selection

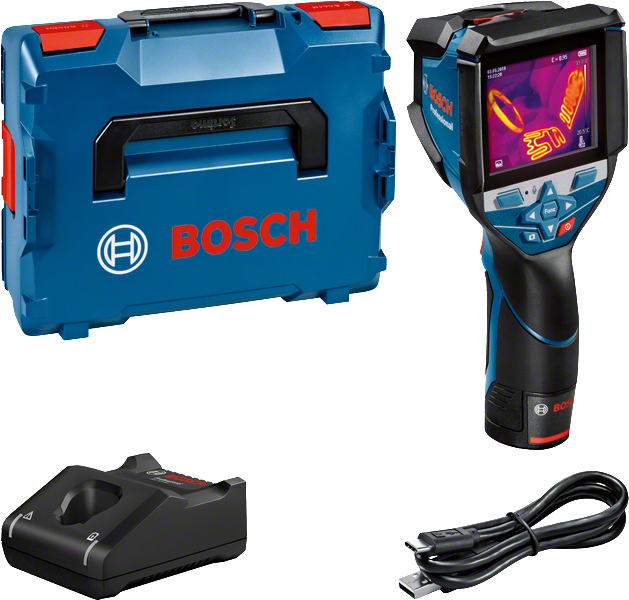

- in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, quick charger
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, quick charger
0 601 083 570
Select a variant
Your Selection
in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, quick charger
Part Number: 0 601 083 570
available at Bosch Partner
Available from our partnersIncluded in all variants
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
L-BOXX inlay for accessories
-
L-BOXX inlay for tool
-
USB-C® CablePart Number: 1 600 A01 L6H
Additional in this variant
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
1 x battery GBA 12V 2.0AhPart Number: 1 600 Z00 02X
Your Selection
in L-BOXX 136
Part Number: 0 601 083 508
available at Bosch Partner
Available from our partnersIncluded in all variants
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
L-BOXX inlay for accessories
-
L-BOXX inlay for tool
-
USB-C® CablePart Number: 1 600 A01 L6H
Technical data
The most important data |
|
|---|---|
| Battery voltage | 12.0 V |
| Measurement range* | -20 °C to +600 °C |
| Measuring accuracy of IR* | ± 2.0 °Cᵇ |
| Resolution | 0.1 °C |
| Thermal sensitivity (NETD) | <=50 mK |
| Size of IR sensor | 256x192 px |
| Number of measuring points | 49,152 |
| Power supply and runtime | GBA 12 V 2.0 Ah 6 hours |
| Frame buffer (number of images) | 600 |
| File format of image | .jpg |
| Data transfer | Wi-Fi, USB-C® |
| Shock protection | 2 m |
| Dust and splash protection* | IP54** (**except for the lithium-ion battery pack) |

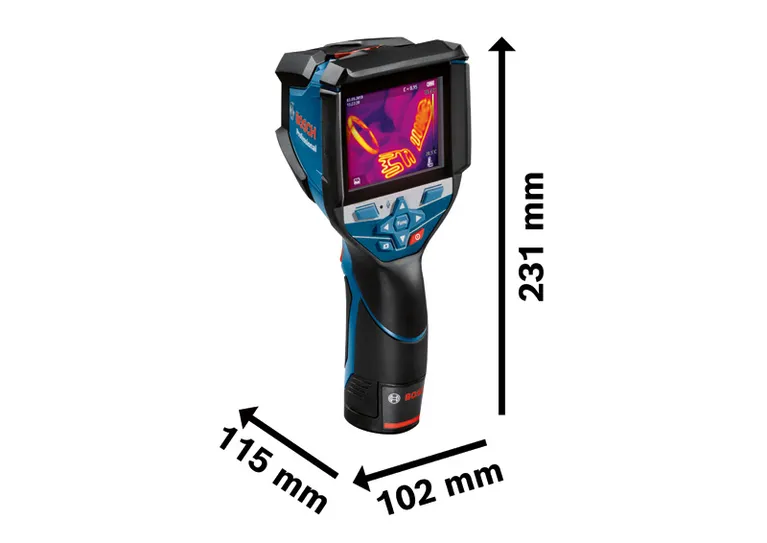

| Weight** | 0.6 kg |
| Size of display | 3,5" |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 50 °C |
| Focus distance, minimum | 0.3 m |
| Thermal image refresh rate | 9 Hz |
| Frame buffer (number of images each with audio) | 350 |
| File format of audio | .wav |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵇ At >10°C, <100°C, for other surface temperatures, see
GTC 600 C Professional: Further information
Product Highlights
Detect temperature differences quickly and easily, even outdoors – Bosch´s thermal camera GTC 600 C Professional offers detailed visualisations of temperature differences and allows for smart documentation. It features a high thermal resolution and wide measuring range for a maximum of thermal measuring applications. Convenient voice note, the Bosch ThermalOn app and the GTC Transfer Software enable easy documentation of thermal images. An intuitive user interface and seamlessly integrated features such as emissivity value presets and an improved gallery with both IR and visual images deliver successful results in minimum clicks.
Equipment & Application
This tool is ideal for detecting insulation problems and unwanted hot or cold spots.
Additional Information
The robust GTC 600 C can withstand falling from a height of 2 m, has a protection class of IP54, and can be used on jobsites even under the toughest conditions. Additionally, its 12V Li-ion batteries give the tool an outstanding runtime. Documenting and sharing measured values is easy with the corresponding Bosch app thanks to its Simple Exchange functionality for transferring data. This thermal camera has a high accuracy of ±2.0°C* and a wide temperature range of -20°C to +600°C.
