Impact Drill
Your Selection
available at Bosch Partner
Available at 3 BOSCH PartnersYour Selection
Part Number: 0 601 17B 560
available at Bosch Partner
Available at 3 BOSCH PartnersIncluded in all variants
Additional in this variant
Your Selection
Part Number: 0 601 17B 570
available at Bosch Partner
Available at 3 BOSCH PartnersIncluded in all variants
Additional in this variant
The most important data |
|
---|---|
Rated input power | 850 W |
No-load speed, 1st gear* | 0 – 1,000 rpm |
No-load speed, 2nd gear* | 3,000 rpm |
Power output* | 430 W |
Weight* | 2.6 kg |
Rated speed | 800 / 2,060 rpm |
Rated torque | 5.2 / 2.0 Nm |
Drill spindle connecting thread | 1/2"-20 UNF |
Chuck capacity, min./max. | 1.5 – 13 mm |
Impact rate at no-load speed* | 0 – 17,000 / 51,000 bpm |
Max. torque* | 36.0 Nm |
Packaging dimensions (width x length x height) | 350 x 380 x 120 mm |
Voltage, electrical | 110 V |
Bit holder | 1/2"-20 UNF |
Drilling range |
|
---|---|
Drilling diameter in wood | 40 / 25 mm |
Drilling diameter in steel | 13 / 8 mm |
Drilling dia. in stone | 20 / 15 mm |
Drilling diameter in masonry | 20 / 15 mm |
Total vibration values (Drilling in metal) |
|
---|---|
Vibration emission value ah | 3 m/s² |
Uncertainty K | 1.5 m/s² |
Total vibration values (Impact drilling in concrete) |
|
---|---|
Vibration emission value ah | 15 m/s² |
Uncertainty K | 2 m/s² |
Total vibration values (Screwdriving) |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
Total vibration values (Thread-cutting) |
|
---|---|
Vibration emission value ah | 2.5 m/s² |
Uncertainty K | 1.5 m/s² |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 99 dB(A); Sound power level 110 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link: Technical features of products

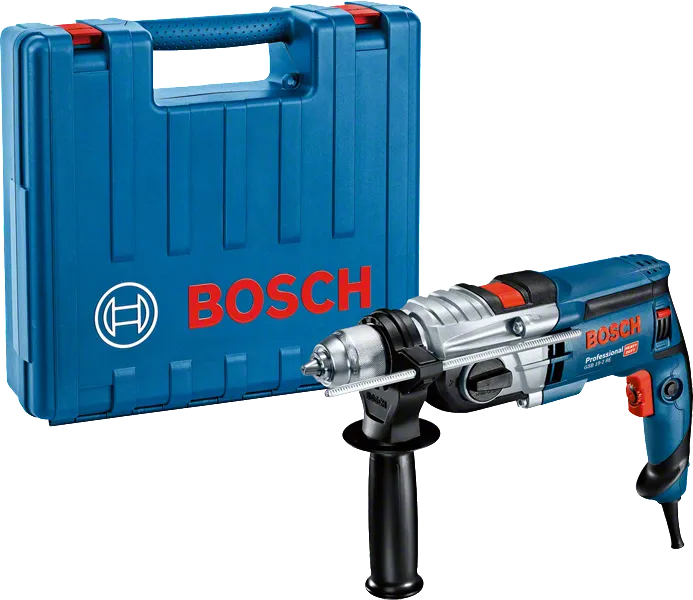

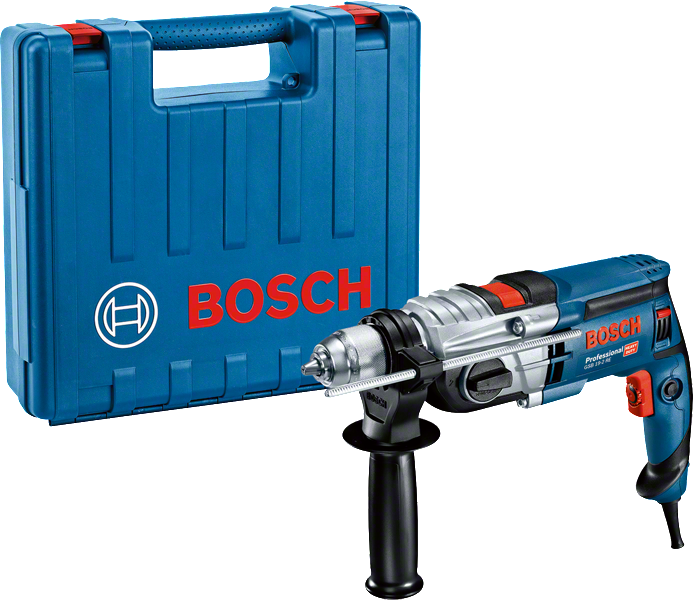

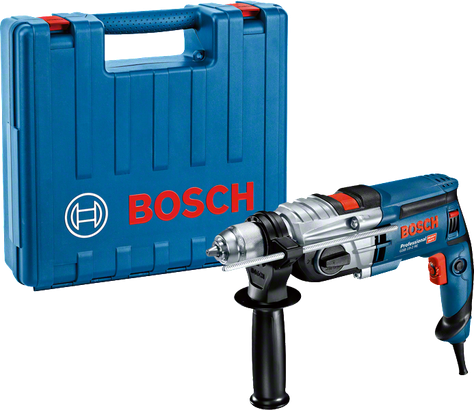

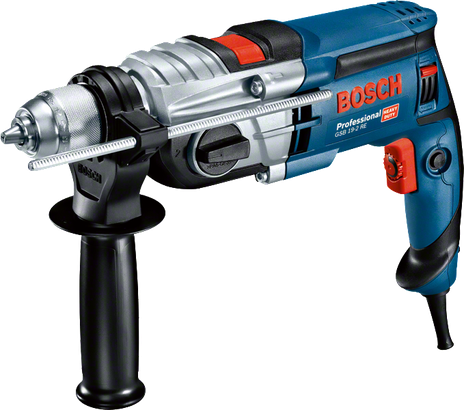

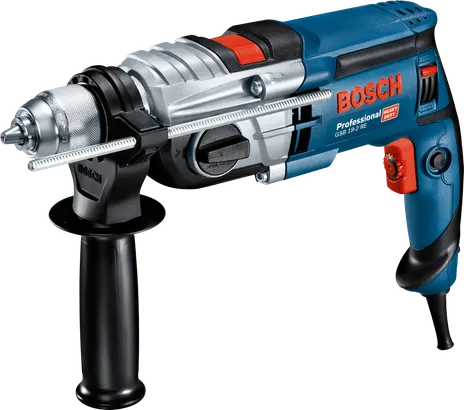

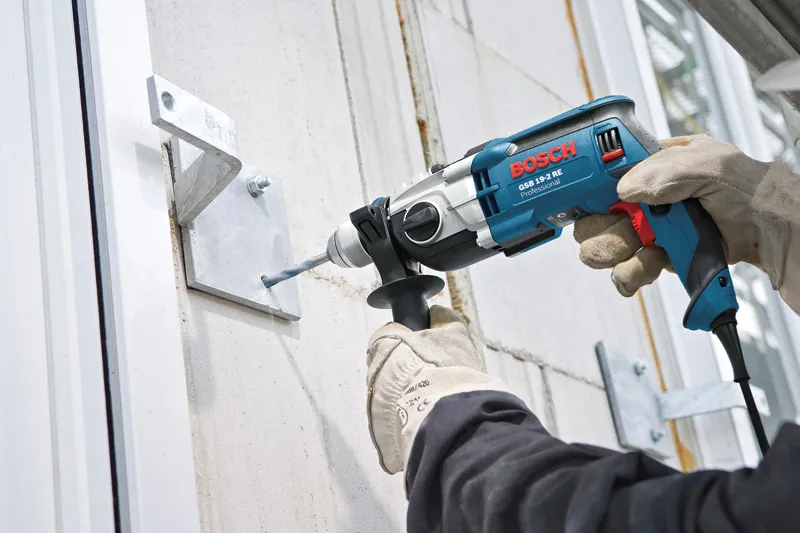

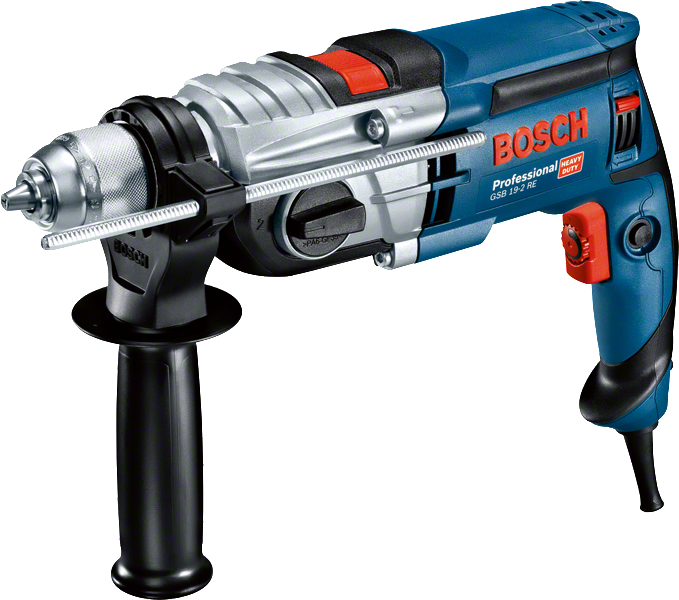

The GSB 19-2 RE Professional is a corded 2-geared all-round performing impact drill. It has a reliable 850 W motor enabling fast work progress. It also features a rotation control clutch providing a high level of user protection. The impact drill is designed with a sturdy metal gear housing ensuring a long tool lifetime.
This tool is intended for drilling in masonry, stone, wood, and metal.
The GSB 19-2 RE Professional includes features such as Autolock and speed selection.
