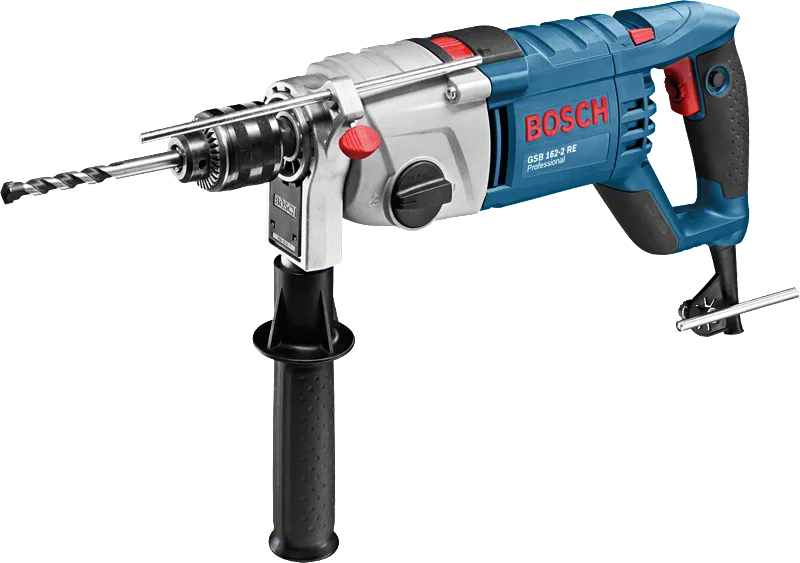

GSB 162-2 RE Professional
Impact Drill
High-power 2-gear impact drill for the toughest work and diamond dry-drilling
- Extremely powerful 1,500 W motor with high overload capacity and high torque is ideal for heavy-duty applications
- Optimised speed for fast drilling progress up to 162 mm in diameter even with diamond core cutters without impact function
- Rotation control clutch for an increased level of user protection even when working in the toughest materials
Functions & key features
Your Selection
- in carrying case with auxiliary handle, Accessory
in stock
Select a variant
Your Selection
Part Number: 0 601 18B 060
in stock
Included in all variants
-
Keyed chuck 16 mmPart Number: 1 608 571 057
-
Auxiliary handlePart Number: 2 608 025 205
-

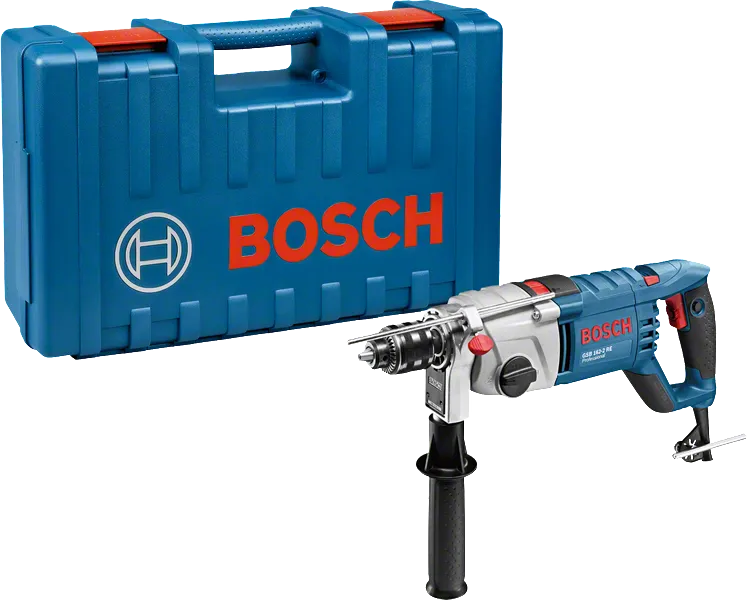

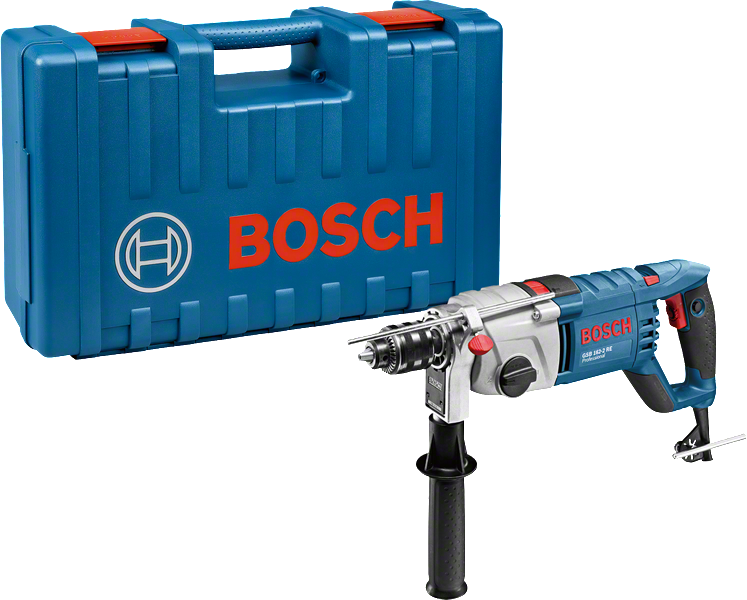

Carrying case
-
Depth stop (spare part number 2 600 460 045)
Additional in this variant
-
Voltage 110 V
Your Selection
Part Number: 0 601 18B 070
in stock
Included in all variants
-
Keyed chuck 16 mmPart Number: 1 608 571 057
-
Auxiliary handlePart Number: 2 608 025 205
-
Carrying case
-
Depth stop (spare part number 2 600 460 045)
Additional in this variant
-
Voltage 240 V
Technical data
The most important data |
|
|---|---|
| Rated input power | 1,500 W |
| No-load speed, 1st gear* | 0 – 750 rpm |
| No-load speed, 2nd gear* | 1,800 rpm |
| Power output* | 840 W |
| Weight* | 4.8 kg |
| Rated speed | 555 / 1,300 rpm |
| Rated torque | 17.0 / 5.0 Nm |
| Drill spindle connecting thread | 5/8"-16 UNF |
| Chuck capacity, min./max. | 3 – 16 mm |
| Impact rate at no-load speed* | 0 – 12,750 / 30,600 bpm |
| Packaging dimensions (width x length x height) | 325 x 535 x 150 mm |
| Voltage, electrical | 110 V |
| Bit holder | 5/8"-16 UNF |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 92 dB(A); Sound power level 103 dB(A). Uncertainty K= 5 dB.
* You can find more information about the deviations in the following link:
GSB 162-2 RE Professional: Further information
Product Highlights
The GSB 162-2 RE Professional is a high-powered 2-gear corded impact drill designed for the toughest applications including diamond dry-drilling. Its extremely strong 1,500 W motor with a high overload capacity and high torque is ideal for intense and heavy-duty applications. Its speed is specifically optimised to enable a fast drilling progress up to 162 mm in diameter even when using diamond core cutters in the non-impact function. The impact drill’s rotation control clutch ensures an increased level of user protection even when working in the toughest materials.
Equipment & Application
This tool is intended for drilling in masonry, stone, wood, and metal.
Additional Information
The GSB 162-2 RE Professional also includes features such as restart protection and speed selection.
