Rotation lasers
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")
![GRL 650 CHVG]( "GRL 650 CHVG")

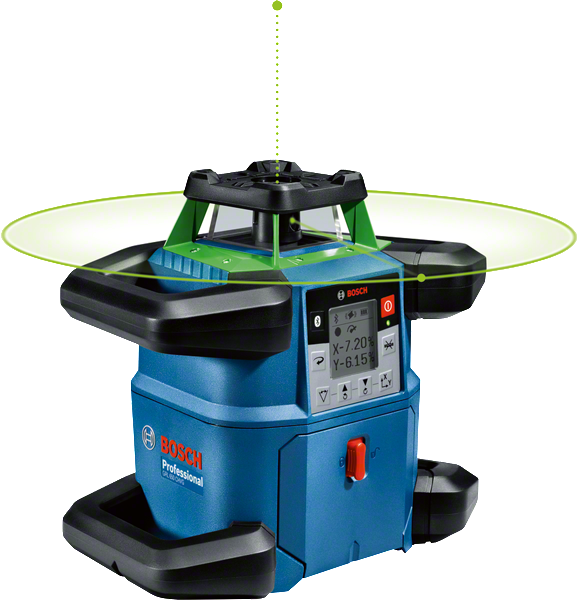

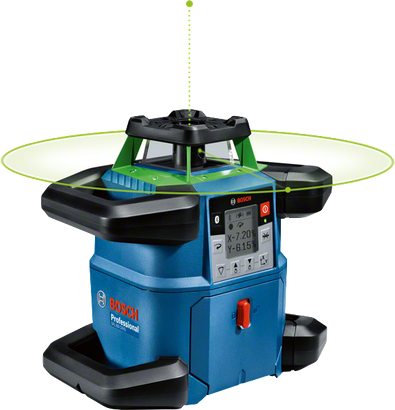

GRL 650 CHVG Professional
Rotation Laser
Connected green beam rotary laser for rough conditions and higher visibility
- Advanced green beam laser technology delivers higher visibility

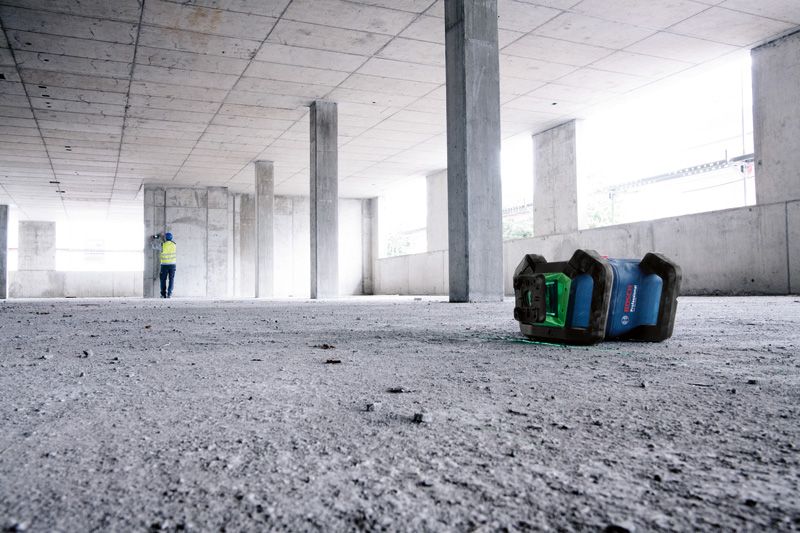

- Jobsite-ready construction withstands up to 2-m tripod tip-over and meets IP68 dust and water protection standards

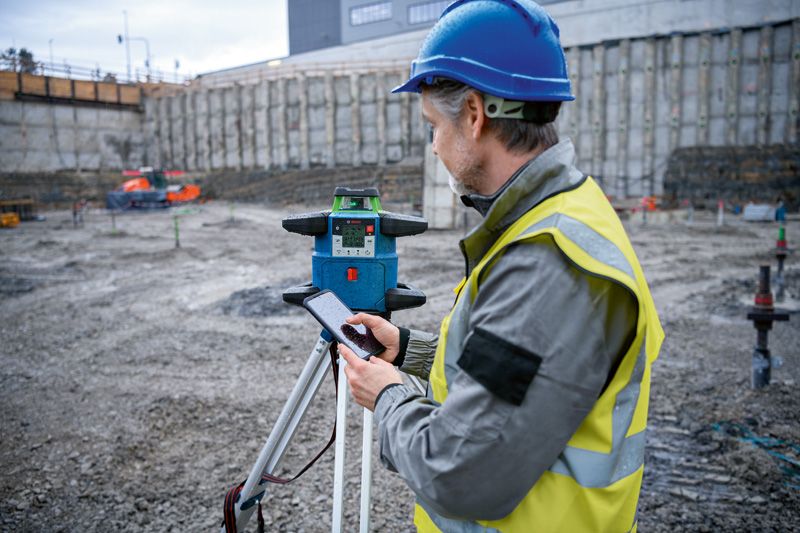

- Fast job completion thanks to connectivity via the Levelling Remote App
Functions & key features
Your Selection
- in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
0 601 061 V70
GRL 650 CHVG Professional
Your Selection
in carrying case with 1 x 4.0 Ah ProCORE18V Li-ion battery, laser receiver
Part Number: 0 601 061 V70
available at Bosch Partner

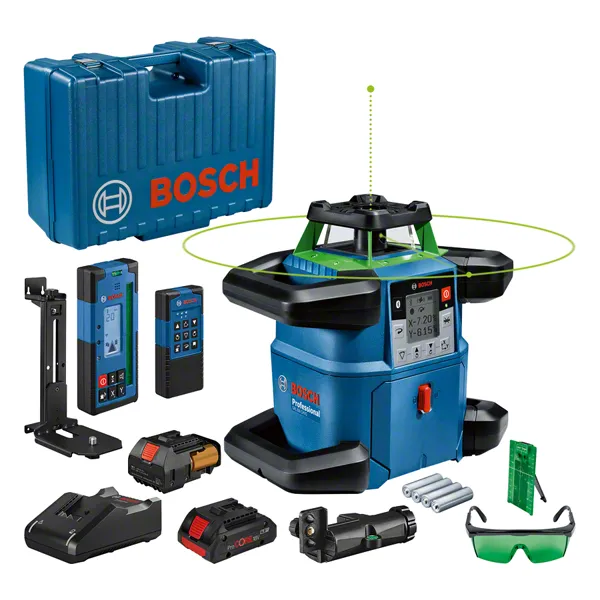

Available from our partnersIncluded in this variant
-
Remote control RC 6 Professional
-
Receiver bracket RB 60 Professional
-
Battery adapter BA 1 Professional
-
4 x 1.5 V LR6 battery (AA)
-

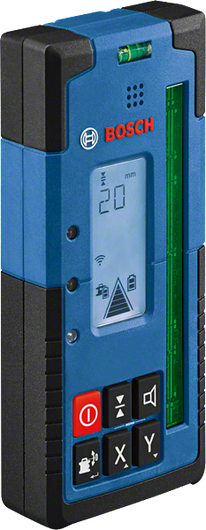

Laser receiver LR 65 G ProfessionalPart Number: 0 601 069 T00
-
Quick charger GAL 18V-40 ProfessionalPart Number: 1 600 A01 9RK
-
Laser viewing glasses (green) (spare part number 1 608 M00 05J)
-

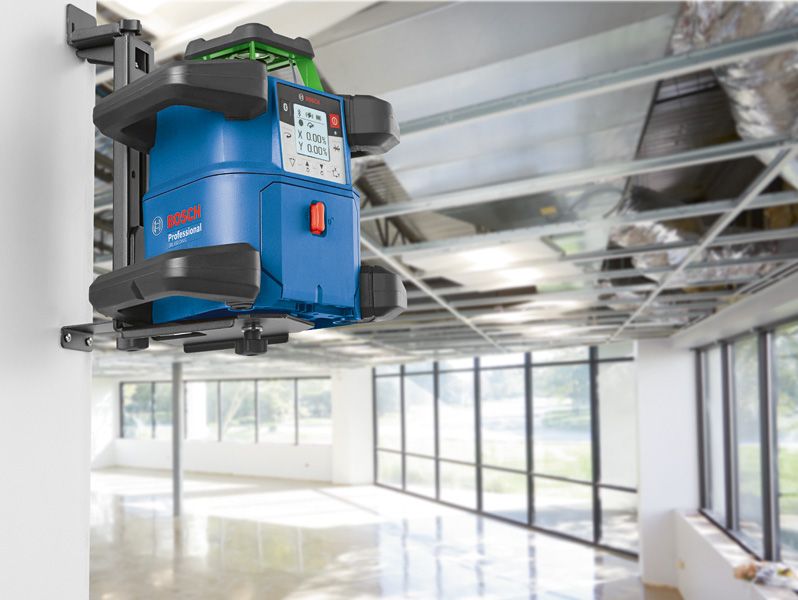

Wall mount WM 6 Professional
-
4 x 1.5 V LR20 battery (D)
-
Laser target plate
-

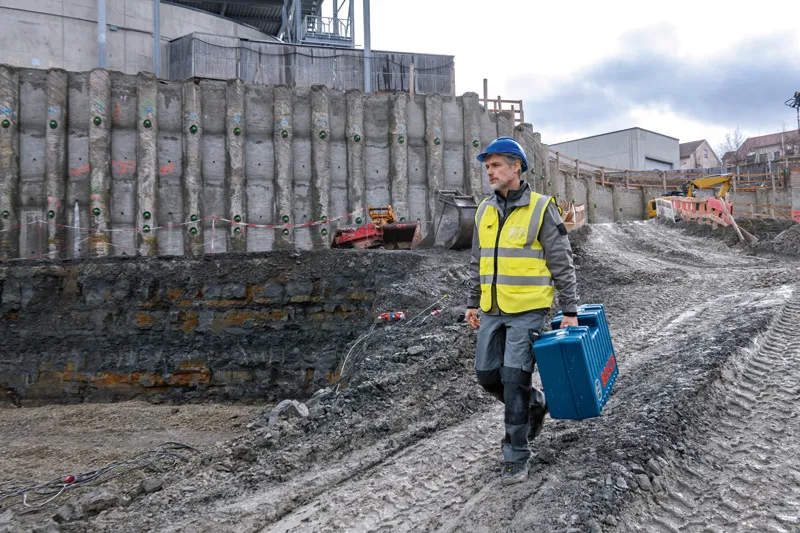

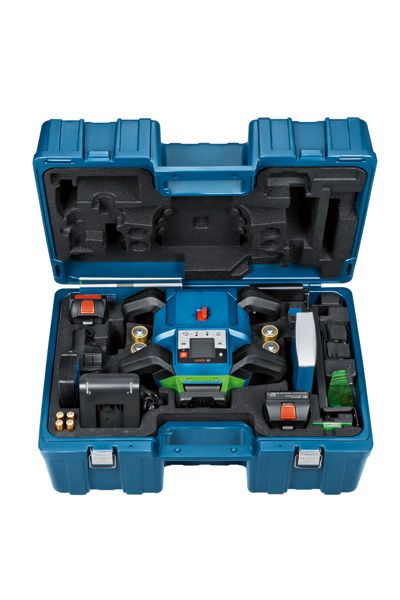

Carrying case
-
1 x battery ProCORE18V 4.0AhPart Number: 1 600 A01 6GB
Technical data
The most important data |
|
|---|---|
| Battery voltage | 18.0 V |
| Laser diode | < 1 mW, 500 – 540 nm |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 50 °C |
| Laser class | 2 |
| Working range with receiver* | up to 650 m (Diameter) |
| Working range without receiver* | up to 70 m (Diameter) |
| Accuracy* | ± 1.5 mm at 30 m* horizontal (*plus use-dependent deviation), ± 3.0 mm at 30 m* vertical (*plus use-dependent deviation) |
| Self-levelling range | ±8.5% (±5°) |
| Dust and splash protection | IP 68 |
| Rotation speed | 150/300/600 min−1 |
| Power supply | 18 V Li-ion battery, 4 x D cell batteries |
| Operating time (max.) | 50 h, 60 h |
| Tripod thread | 2 x 5/8" |
| Projection | 1 x 360° line |
| Compatible laser receivers | LR 65 G |
| Weight with 4.0 Ah battery** | 4.3 kg |
| Weight with alkaline batteries** | 4.6 kg |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GRL 650 CHVG Professional: Further information
Product Highlights
The robust rotary laser GRL 650 CHVG Professional with Bluetooth® connectivity takes construction site levelling to new heights of precision and efficiency. Green beam technology delivers higher visibility in different lighting conditions. The rotary laser is sturdily built to operate in rough site conditions and bad weather, withstanding up to 2-m tripod tip-over and meeting IP68 dust and water protection standards. Using the Levelling Remote App for settings overview and remote control saves time and allows total focus on the job.
Equipment & Application

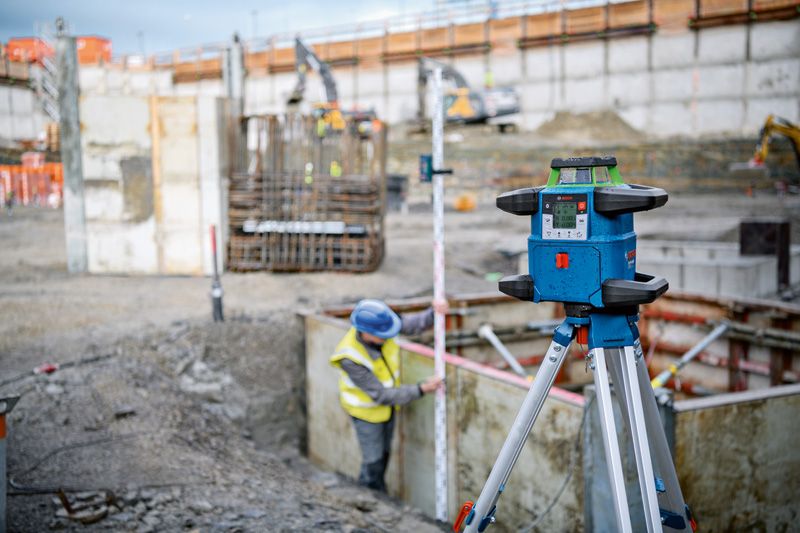

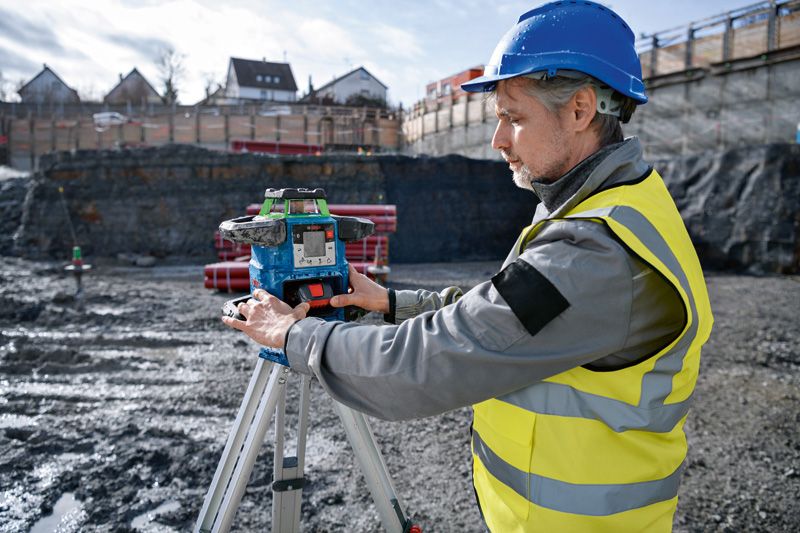

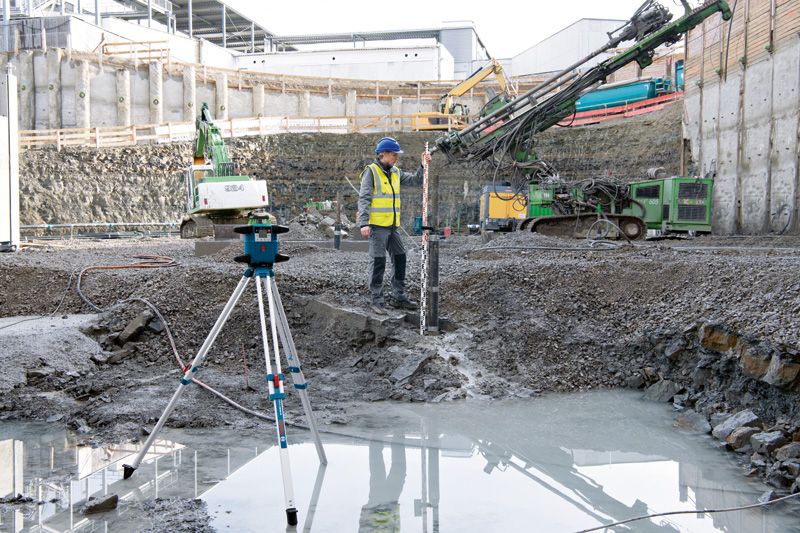

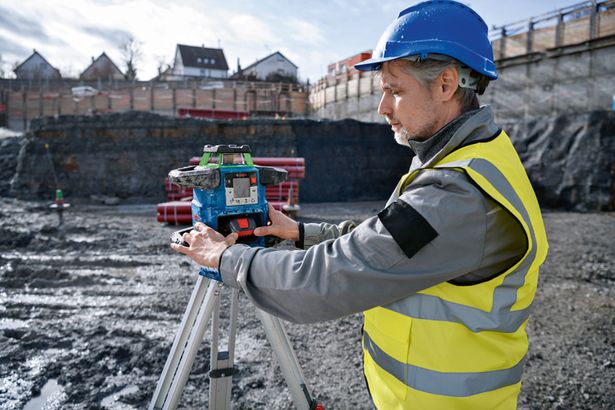

The versatile GRL 650 CHVG Professional is best used on outdoor levelling and grading jobs as well as interior wall, ceiling, and HVAC installation.
Additional Information
Long runtime convenience is provided by a dual-power option that uses Bosch rechargeable 18 V Li-ion or alkaline D-Cell batteries. Optimal convenience thanks to high-tech features such as display, dual slope, slope memory, and high-quality receiver (LR 65 G Professional).
