GPL 3 G Professional
Point Laser
The robust and compact 3-point laser with highly visible green laser points
- Green laser points provide up to four times better visibility than red points
- Durable design for tough conditions: rubberised housing with recessed glasses, IP65 dust and water jets protection
- Integrated rotation mount with strong magnets for fast and secure mounting
Functions & key features
GPL 3 G Professional
Your Selection
Part Number: 0 601 066 N00
in stock

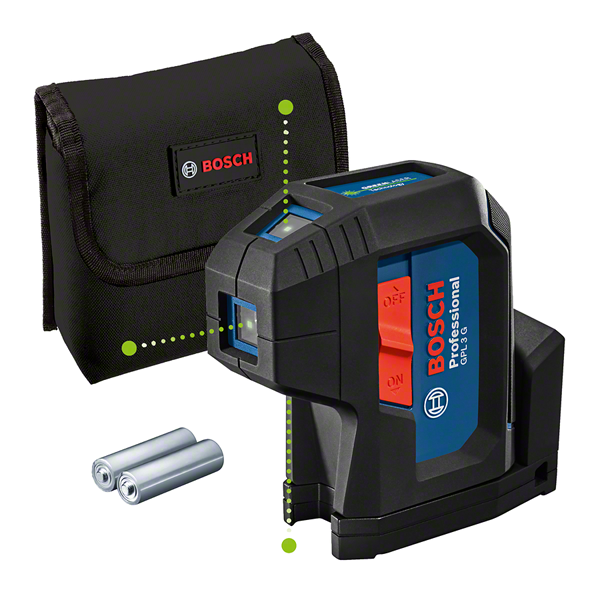

Included in this variant
-
Pouch
-
2 x 1.5 V LR6 battery (AA)
Technical data
The most important data |
|
|---|---|
| Laser diode | < 1 mW, 500 – 540 nm |
| Operating temperature | -10 – 45 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | up to 30 m |
| Accuracy* | ± 0.35 mm/m* (except bottom laser point) ; ± 0.7 mm/m* (bottom laser point) (*plus use-dependent deviation) |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 65 |
| Power supply | 2 x 1.5 V LR6 (AA) |
| Operating time (max.) | 8 h |
| Tripod thread | 1/4" |
| Weight, approx.** | 0.35 kg |

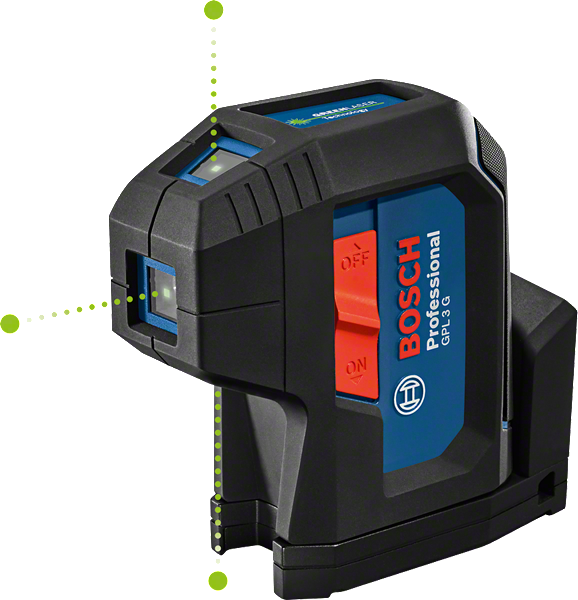

| Projection | 3 points |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GPL 3 G Professional: Further information
Product Highlights
The 3-point laser GPL 3 G Professional is resilient and small in design, making it ideal for drywalling. Its green laser points provide up to four times better visibility than red points. With its rubberised housing and recessed glass, as well as IP65 dust and water jets protection, the GPL 3 G Professional also resists tough jobsite conditions. This 3-point laser is equipped with an integrated rotation mount that features strong magnets for fast and secure tool mounting while also enabling convenient transportation.
Equipment & Application

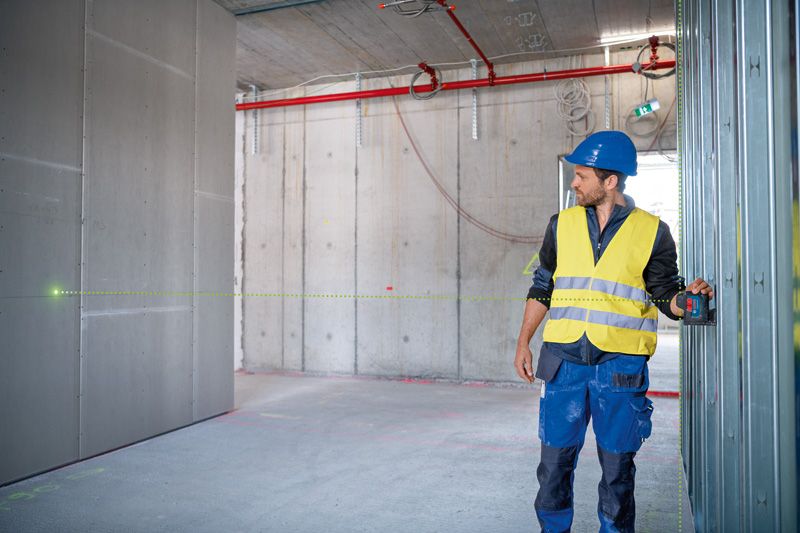

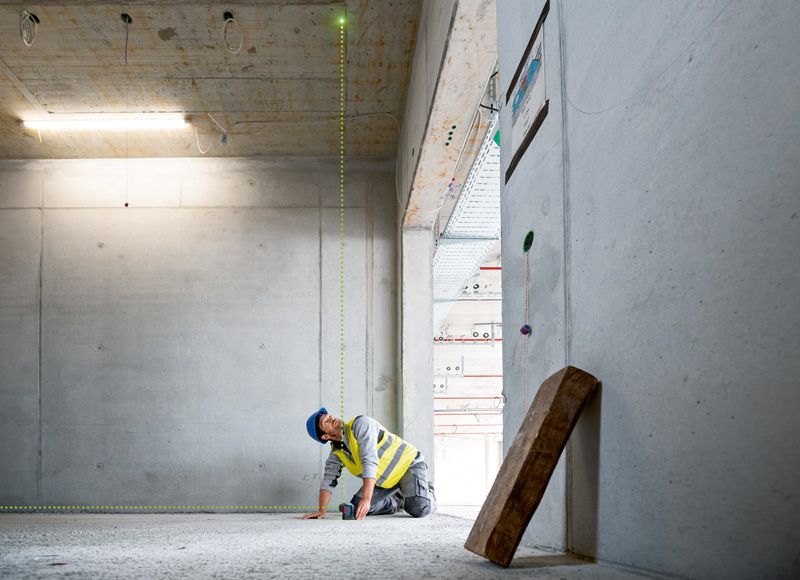

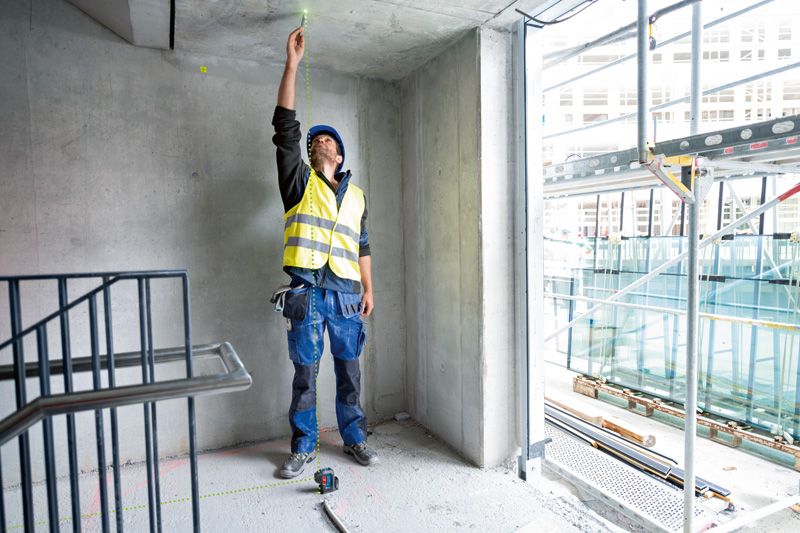

The GPL 3 G Professional is the ideal helper for transferring points from floor to ceiling, e.g., when installing interior lighting. It is perfectly shaped for stud alignment for drywall framework.
Additional Information
This 3-point laser also features an easy-to-use interface with a two-position switch: when turned on, it automatically self-levels, when turned off, the pendulum is locked.
