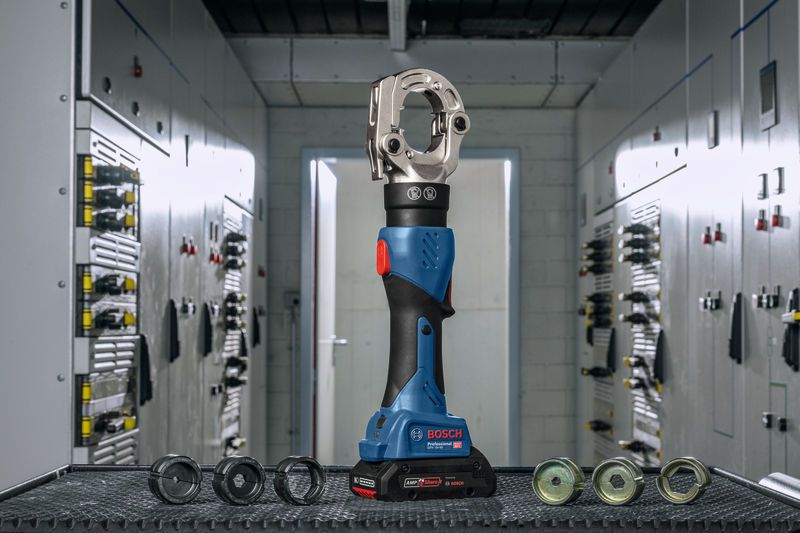

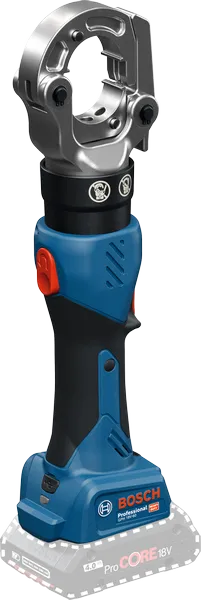

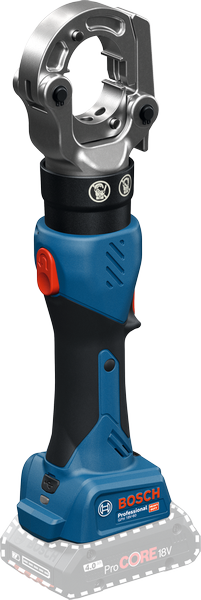

GPH 18V-60 Professional
Cordless Hydraulic Crimping Tool
18V Crimping Tool: Precise, Reliable Force and Outstanding Maintenance Interval
- Reliable hydraulic crimping with quality control through visual feedback on status LED
- Precise monitoring of pressure through electronic pressure sensor
- Long lifetime with outstanding maintenance interval of 20,000 crimps

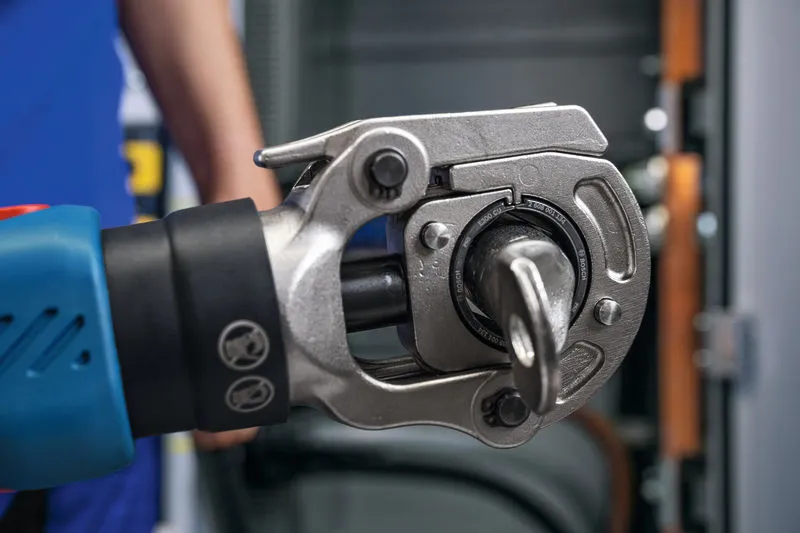

- Comfortable to use thanks to ergonomic design with 340-degree rotatable crimping head and optimized center-of-gravity

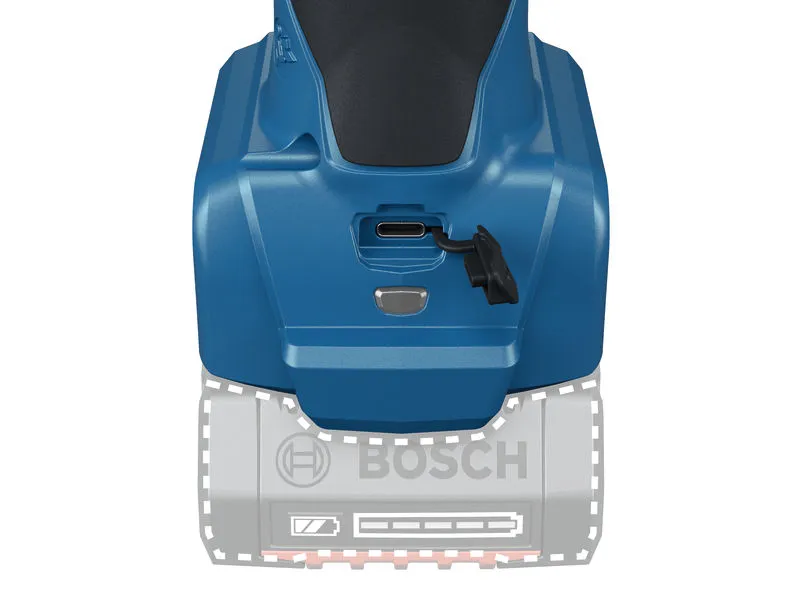

- Convenient overview of tool’s crimping history, important parameters, and maintenance intervals through USB connection and read-out software
Functions & key features
GPH 18V-60 Professional
Your Selection
New
Part Number: 0 601 9P0 100
not available
Find a local dealerIncluded in this variant
-

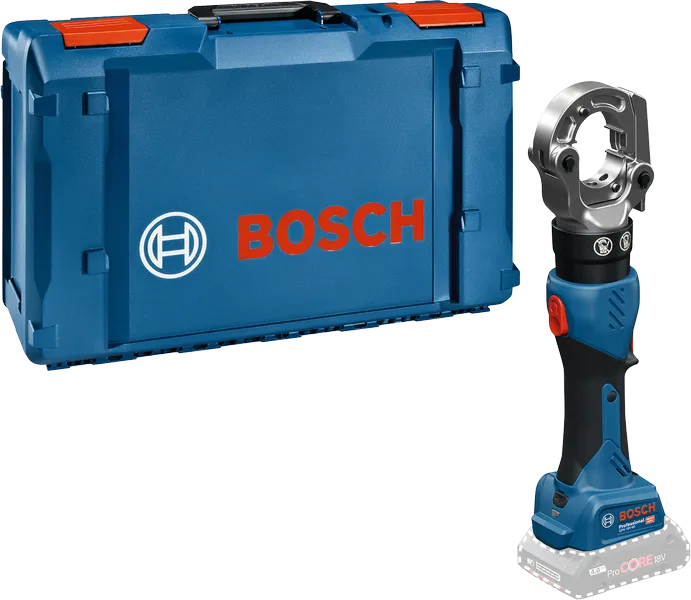

XL-BOXXPart Number: 1 605 438 1JG
Technical data
The most important data |
|
|---|---|
| Crimping force max | 60 kN |
| Crimping range max | 300 mm² |
| Crimping range min | 6 mm² |
| Head rotation | 340 ° |
| Stroke length max | 17 mm |
| Automatic retraction | Yes |
| Connecting material Cu and Al | Yes |
| Maintenance interval | 20.000 cycles |

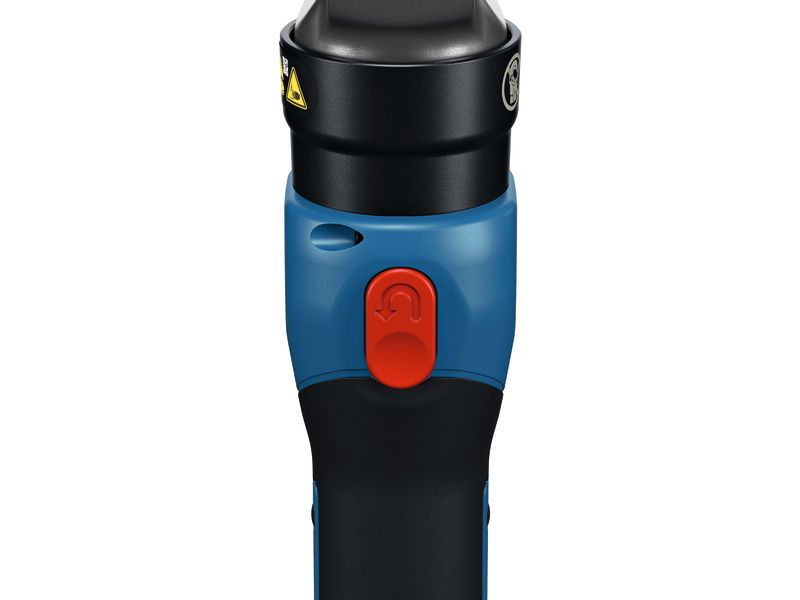

| Manual pressure release | Yes |
| Manual retraction stop | Yes |
| USB connector | Yes |
| Read-Out Functionality | Yes |
| Work light | Yes |
| Automatic pressure limitation and monitoring | Yes |
| USB mode | USB 2.0 |
| Crimping time | 2 s to 5 s (depending on cable cross-section) |
GPH 18V-60 Professional: Further information
Product Highlights

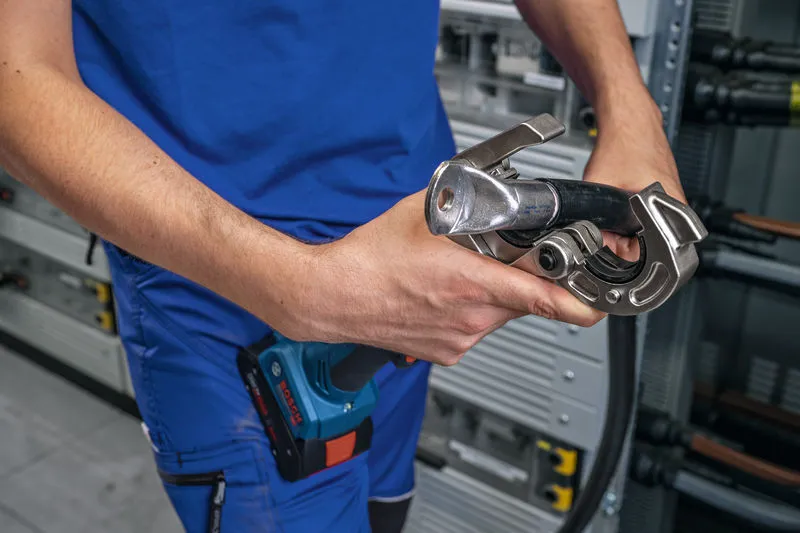

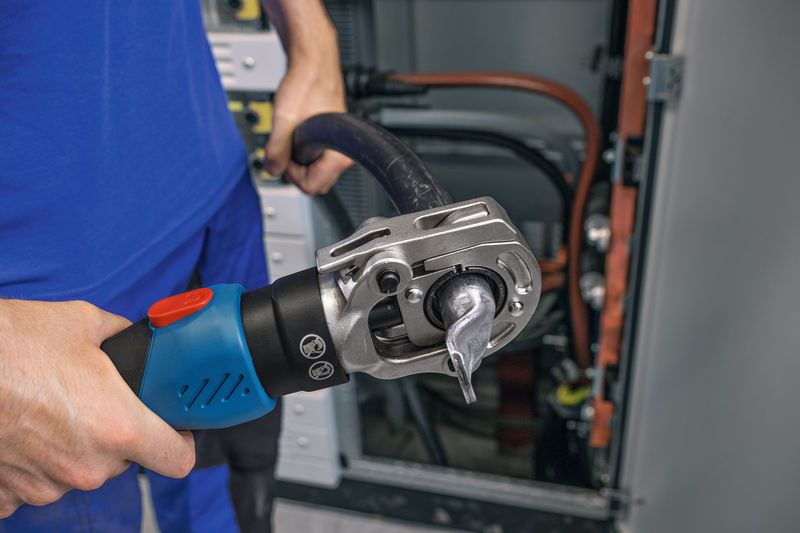

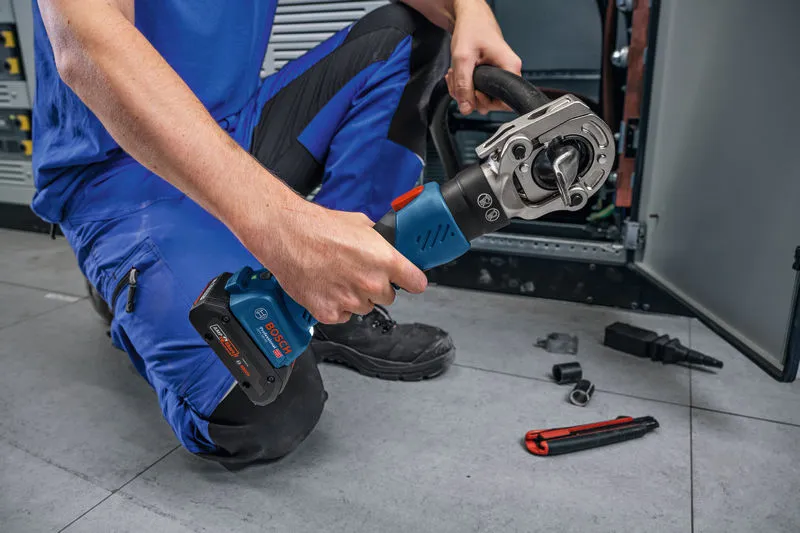

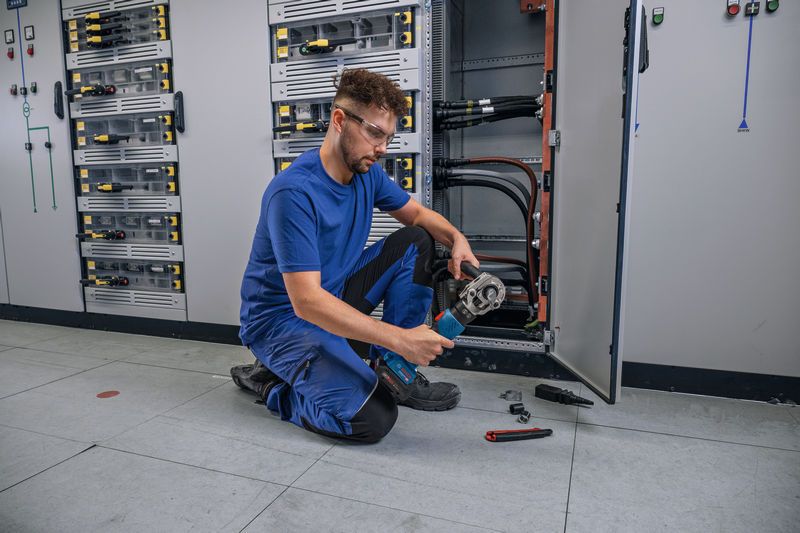

If you are looking to crimp cable lugs onto copper or aluminium cables, the GPH 18V-60 crimping tool is an ideal choice with its consistent pressure and instant feedback. The tool provides reliable and constant 60kN output force thanks to an electronic pressure sensor that monitors pressure levels. The status LED conveniently indicates reached target pressures, tool status, and maintenance. Additionally, with the manual pressure release function, you can always retract.
Equipment & Application

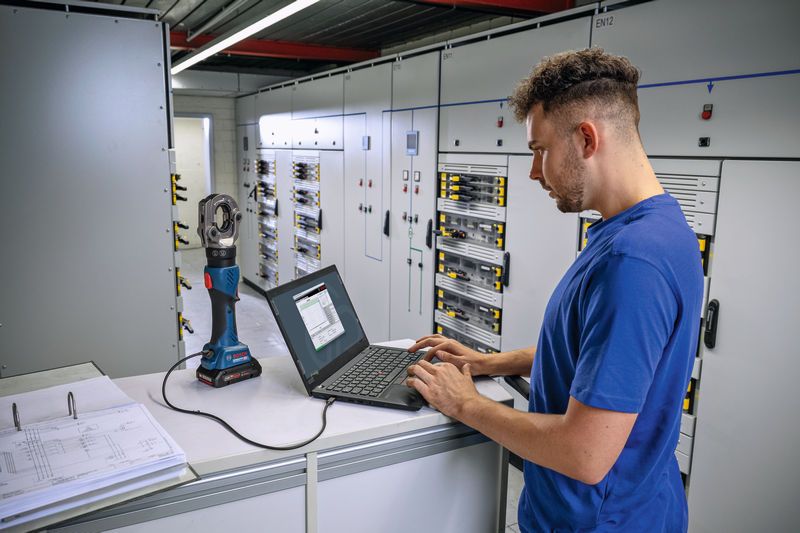

The GPH 18V-60 is suitable for crimping cable lugs onto copper and aluminum cables up to 300 mm². The USB connection and read-out software (free and available to download below) offer an overview of the tool’s crimp history, error messages and maintenance needs.
Additional Information
Each tool comes with a certificate that guarantees 100% end-of-line quality control.
