Optical levels
![GOL 32 D]( "GOL 32 D")
![GOL 32 D]( "GOL 32 D")
![GOL 32 D]( "GOL 32 D")
![GOL 32 D]( "GOL 32 D")

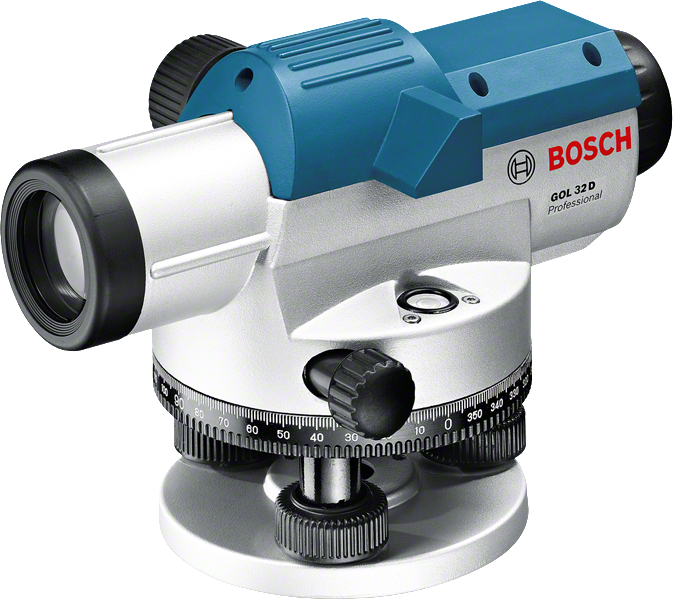

GOL 32 D Professional
Optical Level
Robust and reliable – ideal for outdoor use
- Ideal for outdoor use due to a robust housing with dust and splash protection (IP54)
- Fast aperture for a sharp image of the target
- Compensator lock for safe transport
Functions & key features

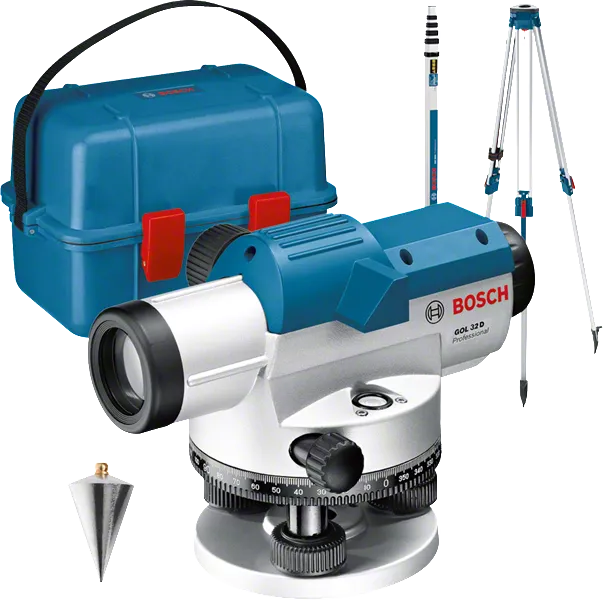

in carrying case with accessory set
0 601 068 502
Select a variant
Your Selection
in carrying case with accessory set
Part Number: 0 601 068 502
381.08 GBP
Including VAT
in stock
Included in all variants
-
Plumb bob
-
Carrying casePart Number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Additional in this variant
-
Building tripod BT 160 ProfessionalPart Number: 0 601 091 200
-
Measuring rod GR 500 ProfessionalPart Number: 0 601 094 300
Your Selection
in carrying case with accessory set
Part Number: 0 601 068 500
available at Bosch Partner
Available from our partnersIncluded in all variants
-
Plumb bob
-
Carrying casePart Number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Technical data
The most important data |
|
|---|---|
| Unit of measure | 360 degrees |
| Magnification | 32 x |
| Accuracy* | ± 1 mm at 30 m |
| Working range* | 120 m |
| Dust and splash protection | IP 54 |
| Tripod thread | 5/8" |
| Operating temperature | -10 – 50 °C |
| Storage temperature | -20 – 70 °C |
| Weight, approx.** | 1.5 kg |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
