Optical levels
1/6

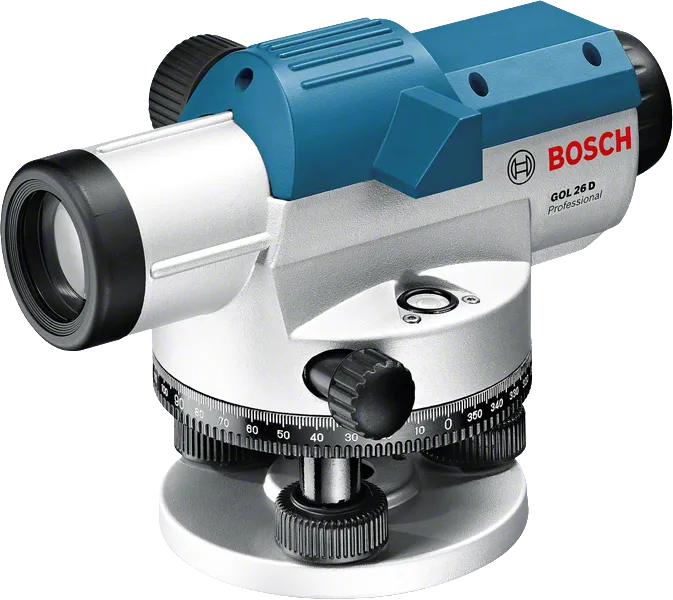

GOL 26 D Professional
Optical Level

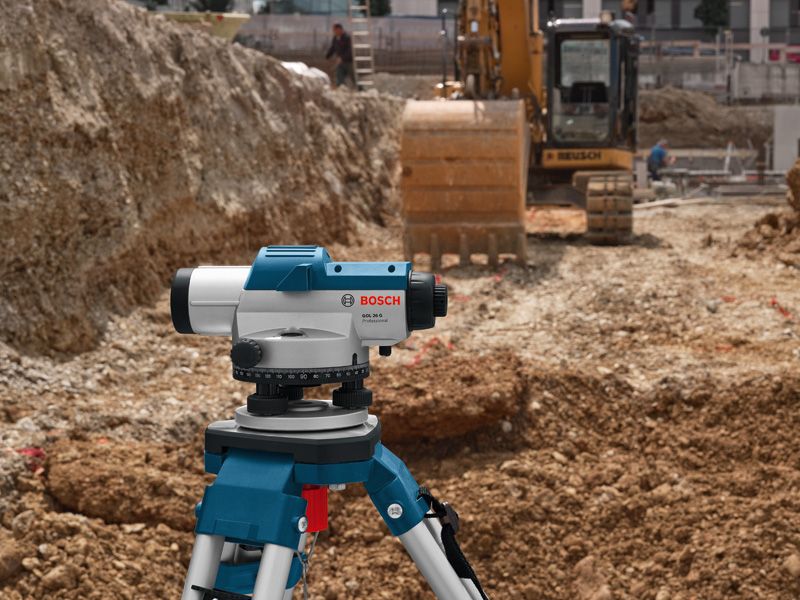

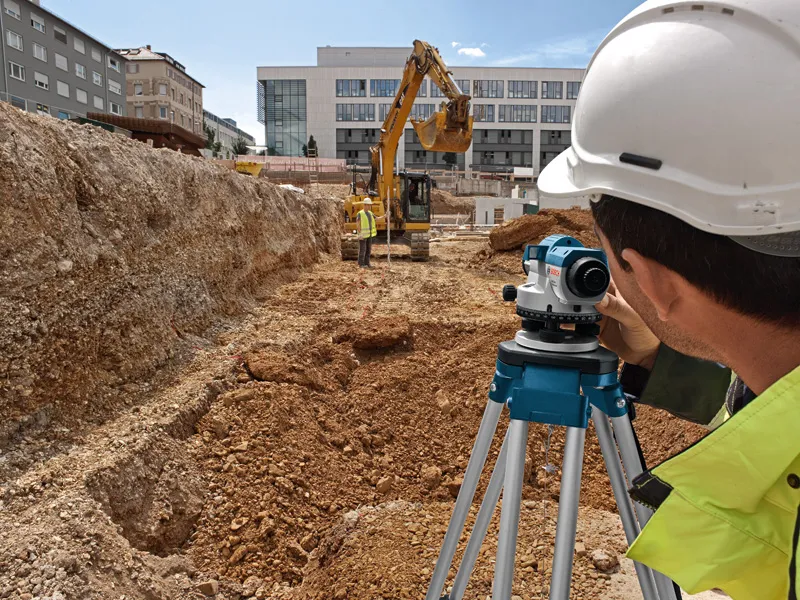

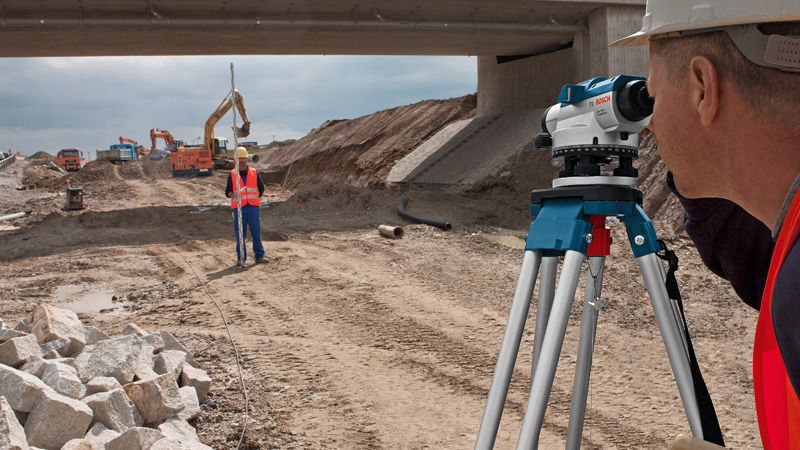

Extremely robust – ideal for outdoor use
- Designed for outdoor use due to sturdy metal housing with dust and splash protection (IP54)
- Robust design with built-in target collimator and integrated circular vial
- Compensator lock for safe transport
Functions & key features

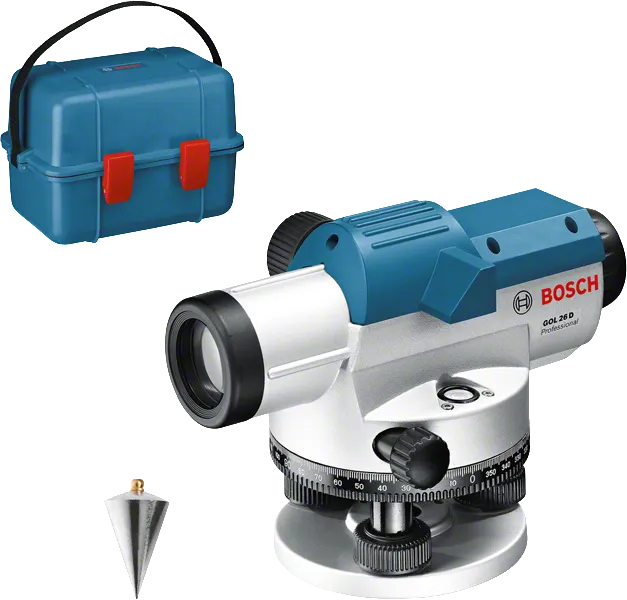

in carrying case with accessory set
0 601 068 000
Select a variant
Your Selection
in carrying case with accessory set
Part Number: 0 601 068 000
£209.00
Including VAT
in stock
Included in all variants
-
Plumb bob
-
Carrying casePart Number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Your Selection
in carrying case with accessory set
Part Number: 0 601 068 002
£280.00
Including VAT
in stock
Included in all variants
-
Plumb bob
-
Carrying casePart Number: 1 600 A00 0LF
-
Lens cover
-
Adjusting pin
Additional in this variant
-

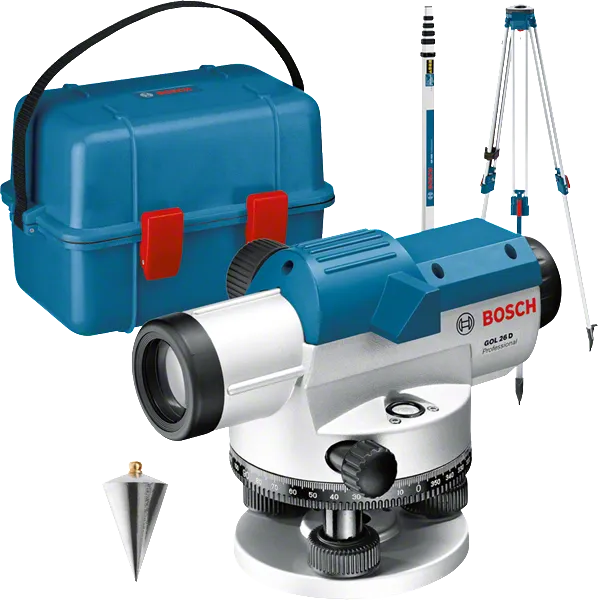

Building tripod BT 160 ProfessionalPart Number: 0 601 091 200
-
Measuring rod GR 500 ProfessionalPart Number: 0 601 094 300
Technical data
The most important data
Unit of measure
360 degrees
Magnification
26 x
Accuracy*
± 1.6 mm at 30 m
Working range*
100 m
Dust and splash protection
IP 54
Tripod thread
5/8"
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
Weight, approx.**
1.5 kg
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
