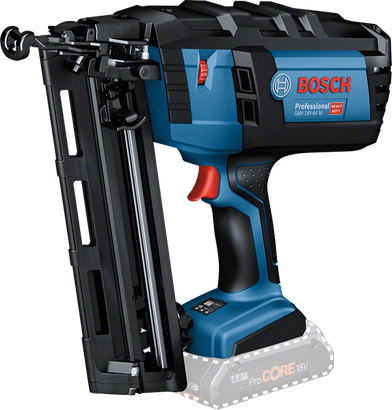

GNH 18V-64 M Professional
Cordless Wood Nailer
Quick and precise fastening: finish nailer with single and contact firing modes
- Maximum freedom – no air hose, compressor or expensive gas cartridge needed
- Wood protection by preventing blank firing with empty nail magazine
- Easy activation of firing modes through intuitive User Interface (HMI)
Functions & key features
Your Selection
- in L-BOXX 136 with 1 x 4.0 Ah ProCORE18V Li-ion battery, quick charger
in stock
Select a variant
Your Selection
Part Number: 0 601 481 070
in stock
Included in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Quick charger GAL 18V-40 ProfessionalPart Number: 1 600 A01 9RK
-
1 x battery ProCORE18V 4.0AhPart Number: 1 600 A01 6GB
Your Selection
Part Number: 0 601 481 000
in stock
Included in this variant
-
Cardboard box
Your Selection
Part Number: 0 601 481 001
in stock
Included in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
Technical data
The most important data |
|
|---|---|
| Collation angle | 20 ° |
| Nail diameter | 1.6 mm |
| Nail length | 32 – 64 mm |
| Nail/Staple type | Finish nail |
| Triggering system | Full sequential actuation + contact actuation with automatic reversion |
| Weight excl. battery* | 2.9 kg |
| Battery voltage | 18.0 V |
| Magazine capacity | 105 Pcs |
| Packaging dimensions (width x length x height) | 360 x 440 x 155 mm |
| Compatible nails/staples | Bosch nails, Other |
| Battery capacity* | 4 Ah |
The A-rated noise level of the power tool is typically as follows: Sound pressure level 84 dB(A); Sound power level 95 dB(A). Uncertainty K= 3 dB.
* You can find more information about the deviations in the following link:
GNH 18V-64 M Professional: Further information
Product Highlights
The GNH 18V-64 M Professional with single and contact firing modes is the mobile solution for quick and precise fastening of different materials. The cordless nailer is operated without any compressor, air hose or expensive gas cartridge - just insert the battery and you are ready for work. When the nail magazine is empty, the workpiece is protected from damage by dry-fire lockout. The GNH 18V-64 M is equipped with an intuitive User Interface (HMI) for easy activation of firing modes.
Equipment & Application
It is the ideal choice for trim work on base boards, window and door casings, chair rails, and staircases and mouldings made of softwood (i.e., pine), hardwood (i.e., oak, maple, birch) and composite trim materials. It is compatible with all Bosch Professional 18 V batteries and chargers (Professional 18V System). Also compatible with AMPShare, the multi-brand battery alliance.
Additional Information
The GNH 18V-64 M Professional offers both single and contact activation (bump fire) firing modes using finish nails with a diameter of 1.6 mm and a length up to 64 mm. It is well balanced and its new design allows a user to conveniently lay it down when work is interrupted. The cordless nailer also enables highest precision through accurate adjustment of countersink depth.
