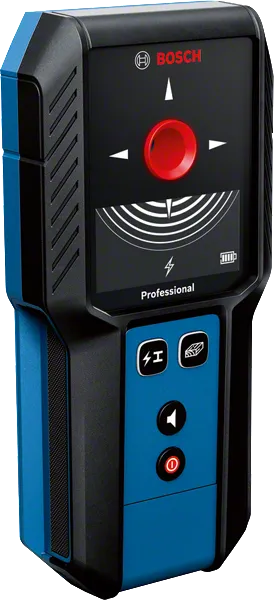

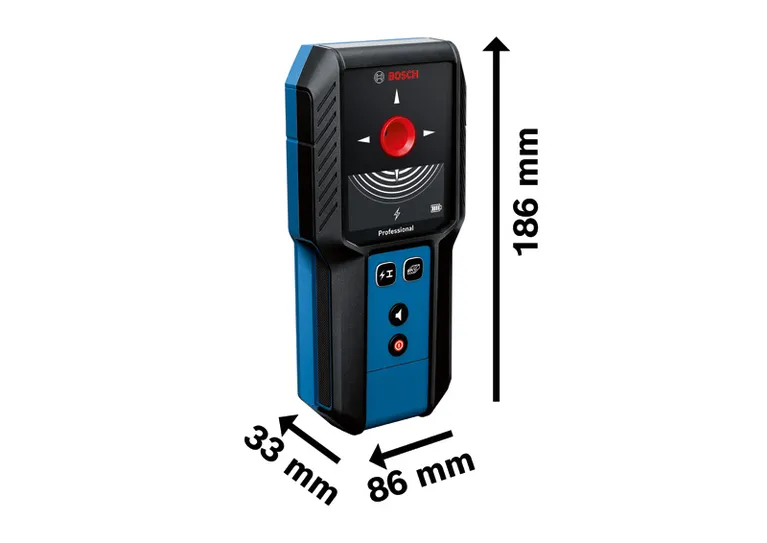

GMS 120-27 Professional
Detector
Clear and simple: the intuitive wall scanner that makes the invisible visible
- Gives you confidence by detecting metal, live wires, and wooden studs behind the wall

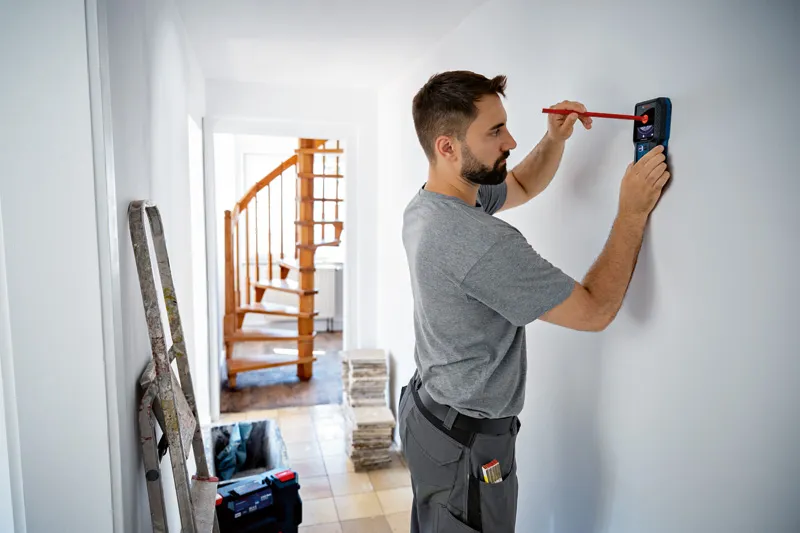

- Easy to use with simple mode selection and marking hole

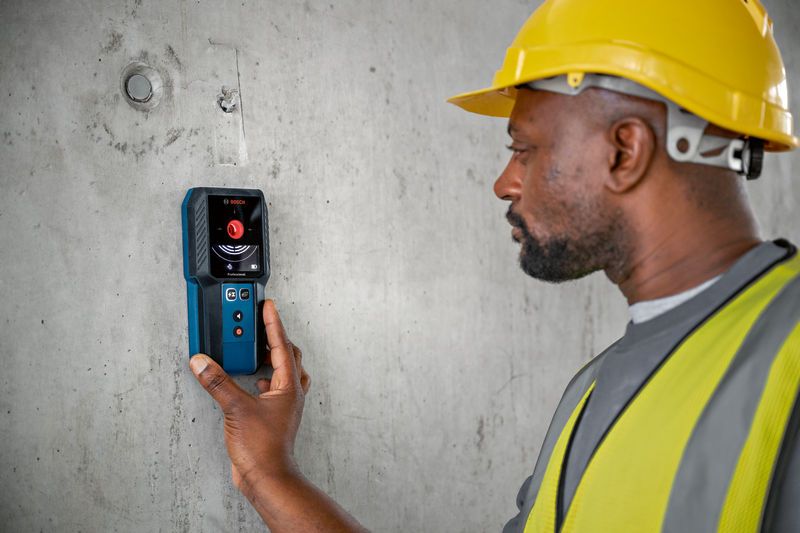

- Built for operation on tough job sites thanks to shock-absorbing rubber casing and IP54
Functions & key features
Select a variant
Your Selection
Part Number: 0 601 081 700
in stock

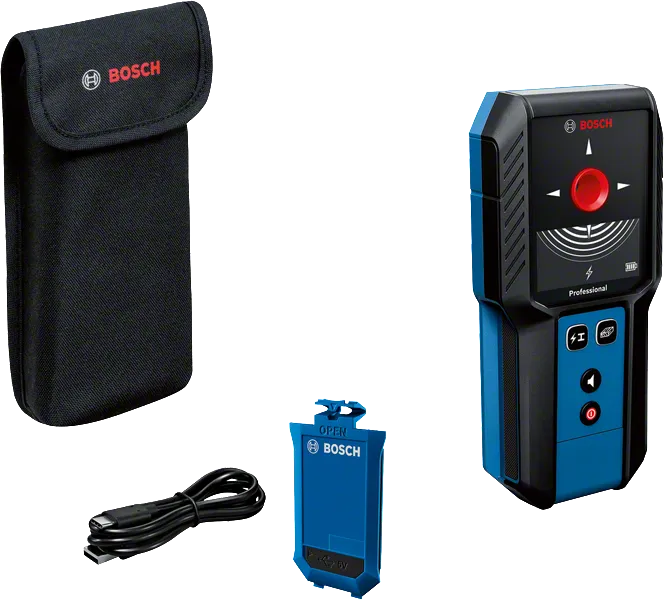

Included in all variants
-
Pouch
Additional in this variant
-
2 x 1.5 V LR6 battery (AA)
Your Selection
Part Number: 0 601 081 701
in stock
Included in all variants
-
Pouch
Additional in this variant
-

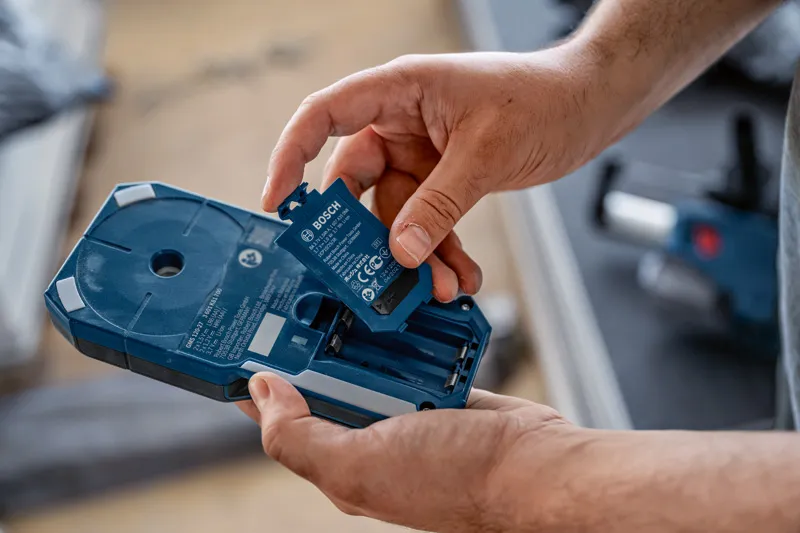

BA 3.7V 1.0Ah A and USB-C® CablePart Number: 1 608 M00 C43
Technical data
The most important data |
|
|---|---|
| Bosch Radar Technology | no |

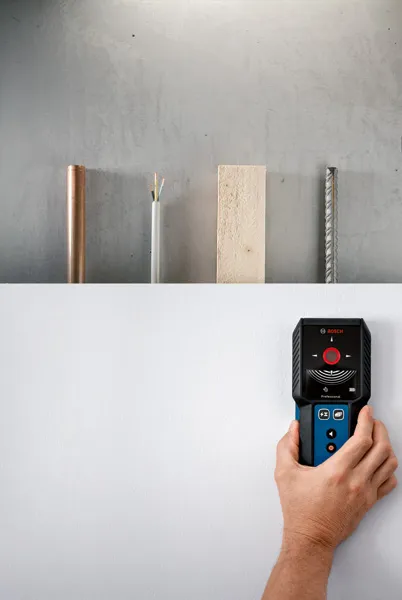

| Detectable objects | magnetic metals (e.g. iron), non-magnetic metals (e.g. copper), live cables, wooden substructures |
| Max. detection depth | 120 mm |
| Detection depth, magnetic metal, max. | 100 mm |
| Detection depth, non-magnetic metal, max. | 120 mm |
| Detection depth, live cables, max. | 50 mm |
| Detection depth, wooden substructures, max. | 30 mm |
| Dust and splash protection | IP 54 |
| Material identification | Magnetic metal, Non-magnetic metal, Live cable, Non-metal material |
| Power supply | 2 x 1.5 V LR6 (AA), 2 x 1.2 V HR6 (AA), 1 x BA 3.7V 1.0Ah Li-Ion battery |
| Weight, approx.* | 0.29 kg |
| Additional function | Marking hole |
* You can find more information about the deviations in the following link:
GMS 120-27 Professional: Further information
Product Highlights
When you’re drilling into a wall, you want to get the job done, confident that you won’t hit an obstruction. Our GMS 120-27 Professional wall scanner allows uncomplicated and intuitive detection of objects. Detection results appear via signal indication on the display and the colour-coded marking hole. The easy-to-use detector offers simple mode selection, and you can mark exactly through the marking hole where objects have been detected. The robust GMS 120-27 was developed for tough job sites with IP54 dust and splash water protection, plus a shock-absorbing rubber casing.
Equipment & Application

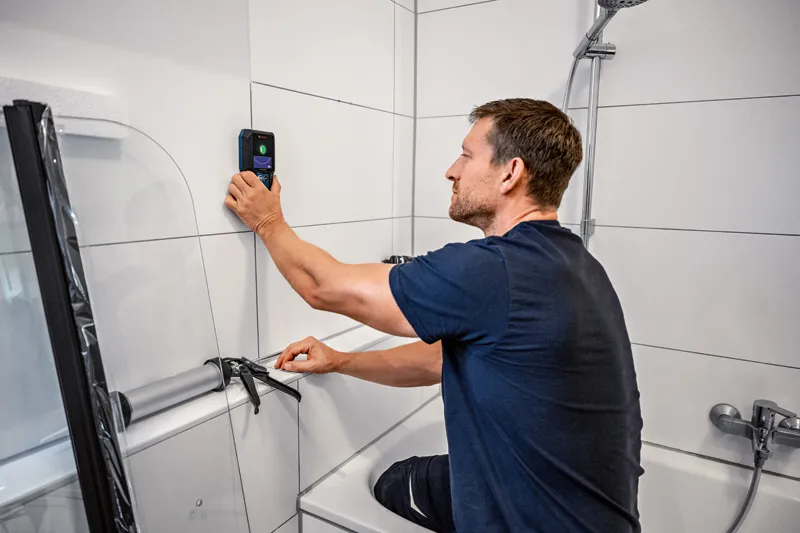

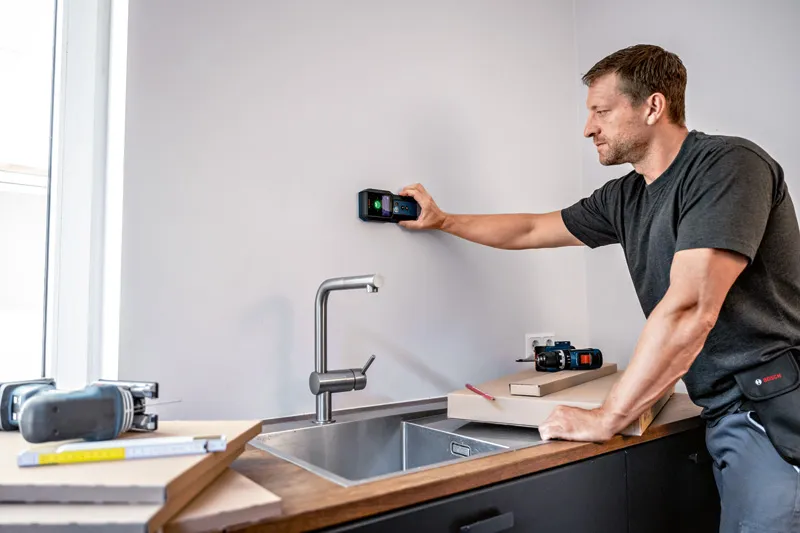

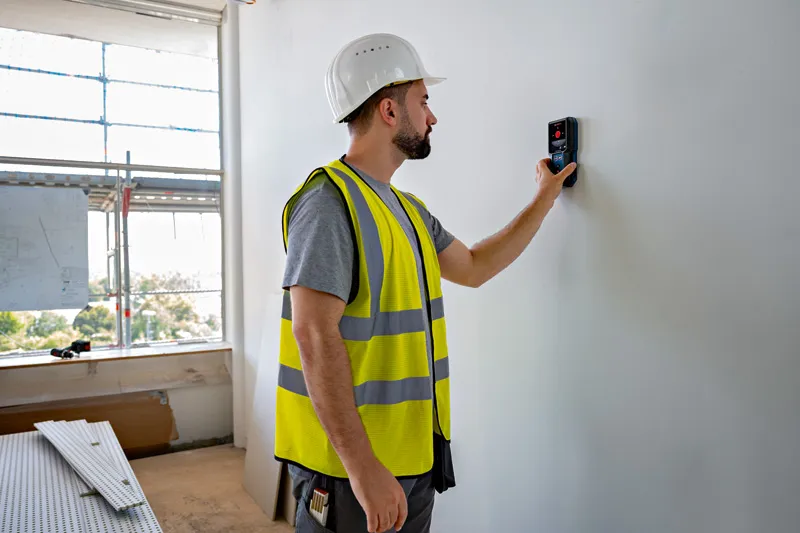

Our GMS 120-27 Professional wall scanner helps you detect and locate metals, live wires, and wooden studs in dry walls. Locating objects in walls before drilling provides increased safety on the job, especially for craftspeople doing renovation work when fitting cabinets, kitchen counters, washbasins, boilers, and heating systems, or installing A/C and sprinkler systems.
Additional Information
Not only does this scanner identify the center of the detected object, it also indicates its material characteristics such as whether the object is magnetic or non-magnetic metal, a live wire, or non-metallic.
