Laser measures
![GLM 50 C]( "GLM 50 C")
![GLM 50 C]( "GLM 50 C")
![GLM 50 C]( "GLM 50 C")
![GLM 50 C]( "GLM 50 C")

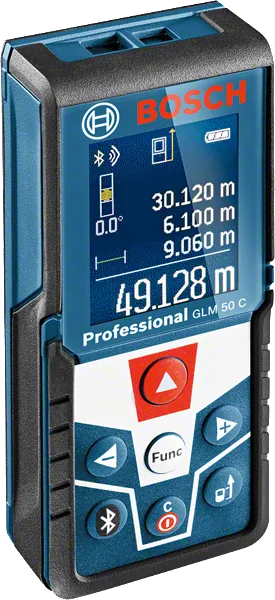

GLM 50 C Professional
Laser Measure
Connected measuring at its best – the smart solution for measuring and documenting

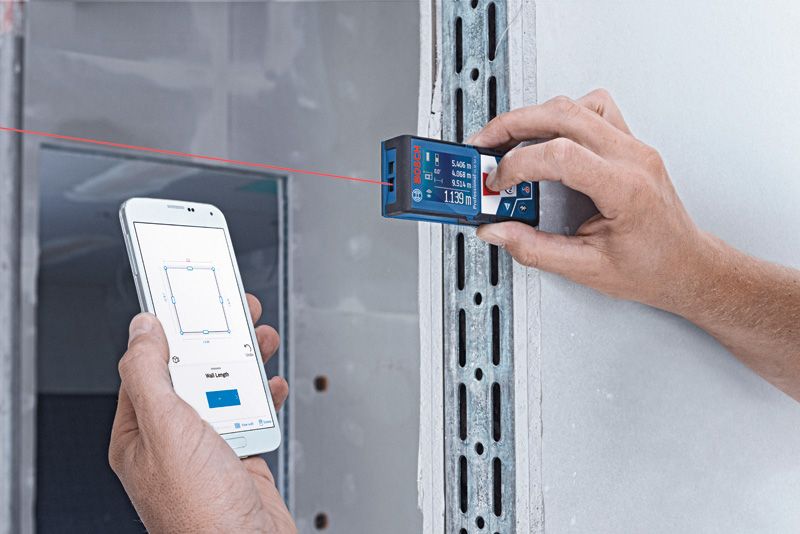

- Quick and efficient data transfer and documentation due to Bluetooth® connectivity and Bosch MeasureOn App

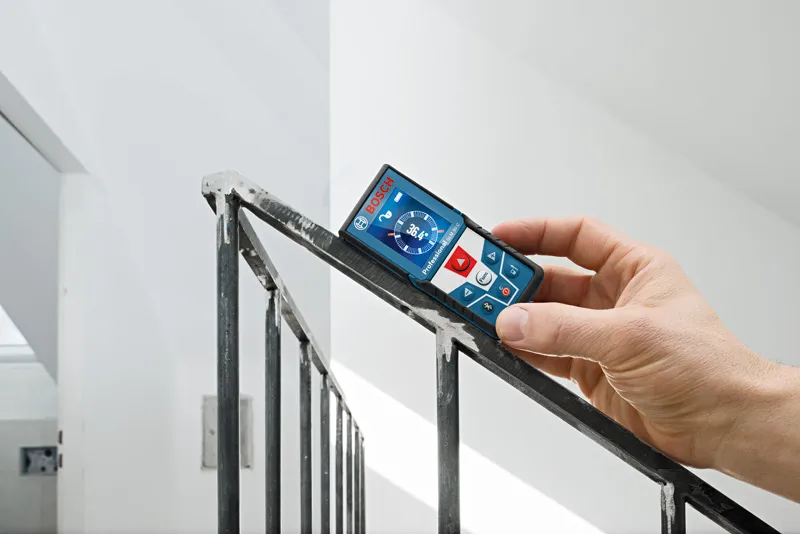

- Broad range of functions includes stake-out function and 360° tilt sensor

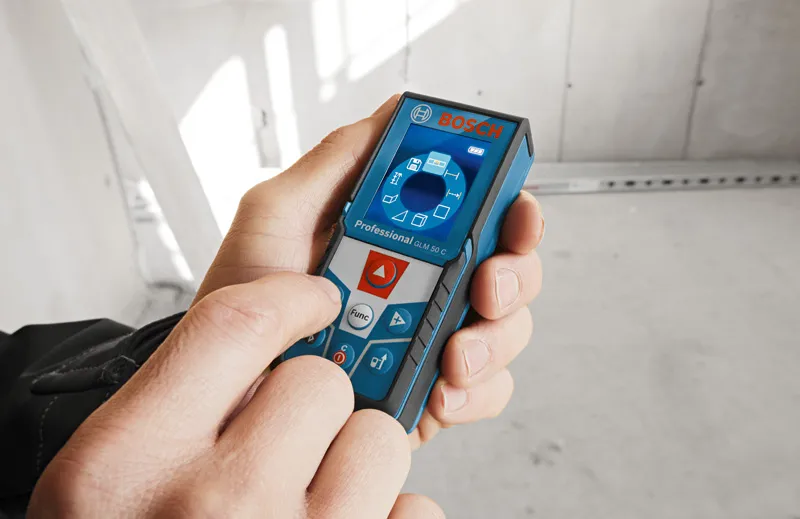

- Easy handling with the simple user interface combined with an illuminated, rotating colour display
Functions & key features
with accessory set
0 601 072 C00
GLM 50 C Professional
Your Selection
with accessory set
Part Number: 0 601 072 C00
available at Bosch Partner

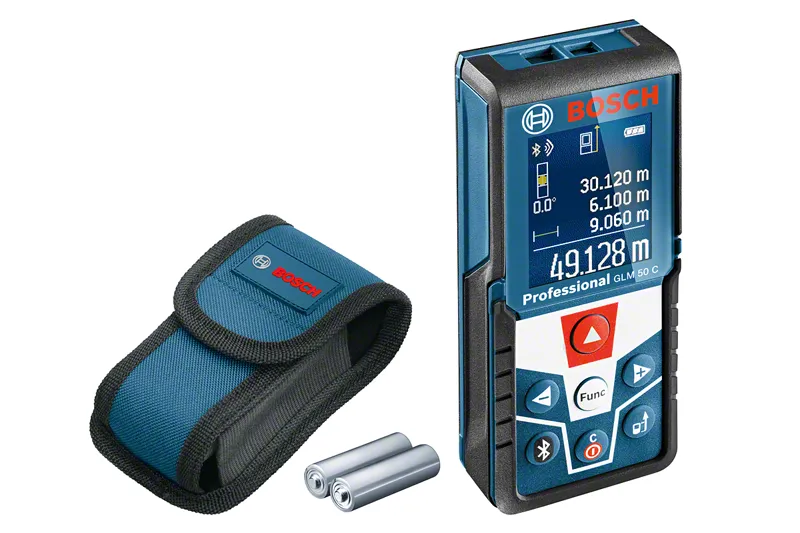

Available from our partnersIncluded in this variant
-
Manufacturer’s certificate
-
Protective Bag
Technical data
The most important data |
|
|---|---|
| Laser diode | 635 nm, < 1 mW |
| Measurement range* | 0.05 – 50.00 m |
| Laser class | 2 |
| Measurement accuracy, typical* | ± 1.5 mmᵈ |
| Measurement range of incline measurement | 0 – 360° (4 x 90°) |
| Measuring accuracy (typical)* | ± 0.2°ᶜ |
| Measurement time, typical | < 0.5 s |
| Measurement time, max. | 4 s |
| Power supply | 2 x 1.5 V LR03 (AAA) |
| Automatic deactivation | 5 min |
| Weight, approx.** | 0.1 kg |
| Units of measurement | m/cm, ft/inch |
| Memory capacity (values) | 30 |
| Dust and splash protection | IP 54 |
| Tripod thread | 1/4" |
| Data transfer | Bluetooth™ Smart, Bluetooth™ Classic |
| Laser colour | Red |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᶜ At >0°C, <100°C, for other surface temperatures, see
ᵈ Plus deviations depending on application and distance, see
GLM 50 C Professional: Further information
Product Highlights
The Laser Measure GLM 50 C Professional is the smart solution for measuring and documenting. Thanks to Bluetooth® connectivity, measurements are conveniently transferred to the Bosch MeasureOn App for smart documentation. It also features a broad range of measuring functions, including a stake-out function and a 360° tilt sensor for easy angle measurements and levelling applications. The tool's simple user interface and illuminated rotating colour display provide easy handling and good readability during use.
Equipment & Application
It is intended for use when acquiring floor/wall areas and room volumes and is ideal for architects, construction managers, electricians, drywall installers, carpenters, and painters.
Additional Information
In addition to its built-in dust and splash water protection, the Laser Measure GLM 50 C Professional also features a sturdy, shockproof housing that protects the tool from damage when dropped from a height of up to 1 metre.
