Line lasers
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
![GLL 80-33 G]( "GLL 80-33 G")
BALD ERHÄLTLICH

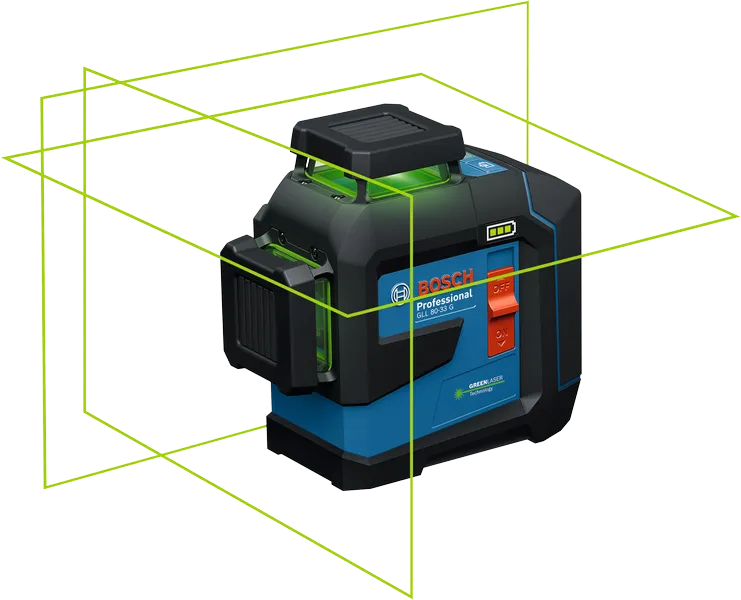

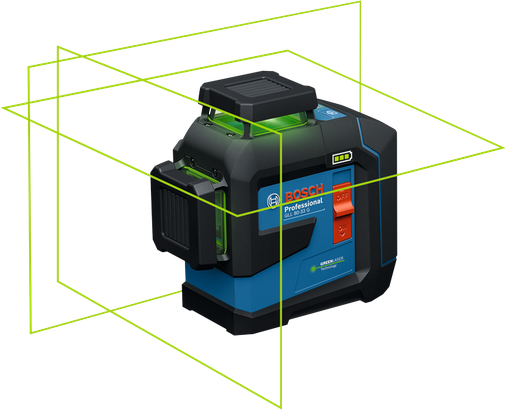

GLL 80-33 G Professional
Line Laser
Easier alignment with our intuitive line laser
- Rubber-enforced housing and IP65 rating for dust and water resistance

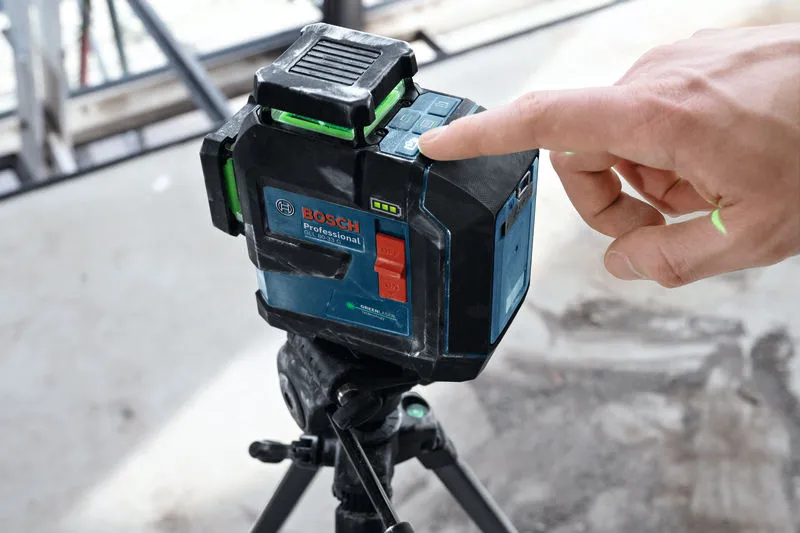

- New keypad design for clear laser line selection and energy saving mode for longer battery runtime

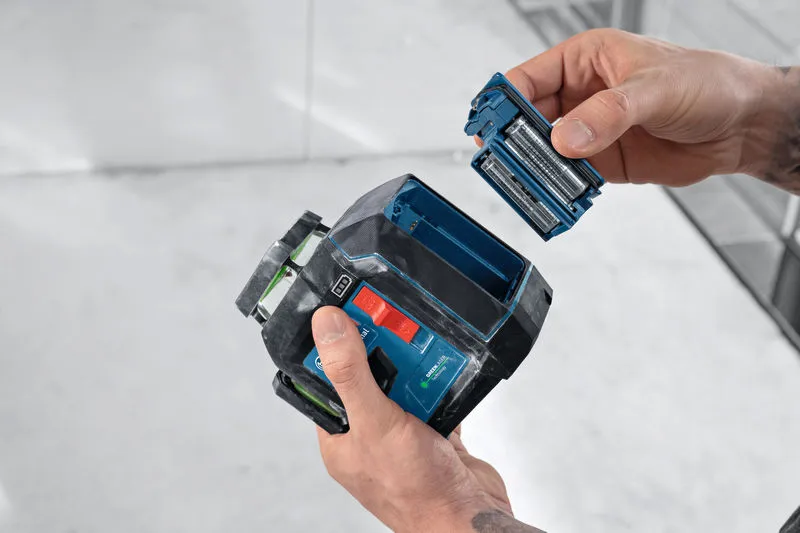

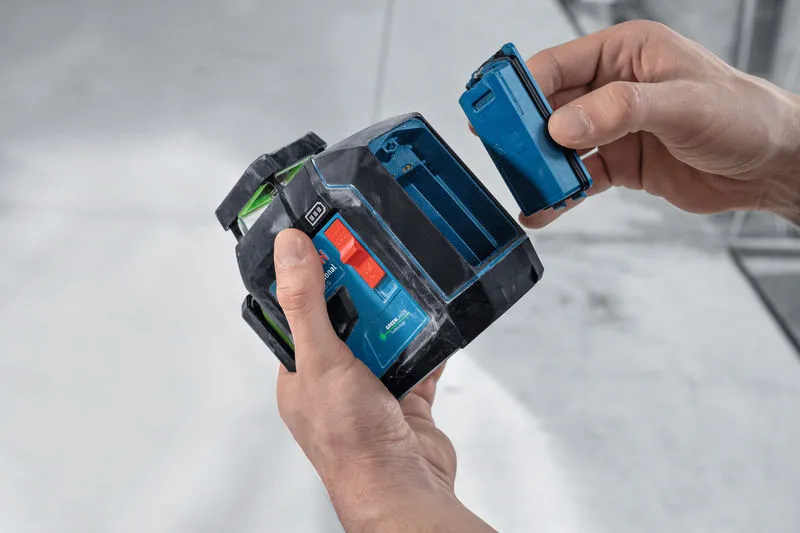

- Dual power source for seamless switch between BA 3.7V 3.0Ah XL Li-Ion battery and AA alkaline batteries to help eliminate downtime
Functions & key features
with 4 x battery (AA), universal mount LB 10
0 601 065 500
Select a variant
Your Selection
Coming Soon

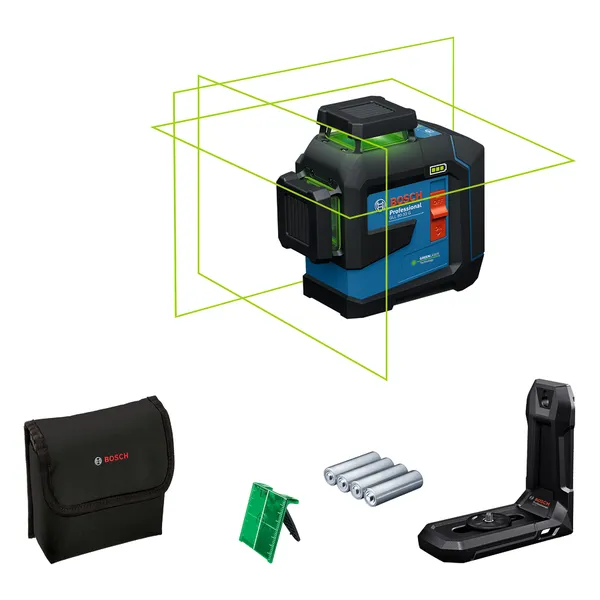

with 4 x battery (AA), universal mount LB 10
Part Number: 0 601 065 500
not available
Find a local dealerIncluded in all variants
-
Universal Mount LB 10
-
Pouch
-
Laser target plate
Additional in this variant
-
Alkaline battery adapter
-
4 x 1.5 V LR6 battery (AA)
Your Selection
Coming Soon

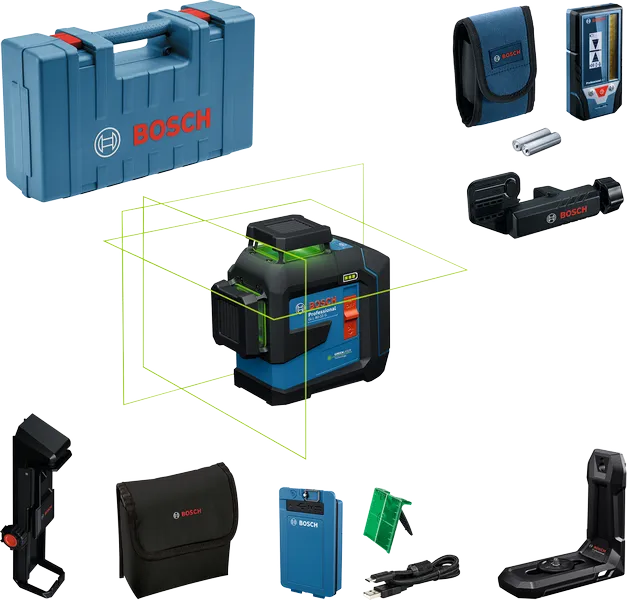

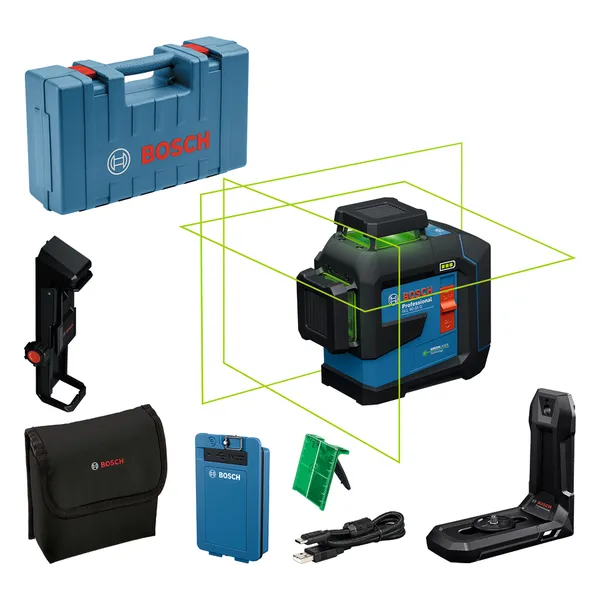

in carrying case with universal mount LB 10
Part Number: 0 601 065 501
not available
Find a local dealerIncluded in all variants
-
Universal Mount LB 10
-
Pouch
-
Laser target plate
Additional in this variant
-
BA 3.7V 3.0Ah XL and USB-C™ CablePart Number: 1 600 A03 1FZ
-
Carrying case
-
Ceiling clip DK 20Part Number: 1 608 M00 C4C
Technical data
The most important data |
|
|---|---|
| Battery voltage | 3.7 V |
| Laser diode | 500 – 540 nm, < 10 mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | up to 30 m |
| Working range with receiver* | up to 80 m |
| Accuracy* | ± 0.3 mm/mᵃ |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 65 |
| Power supply | 4 x 1.5 V LR6 (AA), 3.7 V Li-Ion battery (3000 mAh) |
| Operating time (max.) | 5 h (Li-Ion) and 5 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx.** | 0.93 kg |
| Colour of laser line | green |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 7 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
GLL 80-33 G Professional: Further information
Product Highlights
The GLL 80-33 G Professional is an intuitive line laser for your most precise alignment and levelling tasks. With an IP65 rating and durable, rubber-enforced housing and laser windows, it is made to withstand dust and water - so you can work with confidence at even the toughest jobsites. The new keypad design allows for simple selection of each laser line and offers an additional energy saving mode for longer battery runtime. On top of that, a dual power source gives the flexibility to switch between the BA 3.7V 3.0Ah XL Li-Ion battery and AA alkaline batteries, so you don’t have to worry about downtime due to an empty battery.
Equipment & Application

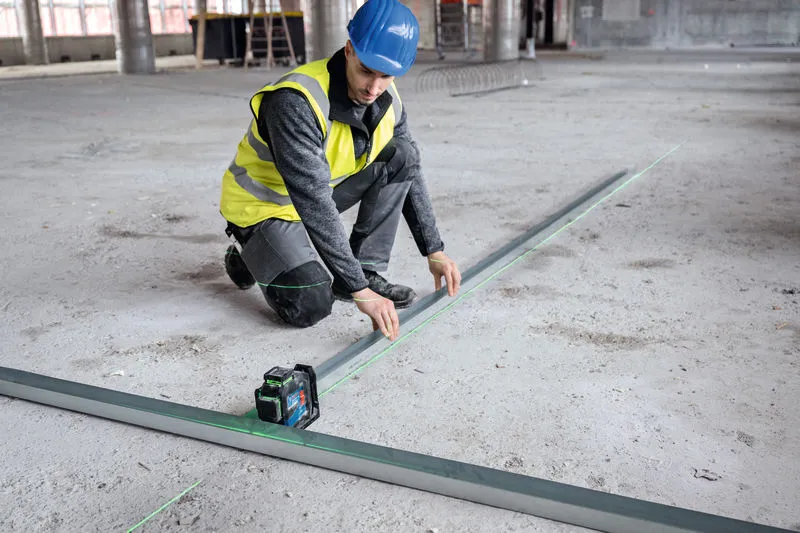

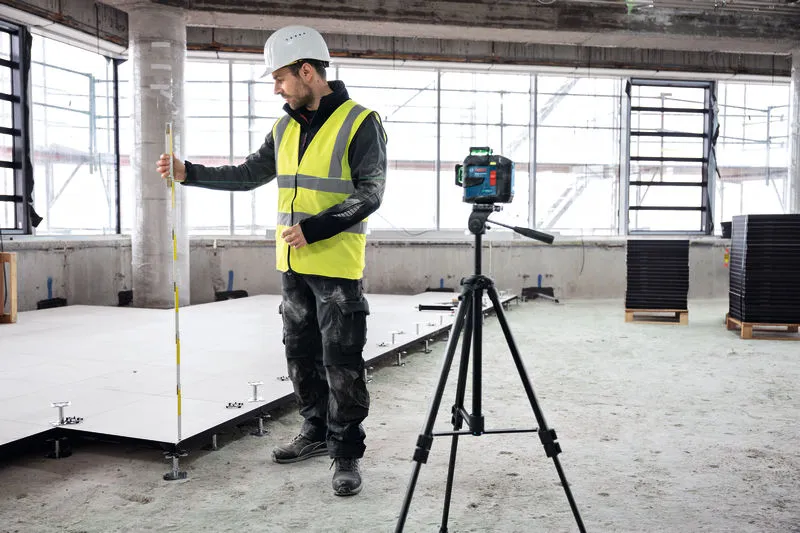

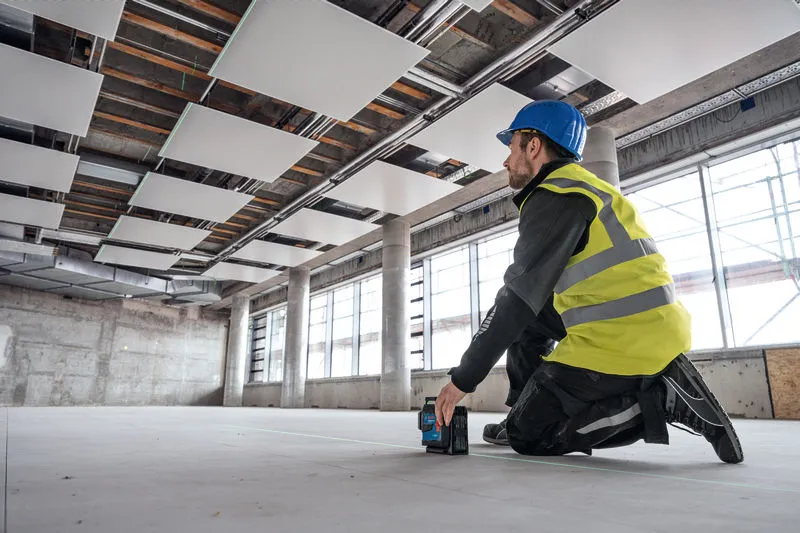

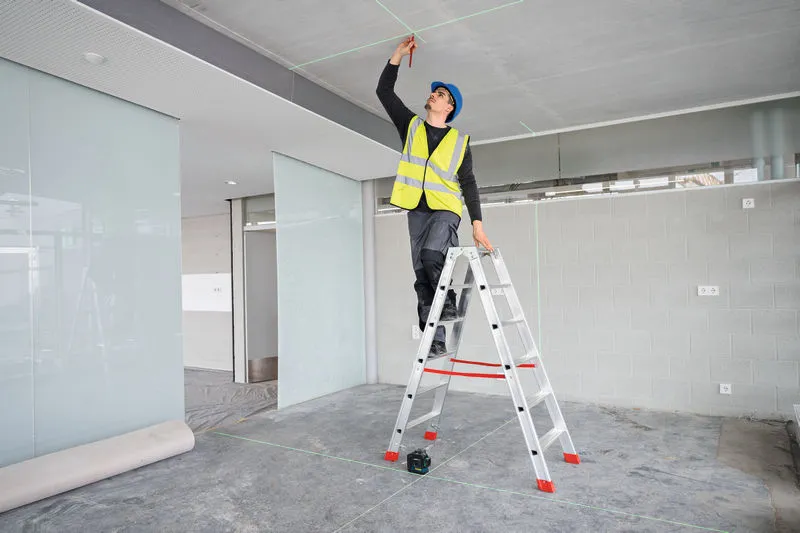

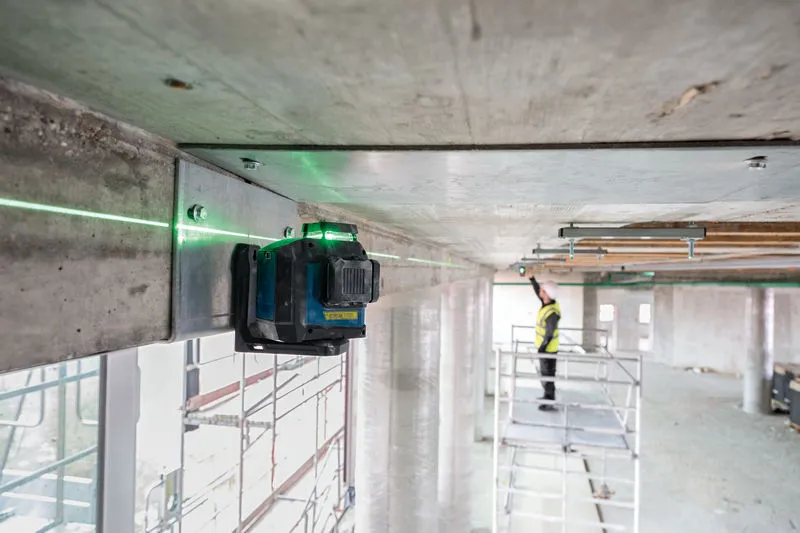

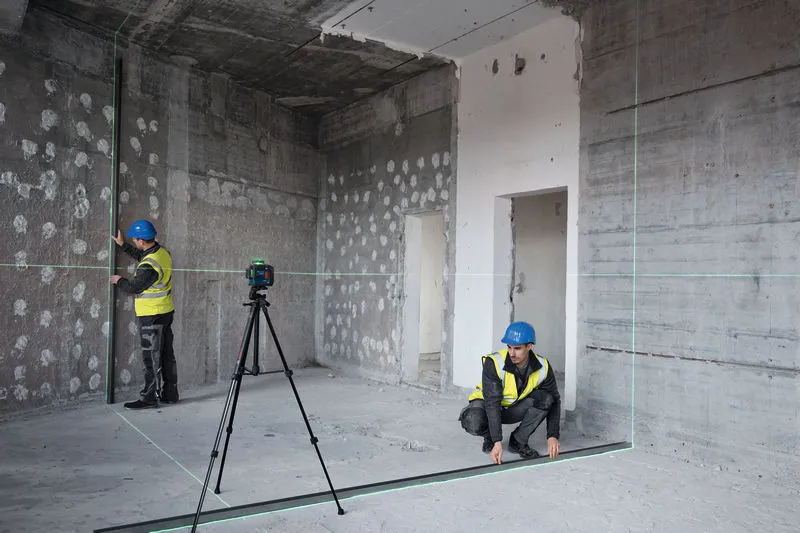

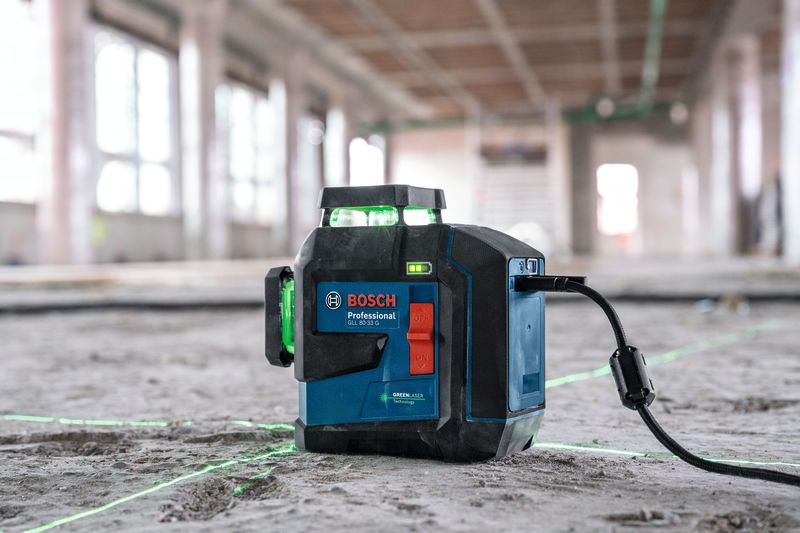

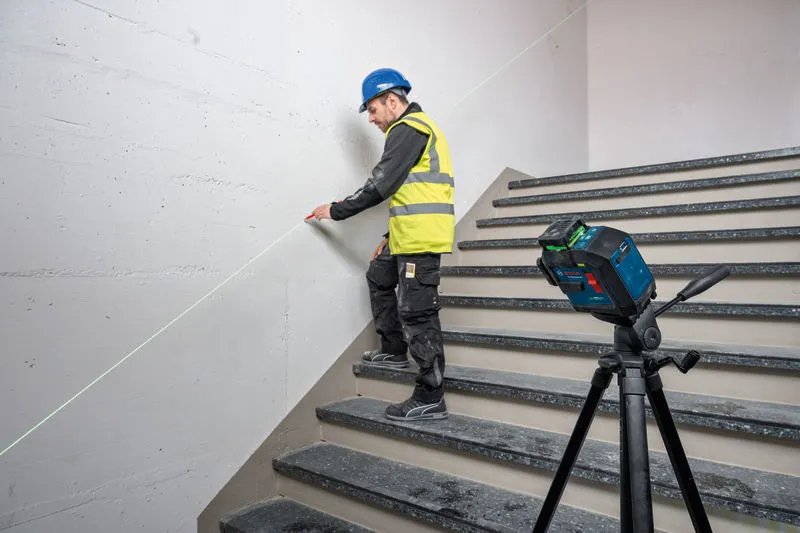

The BA 3.7V 3.0Ah XL can recharge while in use and ensures that your work flows seamlessly, without power interruptions. The GLL 80-33 G is ideal for a variety of applications, including setting up drywalls, aligning window frames and installing suspended ceilings. The large battery indicator makes it easy to monitor power levels, while 3 x 360° laser lines allow for simultaneous horizontal and vertical levelling applications – helping you save time and effort.
Additional Information
The line laser detects the optional laser receiver LR 7 Professional automatically. This way you can start work immediately and extend the working range up to 80 meters. The bright green laser lines offer up to four times better visibility than red lines to make your levelling easier – no matter where the job takes you.
