Line lasers
![GLL 3-80 C]( "GLL 3-80 C")
![GLL 3-80 C]( "GLL 3-80 C")
![GLL 3-80 C]( "GLL 3-80 C")
![GLL 3-80 C]( "GLL 3-80 C")
![GLL 3-80 C]( "GLL 3-80 C")
GLL 3-80 C Professional
Line Laser
Visibility on a new level in 3 x 360°. Simply Connected.
- Very precise CAL Guard monitoring and remote-control use with Bluetooth®-connected smartphone app
- High visual clarity is provided by high-powered diodes
- 3 x 360° lines allow simultaneous horizontal and vertical levelling applications for highly efficient work
Functions & key features
Your Selection

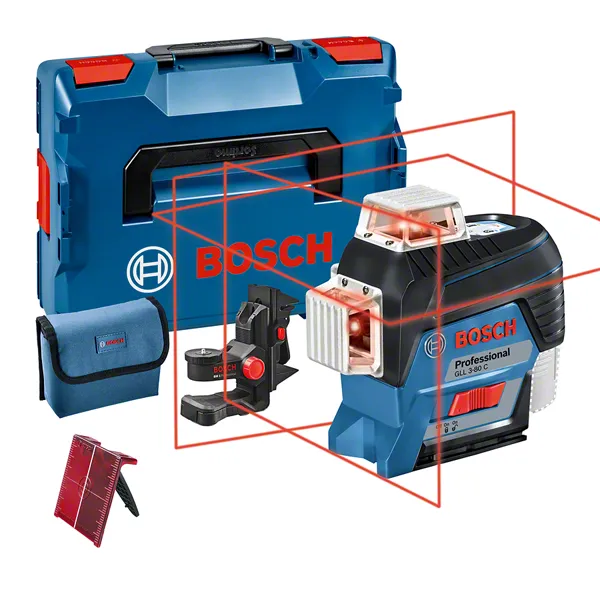

- in L-BOXX 136 with mount
471.00 GBP
Including VAT
available at Bosch Partner
Available from our partners
in L-BOXX 136 with mount
0 601 063 R03
Select a variant
Your Selection
in L-BOXX 136 with mount
Part Number: 0 601 063 R03
471.00 GBP
Including VAT
available at Bosch Partner
Available from our partnersIncluded in all variants
-
Pouch
-
Laser target plate
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Universal mount BM 1 ProfessionalPart Number: 0 601 015 A01
Your Selection

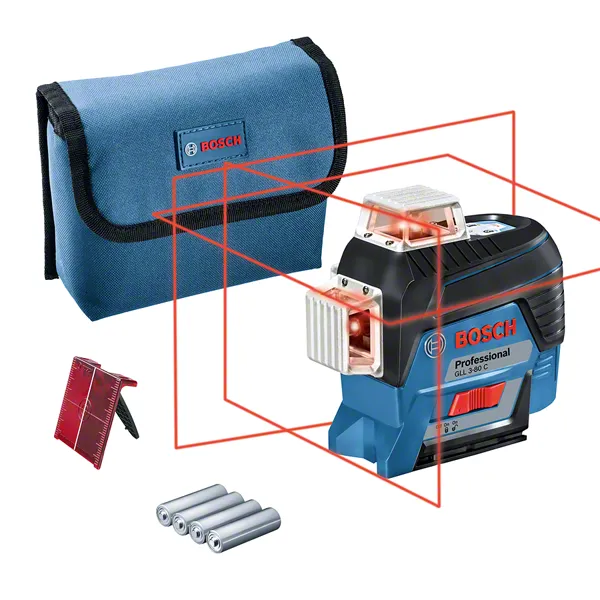

with 4 x battery (AA), adapter
Part Number: 0 601 063 R00
472.00 GBP
Including VAT
in stock
Included in all variants
-
Pouch
-
Laser target plate
Additional in this variant
-
AA1 alkaline battery adapterPart Number: 1 608 M00 C1B
-
4 x 1.5 V LR6 battery (AA)
Your Selection

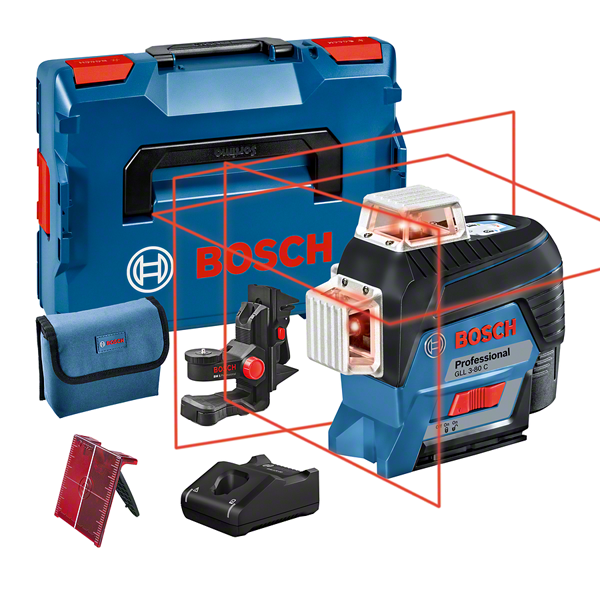

in L-BOXX 136 with 1 x battery GBA 12V 2.0Ah, mount
Part Number: 0 601 063 R70
594.00 GBP
Including VAT
in stock
Included in all variants
-
Pouch
-
Laser target plate
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
-
Universal mount BM 1 ProfessionalPart Number: 0 601 015 A01
-
Quick charger GAL 12V-40 ProfessionalPart Number: 1 600 A01 9R4
-
1 x battery GBA 12V 2.0AhPart Number: 1 600 Z00 02X
Technical data
The most important data |
|
|---|---|
| Battery voltage | 12.0 V |
| Laser diode | Line: 630 - 650 nm, < 10mW |
| Operating temperature | -10 – 40 °C |
| Storage temperature | -20 – 70 °C |
| Laser class | 2 |
| Working range* | up to 30 m |
| Working range with receiver* | up to 120 m |
| Accuracy* | ± 0.2 mm/mᵃ/** |
| Self-levelling range | ± 4° |
| Levelling time | 4 s |
| Dust and splash protection | IP 54 *** (***except for the lithium-ion battery and AA1 battery adapter) |
| Power supply | 12 V Li-Ion battery, 4 x 1.5 V LR6 (AA) |
| Operating time (max.) | 8 h (Li-Ion) and 6 h (4 x AA) in 3-line mode |
| Tripod thread | 1/4", 5/8" |
| Weight, approx.** | 0.9 kg |
| Colour of laser line | red |
| Projection | 3 x 360° line |
| Compatible laser receivers | LR 6 + 7 |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
ᵃ Applies for the four horizontal intersection points
GLL 3-80 C Professional: Further information
Product Highlights

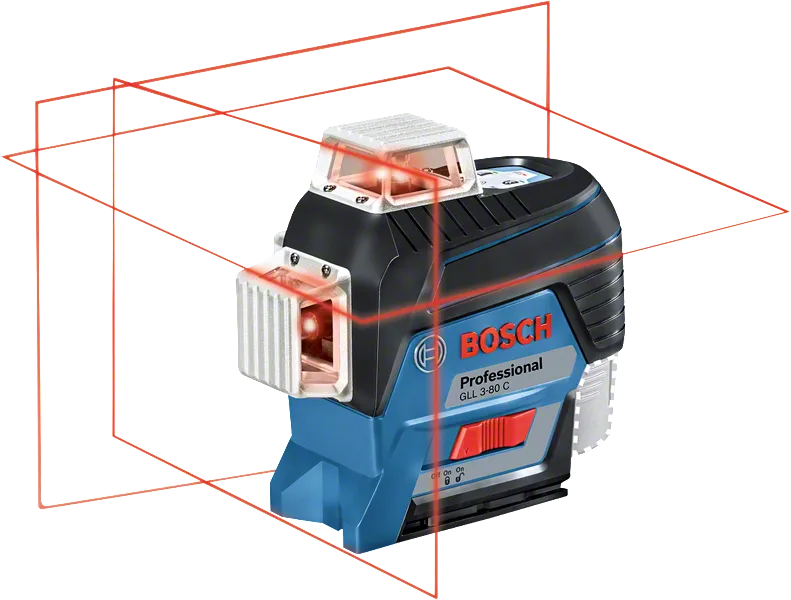

The line laser GLL 3-80 C Professional is simply connected and projects 3 x 360° lines for excellent visibility. Innovative CAL Guard monitoring and a Bluetooth®-connected smartphone app allow for remote-control use as well as contactless adjustments and high precision. High-powered diodes ensure high visual clarity while its 3 x 360° lines allow simultaneous horizontal and vertical levelling for highly efficient work.
Equipment & Application

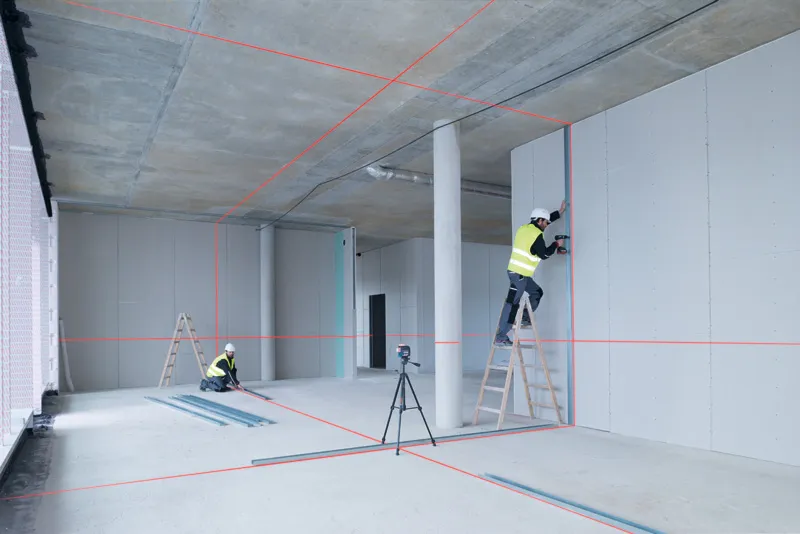

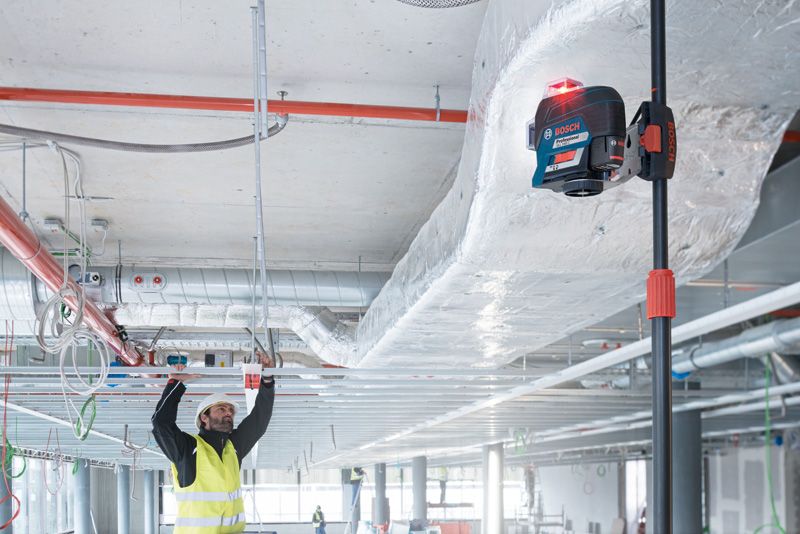

This line laser is developed for building floors, installing windows, mounting shelves,laying drainage pipes, building framework for drywall, and laying tiles.
Additional Information
Due to the GLL 3-80 C Professional's Dual Power Source, it can be operated both with 12 V Li-ion battery and with standard alkaline batteries for added flexibility. It is capable of levelling itself on non-level surfaces up to +/- 4° in less than 4 seconds with excellent precision of ± 0.2 mm/m*/** and has a working range of up to 120 m when using the optional LR 6 or LR 7 Professional receiver. This line laser is compact, easy to handle, and extremely robust.
