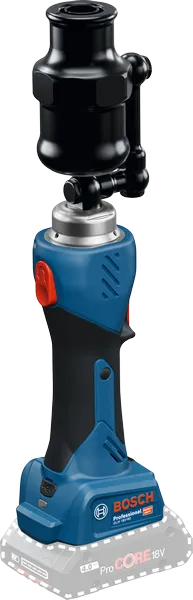

GLH 18V-60 Professional
Cordless Hydraulic Punching Tool
18V Hydraulic Punching Tool: Outstanding Maintenance Interval and Accessories
- Strong, reliable hydraulic punching resulting in clean and burr-free cuts
- Efficient punching and tool protection thanks to intelligent punching detection which automatically retracts after each punch

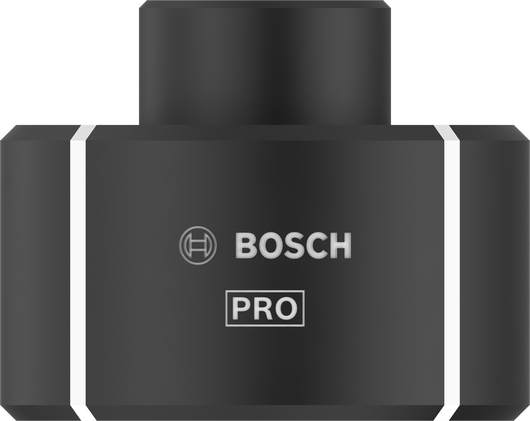

- Wide range of Bosch accessories in sizes M16-M40 and PG9-PG36 suitable for both steel and stainless steel available
- High performance with reliable output force of 60kN maximum, thanks to electronic pressure monitoring
- Convenient overview of tool history, important parameters and maintenance cycles through USB connection and readout software
Functions & key features
GLH 18V-60 Professional
Your Selection
New
Part Number: 0 601 9P0 200
not available

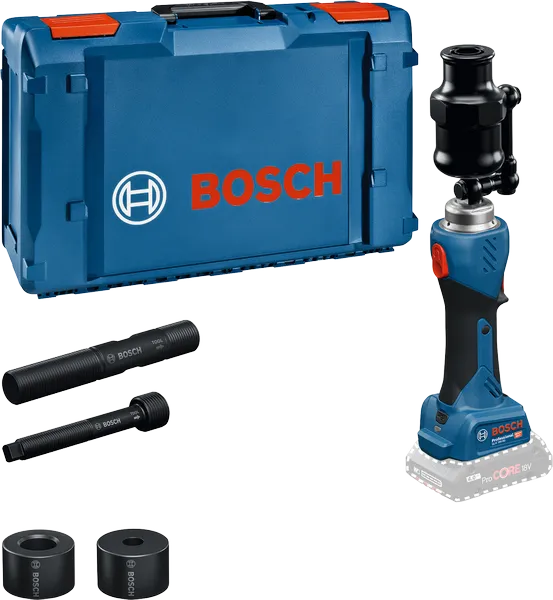

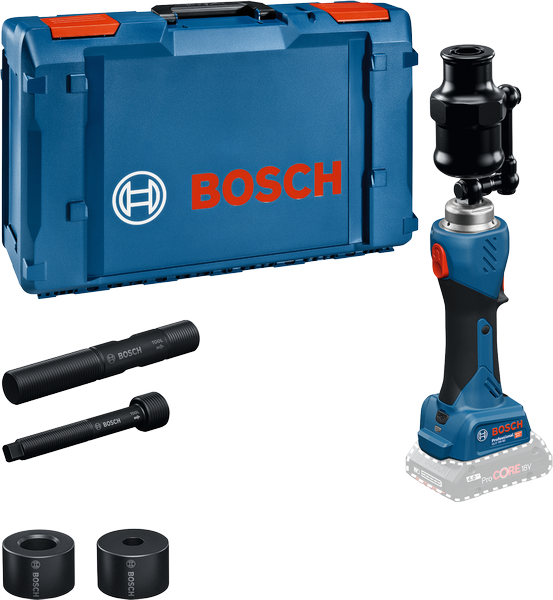

Find a local dealerIncluded in this variant
-

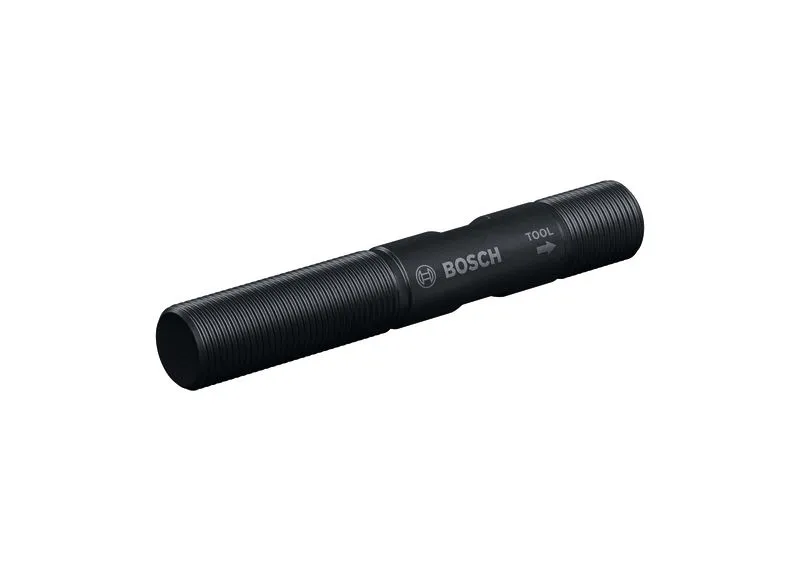

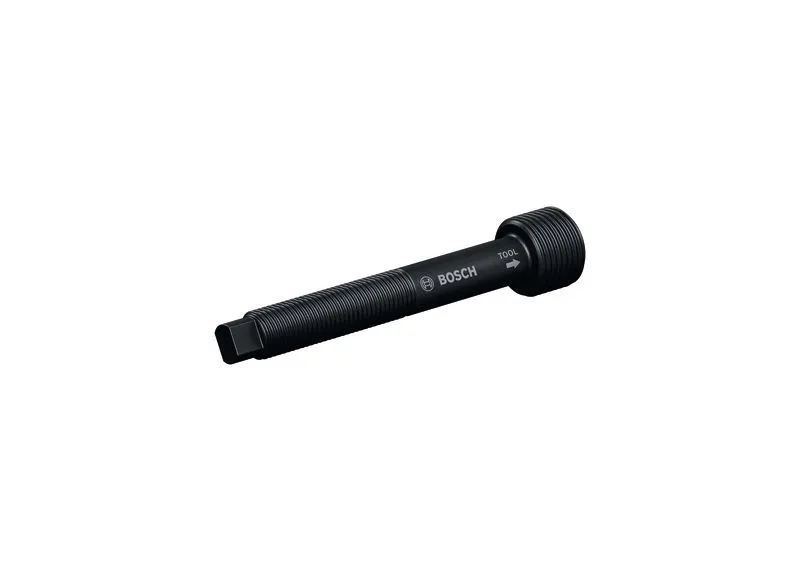

1 x draw stud 19 x 125 mmPart Number: 1 607 000 FM0
-

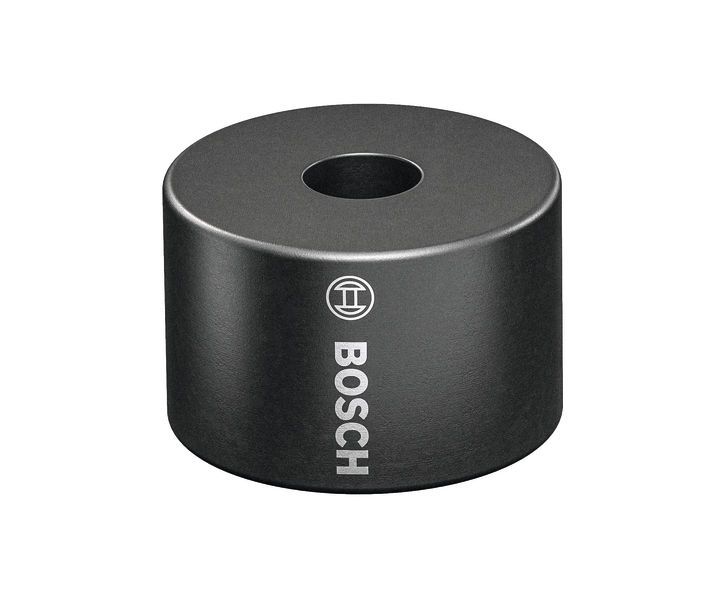

1 x spacer 11.1 mmPart Number: 1 607 000 FV9
-
XL-BOXXPart Number: 1 605 438 1JG
-

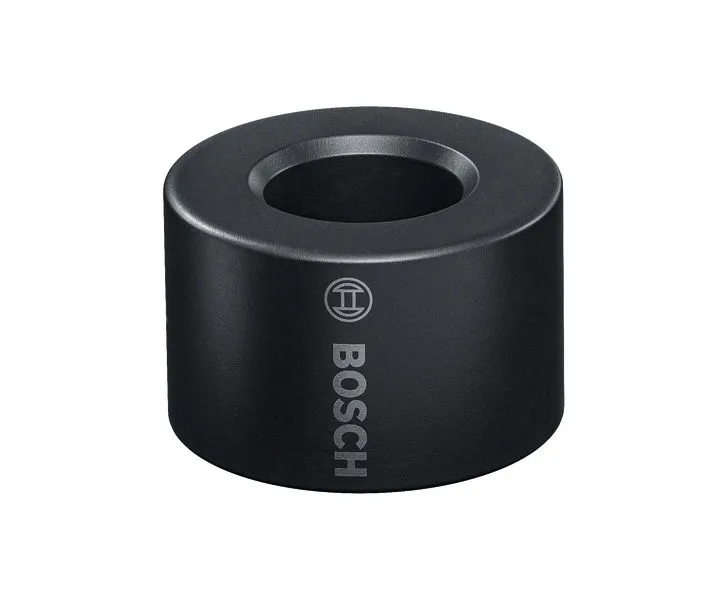

1 x spacer 19 mmPart Number: 1 607 000 FM1
-
1 x draw stud 11.1 x 19 mmPart Number: 1 607 000 FL9
Technical data
The most important data |
|
|---|---|
| Capacity stainless steel max | 2.5 mm |
| Capacity steel max | 3 mm |
| Head rotation | 360 ° |
| Punching force max | 60 kN |
| Automatic retraction | Yes |
| Intelligent punching detection | Yes |
| Maintenance interval | 20.000 cycles |
| Manual pressure release | Yes |
| USB connector | Yes |
| Manual retraction stop | Yes |
| Read-Out Functionality | Yes |
| Work light | Yes |
| Automatic pressure limitation and monitoring | Yes |
| USB mode | USB 2.0 |
| Punching time | 2 s to 5 s (for ST37 3.0mm with 16,2mm Punch) |
GLH 18V-60 Professional: Further information
Product Highlights

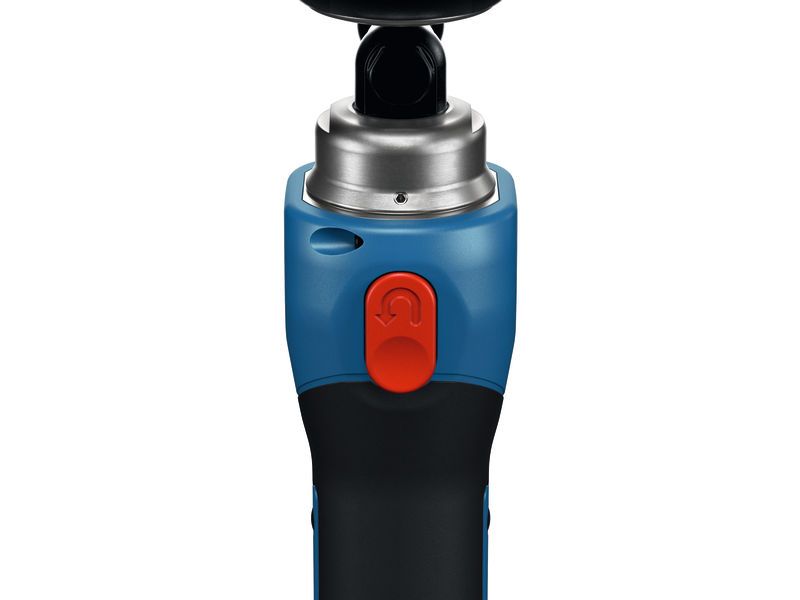

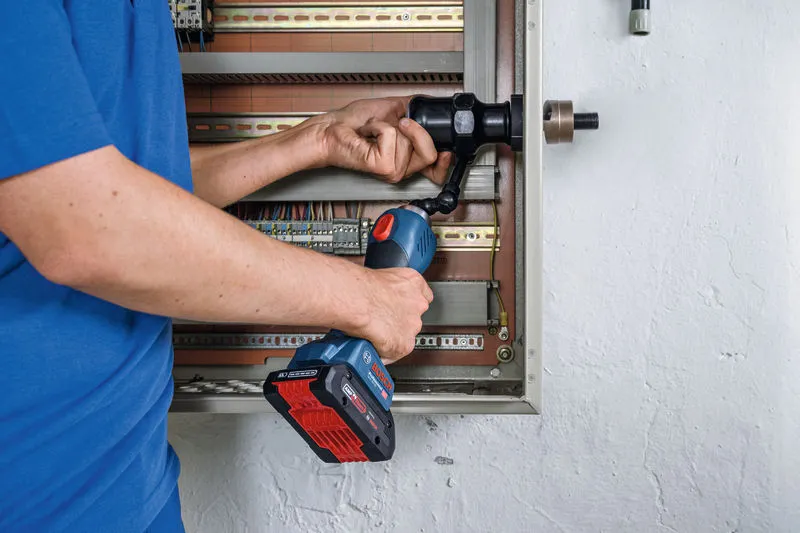

Designed to efficiently punch holes in steel and stainless-steel sheets, the GLH 18V-60 is a robust punching tool that delivers burr-free, high-quality cuts. It makes wearying hole-making a thing of the past due to its reliable 60kN output force and comprehensive monitoring functions. A status LED indicates tool status and maintenance intervals. And with the manual pressure release function, you can always retract.
Equipment & Application

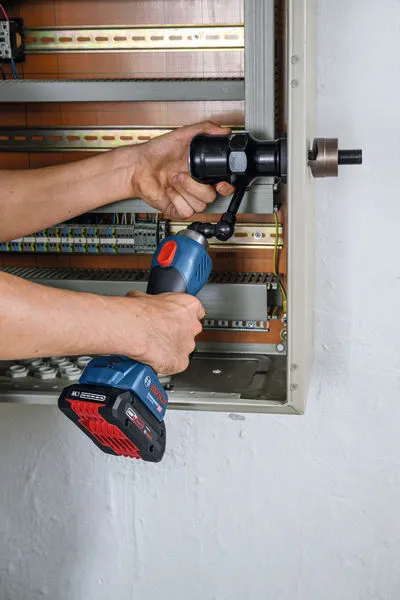

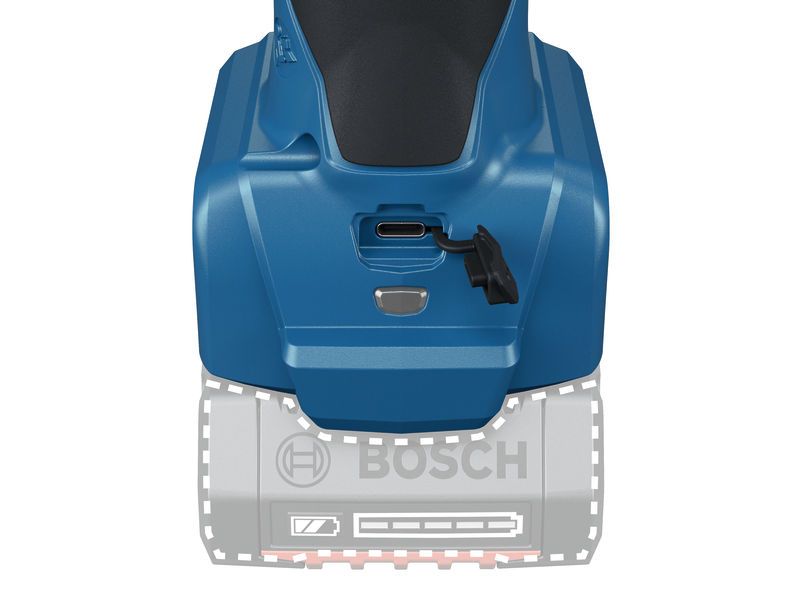

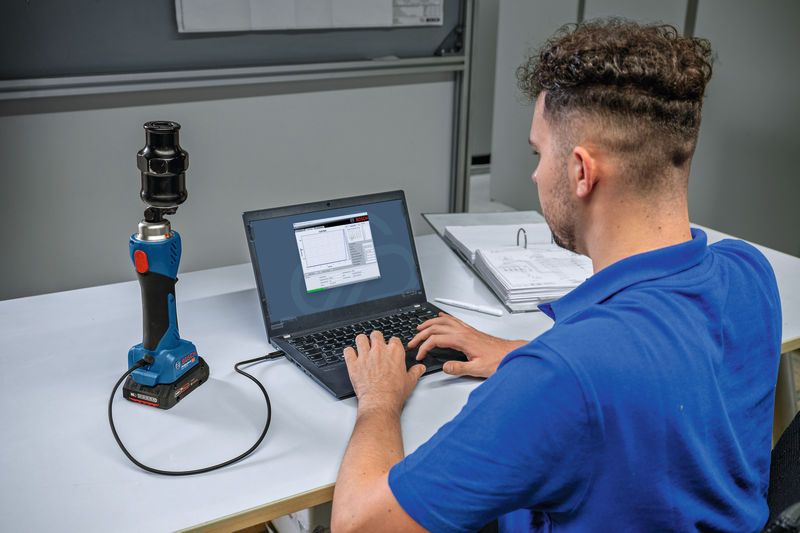

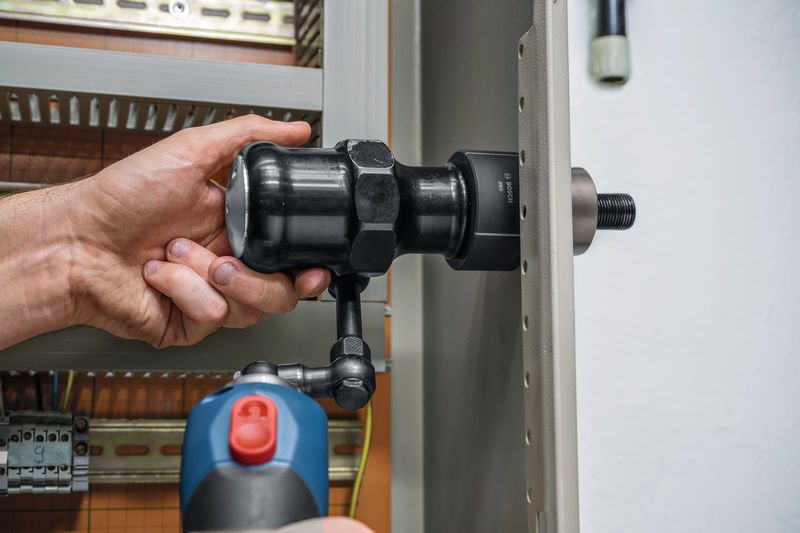

The GLH 18V-60 punches holes in steel sheets up to 3 mm thick and in stainless-steel sheets up to 2.5 mm. Bosch offers accessories from M16 - M40 and PG9 - PG36 all of which are suitable for both steel and stainless steel. The USB connection and read-out software (free and available to download below) lets you easily monitor the tool’s punching history, error messages and maintenance.
Additional Information
The tool comes with an 100% end-of-line quality control certificate. It is furthermore compatible with standard market accessories.
