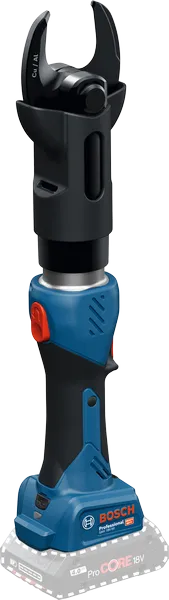

GKH 18V-50 Professional
Cordless Hydraulic Cutting Tool
18V Hydraulic Cable Cutter with Outstanding Maintenance Interval and Intelligent Cutting Detection
- Strong, reliable performance with clean cuts thanks to special blades and electronic pressure monitoring
- Long lifetime with outstanding maintenance intervals needed only after 20,000 cuts
- Efficient cutting thanks to intelligent cutting detection which opens jaws automatically after each cut
- Comfortable to use thanks to ergonomic design, 360-degree rotatable head, and optimized center-of-gravity

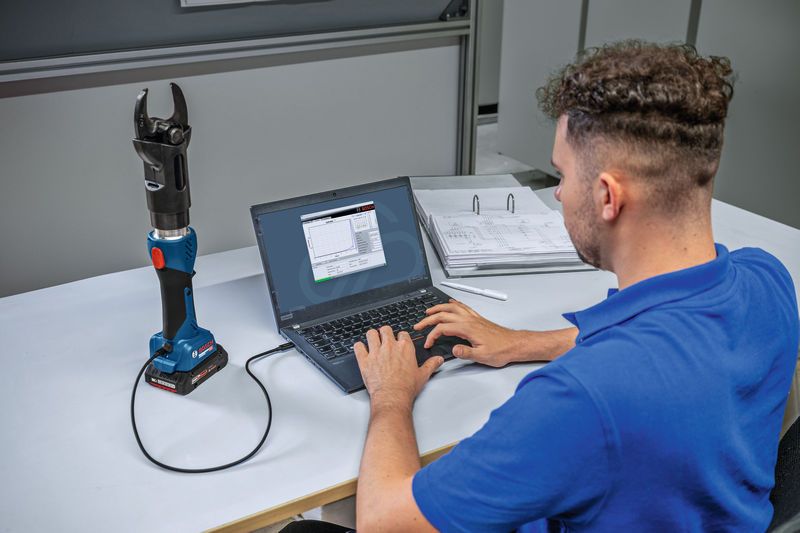

- Convenient overview of tool’s cutting history, important parameters, and maintenance intervals, through USB connection and read-out software
Functions & key features
GKH 18V-50 Professional
Your Selection
New
Part Number: 0 601 9P0 000
not available
Find a local dealerIncluded in this variant
-

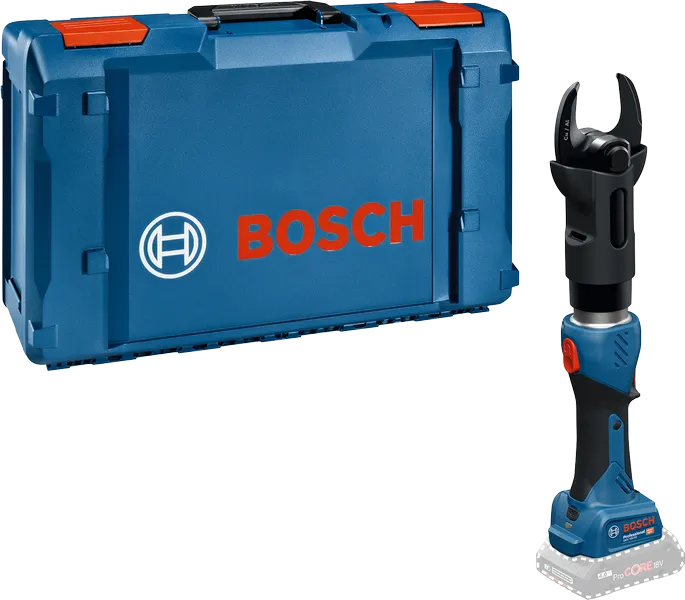

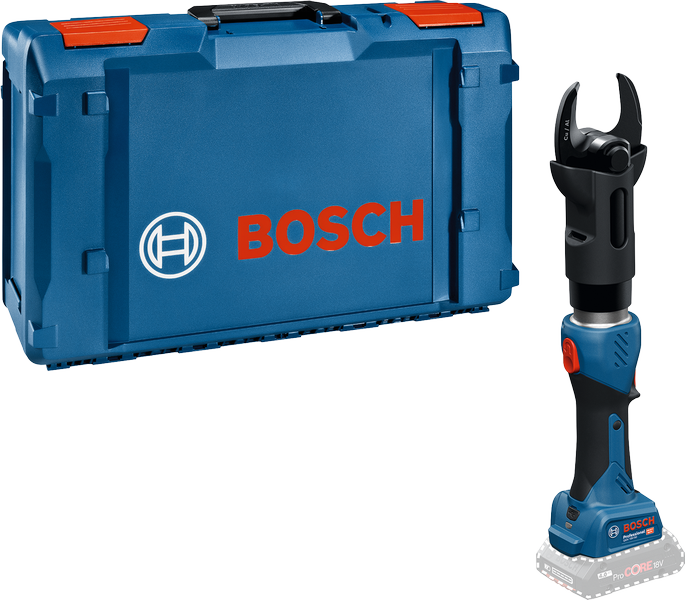

XL-BOXXPart Number: 1 605 438 1JG
Technical data
The most important data |
|
|---|---|
| Cutting force max | 50 kN |
| Head rotation | 360 ° |
| Max. capacity cable diameter | 40 mm |
| Automatic retraction | Yes |
| Cu- and Al-cables (multi and fine stranded) | Yes |
| Intelligent cutting detection | Yes |
| Maintenance interval | 20.000 cycles |
| Manual pressure release | Yes |
| Manual retraction stop | Yes |

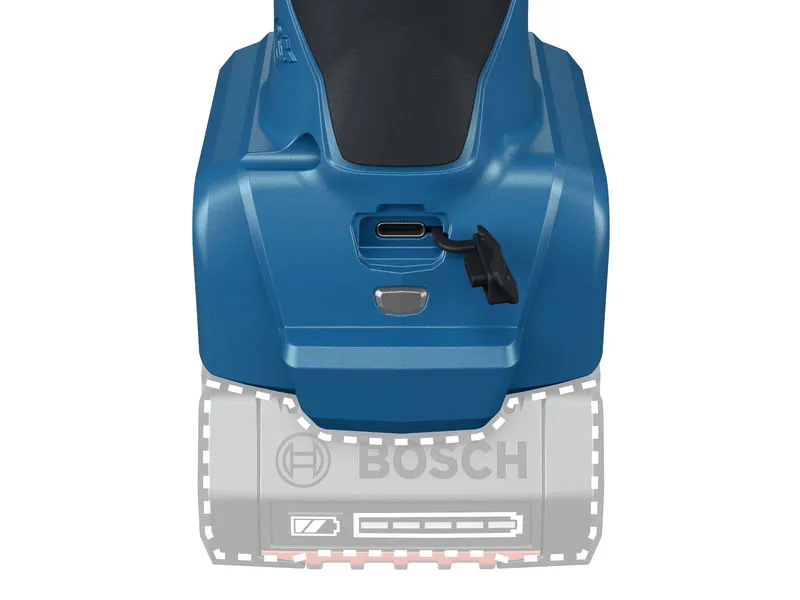

| USB connector | Yes |
| Steel Cable (ACSR) | No |
| Read-Out Functionality | Yes |
| Work light | Yes |
| Automatic pressure limitation and monitoring | Yes |
| USB mode | USB 2.0 |
| Cutting time | 2 s to 5 s (depending on cable cross-section) |
GKH 18V-50 Professional: Further information
Product Highlights

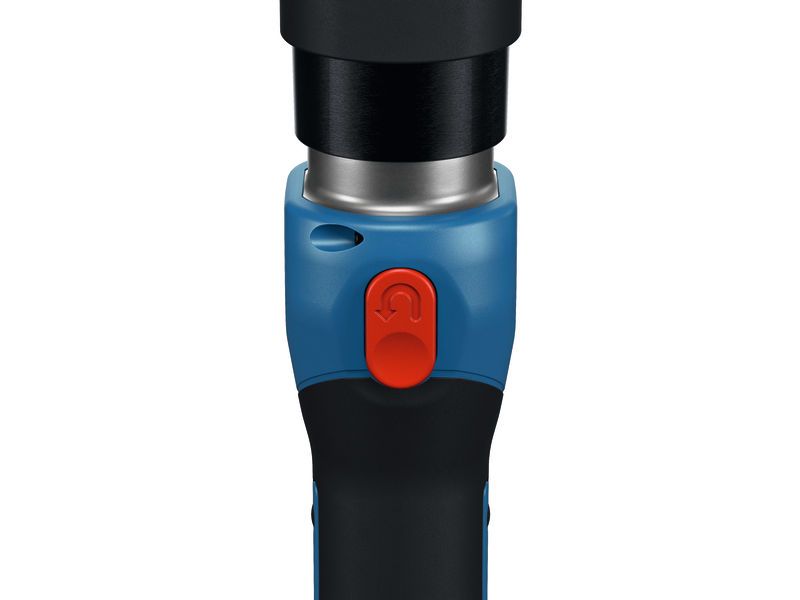

When you’re cutting copper and aluminum cables, you want a robust tool that delivers clean, high-quality cuts. Here’s where the GKH 18V-50 comes in. With this tool, wearying cable cutting is a thing of the past thanks to its special blades and comprehensive pressure monitoring functions. The status LED function provides feedback on tool status and maintenance, ensuring that you’re in control. And with the manual pressure release function you can always retract.
Equipment & Application

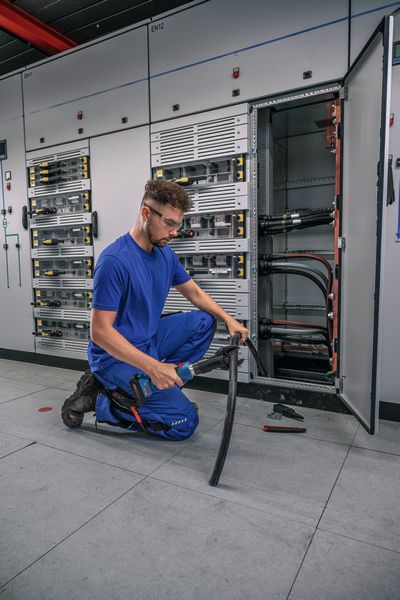

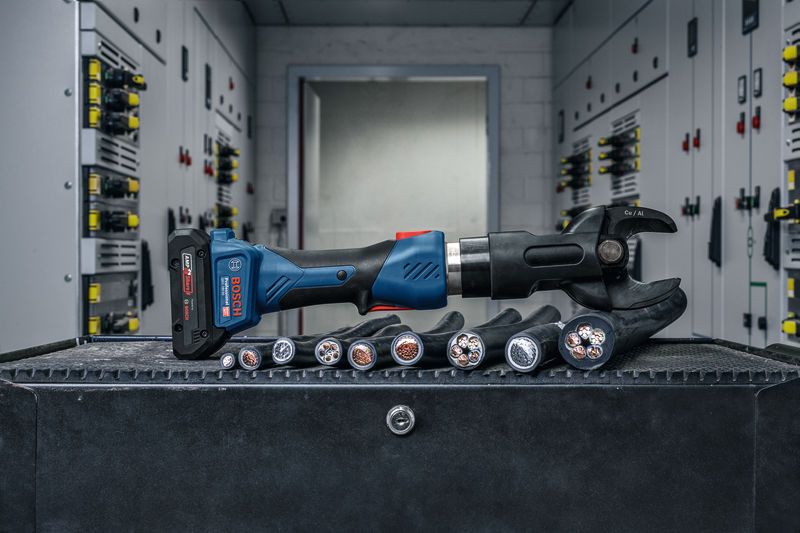

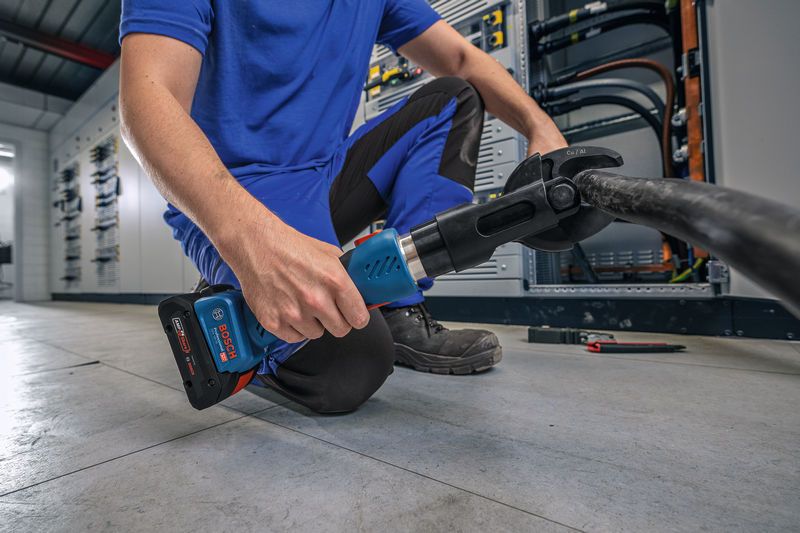

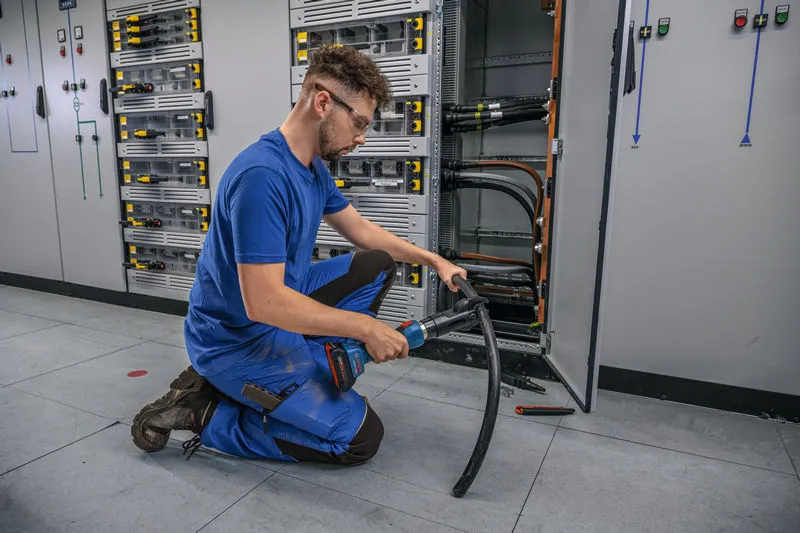

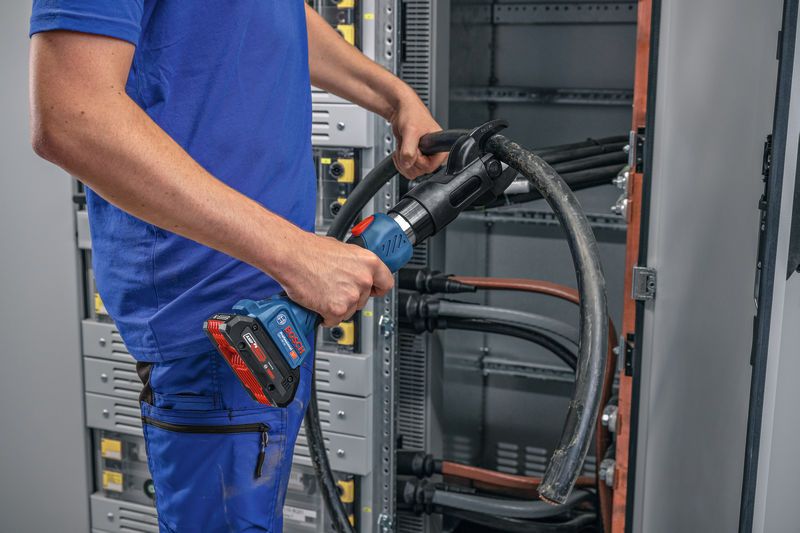

The GKH 18V-50 cuts fine and multi-stranded copper and aluminium cables of up to ∅40 mm. A USB connection and read-out software (free and available to download below) make it easy to view cutting history, error messages and maintenance needs.
Additional Information
The blades are made of reinforced steel for clean, precise cuts and reduced wear. Each tool comes with a certificate that guarantees 100% end-of-line quality control.
