GIM 60 L Professional
Digital Inclinometer

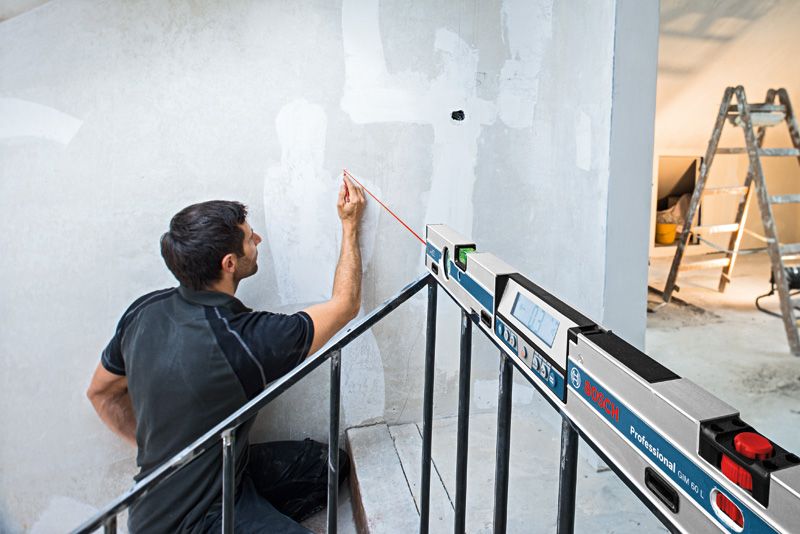

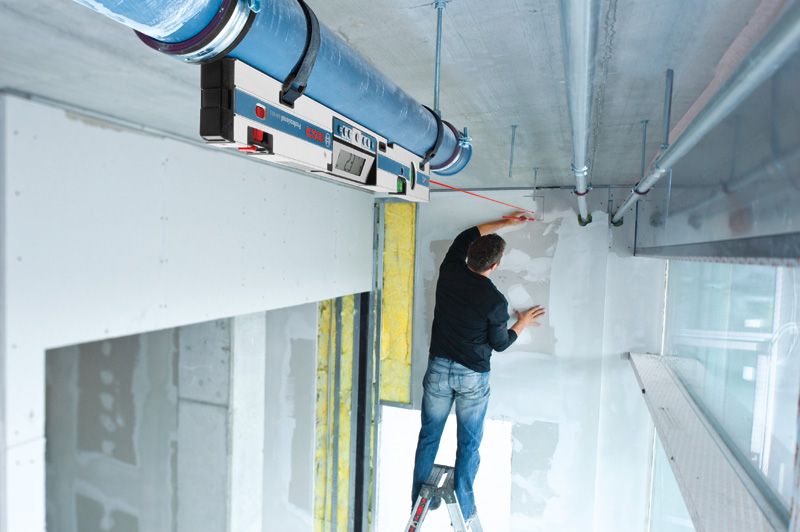

Laser-accurate incline transfer over longer distances
- Integrated point laser for incline measurement up to a distance of 30 m
- Strong magnets and two straps for securely fastening the instrument to workpieces
- Incline mechanism for fine adjustment on uneven surfaces
Functions & key features
with 4 x battery (AA), Protective Bag
0 601 076 900
GIM 60 L Professional
Your Selection
with 4 x battery (AA), Protective Bag
Part Number: 0 601 076 900
206.00 GBP
Including VAT
in stock
Included in this variant
-
Protective Bag
-
4 x 1.5 V LR6 battery (AA)
Technical data
The most important data |
|
|---|---|

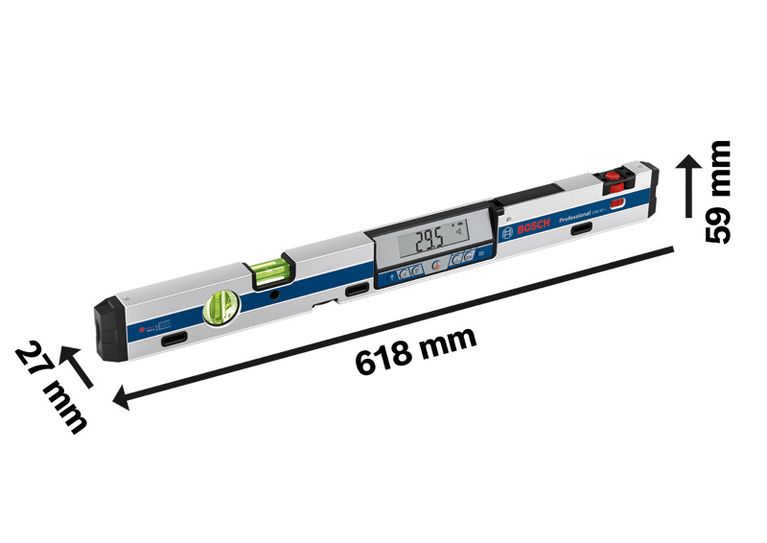

| Length | 60 cm |
| Measurement range* | 0 – 360° (4 x 90°) |
| Electronics measurement accuracy 0°/90° | ± 0.05° |
| Electronics measuring accuracy at 1– 89° | ± 0.1° |
| Working range (laser)* | 30 m |
| Power supply, inclination measurement | 1 x 9 V-6LR61 + 2 x 1.5 V LR03 |
| Weight, approx.** | 0.91 kg |
| Laser type | 650 nm, < 1 mW |
| Laser range | 30 m |
| Laser class | 2 |
| Levelling accuracy of laser | ± 0,5 mm/m |
| Units of measurement | °, %, mm/m |
| Tripod thread | 1/4" |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
