![GIC 4/5 Imager Dual Camera/1.5m]( "GIC 4/5 Imager Dual Camera/1.5m")

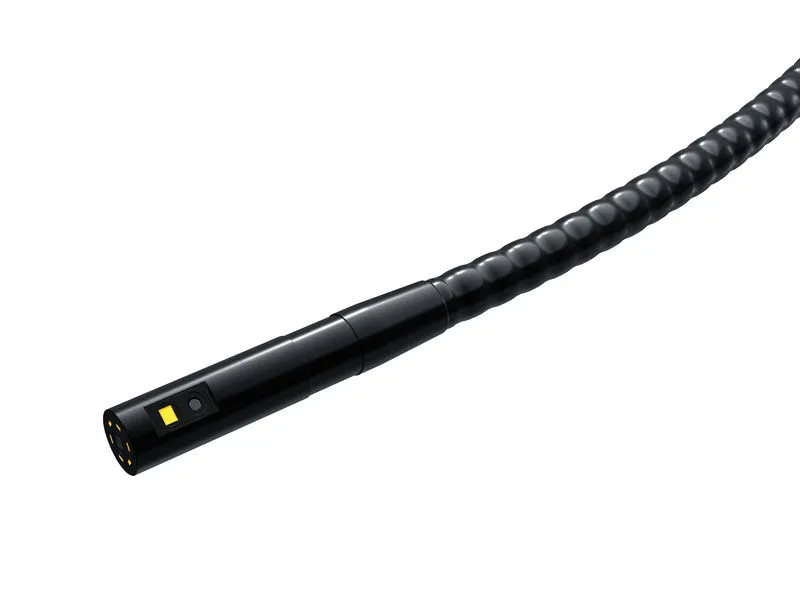

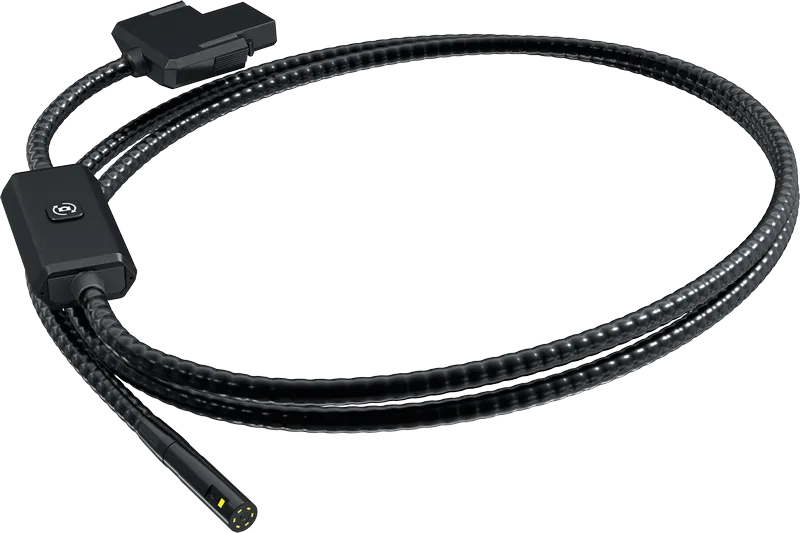

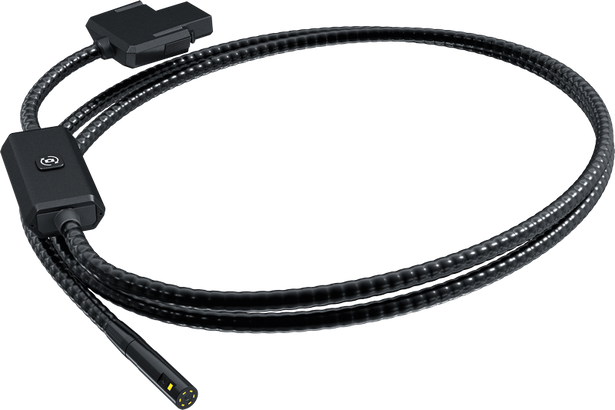

GIC 4/5 Imager Dual Camera/1.5m Professional
Inspection Camera Accessory
Dual camera cable compatible with GIC 12V-5-27 C and GIC 12V-4-23 C
- Additional side camera allows an all-round inspection
- Switch between front and side camera to always get the needed view
- Ideal for tough jobsites thanks to protection against dust, water and other liquids
Functions & key features
GIC 4/5 Imager Dual Camera/1.5m Professional
1 600 A02 Z61
GIC 4/5 Imager Dual Camera/1.5m Professional
Your Selection
Technical data
The most important data |
|
|---|---|
| Compatible with | GIC 12V-5-27 C, GIC 5-27 C, GIC 12V-4-23 C, GIC 4-23 C |
| Length of camera cable | 150 cm |
| Diameter of camera head | 8.2 mm |
| Camera resolution, px | 1280 x 720 px |
| Camera resolution, side camera, px | 1280 x 712 px |
| Field of view | 70° |
| Field of view, side camera | 75° |
| Focus distance | 30-80 mm |
| Focus distance, side camera | 20-50 mm |
| Supports orientation function | no |
| IP-Protection | IP67 |
| Add Protection 30 min, in | diesel, petrol, engine oil, AdBlue®, ethyl alcohol, salt water (salt content 26.5 %) |
