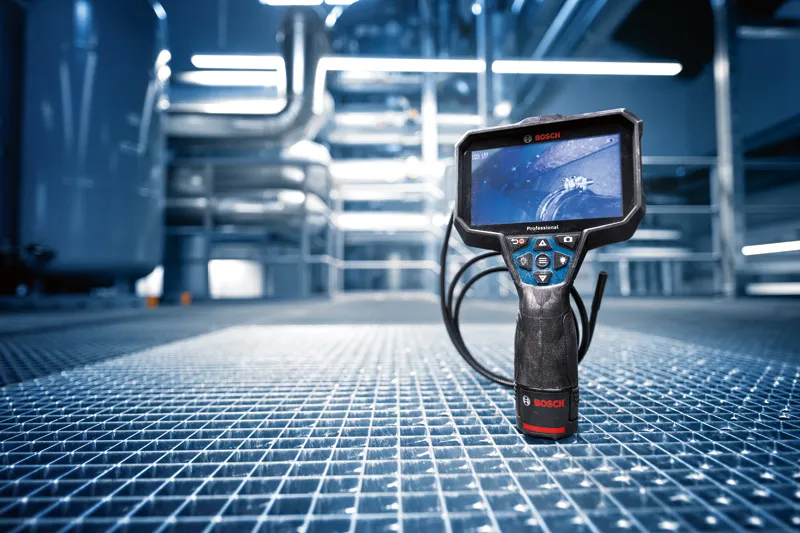

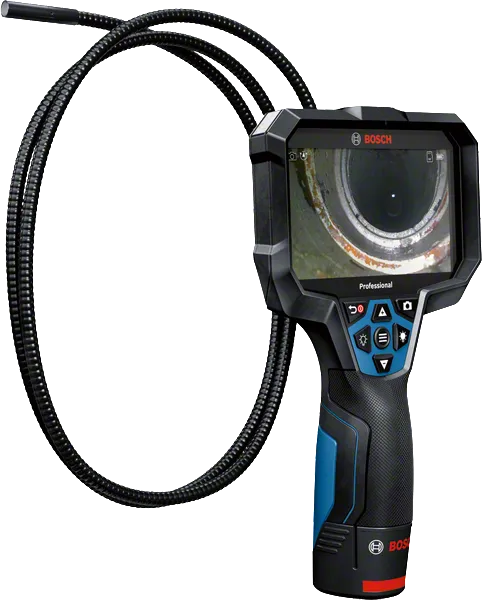

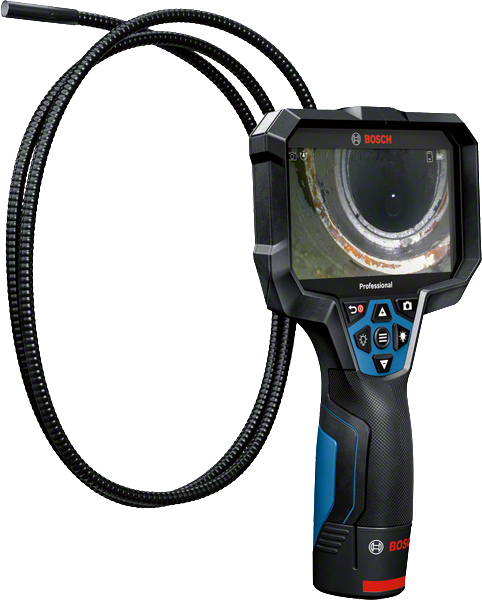

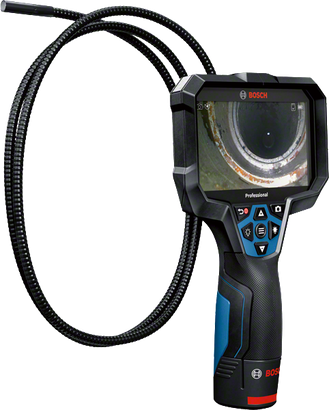

GIC 12V-5-27 C Professional
Inspection Camera
High-resolution camera and automatic upright viewing for in-depth inspection and documentation
- High resolution of 1280 x 720 pixels ensures clear picture quality on big 5” screen
- The unique AutoUp function enables optimal spatial orientation by automatically turning the image the right way up
- Ideal for tough jobsites thanks to IP-rating for protection against dust and water
Functions & key features
Your Selection

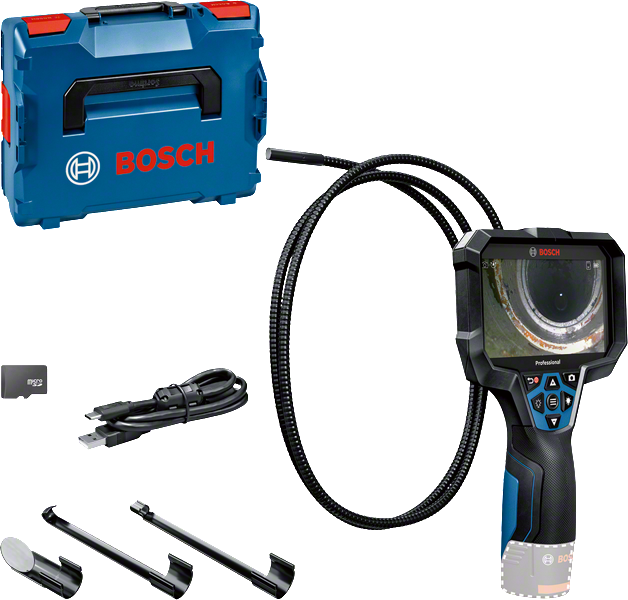

- in L-BOXX 136 with Hook, magnet, mirror
in stock
Select a variant
Your Selection

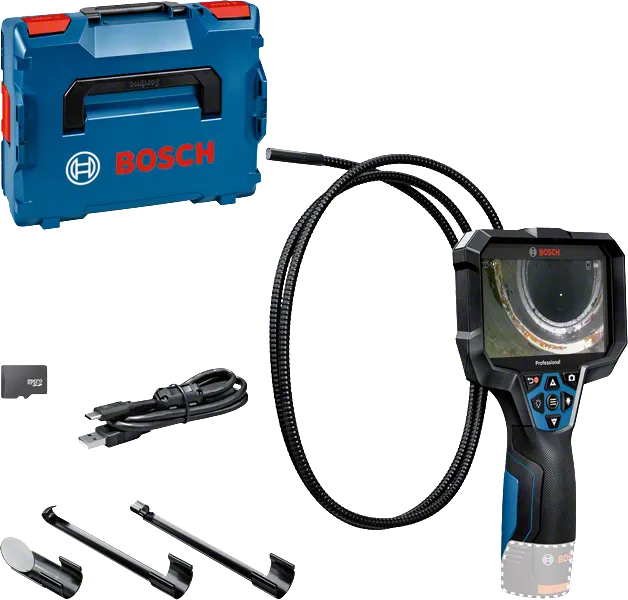

Part Number: 0 601 241 402
in stock

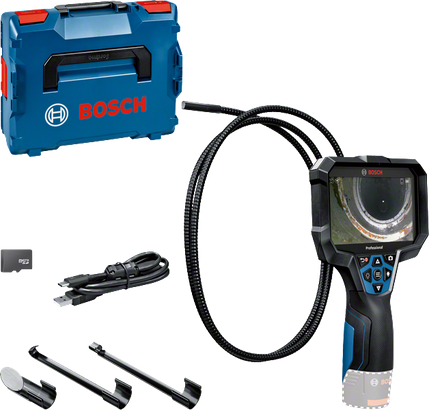

Included in all variants
-
Camera cable for GIC, 8.3 mm diameter, 1.5 m lengthPart Number: 1 600 A02 R6M
-
Hook, magnet, mirror
-
USB-C® Cable
-
Micro SD-card, 32 GB
Additional in this variant
-
L-BOXX 136Part Number: 1 600 A01 2G0
Your Selection

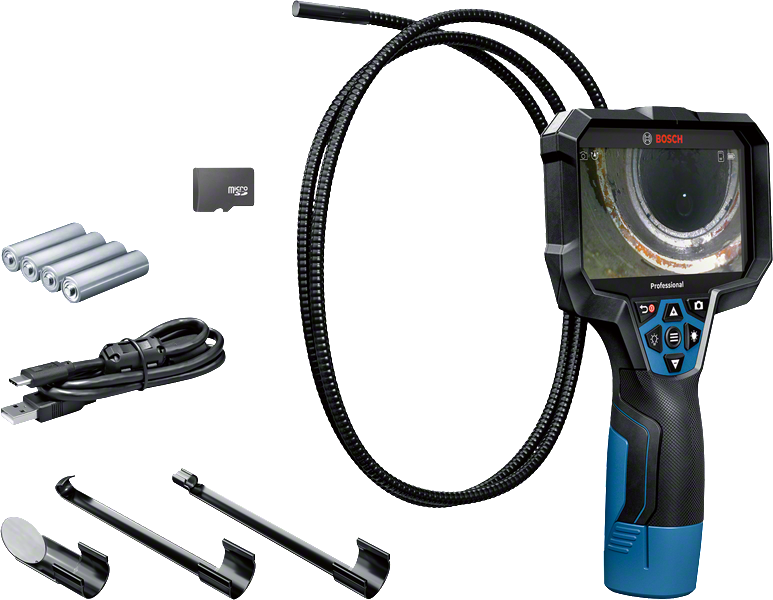

Part Number: 0 601 241 400
available at Bosch Partner
Available from our partnersIncluded in all variants
-
Camera cable for GIC, 8.3 mm diameter, 1.5 m lengthPart Number: 1 600 A02 R6M
-
Hook, magnet, mirror
-
USB-C® Cable
-
Micro SD-card, 32 GB
Additional in this variant
-
4 x 1.5 V LR6 battery (AA)
-
Battery adapter (1600A017HF/1600A017HH)
Technical data
The most important data |
|
|---|---|
| Display size | 5 " |
| Display resolution | 1280 x 720 px |
| Diameter of camera head | 8.3 mm |
| Length of camera cable | 150 cm |
| Field of view (FOV) | 75 ° |
| Focus distance | 30 - 80 mm |
| Documentation via | Photo, Video |
| Photo resolution | 1280 x 720 |
| Video resolution, height | 1280 x 720 |
| Data Transfer | USB-C®, Micro-SD Card |
| Dust and splash protection, camera cable | IP 67 |
| Dust and splash protection, tool* | IP 54 |
| Max. 30 min immersion for camera cable in | diesel, petrol, engine oil, AdBlue®, ethyl alcohol, salt water (26,5% salt content) |

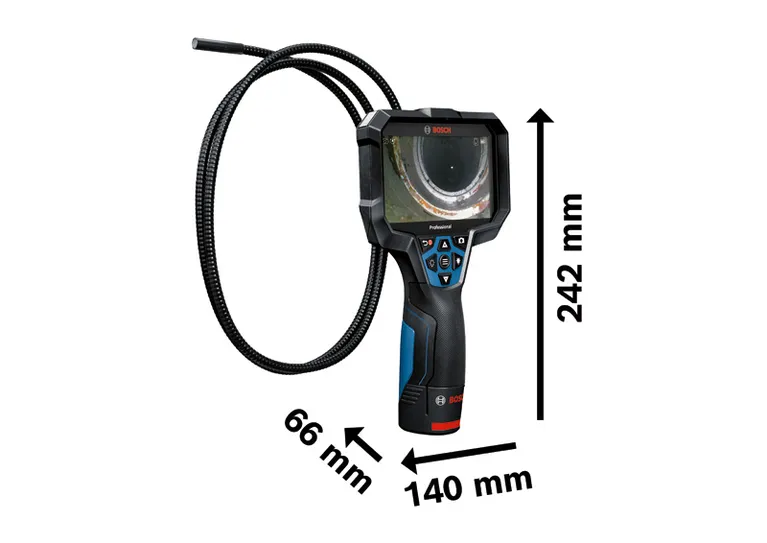

| Weight** | 0.7 kg |
* Plus use-dependent deviation. You can find more information about the deviations in the following link:
** You can find more information about the deviations in the following link:
GIC 12V-5-27 C Professional: Further information
Product Highlights

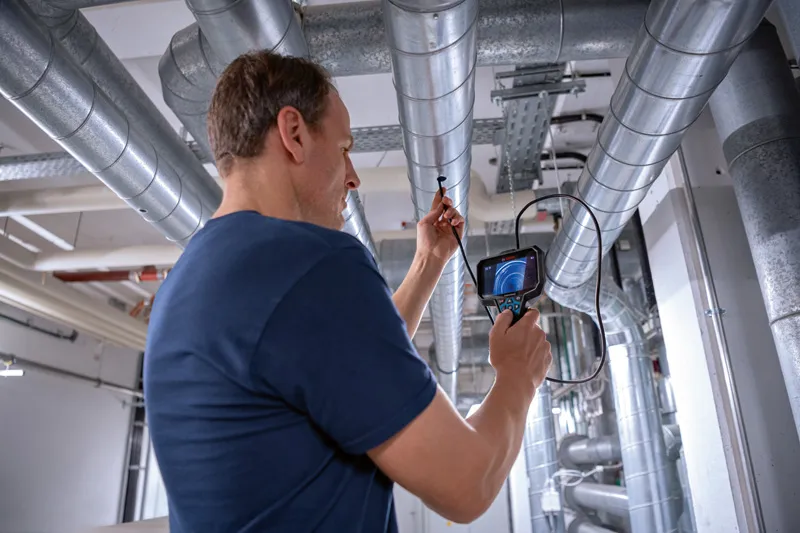

The GIC 12V-5-27 C Professional inspection camera brings new convenience to HVAC/plumbers, electricians, or car mechanics. This ergonomic tool has a large 5” display with a very high-definition resolution of 1280 x 720 pixels for an in-depth view when investigating pipes, ducts, or other hard-to-reach areas. No matter which direction the camera head is facing, there's no need to reinterpret the image direction during use because of a unique AutoUp function that ensures an automatic up rotation of the image. This robust camera is designed to endure dust and water on tough job sites. It comes with an IP67 rating for the camera head, protecting it from dust and short periods of immersion in water, and IP54 dust and splash water protection for the tool.
Equipment & Application

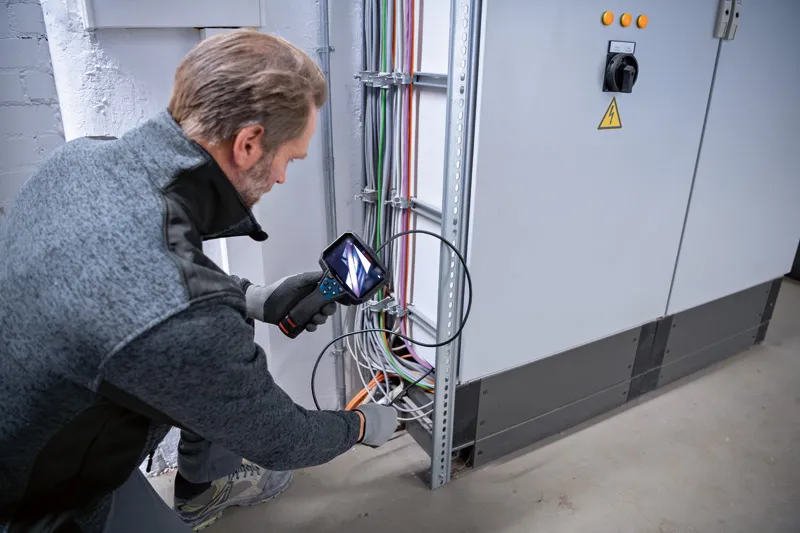

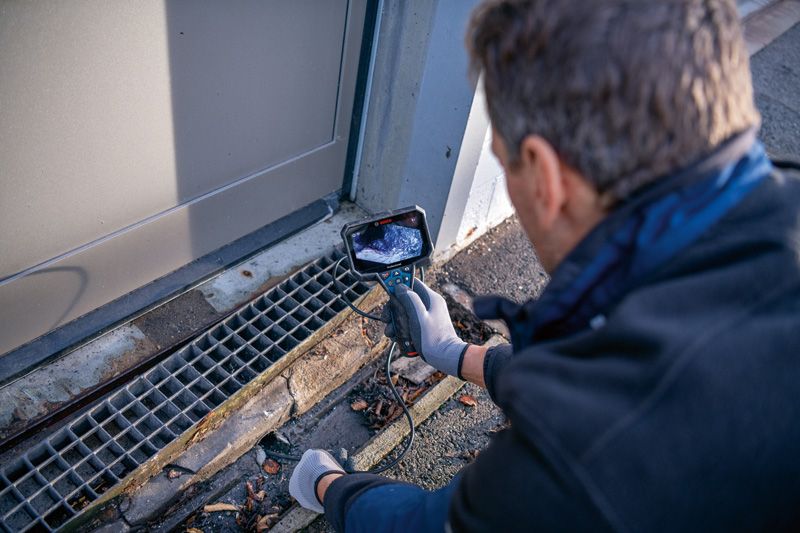

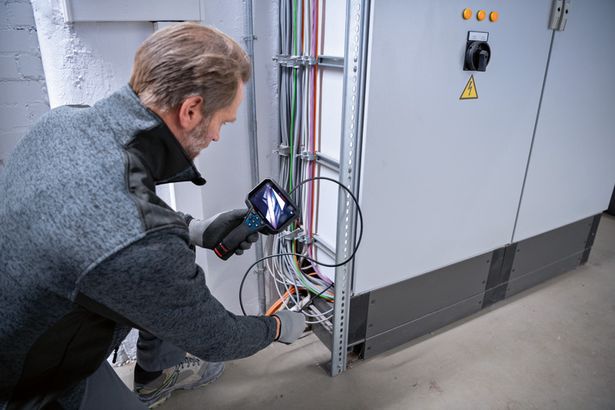

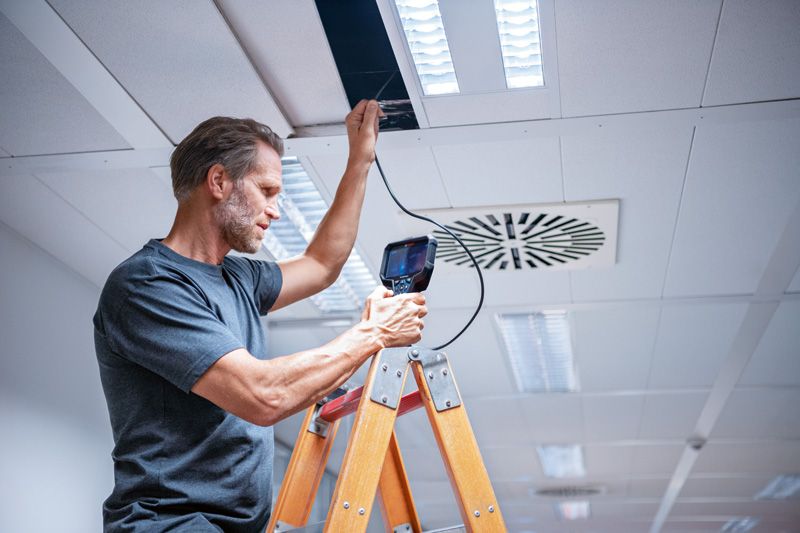

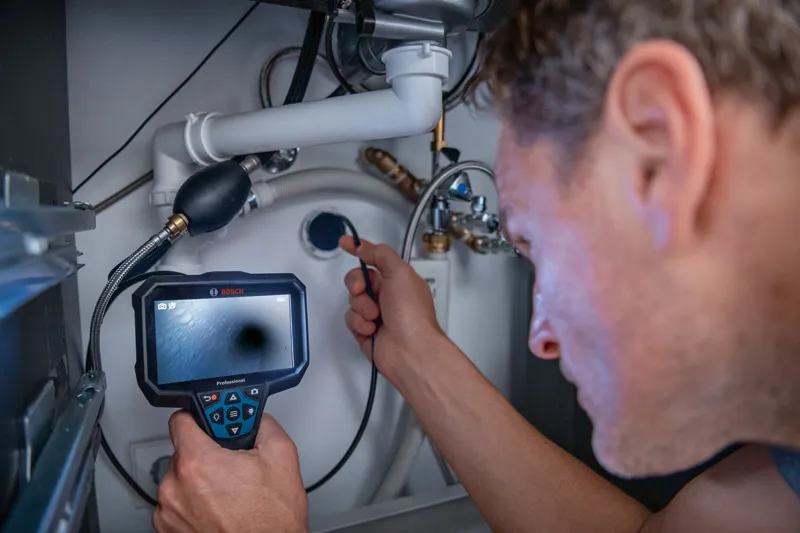

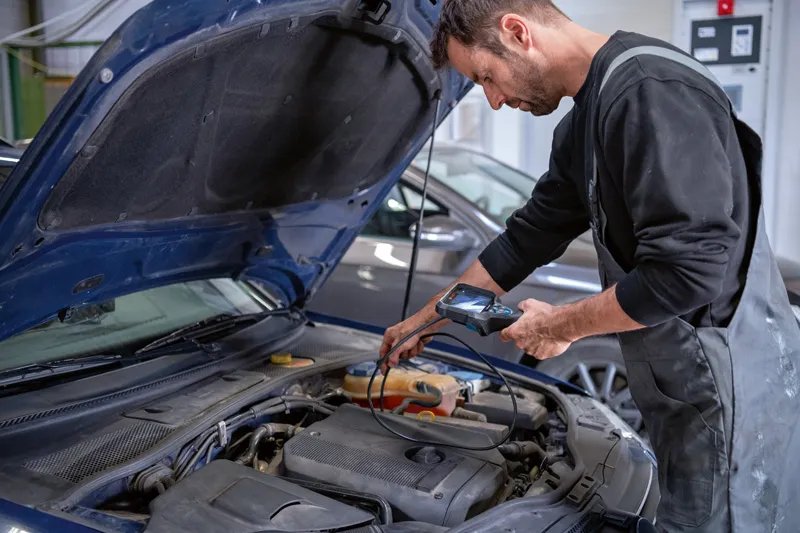

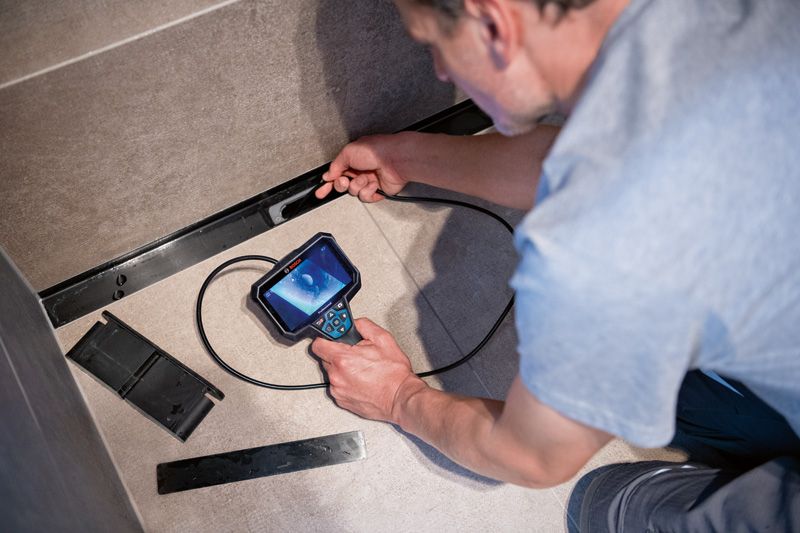

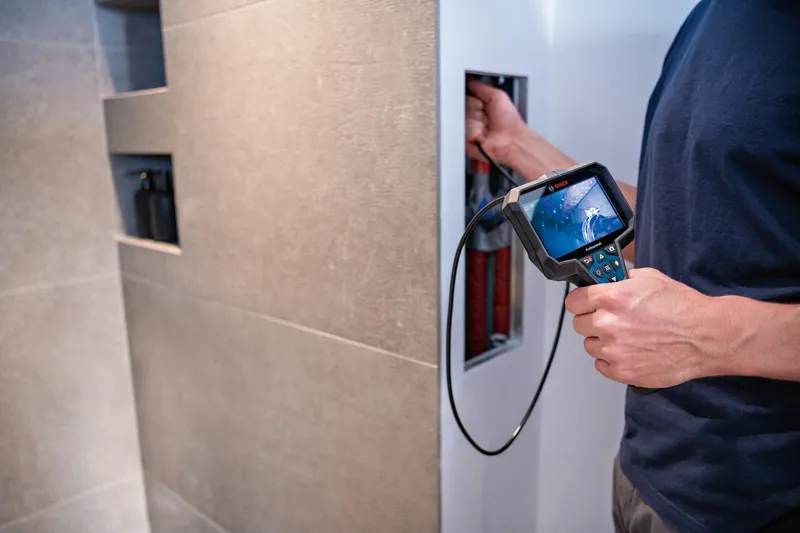

The inspection camera is perfectly suited for many tradespeople applications such as, for example, inspecting the interior of distribution boxes, pipes, and wall cavities as well as for hydraulic systems and applications in the automotive sector.
Additional Information

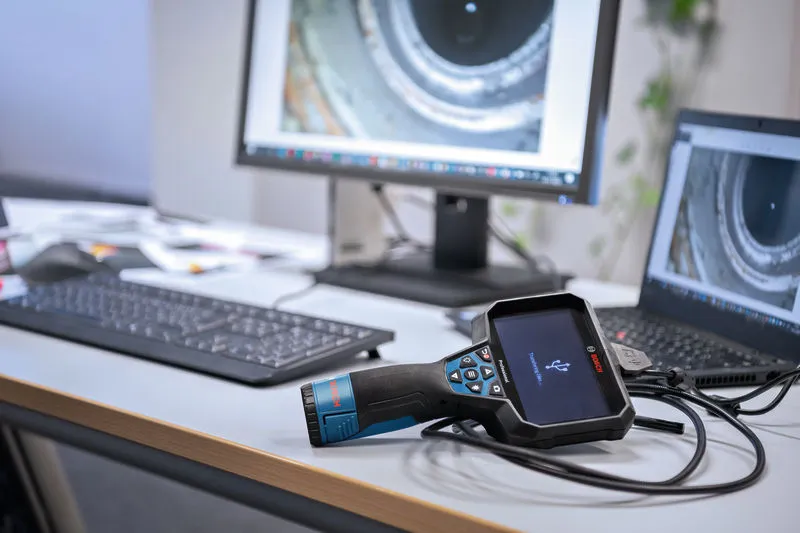

With the GIC 12V-5-27 C Professional, photos and video footage are easily transferred via USB-C® cable or Micro-SD card.
